Vertiv™ PowerUPS 6000 Industrial, 6-200kVA, 400V, Single and Three Phase UPS
The Vertiv™ PowerUPS 6000 Industrial UPS system redefines versatility for C&I applications like manufacturing, transportation, logistics, cement, and oil and gas with a compact, single- or three-phase design (6–200 kVA). Engineered for resilience, it delivers high performance in harsh physical and electrical conditions to protect mission-critical infrastructure. This double conversion online UPS provides continuous, stable power and minimizes downtime with features such as IP42 protection, advanced IGBT rectifier technology, and VRLA, Ni-Cd, and Lithium-ion batteries support.
- Indústria Química/Petroquímica (exceto Petróleo e Gás)
- Construção e Engenharia
- Setor de Saúde
- Manufatura
- Militar, Defesa, Espaço Aéreo e Mísseis
- Mineração/Metais
- Petróleo e gás
- Geração de Energia
- Transmissão e Distribuição de Eletricidade/Gás
- Varejista e Atacadista
- Transporte
Especificações
O sistema UPS Vertiv™ PowerUPS 6000 Industrial é engenheirado para entregar máxima performance, oferecendo alimentação de energia altamente confiável e ininterrupta para cargas críticas dos setores Comercial e Industrial em diversos cenários. Ele resolve com eficácia as suas necessidades de alimentação de energia de médio porte para aplicações industriais leves, incluído a IoT industrial e, portanto, dando suporte às aplicações da Indústria 4.0. O sistema UPS Vertiv™ PowerUPS 6000 Industrial entrega uma eficiência extraordinária de até 97% em dupla conversão com um design sem transformador, até 93% com um transformador e que aumenta até 99% de eficiência no modo ECO. O Vertiv™ PowerUPS 6000 Industrial é equipado com uma HMI de controle de tela touch com diagnósticos avançados, análise de eventos e analítica das formas de onda, oferecendo uma ferramenta robusta para manter a infraestrutura crítica.
Vantagens
- RESILIENT TO ENVIRONMENTAL STRESSORS: It is able to perform reliably while withstanding prolonged exposure to high temperatures, humidity, dust, vibrations and corrosive atmospheres.
- CLEAN POWER DELIVERY: The Vertiv™ PowerUPS 6000 Industrial UPS minimizes harmonics to protect critical commercial and industrial loads and sensitive equipment.
- GALVANIC ISOLATION: The optional, built-in output transformer in the 60-200kVA UPS units enhances electrical isolation. It is a standard in 6-40kVA UPS units.
- COMPACT, FRONT-ACCESS DESIGN: It has a space-saving and maintenance friendly layout (<0.5h MTTR) that allows for easy installation and maintenance in tight areas.
- SCALABILITY AND REDUNDANCY: Its intelligent paralleling enables capacity expansion or system-level redundancy.
- HIGH EFFICIENCY, LOW TCO: Its high efficiencies reduce energy use and maintenance needs, lower long-term costs, and increase total cost savings.
- BATTERY COMPATIBILITY: It is compatible with any manufacturers brand of matching VRLA, Nickel Cadmium or Lithium-Ion external battery cabinets for extended runtimes.
- INTELLIGENT MAINTENANCE BYPASS: The design allows for uninterrupted power during maintenance.
Recursos
- WIDE POWER CAPACITY RANGE: it is available in 6-200kVA at 400V power capacities.
- FLEXIBLE PHASE CONFIGURATIONS: Its 6–120 kVA models supports 3-phase input/single-phase output (3*1), while 10–200 kVA models support 3-phase input/3-phase output (3*3).

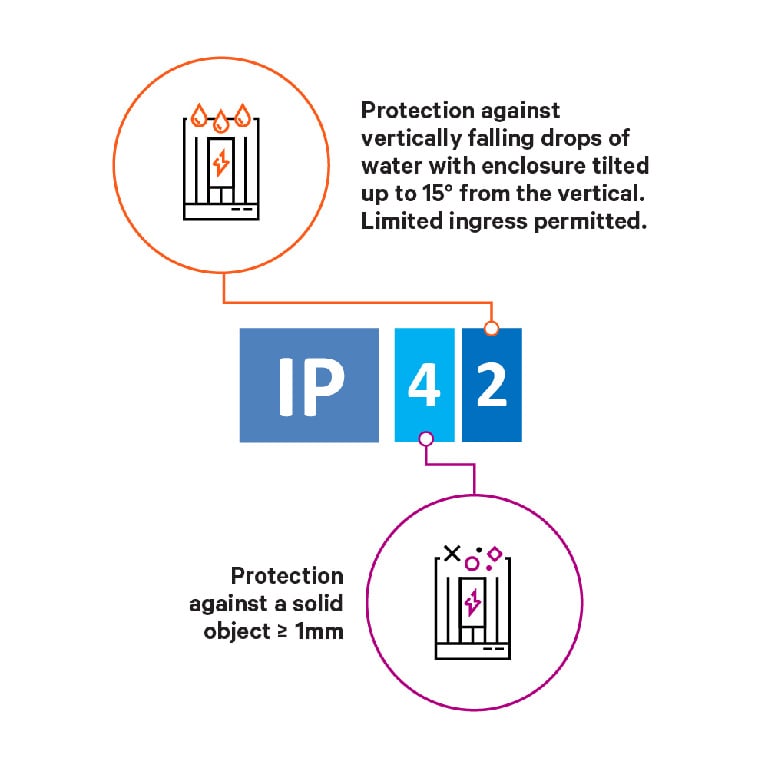

- IP42 RATING: With an industrial-grade IP42 protection rating, the Vertiv™ PowerUPS 6000 Industrial UPS is built to endure harsh environments.
- WIDE OPERATING TEMPERATURE: It operates reliably from 0°C to 50°C with an independent air duct system.
- OPTIONAL TRANSFORMERS: Input and output transformers are available as optional ancillary components.
- CABLE ENTRY OPTIONS: It is available in the standard bottom entry with an optional top cable entry cabinet.
- PARALLEL REDUNDANCY-SCALABLE DESIGN: It supports parallel operation up to 1 unit with a transformer, and up 4 transformer-less units.
- CLEAN POWER INPUT: It delivers clean power input with <5% THDi and 0.99 Power Factor for efficient performance.
- COMPACT FOOTPRINT: Space-saving design with versatile mounting options for flexible installation.
- ADVANCED USER INTERFACE: Large, intuitive 9-inch full-color touchscreen HMI with real-time waveform monitoring and predictive maintenance notifications.
- HIGH EFFICIENCY: Delivers >97% double-conversion efficiency (transformer-less), up to 93% with a transformer, and up to 99% in ECO mode.
- BATTERY COMPATIBILITY: Compatible with VRLA, Nickel Cadmium, or Lithium-Ion external battery cabinets for extended runtimes.
- CERTIFIED FOR DEMANDING ENVIRONMENTS: Compliant with railway EMC and CPSS standards; certified to EN50121 and EN50171.
