Família de produtos

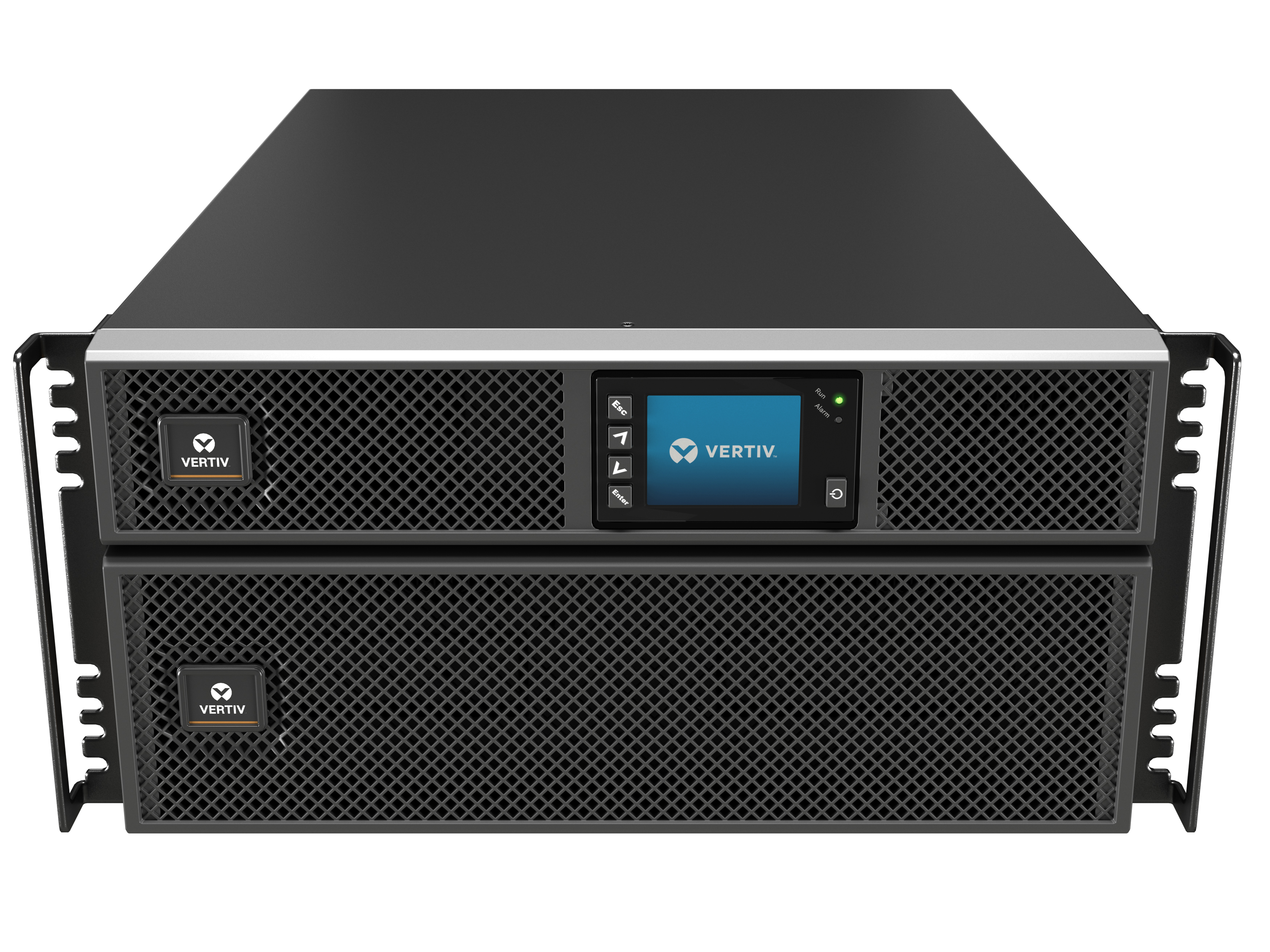

Vertiv™ Liebert® GXT5 UPS, 3kVA – 20kVA, Double Conversion Rack/Tower VRLA 208V UPS

The Vertiv™ Liebert® GXT5 Online Double Conversion UPS family offers the highest level of power conditioning and power protection for critical business IT systems. Continuous power conditioning, zero transfer time, pure sinewave output, and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications.

Get 3-10kVA Brochure Obter manual
Principais benefícios
• 3kVA – 20kVA Rack/Tower form factor • Online double conversion topology with pure sinewave output and zero transfer time • User-replaceable, hot-swappable internal and external batteries • Intellislot™ management card options (network card pre-installed in 5-20kVA units) • Individual programmable outlets • Free Power Assist™, Power Insight™ software
Especialmente adequado para:
  • Banking
  • Financial and Insurance
  • Education
  • Government
  • Healthcare
  • Retail and Wholesale
Garantia: Three-year advanced replacement, full-coverage factory warranty with optional extended warranty available.

The full range of single-phase Vertiv™ Liebert® GXT5 UPS systems are easy to deploy with convertible rack/tower design that offers installation flexibility. Its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and integration are also easy with auto-detection of matching external battery cabinets for additional runtime solutions. With available network interface card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services are available to support your critical infrastructure. Designed for high availability and capacity, these compact UPS models with output power factors up to unity provide more usable power for connected equipment. High efficiency operation of this Energy Star® 2.0 certified UPS means you get protection while supporting sustainability. Increased efficiency is also achieved with Active ECO operating mode.

Descrição geral das especificações do modelo
GXT5-3KL620RT2UXL
3,000 VA / 3,000 W   208 VAC nominal; variable based on output load   208 VAC   Up to 98% Active ECO Mode; up to 95% on-line mode   Input: L6-20P; Ouput: 2 x L6-15R and 2 x L6-20R   3.4 in   16.9 in   21.3 in   65.1 lb
GXT5-3KL630RT2UXL
3,000 VA / 3,000 W   208 VAC nominal; variable based on output load   208 VAC   Up to 98% Active ECO Mode; up to 95% on-line mode   Input: L6-30P; Ouput: 2 x L6-15R and 2 x L6-30R   3.4 in   16.9 in   21.3 in   65.1 lb
GXT5-5000MVRT4UXLN
5,000 VA / 5,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   6.8 in   16.9 in   25.6 in   125.6 lb
GXT5-6000MVRT4UXLN
6,000 VA / 6,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   6.8 in   16.9 in   25.6 in   125.6 lb
GXT5-8000MVRT6UXLN
8,000 VA / 8,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   10.2 in   16.9 in   25.6 in   224.8 lb
GXT5-10KMVRT6UXLN
10,000 VA / 10,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   10.2 in   16.9 in   25.6 in   224.8 lb
GXT5-15KMVRT11UXLN
15,000 VA / 15,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   19.0 in   16.9 in   26.7 in   396.6 lbs
GXT5-20KMVRT11UXLN
20,000 VA / 20,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   19.0 in   16.9 in   26.7 in   396.6 lbs
GXT5-5000HVRT5UXLN
5,000 VA / 5,000 W   Typical: 208VAC / Range: 176-288VAC   200/208/220/230/240 VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R   8.5 in   16.9 in   24.8 in   156.7 lb
GXT5-6KL630RT5UXLN
4,900 VA / 4,600 W   Typical: 208VAC / Range: 175-280 VAC   200/208/220/230/240 VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Input: L6-30P; Outpu: 2 x L6-20R and 2 x L6-30R   8.5 in   16.9 in   23.6 in   149.1 lb
GXT5-5KL630RT3UXLN
4,900 VA / 4,600 W   Typical: 208VAC / Range: 175-280 VAC   200/208/220/230/240 VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Input: L6-30P; Outpu: 2 x L6-20R and 2 x L6-30R   5.25 in   16.9 in   34 in   122 lbs
GXT5-8000HVRT5UXLN
8,000 VA / 8,000 W   Typical: 208VAC / Range: 176-288VAC   200/208/220/230/240 VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R   8.5 in   16.9 in   24.8 in   164.2 lb
GXT5-10KHVRT5UXLN
10,000 VA / 10,000 W   Typical: 208VAC / Range: 176-288VAC   200/208/220/230/240 VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R   8.5 in   16.9 in   24.8 in   166.4 lbs
GXT5-EBC72VRT2U

GXT5-EBC144VRT2U
          3.4 in   16.9 in   26.8 in   81.6 lbs
GXT5-EBC192VRT3U

GXT5-EBC288VRT4U
          6.8 in   16.9 in   26.8 in   189.6 lb
  • 3kVA – 20kVA

    Wide range of capacities allow you to select the power and runtime that best meet your needs.

  • Optimized form factors

    Rack/Tower convertible form factors provide flexibility at sites with variable installation needs.

  • Online double conversion topology

    Reliable online double conversion topology isolates connected equipment from utility power disturbances while providing top of the line voltage/frequency regulation and surge protection. It is generator friendly with zero transfer time and features an internal automatic bypass.

  • Pure sinewave output

    Pure sinewave output while on battery simulates utility power and is compatible with active power factor corrected power supplies.

  • High output power factor

    0.9 to unity power factor provides more actual power to the load increasing power density.

  • Color gravity-sensing LCD display

    An intuitive LCD display that provides UPS status, power metrics, configuration options, alarms, and fault codes to manage the UPS.

  • Internal bypass

    Automatic internal bypass provides seamless power to the connected load in the unlikely event of a system issue.

  • External bypass

    Integrated external maintenance bypass with the 5-10kVA models to support the load during planned maintenance or UPS upgrades and is available as an optional accessory for other models.

  • Advanced battery charging including temperature compensation and predictive battery replacement date

    A three-stage charger with a smart control CPU optimizes the battery charging cycle and maximizes battery life.

  • User-replaceable, hot-swappable batteries

    User-replaceable batteries may be swapped out quickly and safely without disruption and without having to turn off connected equipment.

  • Scalable runtime

    When longer runtime is desired, External Battery Cabinets (EBC) may be added to increase the runtime and availability of your connected devices. EBCs are auto detected so no user configuration is necessary.

  • Individual programmable outlets

    Configurable outlets for load management. Cycle power to hung devices and load shed connected equipment, prioritizing critical devices to extend availability while on battery backup power.

  • Energy Star 2.0 Certified

    A government certification for energy efficiency. This product meets strict energy-efficiency specifications that reduces energy consumption, saving money and helping protect the environment.

  • Generator friendly design

    Integrates seamlessly into site power infrastructure

  • Input circuit breaker

    Re-settable breaker protects against equipment damage from a short circuit or overload.

  • Network grade surge protection

    Network grade surge protection meets ANSI C62.41, Category B standards, providing a high level of input surge protection.

  • Emergency Power Off (EPO)

    Remote UPS shutoff in the event of a fire or other onsite emergency.

  • Communication ports

    USB and Serial ports support monitoring and management of the UPS.

  • Optional management and communication cards

    Intellislot™ enables network integration connectivity and allows remote monitoring, start-up or restart of the connected equipment. SNMP, Modbus, BACnet and environmental sensor options are available.

  • Free management software

    Power Assist software for local management via USB. Easy to install and allows for simple configuring, monitoring, alarm notifications and management of the UPS. Automatic shutdown options protect connected equipment during an extended power loss and ensure against data loss.

    Power Insight software for on-premise and remote UPS monitoring and management with notifications and control of network connected devices. Configurable, automatic shutdown for physical and virtual servers. Includes integrations with VMWare vCenter, Dell VXRail Manager, and Nutanix Prism Central. Provides a single dashboard view of the UPS status, alarms, notifications, and summary data.

  • 3-year warranty

    Complete coverage on UPS including batteries.

  • Equipment Protection Plan (EPP)

    $500,000 Equipment Protection Plan provides reimbursement or replacement of any connected equipment that is damaged by a power surge while connected to your Vertiv UPS.

  • Trade-In program

    Allows you to trade in an aging Vertiv or competitor's UPS for a new Vertiv equivalent UPS at a discount. Vertiv will manage the collection and disposal of your old UPS at no cost.
