제품 모델

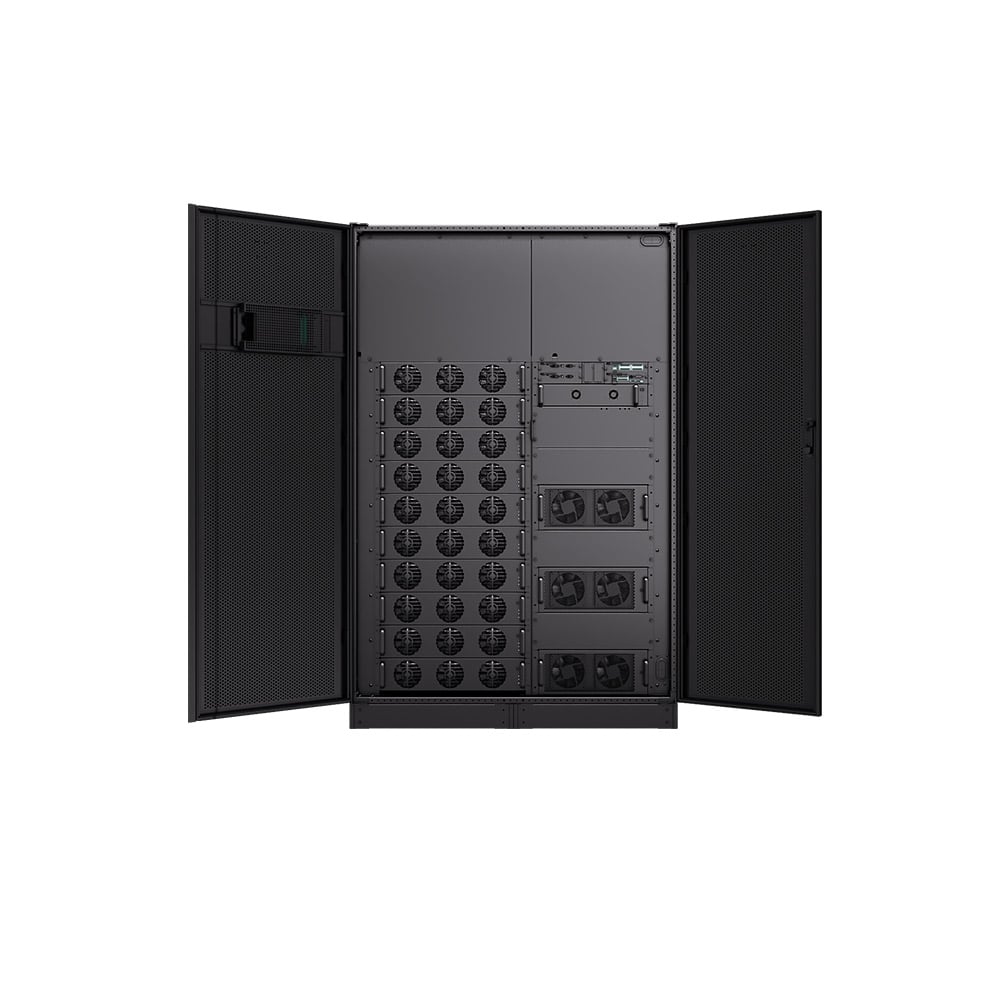

Vertiv™ PowerUPS 9000 480V
This system offers a power capacity ranging from 625kW to 1250kW within a single frame. Additionally, it supports parallel installation of up to four frames, achieving a combined power output of up to 5MW.
이 제품을 대시보드에 저장
나중에 볼 수 있도록 이 제품을 대시보드에 저장했습니다. 저장하고 싶지 않을 때는 대시보드에서 항목을 제거하면 됩니다.
로그인하거나 이것을 나중에 사용할 수 있도록 계정을 만드십시오.
적합한 용도:
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Telecom
제품 모델
Vertiv™ PowerUPS 9000 480V
This system offers a power capacity ranging from 625kW to 1250kW within a single frame. Additionally, it supports parallel installation of up to four frames, achieving a combined power output of up to 5MW.
적합한 용도:
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Telecom
복지
• Simplified product selection, common user experience, leveraging global application expertise
• Cost-optimized solution >= 1250kVA, high power density (up to >625kW/m2) are an ideal fit for power-intensive applications
• No compromise between load protection and energy savings with Dynamic Online feature
• Safety first, whatever the application need is
• Customizable power setup depending on site construction progress and real load demand
• Lower energy consumption, higher savings, and environmental sustainability
• Efficient and sustainable power during outages
• High fault clearing capacity, protecting load under the most challenging conditions
• Improved reliability and fault management
• Simplified maintenance and improved service efficiency with minimized MTTR
• Better RCAR analysis for enhanced troubleshooting
• Enables Vertiv™ Digital Services
• Automatic software updates and power alignment for optimal system performance avoiding human errors
• User-friendly interface with wizards and guided procedures
특징
• One Global Platform (CE & UL)
• Modular Architecture, 125kVA Power modules
• Three Operating Modes
• Optional Back-feed Disconnect cabinet and DC Ground Fault Detection
• Configurable power modules
• Increased Efficiency with high power solution
• Extended Backup Time Configurations
• 150kAIC Withstand Rating
• Independent Power modules Controls
• Hot Serviceability at Power module Level
• Fault Waveforms Recorder
• Vertiv™ LIFE™ Services
• Simplified Firmware Update
• Improved HMI User Experience*
사양
Vertiv™ PowerUPS 9000 480V
- Product Overview
- 무게(파운드/kg)
- 4321 lbs
- 무게(파운드/kg)
- 4321 lbs
- 세로(인치/mm)
- 82.6 in
- 세로(인치/mm)
- 1998.9 mm
- 깊이(인치/mm)
- 39.3 in
- 깊이(인치/mm)
- 998.2 mm
- Interfaces/Ports
- 인터페이스 옵션
- RDU120
- 프로토콜
- Modbus TCP/IP
- 제어 패널
- Touch screen 9inch display
- 케이블 액세스
- Top or Bottom
- 서비스 액세스
- Front access
- Operational Conditions
- 작동 온도
- 0-50°C (with auto de-rating)
- 일반
- Uninterruptible Power Supply
- 토폴로지
- 3 Level IGBT topology
- Miscellaneous
- 일반
- Uninterruptible Power Supply
- 토폴로지
- 3 Level IGBT topology
설명서
브로슈어 및 데이터 시트
*모델별 다운로드를 보려면 위 사양 차트에서 모델명을 선택하여 모델별 제품 페이지로 가야 합니다.
