VP1U60A0

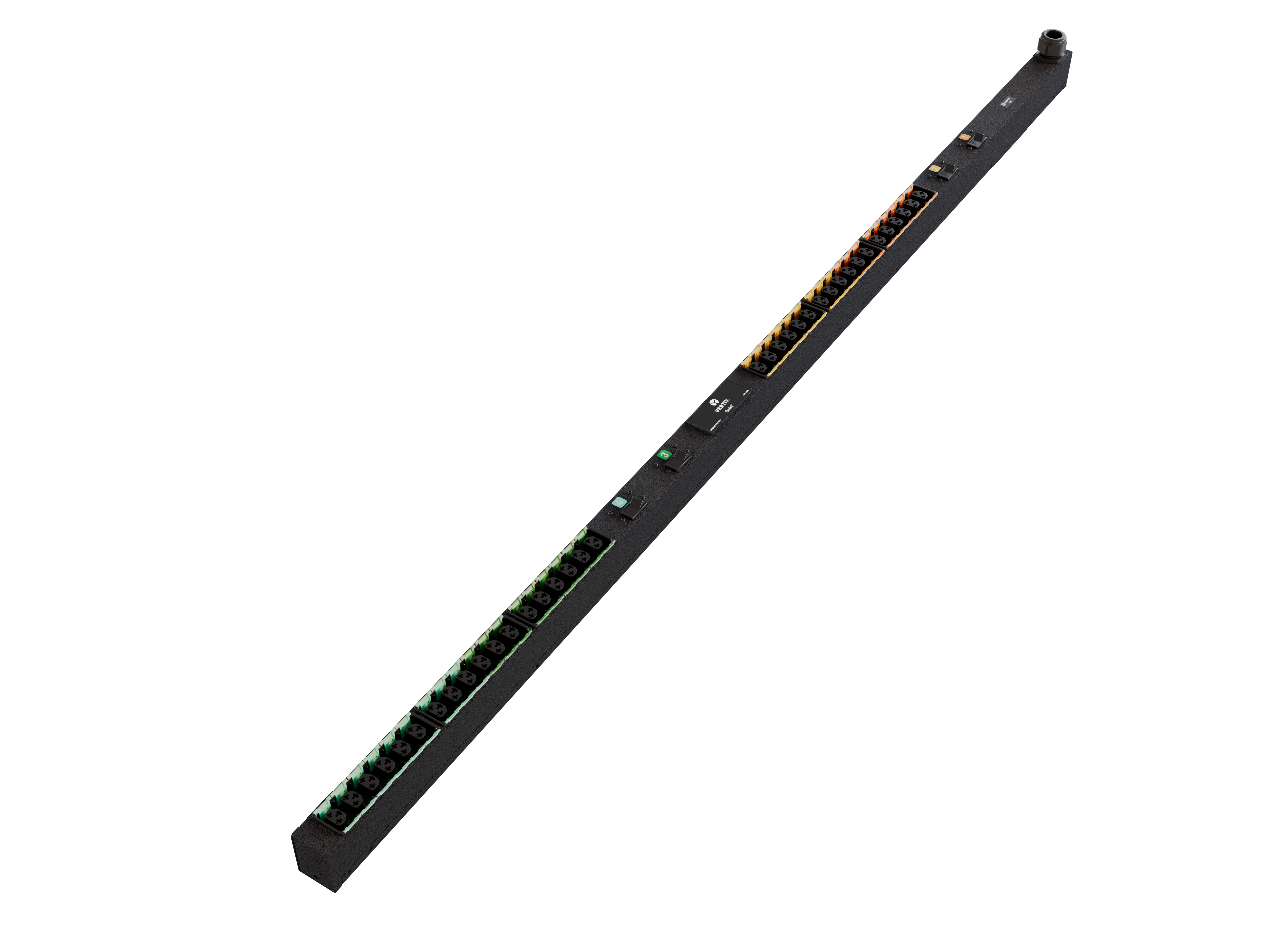

The Vertiv PowerIT VP1U60A0 is a basic rack power distribution unit (rPDU). It is a 60/63A, 240V, 0U, vertical rPDU with 36 Combination C13/C19 outlets and a 1P+N+E (IP44) plug providing 14.4kW of power capacity. This unit is UL/CE dual listed, RoHS-certified, and individually tested for functionality and reliability. The unit includes a standard five-year limited warranty.
Questo prodotto è stato salvato sul tuo dashboard
Hai appena salvato questo prodotto sul tuo dashboard per vederlo più tardi. Puoi facilmente rimuovere l'articolo dal tuo dashboard se non desideri più tenerlo salvato.
Eseguire il login o creare un account per salvare queste informazioni per dopo
- Banking
- Financial and Insurance
- Broadcast and Entertainment
- Construction and Engineering
- Data Center/Colocation/Hosting
- Education
- Government
- Manufacturing
- Military
- Defense
- Aerospace and Missile
- Power Generation
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
- Telecom
VP1U60A0
The Vertiv PowerIT VP1U60A0 is a basic rack power distribution unit (rPDU). It is a 60/63A, 240V, 0U, vertical rPDU with 36 Combination C13/C19 outlets and a 1P+N+E (IP44) plug providing 14.4kW of power capacity. This unit is UL/CE dual listed, RoHS-certified, and individually tested for functionality and reliability. The unit includes a standard five-year limited warranty.
- Banking
- Financial and Insurance
- Broadcast and Entertainment
- Construction and Engineering
- Data Center/Colocation/Hosting
- Education
- Government
- Manufacturing
- Military
- Defense
- Aerospace and Missile
- Power Generation
- Power/Gas Transmission and Distribution
- Professional Services
- Retail and Wholesale
- Telecom
Vantaggi
- ENHANCED INTELLIGENCE: With advanced monitoring and management, users have a comprehensive view of critical IT equipment power usage either at the rack or via remote access. Users can also power cycle unresponsive IT equipment remotely with select switched RTS models. You can set thresholds to receive alarms when power conditions fall outside the desired range for added protection.
- OUTLET CONTROL: Address unresponsive equipment or increase runtime of critical equipment upon power failure with outlet-level control.
- 100% TESTED: Individually tested, functional, and reliable Vertiv PowerIT rPDU units meet local compliance requirements: UL, RoHS, China RoHS, and TAA.
- FIVE-YEAR WARRANTY: All Vertiv PowerIT RPDUs are individually tested for functionality and reliability. The unit includes a standard five-year limited warranty.
Caratteristiche
- UPGRADABLE TECHNOLOGY: The Vertiv PowerIT rPDUs equipped with the upgradeable Interchangeable Monitoring Device (IMD) allow you to upgrade your monitoring technology as the needs of your business evolves. The IMDs are hot-swappable so scheduled downtime is not required for an upgrade.
- OUTLET FLEXIBILITY: Select models in the Vertiv PowerIT rPDU product line are equipped with the Combination Outlets C13/C19. These hybrid outlets function as both a C13 and C19 receptacle. The outlets accommodate both C14 and C20 plug types interchangeably, providing you the flexibility to support common critical IT equipment using just a single rack PDU.
- SIMPLIFIED MANAGEMENT: Daisy-chain up to 50 devices on a single IP address with Vertiv Intelligence Director. Reduce deployment time with self-configuration of downstream devices.
- EASY-TO-USE FRONT PANEL: The rPDU has an easy-to-use front panel that provides visual identification of the active power source for easy monitoring. It also allows users to do a manual transfer of the power source. The transfer can be done either by touch of a button or remotely, so users have options on how to manage power loads during maintenance or emergency power loss.
Specifiche
Il Vertiv™ PowerIT™ Basic Rack PDU fornisce una distribuzione affidabile dell’alimentazione a un prezzo competitivo. Il Basic PDU è la soluzione entry-level della famiglia di Vertiv PowerIT Rack PDU e fornisce una distribuzione affidabile dell’alimentazione di livello base in qualsiasi ambiente IT.
- Product Overview
- Capacità
- 63A
- Intervallo tensione d'ingresso
- 2P + E (IP44)
- Intervallo tensione di uscita
- 240V
- Opzioni di uscita
- (36) Combination Outlet C13/C19
- Ubicazione
- Vertical
- Physical Characteristics
- Peso (libbre / kg)
- 19
- Larghezza (in / mm)
- 3.5
- Profondità (in / mm)
- 2.6
