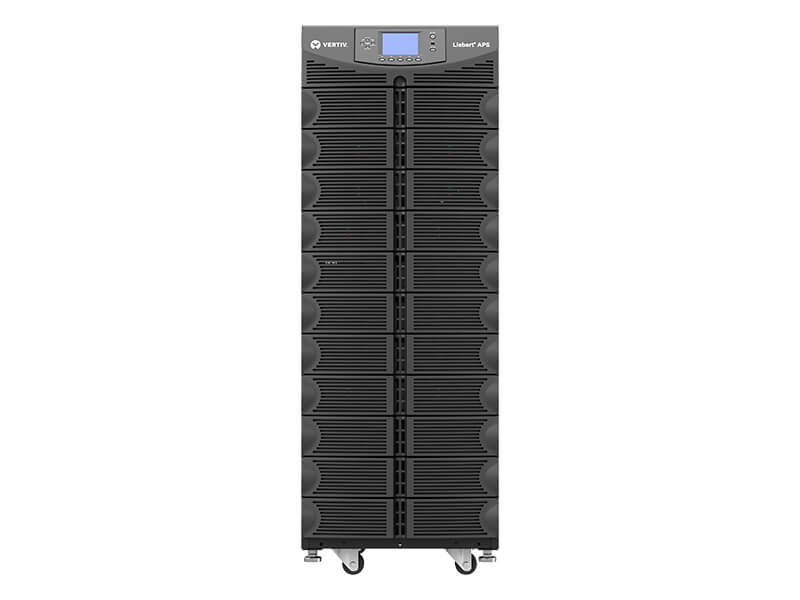

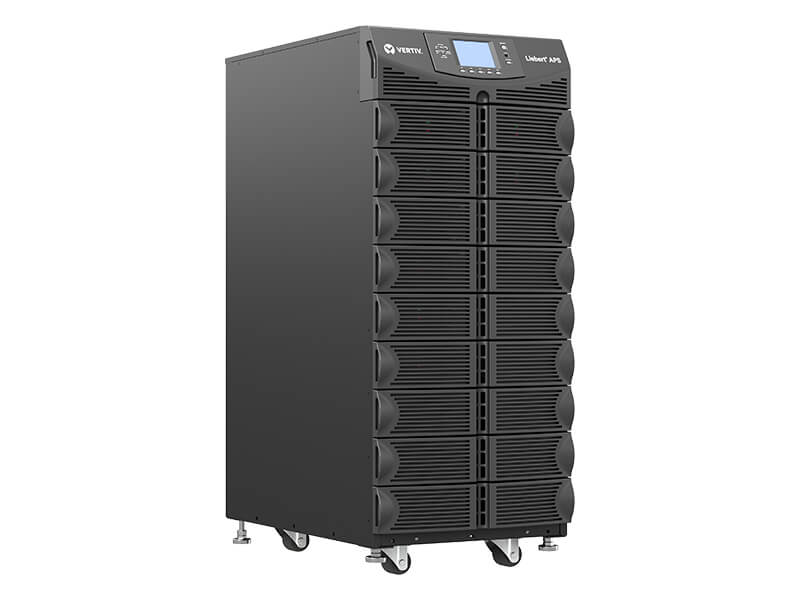

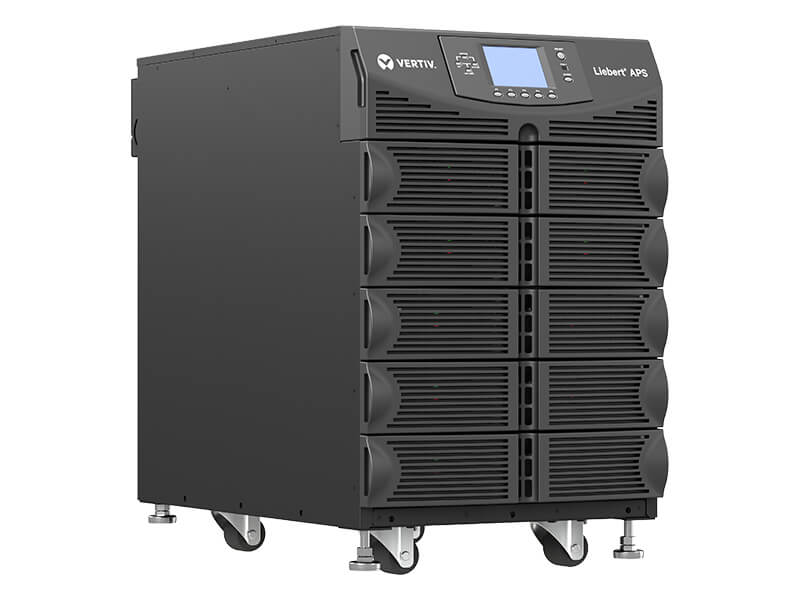

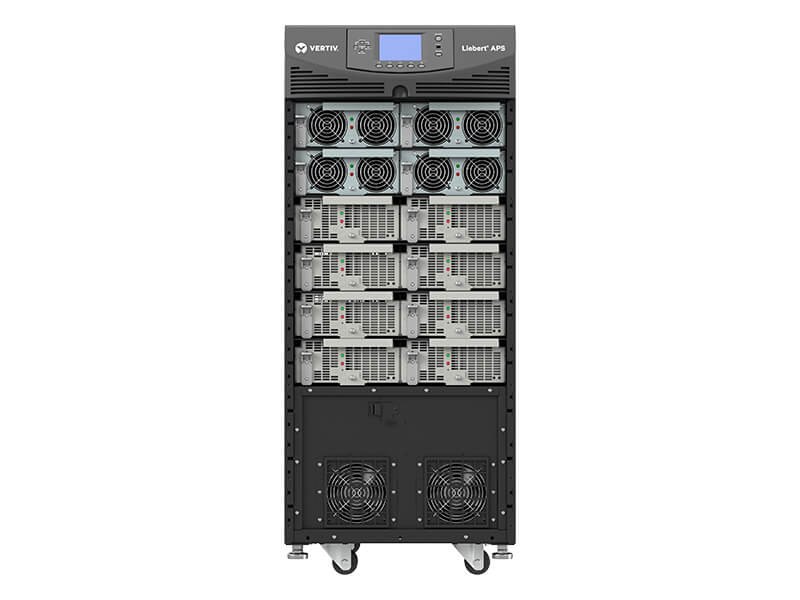

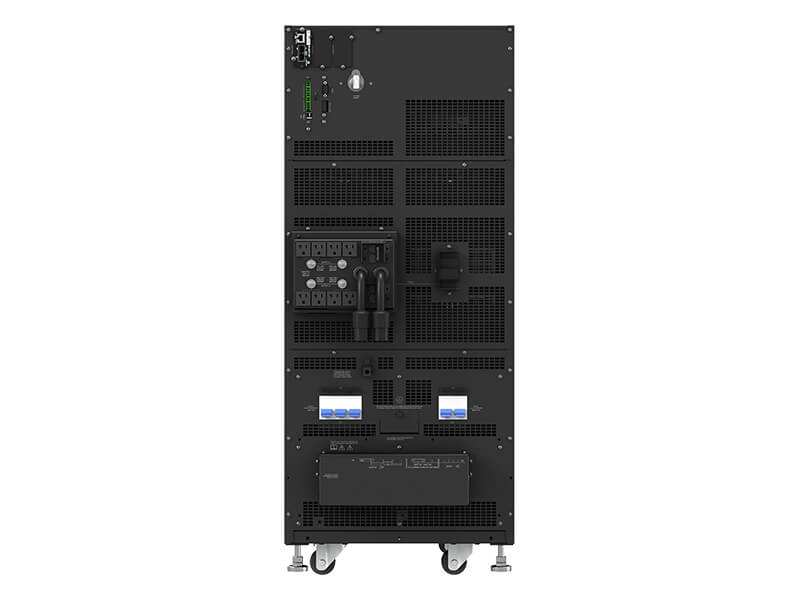

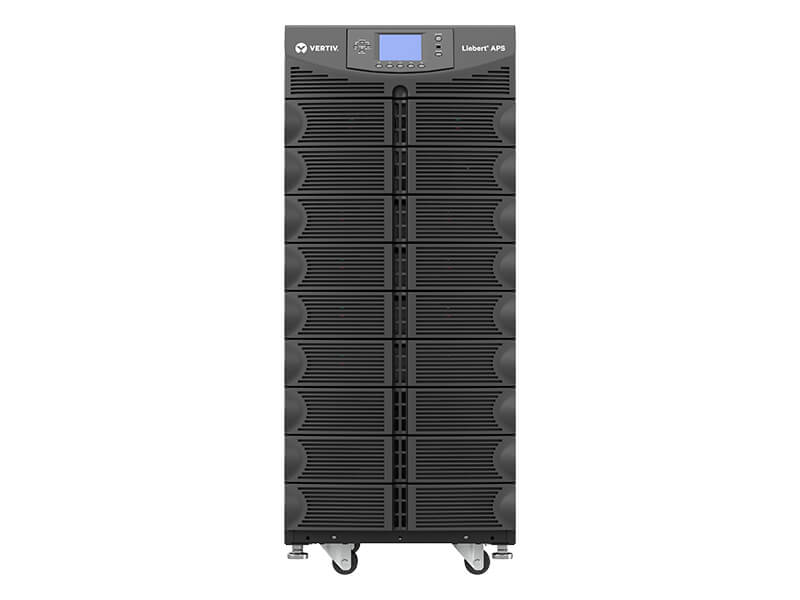

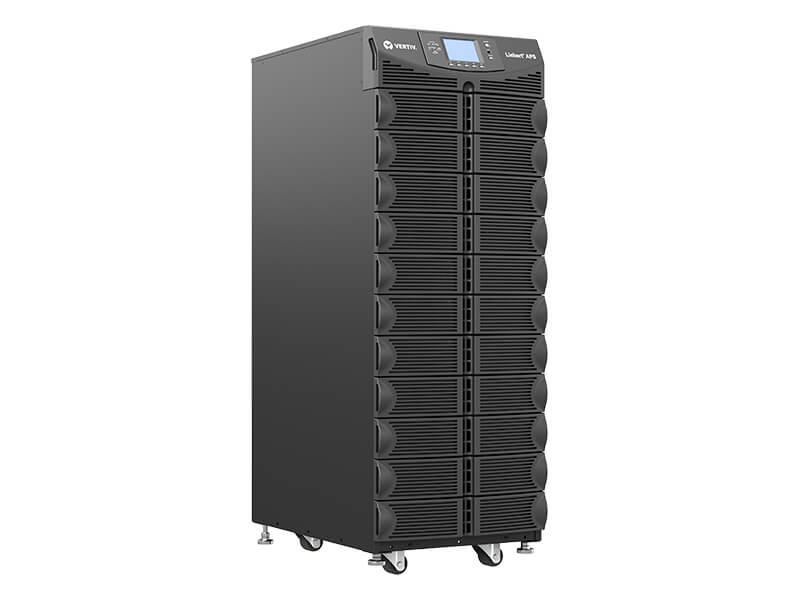

Vertiv™ Liebert® APS Modular UPS, 5kVA – 20kVA N+1, Double Conversion Rack/Tower Lithium- Ion/VRLA 208V UPS
The Vertiv™ Liebert® APS is a modular online double conversion UPS, offering high level of power conditioning and power protection for critical IT systems. It supports VRLA and lithium-ion batteries. Continuous power conditioning, zero transfer time, pure sinewave output and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications. The modular design offers maximum power availability with built-in redundancy for fault tolerance.
Sauvegardez ce produit dans votre tableau de bord
Vous venez de sauvegarder ce produit dans votre tableau de bord afin de le consulter ultérieurement. Vous pourrez ensuite facilement le supprimer quand vous n’en aurez plus besoin.
Veuillez vous connecter ou créer un compte pour sauvegarder ce contenu afin de le consulter ultérieurement
- Administration publique
- Santé
- Commerce de détail et de gros
- Transport
Vertiv™ Liebert® APS Modular UPS, 5kVA – 20kVA N+1, Double Conversion Rack/Tower Lithium- Ion/VRLA 208V UPS
The Vertiv™ Liebert® APS is a modular online double conversion UPS, offering high level of power conditioning and power protection for critical IT systems. It supports VRLA and lithium-ion batteries. Continuous power conditioning, zero transfer time, pure sinewave output and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications. The modular design offers maximum power availability with built-in redundancy for fault tolerance.
- Administration publique
- Santé
- Commerce de détail et de gros
- Transport
Spécifications
Vertiv Liebert® APS UPS supports both VRLA and lithium-ion battery strings in the same frame. VRLA remains a practical choice for shorter runtime or cost-sensitive environments, while lithium-ion offers longer useful life, faster recharge, and better performance at higher operating temperatures. Both battery types integrate seamlessly to support flexible runtime, cost, and maintenance planning across different sites.
|
AL3A0NHUGNNXLKB
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Up to 15kVA/13.5kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 42 in | 17 in | 32 in | 551lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL3B0NHVGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 42 in | 17 in | 32 in | 592lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL3C0NHWGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 42 in | 17 in | 32 in | 633lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL4A0NHUGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 49 in | 17 in | 34 in | 581lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL4B0NHVGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 49 in | 17 in | 34 in | 622lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL4C0NHWGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 49 in | 17 in | 34 in | 663lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL4D0NHXGNNXLKB (LiO)
|
||||||||
| Up to 20kVA/18kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 49 in | 17 in | 34 in | 704lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL5A0NHUGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 27 in | 17 in | 32 in | 321lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL5B0NHVGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 27 in | 17 in | 32 in | 362lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL5C0NHWGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 27 in | 17 in | 32 in | 403lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL6A0NHUGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 38 in | 17 in | 34 in | 361lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL6B0NHVGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 38 in | 17 in | 34 in | 402lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL6C0NHWGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 38 in | 17 in | 34 in | 443lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AL6D0NHXGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 38 in | 17 in | 34 in | 484lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS3A0NCUGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 42 in | 17 in | 32 in | 605 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS3B0NCVGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 42 in | 17 in | 32 in | 700 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS3C0NCWGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 42 in | 17 in | 32 in | 795 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS4A0NCUGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 49 in | 17 in | 34 in | 635 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS4B0NCVGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 49 in | 17 in | 34 in | 730 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS4C0NCWGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 49 in | 17 in | 34 in | 825 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS4D0NCXGNNXLKB
|
||||||||
| Up to 20kVA/18kW N+1 | 208VAC | 208/120VAC | Up to 92% | 3-Wire (L-L-G) | 49 in | 17 in | 34 in | 920 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS5A0NCUGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 27 in | 17 in | 32 in | 375 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS5B0NCVGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 27 in | 17 in | 32 in | 470 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS5C0NCWGNNXLKB
|
||||||||
| Up to 15kVA/13.5kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 27 in | 17 in | 32 in | 565 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS6A0NCUGNNXLKB (VRLA)
|
||||||||
| Up to 20kVA/18kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 38 in | 17 in | 34 in | 415 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS6B0NCVGNNXLKB (VRLA)
|
||||||||
| Up to 20kVA/18kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 38 in | 17 in | 34 in | 510 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS6C0NCWGNNXLKB (VRLA)
|
||||||||
| Up to 20kVA/18kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 38 in | 17 in | 34 in | 605 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
AS6D0NCXGNNXLKB (VRLA)
|
||||||||
| Up to 20kVA/18kW N+1 | 208/120VAC | 208/120VAC | Up to 92% | 4-Wire (L-L-N-G) | 38 in | 17 in | 34 in | 700 lbs |
| Afficher plus d'informations sur le produit |
- Modular, Scalable Architecture: Modules come in 5–20 kVA capacity and scalable in 5 kVA increments with N+1 redundancy. With Pay-as-you-grow flexibility, add power or battery modules as demand increases without replacing the entire system.
- Dual Battery Chemistry Support:This industry-first UPS supports VRLA and Lithium-Ion in the same frame. Choose the battery technology that fits your budget and runtime needs today, with the ability to upgrade later without firmware changes.

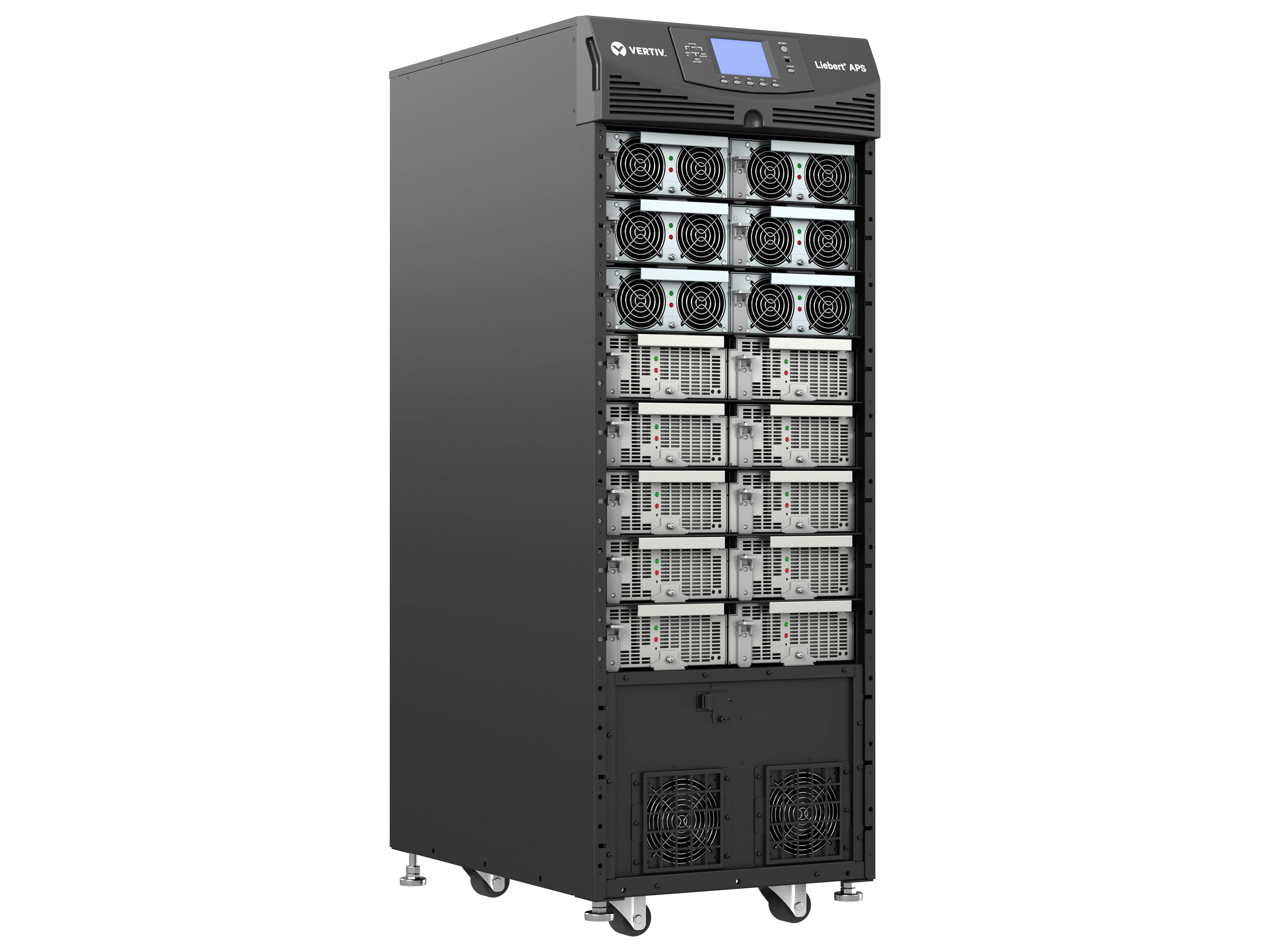

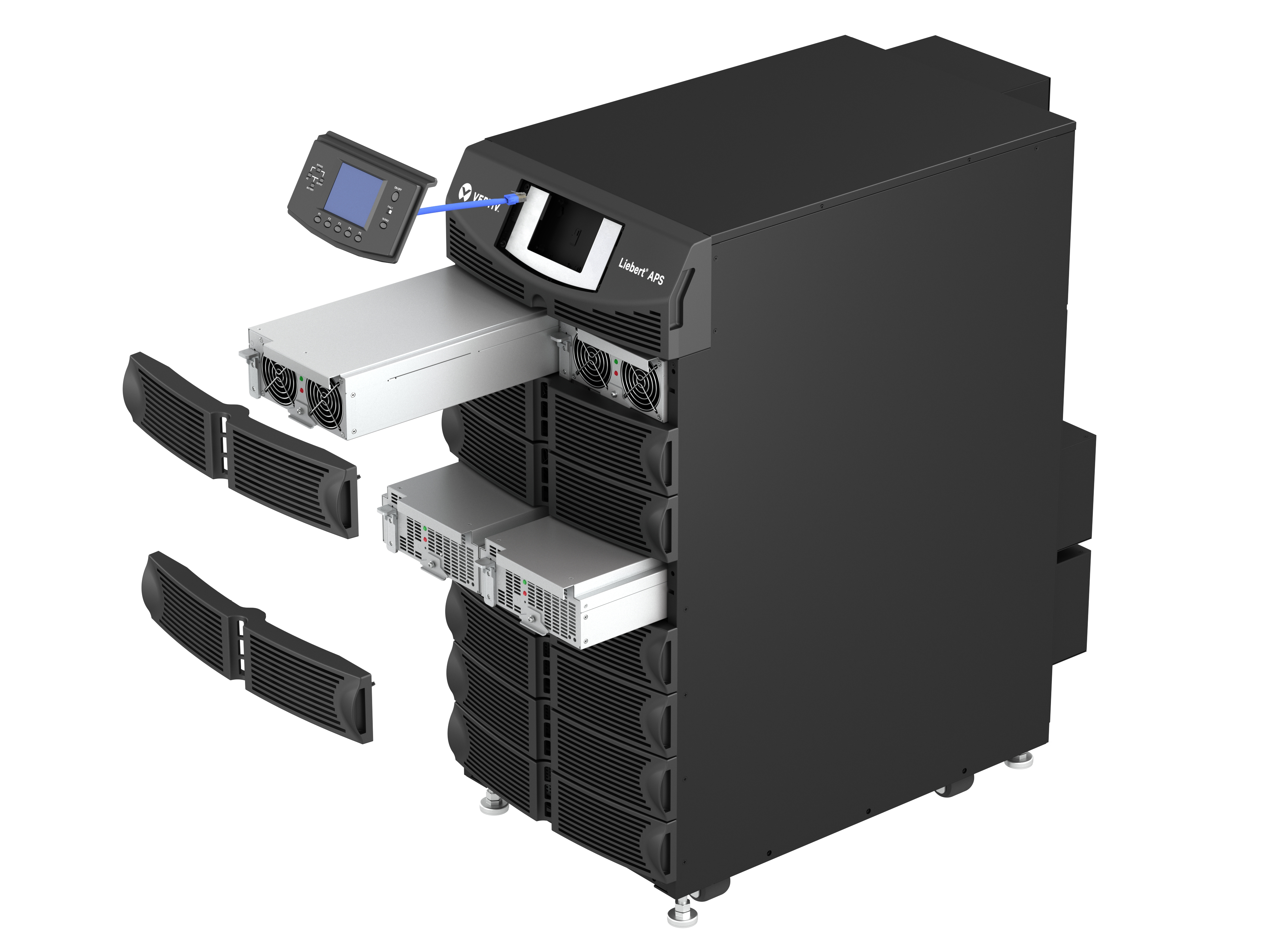

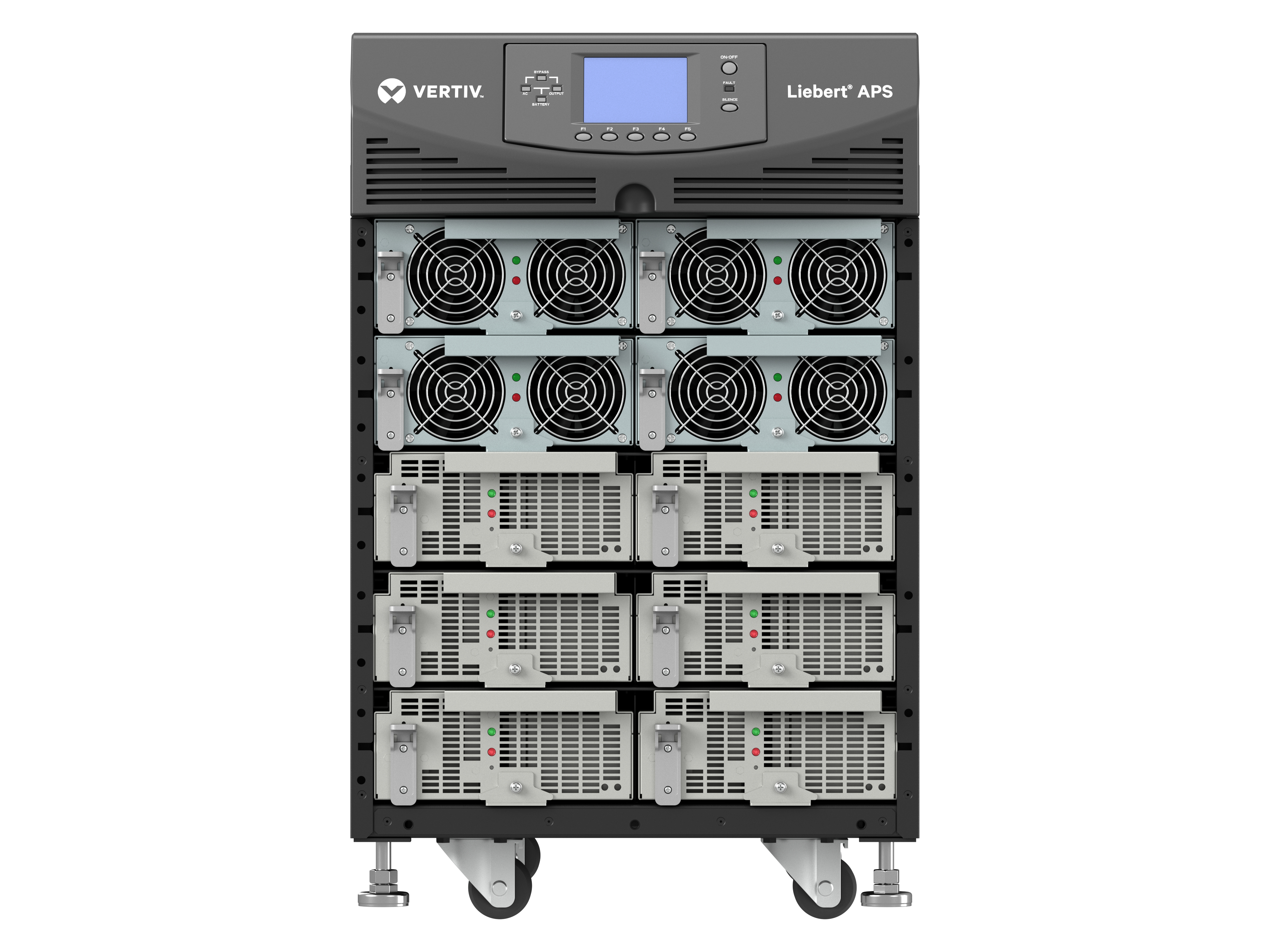

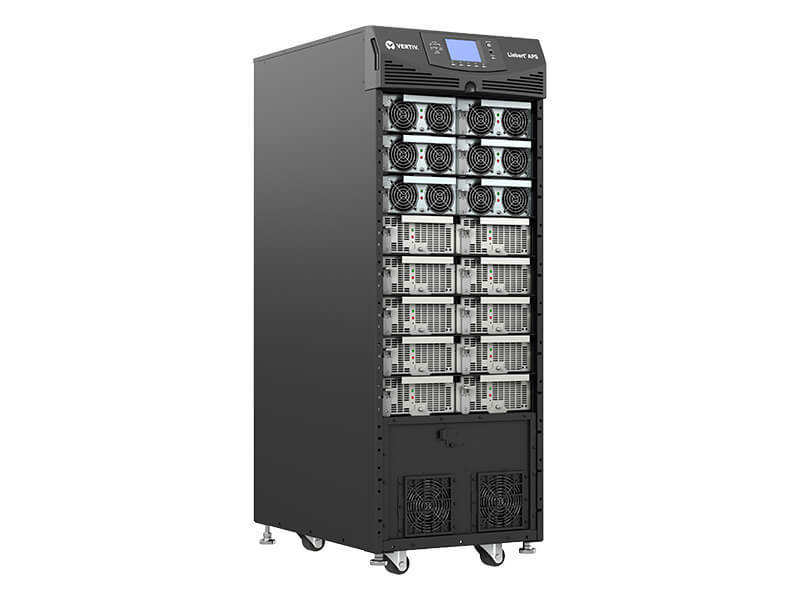

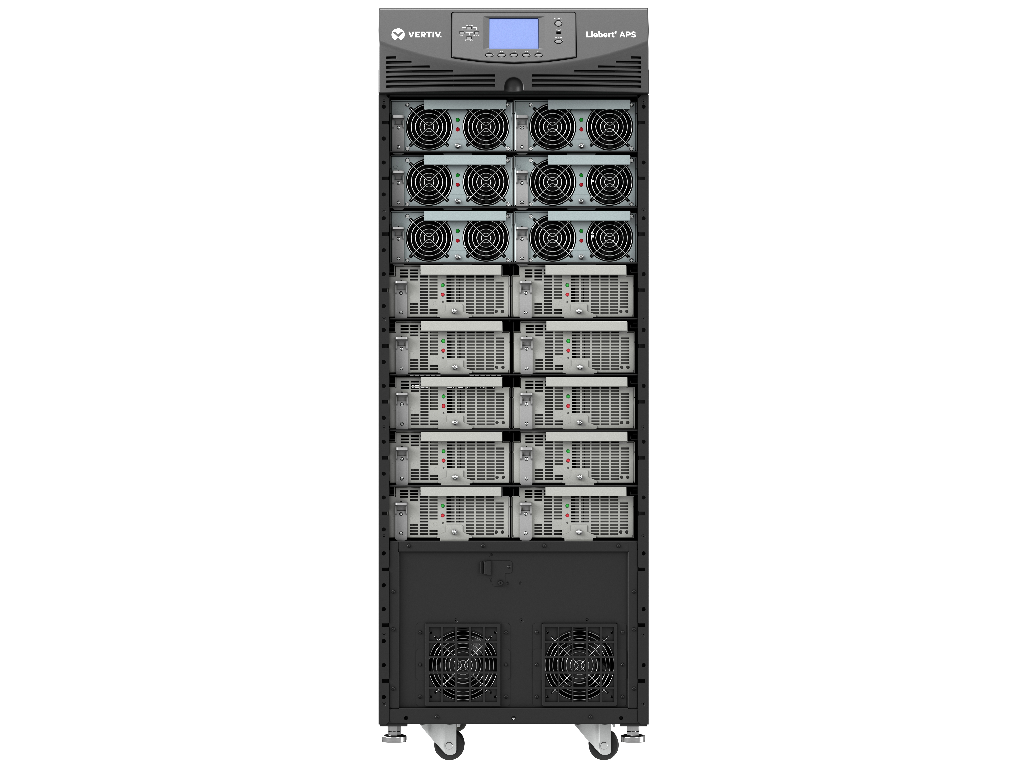

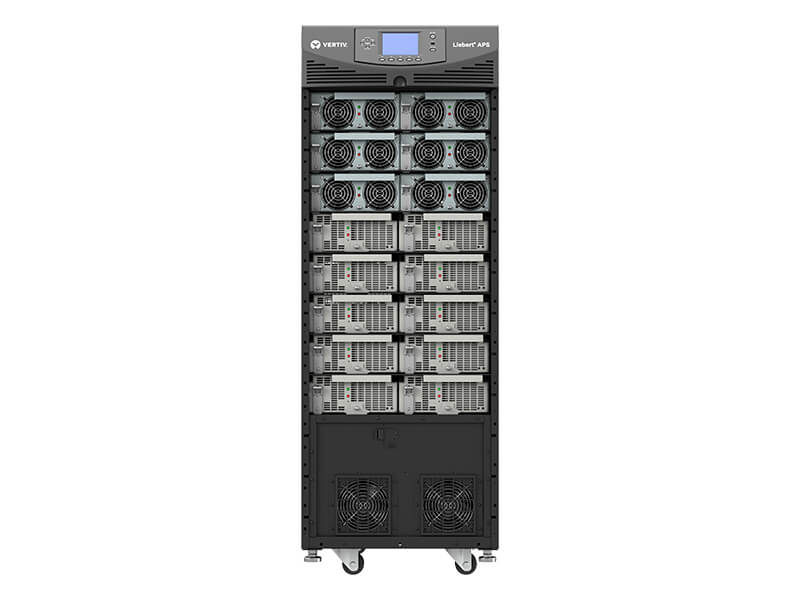

- Hot-Swappable Modules: This user-replaceable power, battery, and control modules allow you to perform maintenance or upgrades without downtime, providing continuous availability.
- Built-In Redundancy: It has module-level N+1 redundancy for power and battery, which eliminates single points of failure, so critical loads remain protected even during maintenance or component failure.
- Online Double Conversion Topology: Its true online design with zero transfer time and internal automatic bypass protects your devices against all power anomalies (sags, surges, harmonics) and provides clean, conditioned power for sensitive IT loads.
- High Output Power Factor: With 0.9 power factor per module (5 kVA / 4.5 kW), it delivers more usable power in the same footprint, optimizing rack and floor space.
- Intelligent Battery Management: It has temperature-compensated charging for VRLA and integrated BMS for Lithium-Ion. This management extends battery life, reduces replacement costs, and provides real-time health monitoring for predictive maintenance.

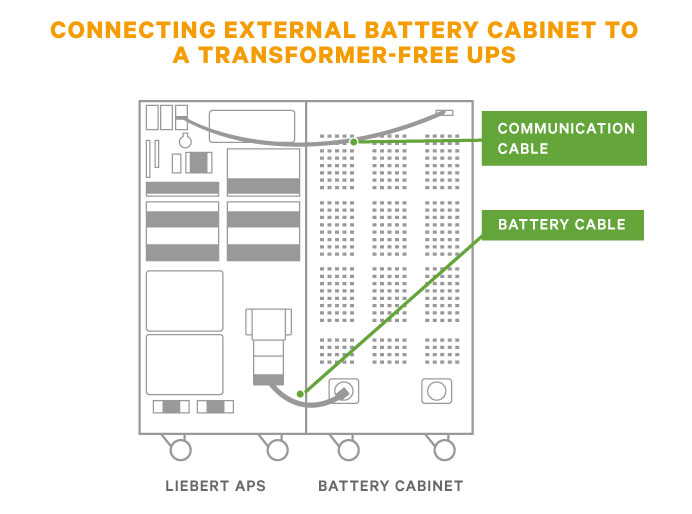

- Flexible Runtime Options: Add battery modules or external battery cabinets for extended backup. Scale runtime without taking the load offline, which is ideal for evolving site requirements.
- Remote Monitoring & Control: It comes with factory-installed Vertiv™ Liebert® IntelliSlot™ RDU120 card with Vertiv™ LIFE™ Services. This enables secure remote management, predictive analytics, and proactive service to maximize uptime.
- Compact, Versatile Deployment: It allows tower or rack configuration with optional PODs for varied outlet types. This fits diverse IT and edge environments with simplified installation and adaptability.
- One-Line Diagram APS - AS3/4 & AL3/4
- One-Line Diagram APS- AS3/4 & AL3/4 Floor Mount XFMR MBC 1PH/3 Wire
- One-Line Diagram APS-AS3/4 & AL3/4 Rack Mount MBC 1PH /3 Wire
- One-Line Diagram APS - AS3/4 & AL3/4 Wall Mount MBC 1PH/3 Wire
- One-Line Diagram APS - AS5/6 & AL5/6
- One-Line Diagram APS-AS5/6 & AL5/6 Floor Mount MBC 1PH/3 Wire
- One-Line Diagram APS-AS5/6 & AL5/6 Rack Mount MBC 1PH/3 Wire
- One-Line Diagram APS - AS5/6 & AL5/6 Wall Mount MBC 1PH/3 Wire
- One-Line Diagram APS - AS5/6 & AL5/6 Floor Mount MBC 1PH/4 Wire
- One-Line Diagram APS - AS5/6 & AL5/6 Rack Mount MBC 1PH/4 Wire
- One-Line Diagram APS - AS5/6 & AL5/6 Wall Mount MBC 1PH/4 Wire
* Pour accéder aux téléchargements propres à des modèles particuliers, rendez-vous sur la page du produit en question en sélectionnant le nom de modèle dans le tableau de spécifications ci-dessus.
Trouver la personne-ressource de votre région
Modifier
Liebert® APS UPS supports either VRLA or lithium-ion battery strings in the same frame. VRLA remains a practical choice for shorter runtime or cost-sensitive environments, while lithium-ion offers longer useful life, faster recharge, and better performance at higher operating temperatures. Both battery types integrate seamlessly with the UPS, enabling flexible runtime, cost optimization, and maintenance strategies across multiple sites.
| Aspect | VRLA | Lithium-Ion |
|---|---|---|
|
Service Life |
~2-5 years |
up to 10 years |
|
Runtime @ Full Load (Std Configurations) |
~ 5 minutes |
~ 8 minutes |
|
Recharge Time |
~ 5 hours |
< 4.5 hours |
|
Maintenance |
Higher (frequent replacements) |
Minimal |
|
Temperature Tolerance |
Standard environments |
Better performance in higher temps |
|
Weight per Battery String |
~75 lbs |
~46 lbs |
|
Battery Management System |
Basic (temperature-compensated charging) |
Advanced BMS with cell-level monitoring |
|
Safety |
Proven VRLA technology |
LiFePO₄ chemistry for thermal stability |
|
Warranty |
2 years (UPS + batteries) |
5 years (UPS + batteries) |
|
Total Cost of Ownership |
Lower upfront cost |
Lower lifecycle cost |
- Longer life (up to 10 years)
- Faster recharge for higher availability
- Integrated Battery Management System for predictive maintenance
- Better performance in high-temperature environments
- Lower total cost of ownership
