Product Model

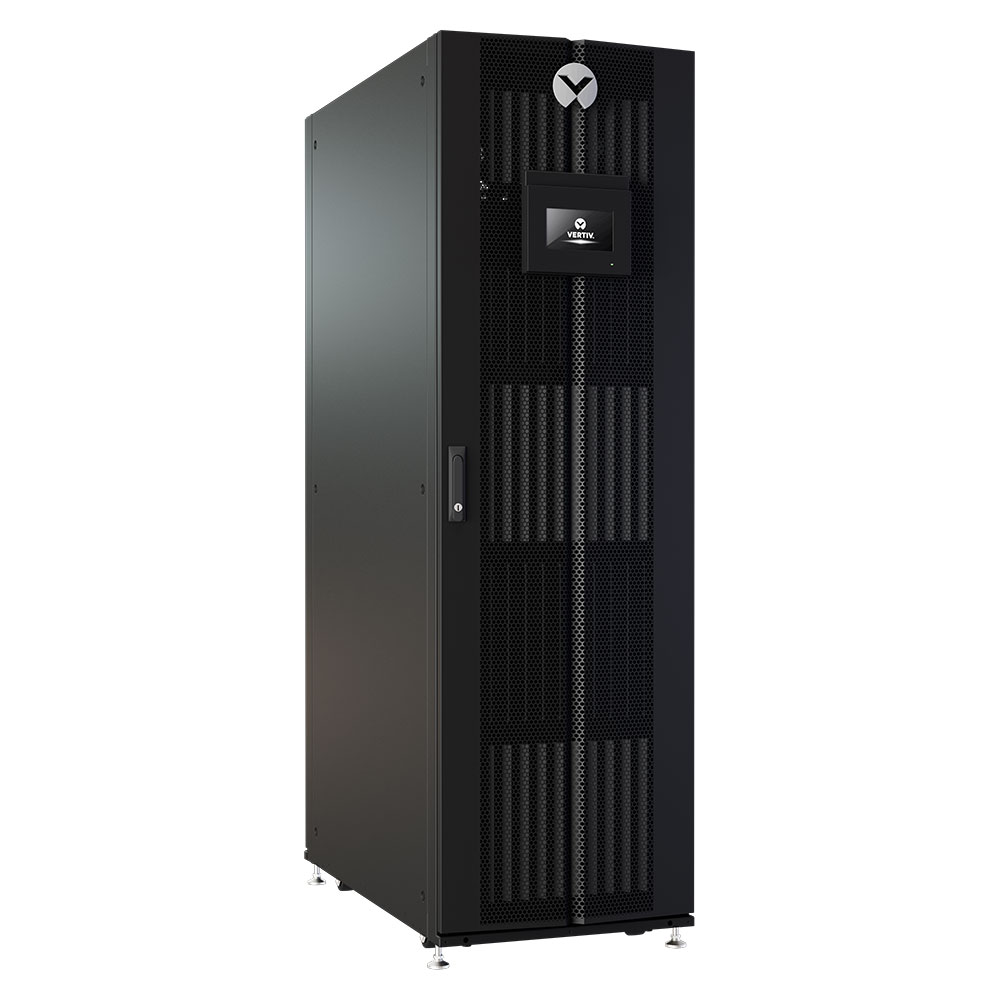

Vertiv™ CoolPhase Row, Row Based Cooling, 40kW

Vertiv™ CoolPhase Row is a high-efficiency, row-based cooling solution designed to meet the demanding thermal management needs of modern high-density data centers.

Get Brochure Get Manual
Key Benefits
  • Wider installation base with pipe run up to 390ft
  • Higher cooling capacity with offerings up to 40kW
  • Wide range of working environments supported with outdoor heat rejection capability
    from -31°F to 126°F
  • Low GWP Refrigerant (R-32) reduces environmental impact
    • Best Suited For:
    • Banking
    • Financial and Insurance
    • Data Center/Colocation/Hosting
    • Government
    • Healthcare
    • Retail and Wholesale

    Benefits

  • Multiple monitoring protocols and multi-unit teamworking allows users to stay informed of system conditions at all times.
  • Space-saving, flexible row-based design offers more valuable floorspace for critical IT deployment.
  • Scalable cooling from 20-100% capacity with load matching controls provides lower energy consumption and operational costs.

    • Features

  • Higher cooling capacity with offerings up to 40kW delivering reliable performance to support high-density IT environments.
  • Outdoor heat rejection capability from -31°F to 126°F ensuring dependable operation across extreme climate conditions.
  • Low GWP Refrigerant (R-32) reduces environmental impact and meets environmental regulations.

    • Email
    Vertiv™ CoolPhase Row, Row Based Cooling, 40kW
    Technical Specifications
    Total Nominal Capacity kBtuh [kW]
    136,000 BTUH (40kW)
    Nominal Airflow [CFM]
    4709 CFM
    Total Capacity
    40kW
    Input Voltage (V/Phase/Frequency Hz)
    460V/3ph/60Hz, 65kAIC 230V/3ph/60Hz, 65kAIC
    Heat Rejection Medium
    Air-Cooled
    Controls and Monitoring
    SNMP, BACnet, Liebert® iCOM
    Allowable Heat Rejection
    -31° F to 126° F
    Physical Characteristics
    Height
    43.3in
    Height
    1100mm
    Width
    23.6in
    Width
    600mm
    Depth
    47.2in
    Depth
    1200mm

    *To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
