Product Model

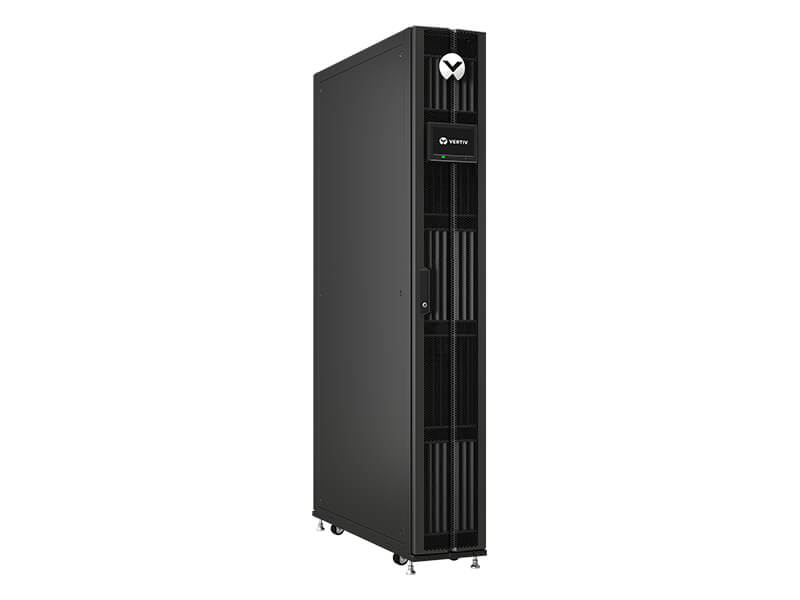

CRD100, Air-Cooled, 300mm, 10kW, 208-230V/1PH/60Hz
Designed with a minimal footprint to save valuable floorspace in edge applications, server rooms, and small data centers
Highly efficient, scalable cooling capacity provides lower energy consumption and operational costs
Adjustable air discharge baffles improve cold air distribution, eliminating hot spots in the row
Simultaneous top and bottom connections allow for greater flexibility during installation for various building configurations
Multiple monitoring protocols and multi-unit teamworking allows users to stay informed of system conditions at all times
Quick Access
Specifications
Technical Specifications
CRD100, Air-Cooled, 300mm, 10kW, 208-230V/1PH/60Hz
- Product Specifications
- Total Nominal Capacity kBtuh [kW]
- 35.8 [10.5]
- Net Sensible Capacity kBtuh [kW]*
- 34.1 [10]
- Nominal Airflow [CFM]
- 1960 [3030]
- Total Capacity
- 10.5 kW
- Net Sensible Capacity
- 10kW
- Input Voltage (V/Phase/Frequency Hz)
- 208-230V / 1Ph / 60Hz
- Nominal Airflow
- 1960 CFM
- Airflow Direction
- Horizontal
- Heat Rejection Medium
- R410A Refrigerant
- Capacity Modulation
- 20-100%
- Controls & Monitoring
- iCOM™ Edge & Unity Card
- Agency Approvals
- UL
- Key Components
- Inverter Driven Compressor, EC Fans, iCOM™ Edge Controller, EEV
- Key Options
- Dual Power Supply, Air Discharge Baffles, SNMP, HTTP, Modbus and Bacnet monitoring protocols
- Allowable Heat Rejection
- Air Cooled Condenser CCD100S-00A
- Physical Characteristics
- Weight
- 509.27 (231)
- Height
- 78.74 (2000)
- Width
- 11.81 (300)
- Depth
- 44.57 (1132)
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
