Product Family

Vertiv Geist Environmental Monitors

Environmental factors like heat, humidity and moisture pose a severe threat to mission-critical infrastructure. These dangers can be minimized by incorporating an environmental monitoring solution to collect data and alert users of potential threats. Vertiv Geist Environmental Monitors allow users to securely observe conditions and receive alerts when user defined thresholds are breached.

Get Brochure Get Manual
Best Suited For:
  • Banking, Financial and Insurance
  • Broadcast and Entertainment
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Manufacturing
  • Military, Defense, Aerospace and Missile
  • Professional Services
  • Retail and Wholesale
  • Telecom
  • Transportation
Warranty: Vertiv Geist Environmental Monitors come with a standard three-year warranty that is automatically extended to five years if the product is registered within 120 days of purchase.

Vertiv Geist Environmental Monitors include on-board temperature, humidity, and dew point sensors. Additional Plug-n-Play and Dry Contact/ 0-5V sensor capacity enables users to deploy a comprehensive and cost-effective environmental monitoring solution to minimize risks to critical infrastructure.

Model Specifications Overview
Watchdog 100
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play and 4 Dry Contact / 0-5VDC
Watchdog 15-P
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play
Watchdog 15
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play
Watchdog 100-P
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play and 4 Dry Contact / 0-5VDC
Watchdog 15-UK
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play
Watchdog 15-NPS
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play
Watchdog 15-P UN
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play
Watchdog 15-P UK
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play
Watchdog 15-P NPS
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play
Watchdog 15-UN
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play
Watchdog 100-UN
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play and 4 Dry Contact / 0-5VDC
Watchdog 100-UK
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play and 4 Dry Contact / 0-5VDC
Watchdog 100-NPS
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play and 4 Dry Contact / 0-5VDC
Watchdog 100-P UN
Environmental Sensor   AC 100-240V, 50/60Hz   2 Plug-n-Play and 4 Dry Contact / 0-5VDC
Watchdog 100-P UK
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play and 4 Dry Contact / 0-5VDC
Watchdog 100-P NPS
Environmental Monitor   AC 100-240V, 50/60Hz   2 Plug-n-Play and 4 Dry Contact / 0-5VDC

Benefits

Protect critical IT infrastructure by strategically monitoring data center, server room and network closet environments.

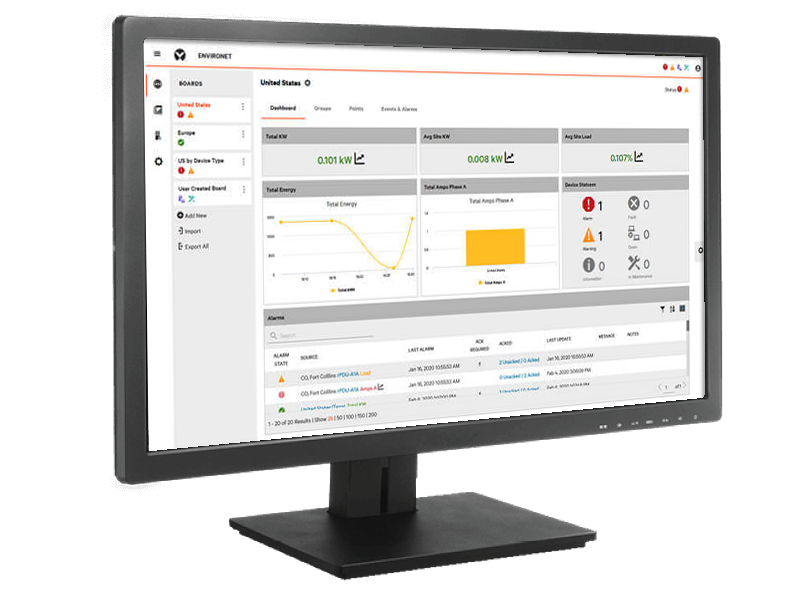

View real time sensor data from a secure web interface and receive alerts via Email, SNMP, or Email-to-SMS.
Receive alerts of out-of-range conditions to ensure they are addressed before resulting in downtime.
Standard three-year warranty, upgraded to five years with product registration.

Features

On-board temperature, humidity, and dew point sensor.
Add additional sensors to expand the monitoring capabilities.
Simple to install and configure, requires no special software other than a standard web browser.

Find Your Area Contact

Products Support Contacts

Showing contacts for Washington, 98109, USA Change
Geist Support - Americas (Rack PDU and Watchdog)
1777 Yolande Avenue Lincoln Nebraska USA
Product areas of focus: Power Distribution, Monitoring
Vertiv (Customer Service for Albér Products)
7775 West Oakland Park Blvd Sunrise Florida 33351 USA
Product areas of focus: Monitoring

Frequently Asked Questions

Q
Why do I have an alarm showing tripped even though the current value is below the threshold?
A
Each alarm has a 1-unit hysteresis built-in to help limit nuisance alarms. This means that a value must change by 1 unit before the alarm will clear. For example, if there is a temperature alarm set with a high trip of 75F, the value must fall below 74F before the alarm will actually clear. A clear delay will need to be set and configured on the that alarm.
Q
How can I re-order the sensor OIDs on a Watchdog device?
A
To change the order in which sensors are mapped to an OID the user will need to unplug all sensors from the device and wait 1-2 minutes until they show unplugged on the web interface (will read unavailable at first). After they show unplugged, check the "remove all unplugged devices" box and then click the save changes button. After a couple minutes they can begin reconnecting sensors in the order you would like them in.
Q
My Watchdog 15 is showing a higher temperature than what my thermostat is showing.
A
In still air environments the onboard sensor is susceptible to higher temperature readings due to circuit board heating. With that, air temperatures in a room are rarely, if ever, uniform throughout the space, due to convection currents, relative proximity to sources of heat and cold air, and other thermal effects. Our Watchdog products have an internal temperature offset that you can adjust to compensate for board heating. This is found by selecting the Configuration Wrench in Sensors-Overview.

Monitoring Accessories

Vertiv Geist Environmental Sensor

A variety of sensors are available to monitor a wide array of environmental conditions. Plug-n-Play and Dry Contact / 0-5V sensor options provide flexibility to choose the ideal solution to meet each unique need. All sensors are compatible with the Vertiv Geist Environmental Monitor and rPDU products.
