Product Model

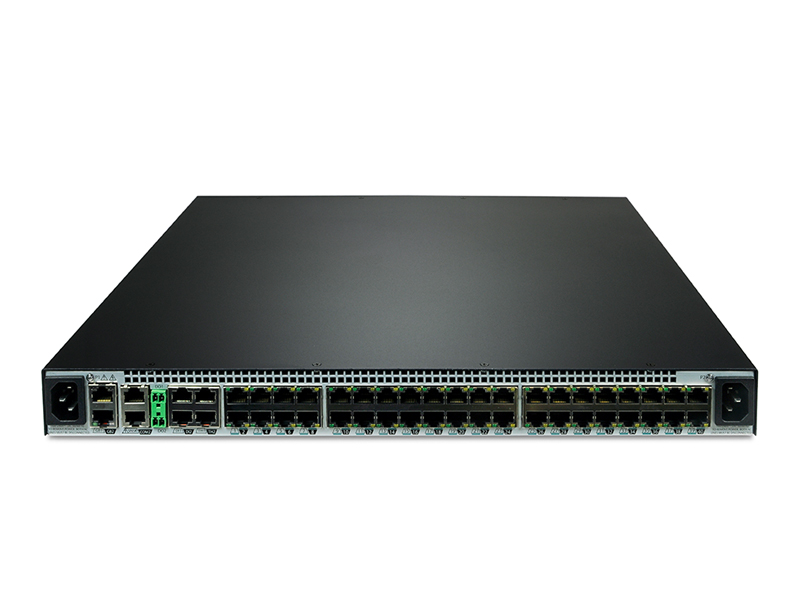

Avocent UMG 4000

The Avocent Universal Management Gateway is the first data center appliance that enables true, real-time, integrated monitoring, access and control across IT and facilities systems in the data center. If you need KVM over IP capability, add on our UMIQ dongle which supports both LAN and WAN networks. A single UMG at a centralized site can now monitor and control all UMIQs located locally and at remote sites, saving you money and maintenance time.

Get Brochure Get Manual
Best Suited For:
  • Telecom
Warranty: 2 years; Extended Warranties Available

Benefits

Consolidated Management and Universal Connectivity: Combines the functions of KVM over IP and Universal Connectivity, serial console over IP, rack PDU, SP, and environmental sensor management into a single chassis, for a complete in-band management solution that supports a broad range of IT platforms.
Enhanced Security: Shields embedded service processors from unauthorized access, reducing the risk of malicious intrusion.
Always-On: Highly reliable, local, remote and out-of-band access to data center and IT infrastructure ensures that monitoring, control, and management can be done at any time, from any place.
Streamlined Installation: Leverages pre-built service processor profiles for discovery and management, streamlining discovery and setup for newly installed hardware.
Multi-Tenant Design: Creates a secure environment, improving compliance and auditing tasks for customers considering Colocation and Cloud implementations

Features

Comprehensive DCIM platform in a single pane of glass
Convenient single U chassis – reduced rack space and footprint
Complete connectivity (IPMI, SNMP, OPC, Modbus, BACnet, Velocity)
Physical sensor aggregation
Easy installation across various remote access technologies
Up to 40 simultaneous KVM sessions Up to 1024 service processors; wide variety of servers managed
Up to 40 full auto-sensing ports KVM and SPM capability per port (using the UMIQ-V2)
Data collection – up to 10,000 data points per minute
Real-time information across IT and facilities
FIPS 140-2 compliance: based on the FIPS 140-2 validated cryptographic modules (certificate numbers 2473 & 1279)

Avocent UMG 4000
Product Overview
Type
Converged Mgmt. Appliance
Input Ports
40 SP/KVM/Serial
Output Ports
2 digital
Video Connection
VGA
Video Resolution
Up to 1920x1080
Graphic Mode
Service Processor support
up to 512
Power Description
Power Supply(s)
Dual Internal, AC 100 - 240 V
Input Power (Maximum)
100-240V
Interfaces/Ports
Network Interface(s)
(2) 10/100/1000 Ethernet
USB ports
4
Operational Conditions
Operating Temperature
32° to 122° F (0° to 50° C)
Physical Characteristics
Weight
15 lbs
Weight
6.8 kgs
Height
1.7 in
Height
43.1 mm
Width
17.1 in
Width
434 mm
Depth
20 in
Miscellaneous
Other supported accessories
6 sensor ports
Authentication Supported
Local LDAP and DSView
Agency Approvals
UL, FCC, cUL, ICES-003, CE, VCCI, KCC, CTick, GOST
