Avocent® LV5500T/ Avocent® LV5500R KVM Extender
Quick Access
Specifications
Technical Specifications
Avocent® LV5500T/ Avocent® LV5500R KVM Extender
- Product Overview
- Video Connection
- 4 x Tri-color status LEDs DisplayPort
- Video Resolution
- 4096x2160 @ 60Hz
- Power Description
- Power Supply(s)
- 100 – 240 VAC, 47/63Hz 12 VDC 18W output
- Input Power (Maximum)
- .8 A
- Interfaces/Ports
- USB ports
- 2 x USB 2.0 Type B
- USB Hub Support
- USB 2.0
- Operational Conditions
- Operating Temperature
- 32°F to 104°F (0°C to 40°C)
- Physical Characteristics
- Weight
- 2.84 lbs
- Weight
- 1.29 kg
- Height
- 1.54 in
- Height
- 39 mm
- Width
- 7.32 in
- Width
- 186 mm
- Depth
- 5.83 in
- Depth
- 148 mm
- Miscellaneous
- Agency Approvals
- CE, FCC
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

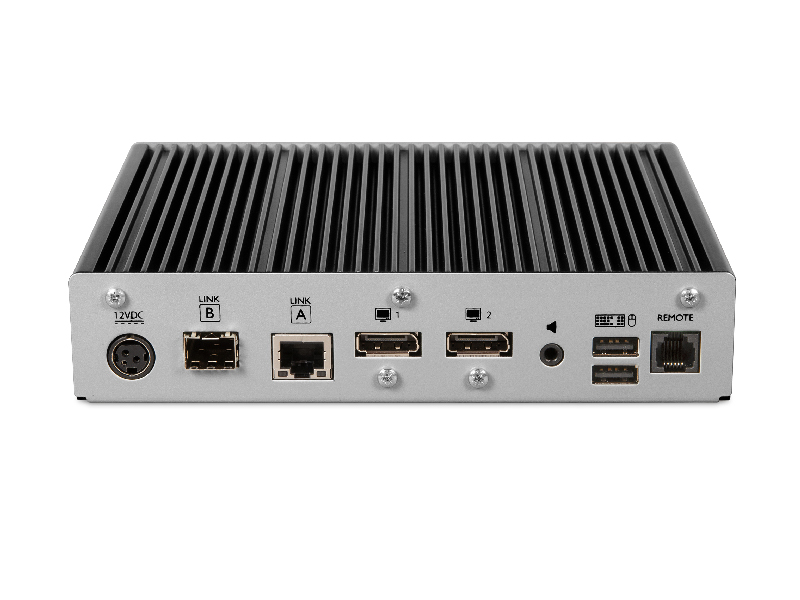

Avocent® LV5500T/ Avocent® LV5500R KVM Extender
The Avocent® LV5500T is the latest in the Avocent® high-performance family of products. The Avocent LV5500T comes equipped with a dependable performance along with intelligent EDID management. Coupled with the Avocent LV5500R, the Avocent LV5500T is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The Avocent LV5500T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.
