Vertiv™ Avocent® IPSL Serial Device
Fastest and most feature rich KVM experience on a single device
Take advantage of total cost savings with Virtual Appliance
All digital architecture for flexible and scalable deployments
Most expansive management of IT devices
Resilient and secure technology support 100+ simultaneous users
Quick Access
Specifications
Technical Specifications
Vertiv™ Avocent® IPSL Serial Device
- Graphic Mode
- Humidity
- 5% to 80% Non-Condensing
- Power Description
- Network Interfaces
- 1 x 1G (PoE)
- Serial Ports
- 2 x RJ45, 2 x USB Type A
- Interfaces/Ports
- USB Ports
- USB Micro B
- Operating Temperature
- 0 to 60°C
- Operational Conditions
- Agency Approvals
- Please reference Data Sheet for Agency Approvals
- Physical Characteristics
- Weight
- 0.4 lbs
- Weight
- 0.18 kgs
- Height
- 1.4 in
- Height
- 35.56 mm
- Width
- 3.3 in
- Width
- 83.82 mm
- Depth
- 5.8 in
- Depth
- 147.32 mm
Brochures and Data Sheets
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

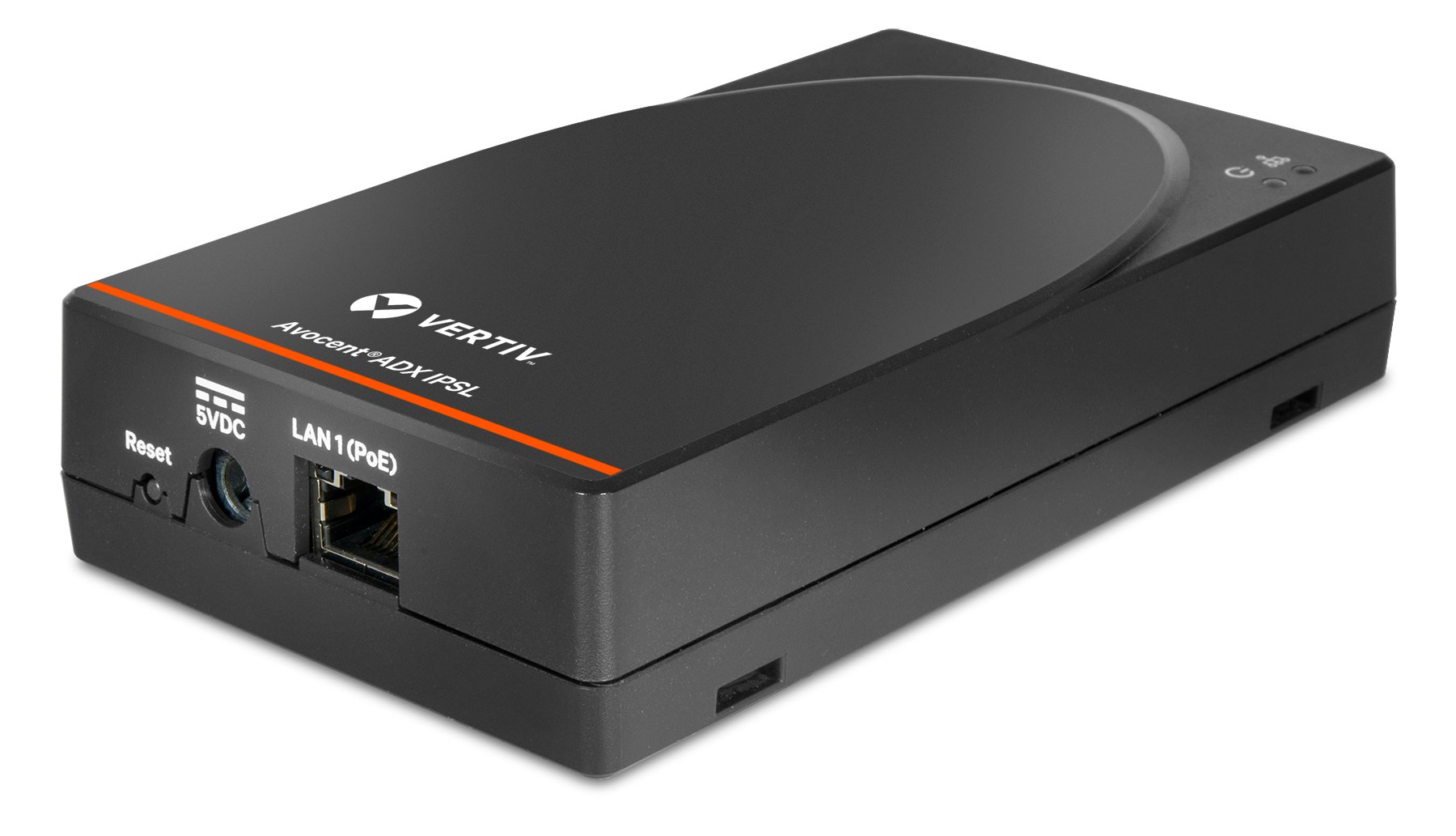

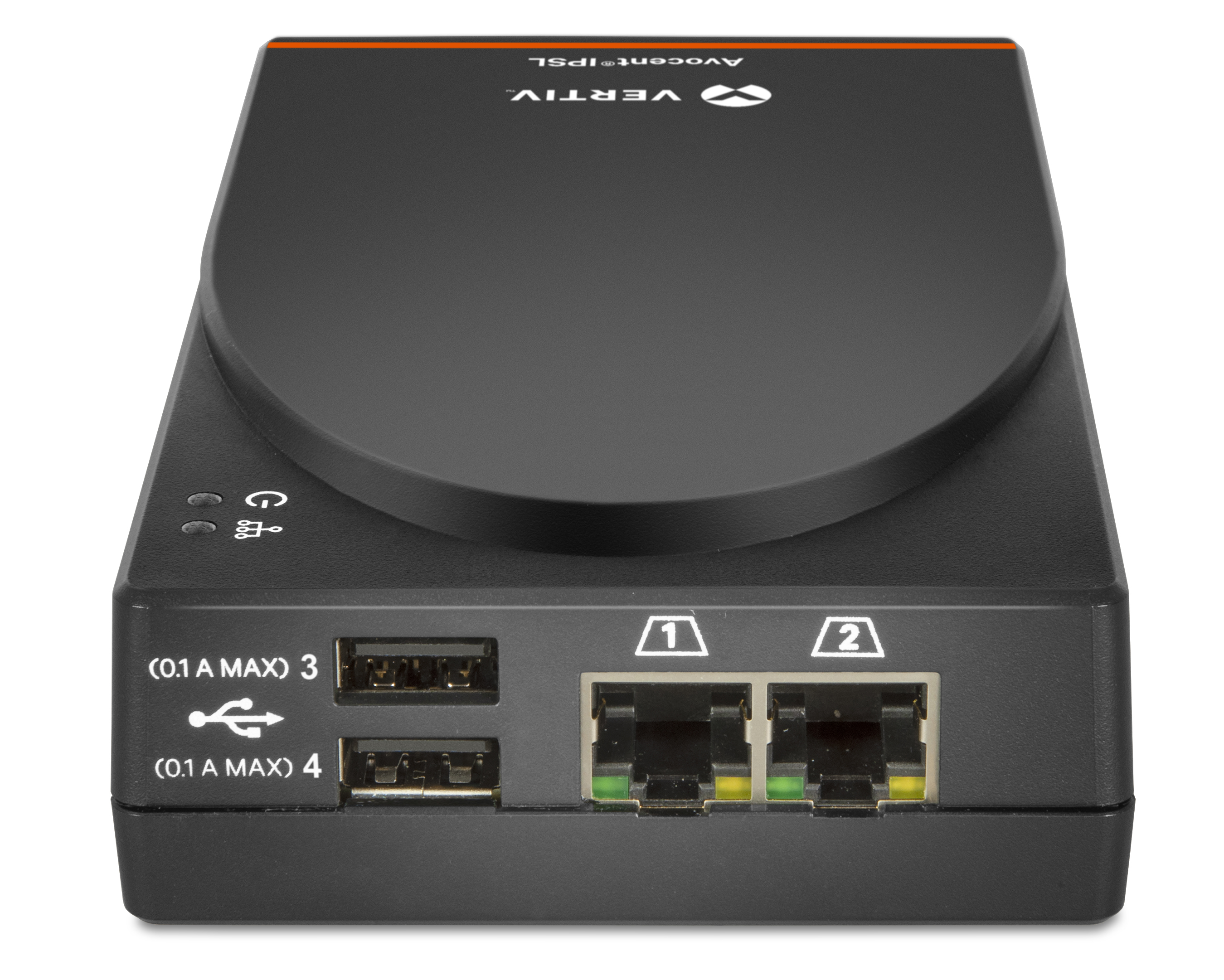

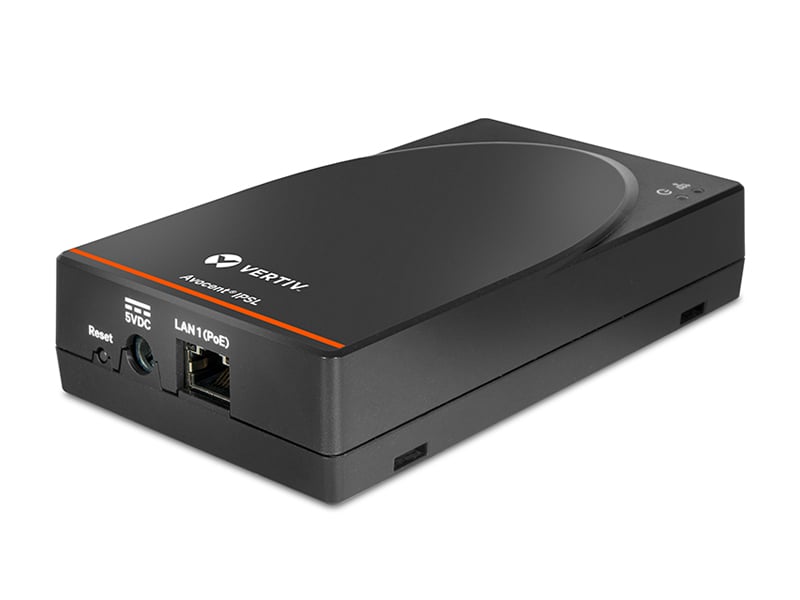

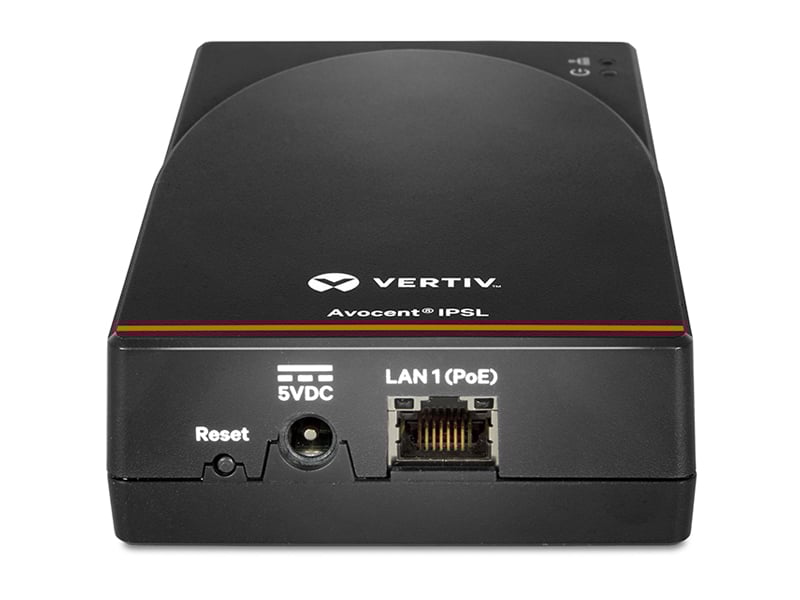

Vertiv™ Avocent® IPSL Serial Device
The Vertiv™ Avocent® IPSL provides remote access and management to IT devices and is an extension to the Vertiv™ Avocent® DSView Platform. The Avocent IPSL has an ethernet port to allow end users to connect to it over an IP network. This enables customers to remotely manage serial devices and like all Avocent DSView solution elements, Avocent IPSL provides flexible deployment actions.
Warranty : 2 Year Standard Warranty
Benefits
Reduces cost through reduction/elimination of on-site visits
Reduces time to provision new equipment
Improves visibility into remote locations
Increases productivity with remote serial access to IT devices
Features
Small Form Factor: Portable size for easy deployment at edge locations.
IP Addressable: Reachable from anywhere on the network to enable remote management of serial devices.
Security: Secure Boot with hardware root of trust for tamper proof firmware, TLS1.3, AES256 bit encryption for all communication to and from the IP serial dongle
Virtual Media: Mount virtual drives remotely to transfer files such as firmware upgrades or other configuration files.
Serial: Manage up to four serial targets simultaneously with SSH serial redirection
HTML5: HTML5 Web based user interface for simplified management.
