Product Family

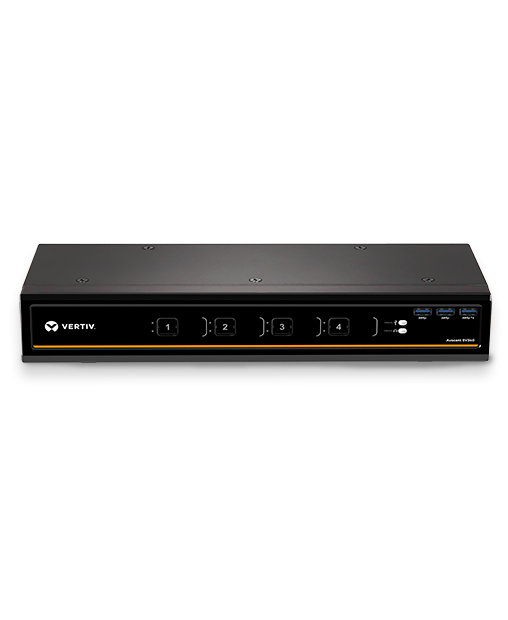

Avocent® SwitchView™ 300 Series Desktop KVM Switches

Feature-rich desktop KVM, designed to streamline the desktop experience and enhance user productivity. Supports dual monitor, DVI-I, Display Port 1.2 or HDMI 1.4. Provides easy connectivity to external USB devices, quick data transfer and high-speed charging of mobile devices.

Find Sales Contact Get Brochure Get Manual
Login to Save for Later
Best Suited For:
  • Banking, Financial and Insurance
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Manufacturing
  • Retail and Wholesale
  • Transportation
Warranty: 2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

Model Specifications Overview

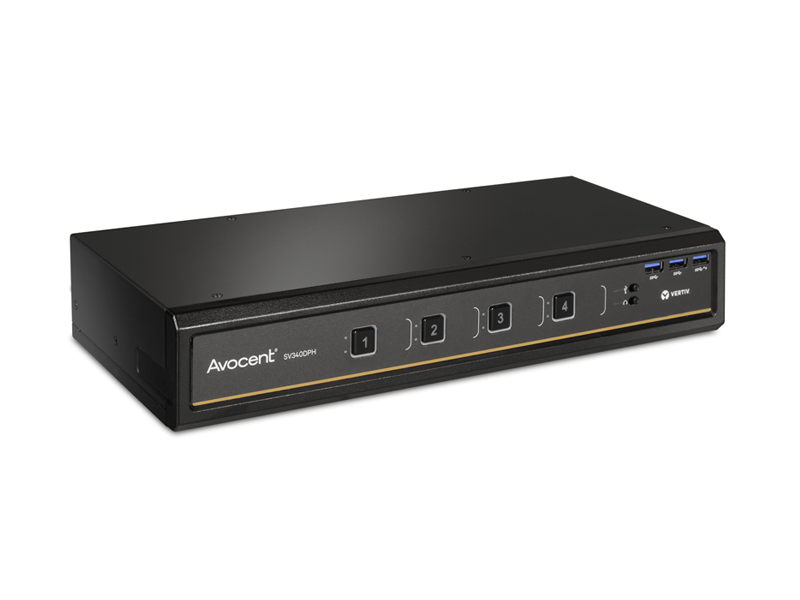

Avocent® SV340DPH KVM Switch
2 x DP / HDMI universal port   UHD 4K (3840x2160) @ 60Hz   2.2 in   5.0 in   13.7 in   3.7 lbs

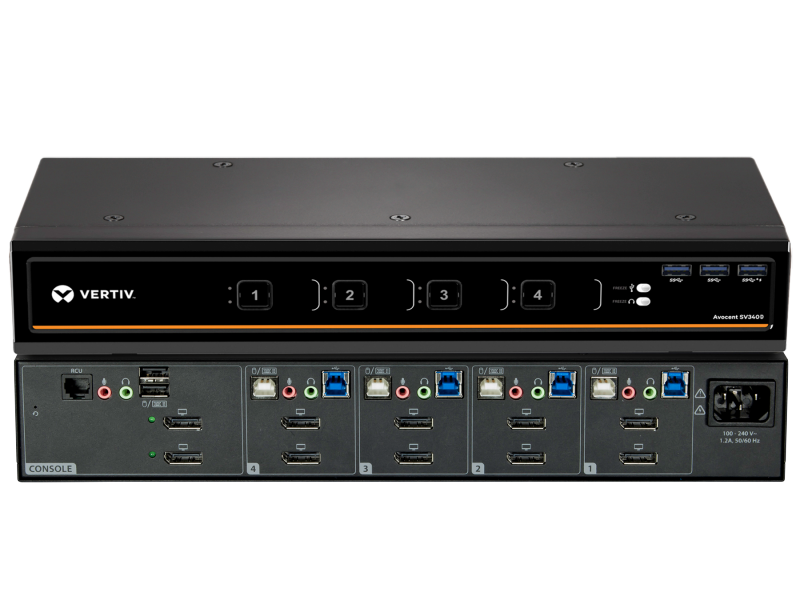

Avocent® SV340D KVM Switch
2 x DP (HDMI and VGA with adapter)   UHD 4K - 3840 x 2160 @ 30 Hz   2.2 in   13.7 in   5 in   3.7 lbs

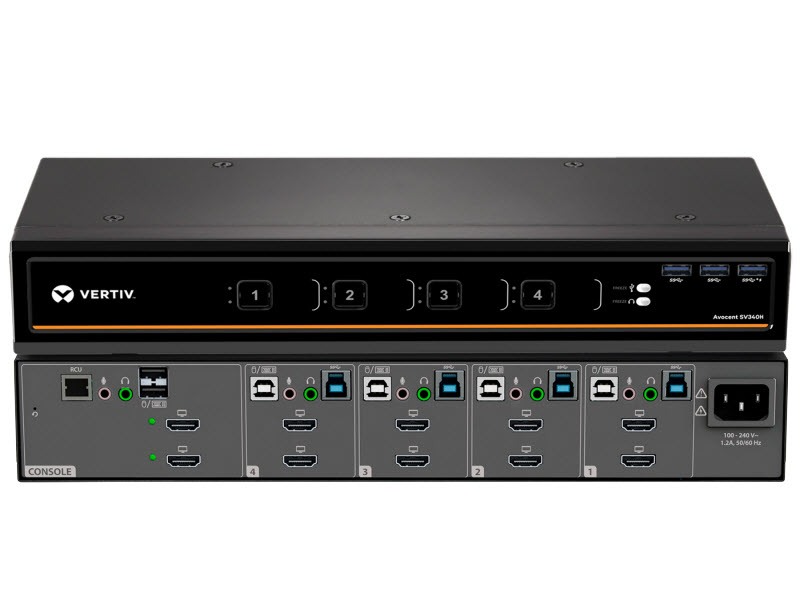

Avocent® SV340H KVM Switch
2 x HDMI 1.4   UHD 4K - resolutions up to 3840 x 2160 @ 30Hz   2.2 in   13.7 in   5 in   3.7 lbs

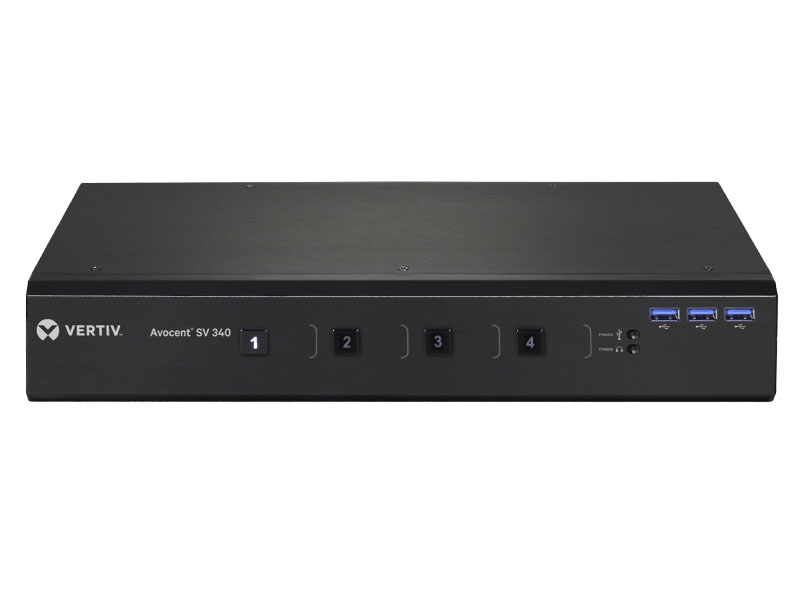

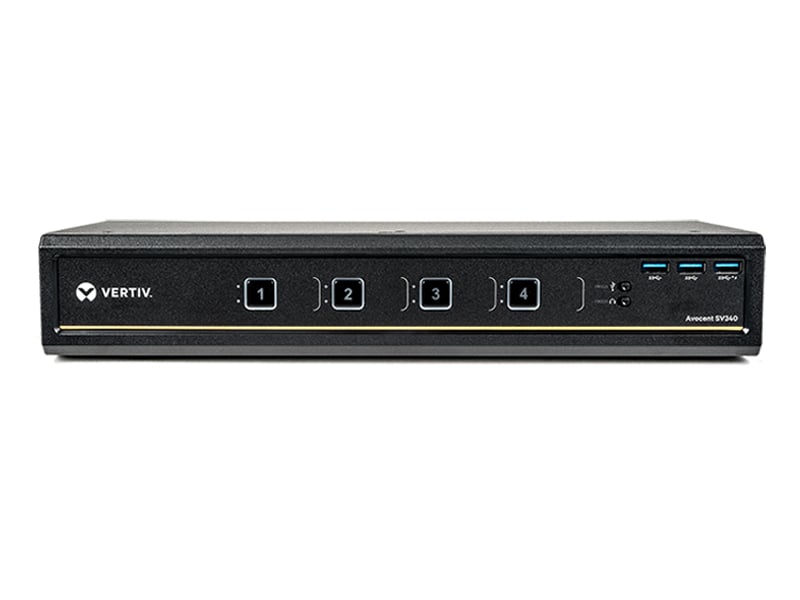

Avocent® SV340 KVM Switch
2 x DVI-I (HDMI and VGA with adapter)   UHD 4K - 3840 x 2160 @ 30 Hz (via DVI to HDMI)   2.2 in   13.7 in   5 in   3.7 lbs


Increase productivity with simple, rapid access to systems and peripherals
Gain true image reproduction and display flexibility with support for ultra HD systems and mobile devices
Reduce costs with fewer peripheral purchases and easier IT maintenance


Advanced video support including DVI-I, HDMI, DP, and support for resolutions up to UHD 4K assures image quality is highly accurate and video plays at the highest definition possible.
Managed copy and paste allows content to be copied from one system to another. Copy and paste can be managed with built-in controls to specify what can be copied, such as allowing a user to copy numbers only in a specific format.
Multiple USB ports provide easy connectivity to external USB devices, quick data transfer and high-speed charging of mobile devices.
Mobile high-definition link allows media contained on mobile devices to be viewed on connected HDMI monitors.
Independent audio and USB switching lets users freeze audio and USB 3.0 peripherals while simultaneously working on a different system.
