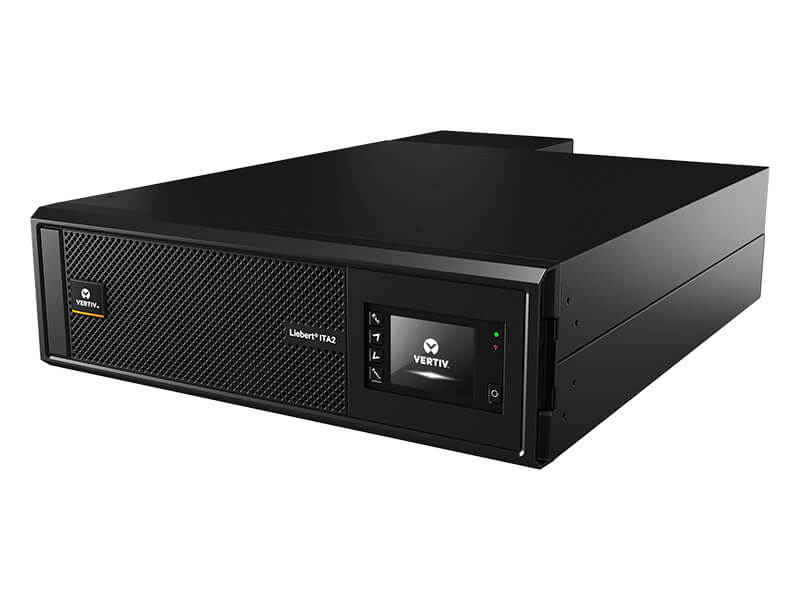

Vertiv™ Liebert® ITA2 -3 Phase UPS
The Liebert® ITA2 UPS offers economical, efficient and reliable three-phase power for critical loads under 10kVA. Use in a rackmount or tower configuration. This intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate. Optional lithium-ion battery cabinets available.
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Specifications
The Liebert ITA2 UPS features: 8 and 10kVA three-phase (3:3) online power protection, high power factor, compact design, rackmount or tower form factor, high operating efficiency, flexible output distribution, optional maintenance bypass cabinet, intuitive control panel. Easy to install, cable and operate.
|
Liebert® ITA2 UPS 5kVA, 208V
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 5kVA | 208/220 | 208/220 | 93% | 4W+G | 5.1 in | 16.9 in | 19.7 in | 50.7 lbs |
| See more product information | ||||||||
|
Liebert® ITA2 UPS 8/10 kVA, 208V
|
||||||||
| 15kVA | 208/220 | 208/220 | 93% | 4W+G | 5.1 in | 16.9 in | 19.7 in | 50.7 lbs |
| See more product information | ||||||||
|
Liebert® ITA2 UPS 15/20kVA, 208V
|
||||||||
| 15/20kVA | 208/220 | 208/220 | 93% | 4W+G | 5.1 in | 16.9 in | 19.7 in | 50.7 lbs |
| See more product information |
Benefits
Features
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Frequently Asked Questions
- Q
- Is the complete power system rackmountable?
- A
- Yes. From the base UPS and all the batteries to the maintenance bypass .... each conveniently fits in the rack.
- Q
- Can we power different receptacle types from the same UPS?
- A
- Yes, the optional Output Distribution assembly can accept numerous types. These offer greater flexibility and ease of installation. See the POD diagram in the brochure.
- Q
- What is provided with the UPS?
- A
- Vertiv strives to make it easy. Each standard UPS shipment contains: UPS module, CD with instruction/user manuals (multiple languages), USB cable, Rackmount rail kit and handles, tower base kit, copper jumpers for single-input configuration, IS-UNITY communications card and UPS to battery cabinet cable. Battery modules and maintenance bypass options packaged separately. Every unit is expertly and conveniently packaged.
- Q
- What is the overload capacity of Liebert ITA2?
- A
- Liebert ITA2 overload limits are 5 minutes up to 125% load and 1 minute up to 150% load. These values are measured at full active power (unity output PF)
- Q
- Does Liebert® ITA2 support ECO Mode operation?
- A
- Yes, Liebert ITA2 supports the ECO Mode with an efficiency up to 99%.
