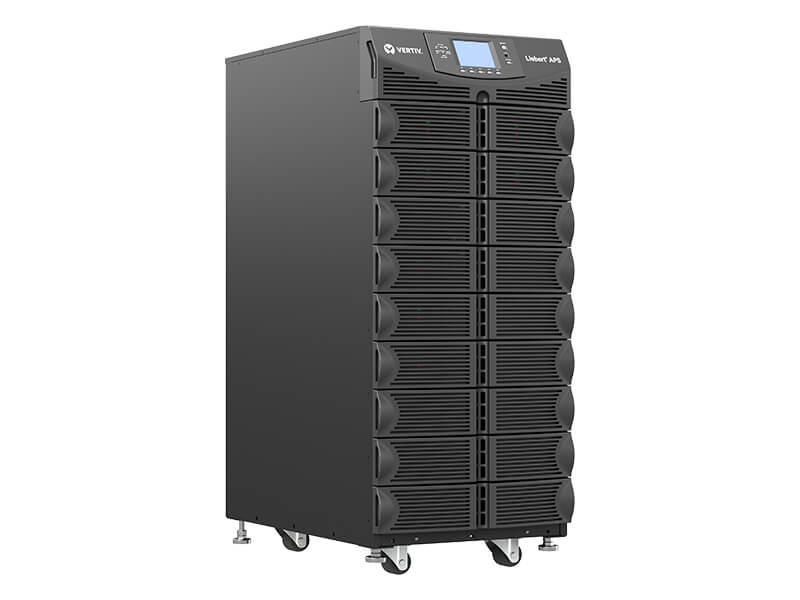

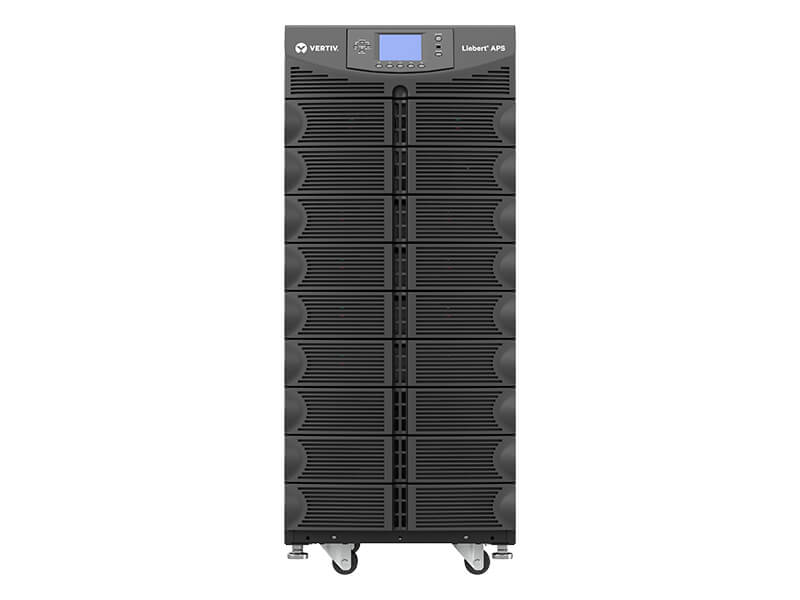

Liebert® APS AS3 Series
The Vertiv Liebert APS is a modular online double conversion UPS, offering the highest level of power conditioning and power protection for critical IT systems. Continuous power conditioning, zero transfer time, pure sinewave output and scalable runtime make it ideally suited to protect critical infrastructure in both centralised and edge network applications. The modular design offers maximum power availability with built-in redundancy for fault tolerance.
- Government
- Healthcare
- Retail and Wholesale
- Transportation
- Modular, Scalable Architecture: Modules come in 5–20 kVA capacity and scalable in 5 kVA increments with N+1 redundancy. With Pay-as-you-grow flexibility, add power or battery modules as demand increases without replacing the entire system.
- Dual Battery Chemistry Support:This industry-first UPS supports VRLA and Lithium-Ion in the same frame. Choose the battery technology that fits your budget and runtime needs today, with the ability to upgrade later without firmware changes.

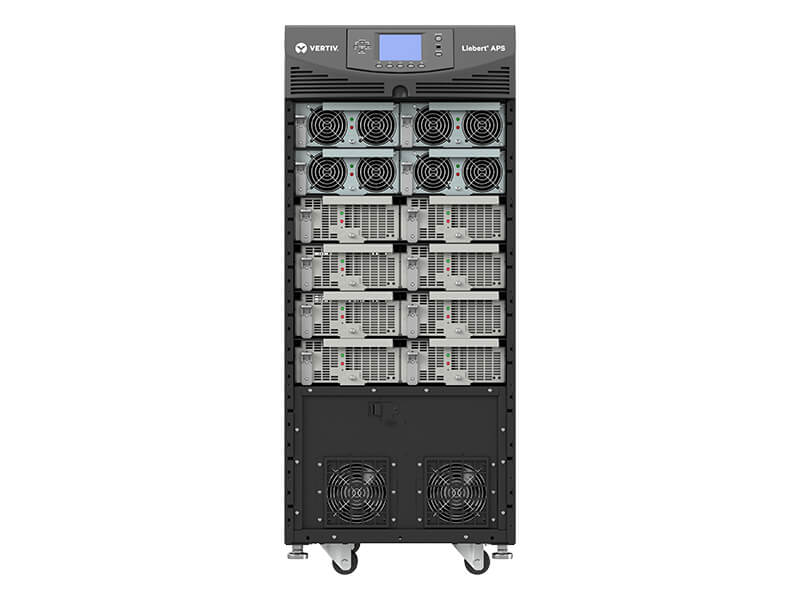

- Hot-Swappable Modules: This user-replaceable power, battery, and control modules allow you to perform maintenance or upgrades without downtime, providing continuous availability.
- Built-In Redundancy: It has module-level N+1 redundancy for power and battery, which eliminates single points of failure, so critical loads remain protected even during maintenance or component failure.
- Online Double Conversion Topology: Its true online design with zero transfer time and internal automatic bypass protects your devices against all power anomalies (sags, surges, harmonics) and provides clean, conditioned power for sensitive IT loads.
- High Output Power Factor: With 0.9 power factor per module (5 kVA / 4.5 kW), it delivers more usable power in the same footprint, optimizing rack and floor space.
- Intelligent Battery Management: It has temperature-compensated charging for VRLA and integrated BMS for Lithium-Ion. This management extends battery life, reduces replacement costs, and provides real-time health monitoring for predictive maintenance.
- Flexible Runtime Options: Add battery modules or external battery cabinets for extended backup. Scale runtime without taking the load offline, which is ideal for evolving site requirements.
- Remote Monitoring & Control: It comes with factory-installed Vertiv™ Liebert® IntelliSlot™ RDU120 card with Vertiv™ LIFE™ Services. This enables secure remote management, predictive analytics, and proactive service to maximize uptime.
- Compact, Versatile Deployment: It allows tower or rack configuration with optional PODs for varied outlet types. This fits diverse IT and edge environments with simplified installation and adaptability.
Specifications
The Liebert APS is a modular, single phase output UPS, with both single and three phase input options to provide both high availability and flexibility. The Liebert APS adapts efficiently and effectively to both immediate and evolving power requirements, offering capacity on demand with flexible power modules which allow capacity upgrades in 5 kVA/4.5kW increments up to 20 kVA N+1.
- Product Overview
- Power Rating
- Up to 15kVA/13.5kW N+1
- Input Voltage Range
- 208VAC
- Output Voltage Range
- 208/120VAC
- Efficiency
- Up to 91%
- Wiring
- 3-Wire (L-L-G)
- Operational Conditions
- Operating Temperature
- 0°C - 40°C (32°F - 104°F)
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Change
AS3 & AS4 Series APS Performance Tables
|
Model |
Power Capacity |
Scalable To |
Input |
Output |
Full-Load |
Half-Load |
|
AS3A0NCUGNNXLKB |
5kVA / 4.5kW |
15 / 13.5 |
Hardwire (L-L-G) |
Hardwire |
5.0 |
14 |
|
AS3A0NCVGNNXLKB |
5kVA / 4.5kW |
15 / 13.5 |
Hardwire (L-L-G) |
Hardwire |
15 |
38 |
|
AS3B0NCVGNNXLKB |
10kVA / 9.0kW |
15 / 13.5 |
Hardwire (L-L-G) |
Hardwire |
5.0 |
15 |
|
AS3B0NCYGNNXLKB |
10kVA / 9.0kW |
15 / 13.5 |
Hardwire (L-L-G) |
Hardwire |
21 |
51 |
|
AS3C0NCWGNNXLKB |
15kVA / 13.5kW |
15 / 13.5 |
Hardwire (L-L-G) |
Hardwire |
5.0 |
15 |
|
AS3C0NCXGNNXLKB |
15kVA / 13.5kW |
15 / 13.5 |
Hardwire (L-L-G) |
Hardwire |
8.0 |
22 |
|
AS4A0NCUGNNXLKB |
5kVA / 4.5kW |
20 / 18.0 |
Hardwire (L-L-G) |
Hardwire |
5.0 |
14 |
|
AS4A0NCVGNNXLKB |
5kVA / 4.5kW |
20 / 18.0 |
Hardwire (L-L-G) |
Hardwire |
15 |
37 |
|
AS4B0NCVGNNXLKB |
10kVA / 9.0kW |
20 / 18.0 |
Hardwire (L-L-G) |
Hardwire |
5.0 |
15 |
|
AS4B0NCYGNNXLKB |
10kVA / 9.0kW |
20 / 18.0 |
Hardwire (L-L-G) |
Hardwire |
21 |
51 |
|
AS4C0NCWGNNXLKB |
15kVA / 13.5kW |
20 / 18.0 |
Hardwire (L-L-G) |
Hardwire |
5.0 |
15 |
|
AS4C0NCJGNNXLKB |
15kVA / 13.5kW |
20 / 18.0 |
Hardwire (L-L-G) |
Hardwire |
15 |
39 |
|
AS4D0NCXGNNXLKB |
20kVA / 18.0kW |
20 / 18.0 |
Hardwire (L-L-G) |
Hardwire |
5.0 |
15 |
|
AS4D0NCJGNNXLKB |
20kVA / 18.0kW |
20 / 18.0 |
Hardwire (L-L-G) |
Hardwire |
10 |
26 |
Notes
- N+1 Power Redundancy can be achieved on any standard configuration by purchasing an extra power module.
- Models 10kVA and up can be configured to N+1 redundancy with a 5kVA/4.5kW De-rate to unit capacity.
- Scalable Runtime solutions are available, for details please contact your local Vertiv™ office and design your own solution with an expert on the product
