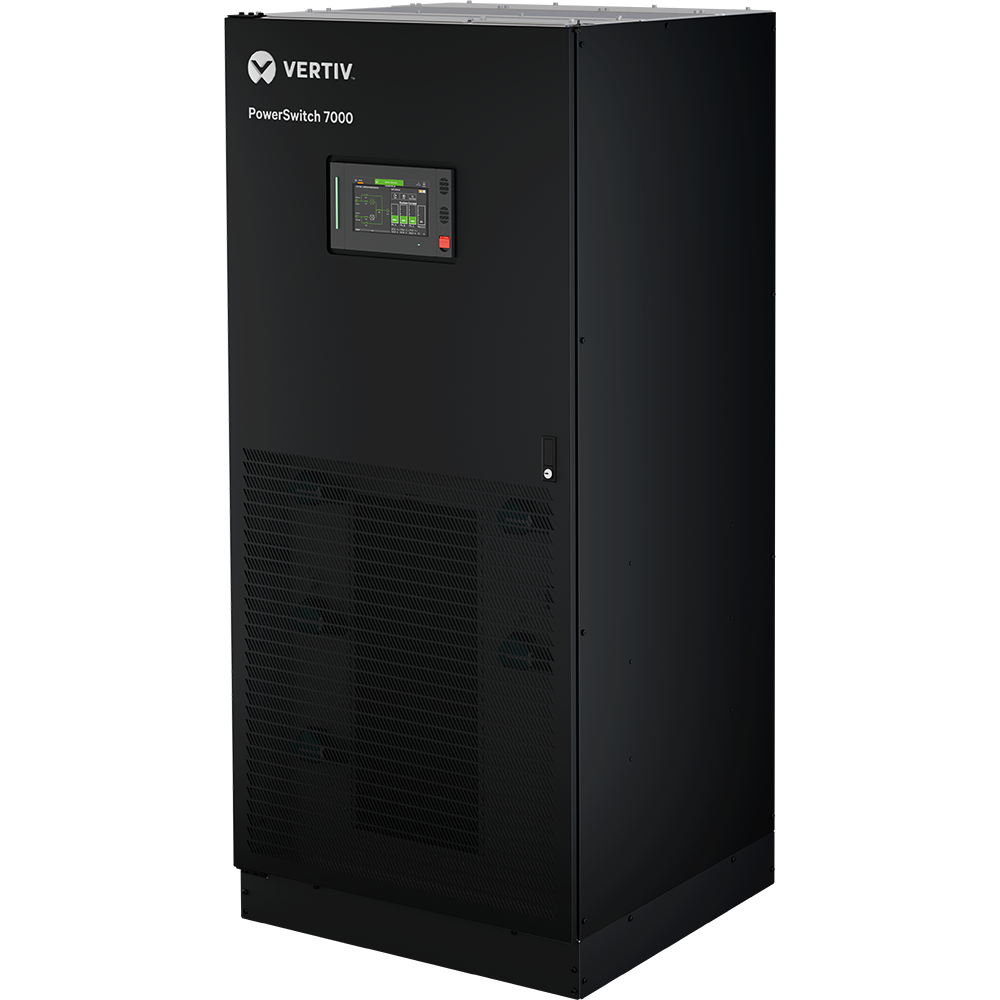

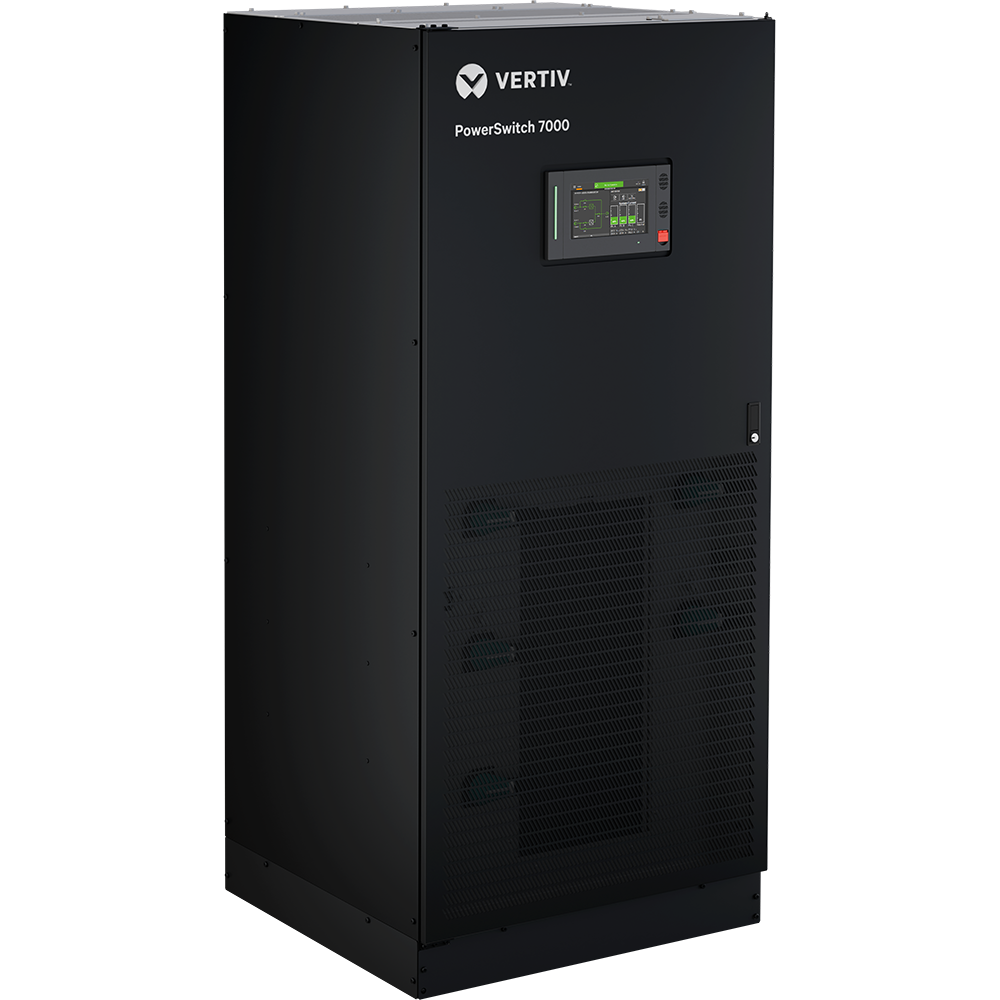

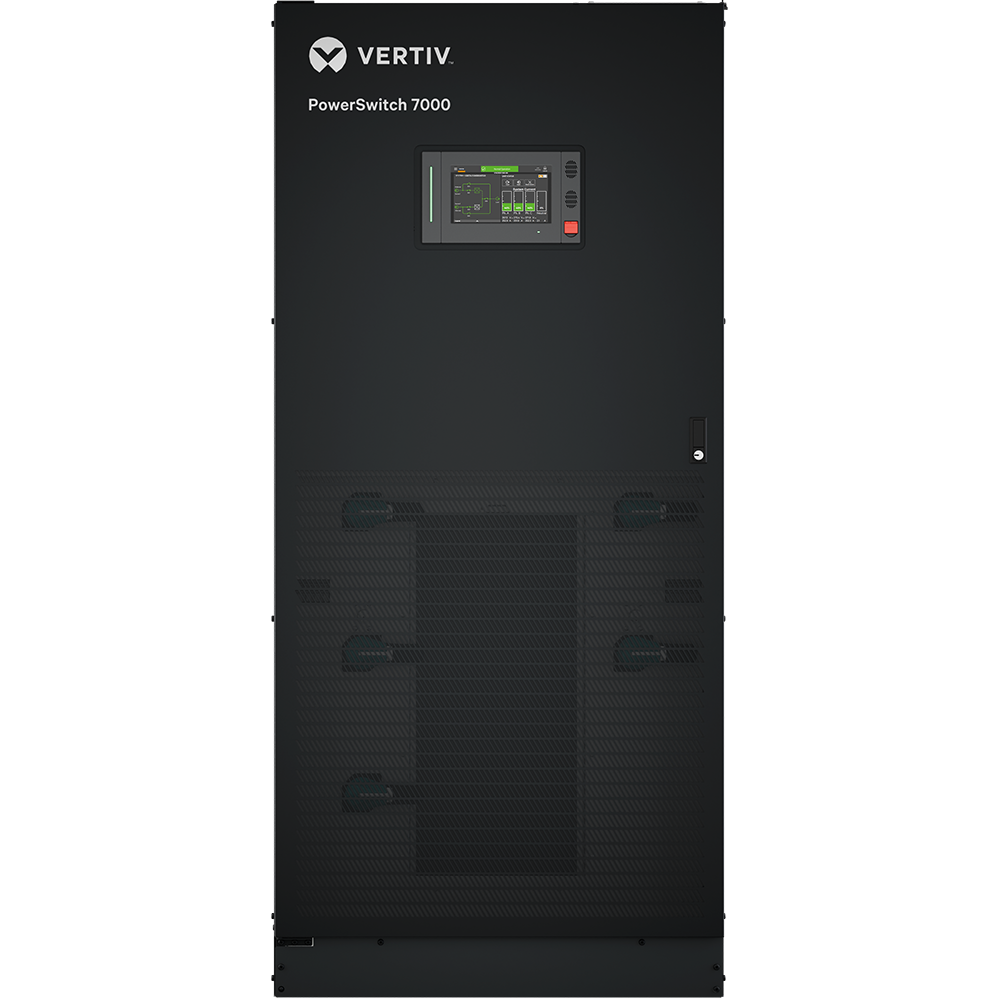

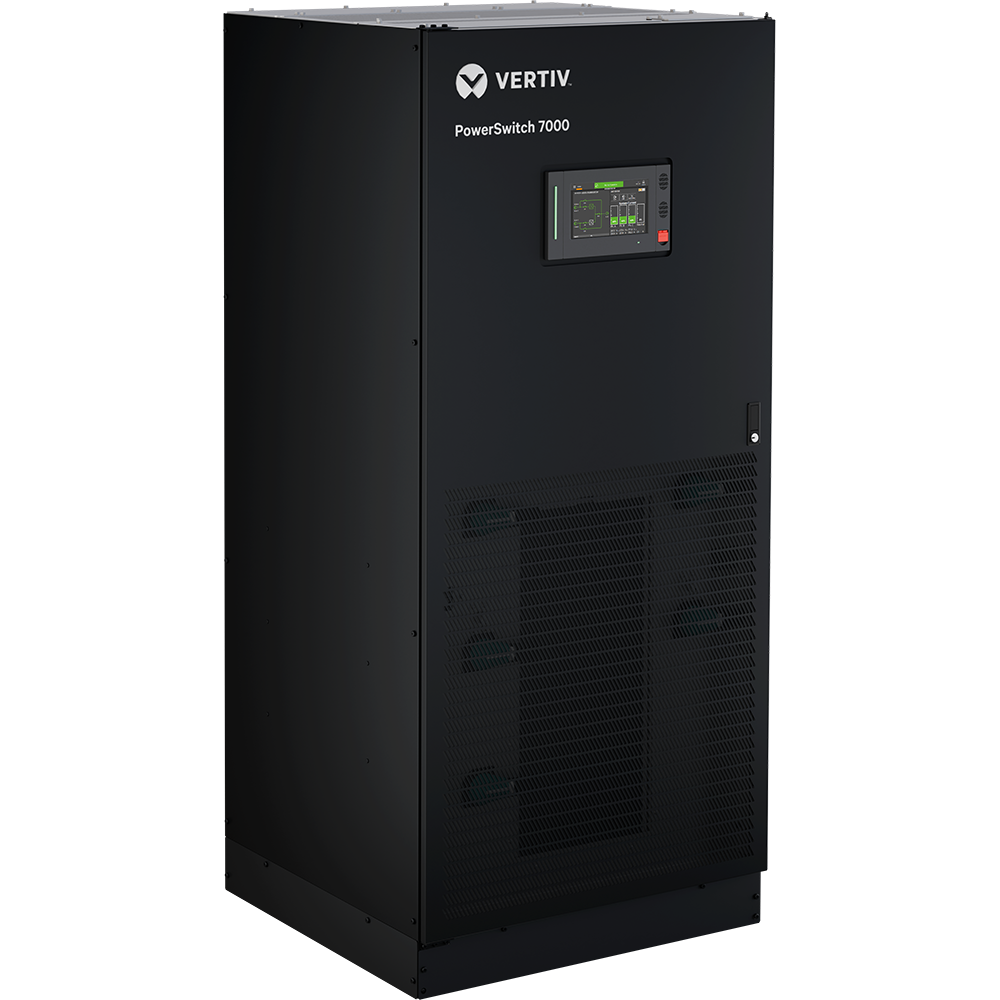

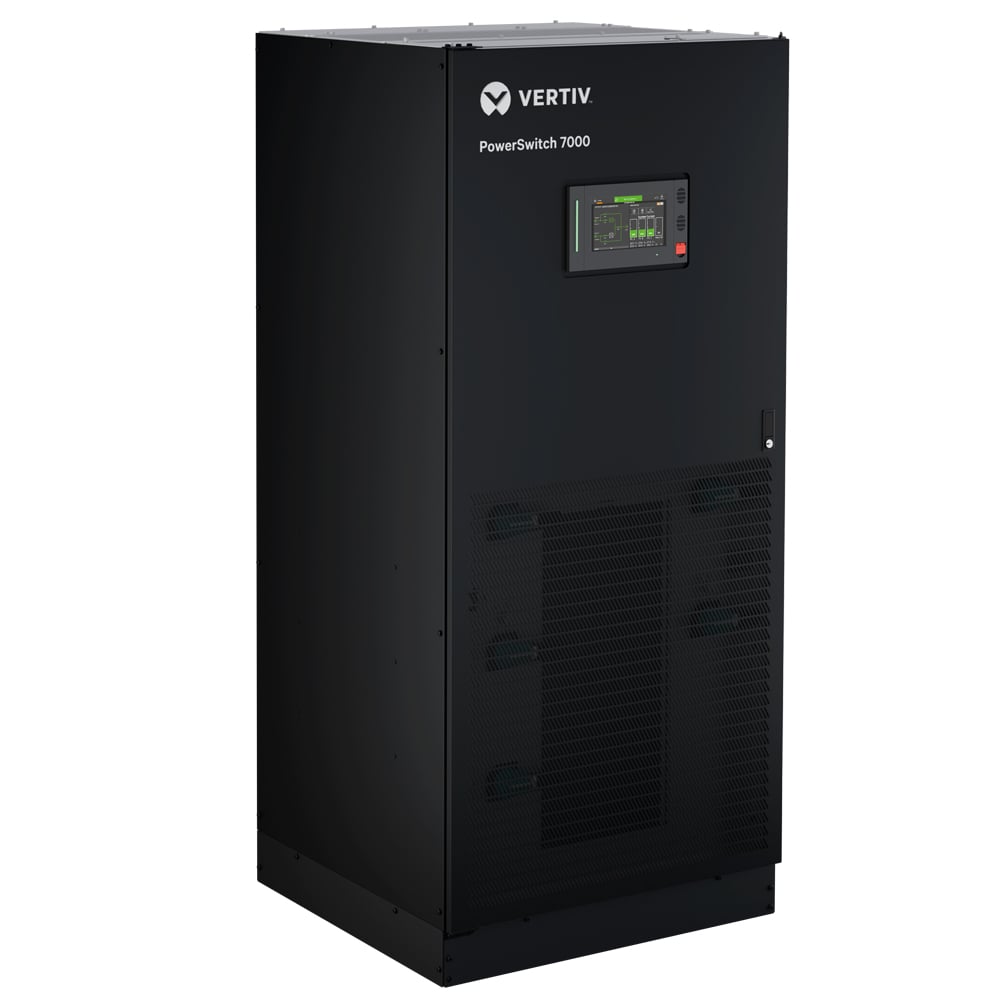

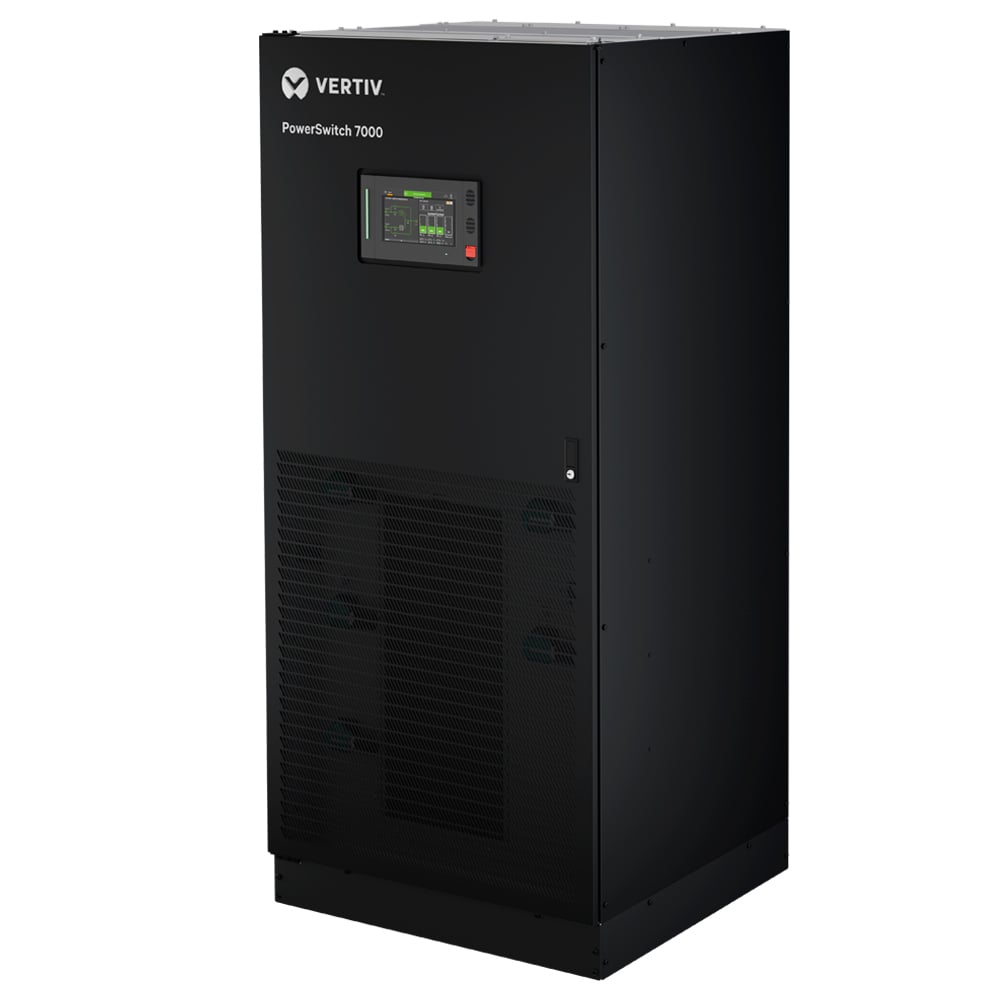

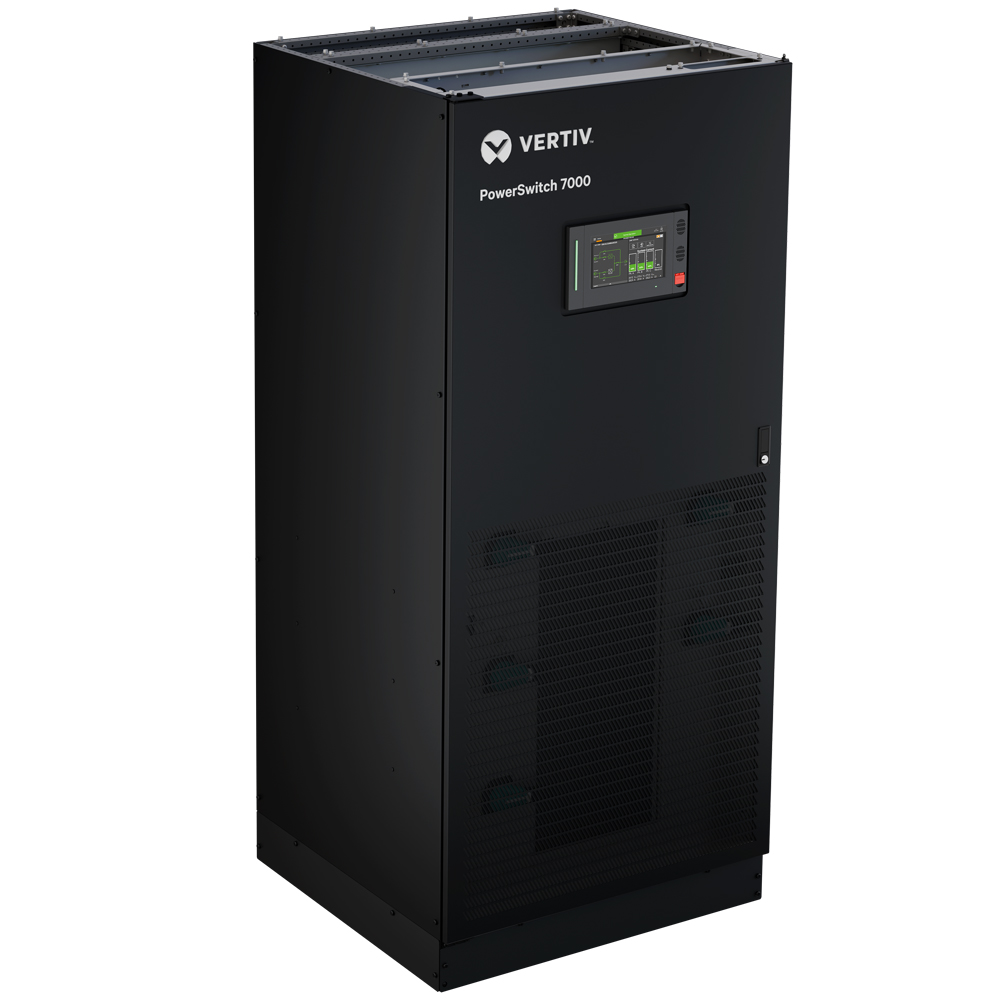

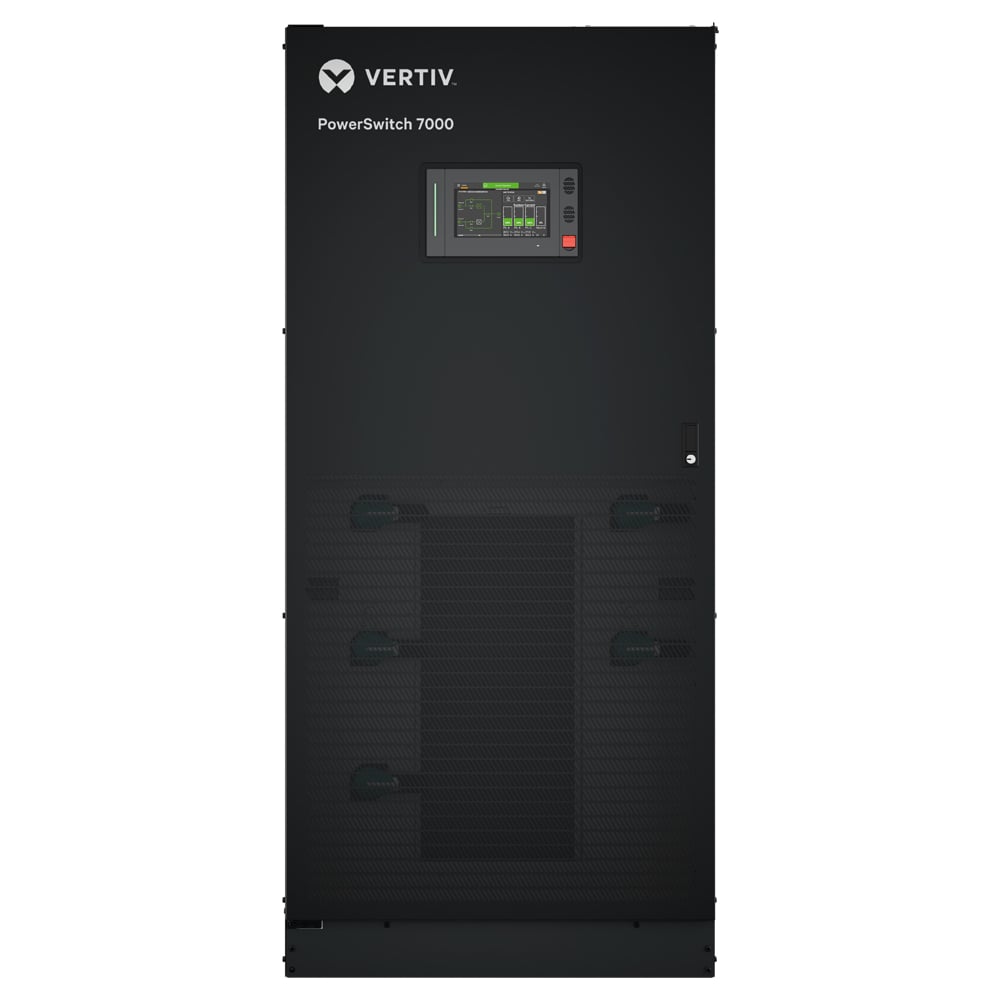

Vertiv™ PowerSwitch 7000 Static Transfer Switch

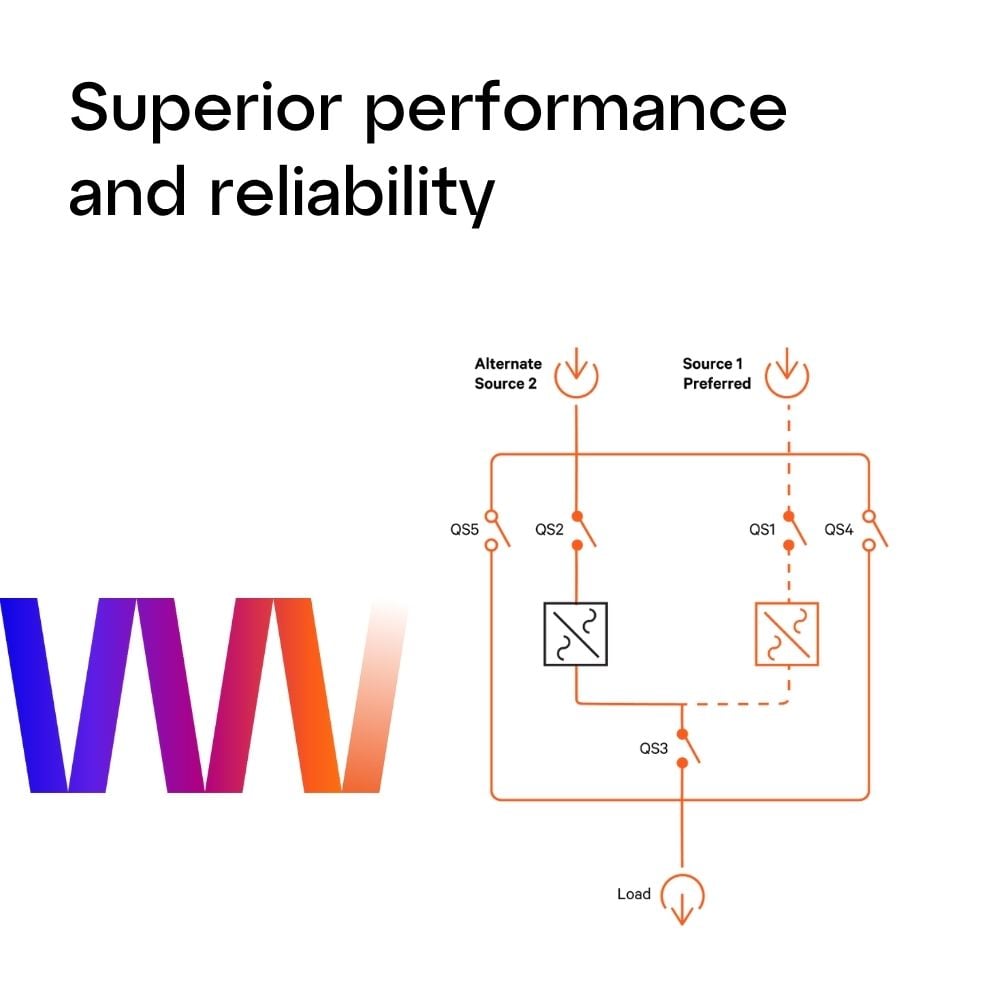

The Vertiv™ PowerSwitch 7000, is static transfer switch with an innovative design and enhanced monitoring capability including waveform capture. For maximum availability applications, it provides an automatic seamless transfer between your critical load and the outputs of two independent UPS systems in a dual-bus power configuration. If the primary UPS should fail, the switch will automatically transfer the loads to the alternate UPS. It is space-efficient, highly reliable and redundant, and offers improved serviceability. Its robust design prevents system downtime, overheating, and load rating reaction.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Retail and Wholesale
Vertiv™ PowerSwitch 7000 Static Transfer Switch
The Vertiv™ PowerSwitch 7000, is static transfer switch with an innovative design and enhanced monitoring capability including waveform capture. For maximum availability applications, it provides an automatic seamless transfer between your critical load and the outputs of two independent UPS systems in a dual-bus power configuration. If the primary UPS should fail, the switch will automatically transfer the loads to the alternate UPS. It is space-efficient, highly reliable and redundant, and offers improved serviceability. Its robust design prevents system downtime, overheating, and load rating reaction.
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Retail and Wholesale
Specifications
The Vertiv™ PowerSwitch 7000, a space-efficient and highly reliable next-generation static transfer switch, simplifies the protection of your critical equipment. It provides single cords with the reliability of dual cord power or adds redundancy to dual cord devices. This compact unit offers automatic switching between two different AC power sources and is available in 160A, 250A, 400A, and 630A systems, in both 60Hz and 50Hz, with multiple input voltages. Designed for dual-bus power applications, it combines fast switching, power isolation, monitoring, and grounding into a single, efficient package.
Benefits

- ENHANCE SYSTEM RELIABILITY AND REDUCE MAINTENANCE COST: Advanced waveform capture and monitoring capabilities in the static transfer switch allow rapid diagnosis of power quality events and upstream issues.

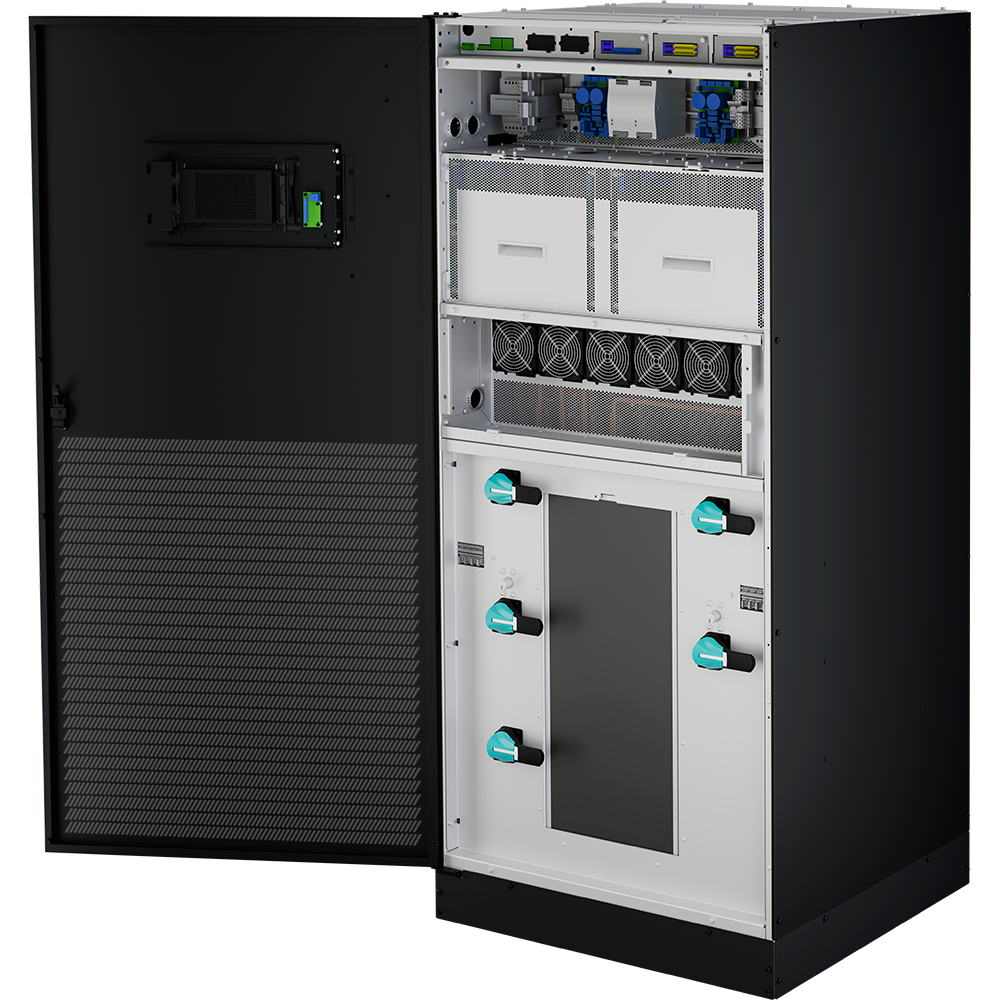

- SIMPLIFY MAINTENANCE: Compartmentalized true front-access design with hot-swappable components makes maintenance simple, allows continuous operations, and reduces mean time to repair (MTTR).
- REDUCE COMPONENT FAILURES: Configured units rated at 400A or below utilize a convection-cooled design.
- IMPROVE OPERATOR SAFETY: The bypass procedure comes with HMI providing a step-by-step guided process to prevent operator errors.
- SEAMLESSLY TRANSFER POWER WITHOUT ANY LOAD DISRUPTION: The internal maintenance bypass enables servicing without interrupting power to critical loads.

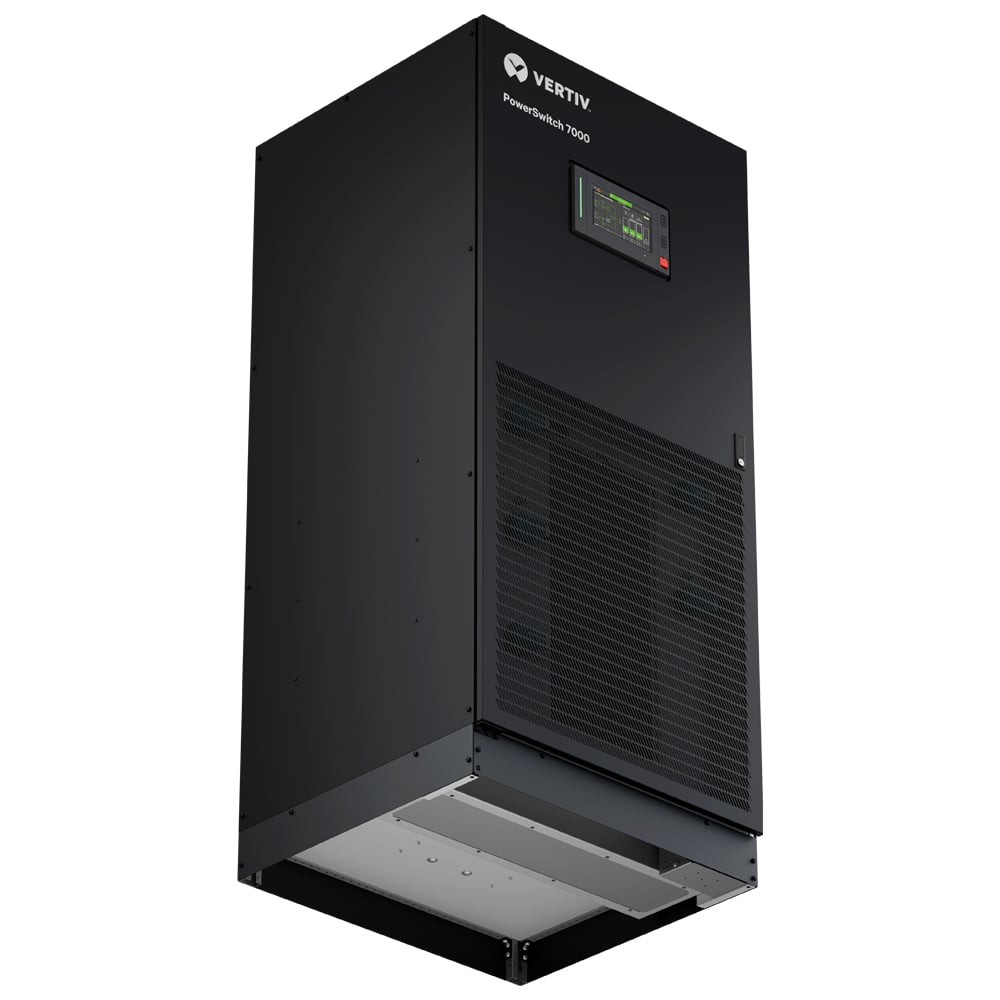

- OPTIMIZE VALUABLE DATA CENTER FLOOR SPACE: This space-efficient design has flexible top and bottom cable entry.

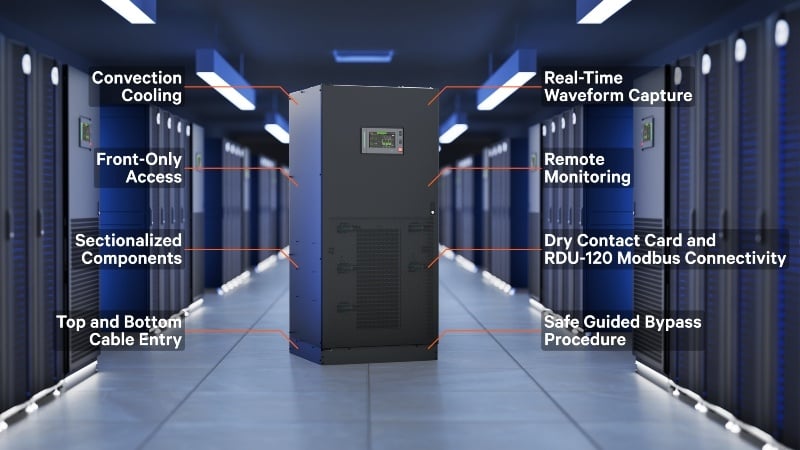

Features


- OPERATING SPECIFICATIONS: It is available in 160/250/400/630A ratings and supports both 3P and 4P switching poles- 380/400/415V.

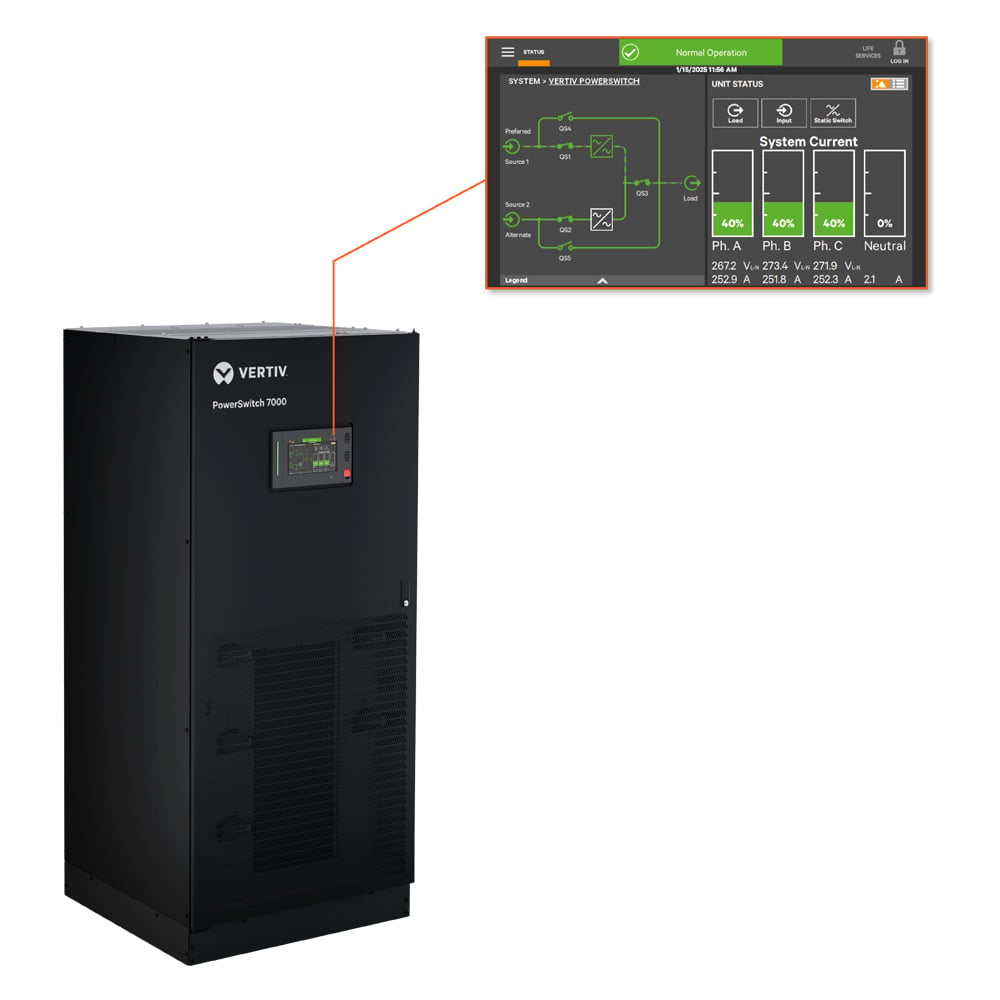

- ADVANCED INTERFACE: It has a large intuitive 9-inch full-color touchscreen global HMI with power flow visualization and real-time waveform captures during transfer events.
- REMOTE MONITORING & COMMUNICATIONS OPTIONS: Get intelligent, real-time remote monitoring and event diagnosis through the RDU120 communications card (Modbus TCP, SNMP, BACnet IP).
- FLEXIBLE DEPLOYMENT: It has front-access, compartmentalized design for better serviceability and top and bottom cable entry/exit for faster and flexible installations.
