NetSure 512 582137000 up to 525A
The NetSure™ 512 Series power system with 2000 watt rectifiers and DC to DC converters provides up to 600 amps of current for -48 volt systems with up to 400 amps at +24 volts or -58 volts. The basic components of the power system include the NetSure Control Unit (NCU), module mounting shelf assemblies which house the rectifiers and converters, and a dual panel distribution cabinet ideal for deployment in outdoor enclosures.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
NetSure 512 582137000 up to 525A
The NetSure™ 512 Series power system with 2000 watt rectifiers and DC to DC converters provides up to 600 amps of current for -48 volt systems with up to 400 amps at +24 volts or -58 volts. The basic components of the power system include the NetSure Control Unit (NCU), module mounting shelf assemblies which house the rectifiers and converters, and a dual panel distribution cabinet ideal for deployment in outdoor enclosures.
- Telecom

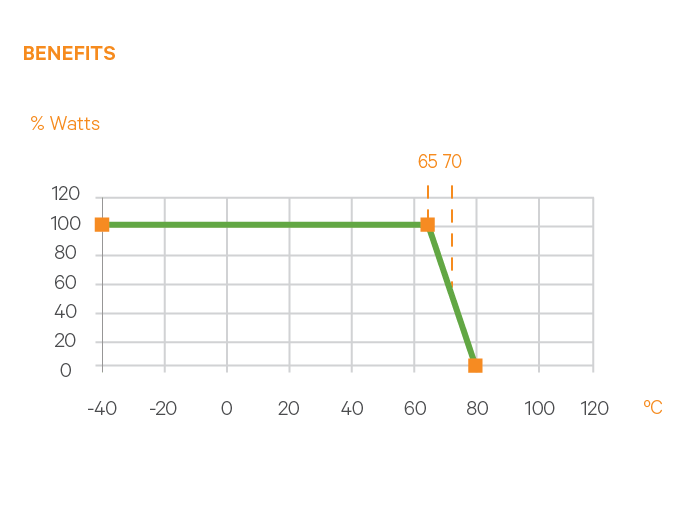

Benefits

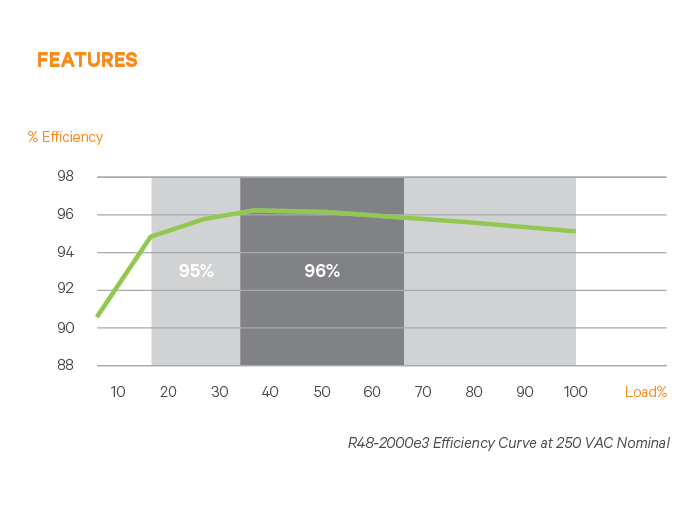

Features
Specifications
- Product Overview
- Power Capacity
- 18-28.8kW / 1.5-19.2kW
- Current Capacity
- 40-600A / 50-400A
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Input Voltage, Nominal
- Single phase: 208VAC to 240VAC
- System Type
- Two row system
- Input
- Input Voltage, Nominal
- Single phase: 208VAC to 240VAC
- Input Voltage, Operational
- Rectifier: (Single Phase) 85 VAC to 300 VAC, DC-DC Converter: 41 VDC to 58.5 VDC
- Input Connections
- Molex for AC cords or hardwiring
- Equipment Dimensions (H x W x D)
- Distribution cabinet: 8U x 27" x 16", Module shelf: 1U x (19" or 23") x 15"
- Access
- Top or rear cabled with front and top access
- Output
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC
- Output Capacity
- Up to 600 amps at -48 VDC plus redundancy; Up to 400 amps at +24 VDC or -58 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.2%; Converter: 95% (+24 VDC or -58 VDC)
- Load Circuit Breakers / Fuses
- 1-250 A E/M or E bullet nose breakers, 3-100 A TPS/TLS fuses, 18/100 A to 15 A GMT fuses
- Physical Characteristics
- Options
- SM-Temp
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU with remote access via web browsers, TCP/IP & SNMP as standard
- Operating Temperature
- -40 °C to +65 °C ( 40 °F to +149 °F)
- Safety Compliance
- UL Recognized (cUL)
- IM582137000 NetSure 512 Installation Manual
- UM60147273 eSure +27 VDC Bullet Converter Installation and User Manual
- UM582137000, Model 512 NGBB User Manual
- PSD_eSure-Rectifier-module_ENG_User-Manual_UM1R482000e3-Rev-P
- UM1C48241500 Converter User Manual
- UM547490 SM-TEMP User Manual
- QS582137000 Quick Start Guide Manual
- UM1R483500E Rectifier User Manual.pdf
- UM1C48582000P3 eSure Power Extend Converter User Manual
- UM10062803 +27 VDC Bullet Nose 6-Position GMT Fuse Board Kit Installation User Manual
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
