Vertiv™ Liebert® PSI5 UPS, 750VA - 5000VA, Line Interactive Mini Tower, 1U and 2U Rack/Tower 120V VRLA UPS
The Vertiv™ Liebert® PSI5 line interactive UPS family provides network grade uninterruptible power protection with pure sinewave output power and automatic voltage regulation ensuring availability of critical systems and information. Reliable and efficient power protection for servers, network equipment, medical devices, point-of-sale (POS) devices and security systems.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Vertiv™ Liebert® PSI5 UPS, 750VA - 5000VA, Line Interactive Mini Tower, 1U and 2U Rack/Tower 120V VRLA UPS
The Vertiv™ Liebert® PSI5 line interactive UPS family provides network grade uninterruptible power protection with pure sinewave output power and automatic voltage regulation ensuring availability of critical systems and information. Reliable and efficient power protection for servers, network equipment, medical devices, point-of-sale (POS) devices and security systems.
Warranty: It has a 39-month UPS warranty.Specifications

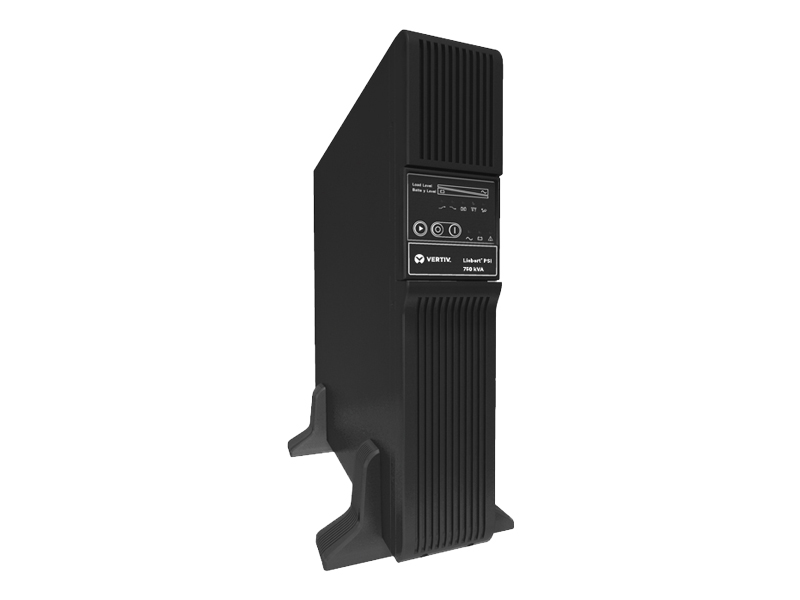

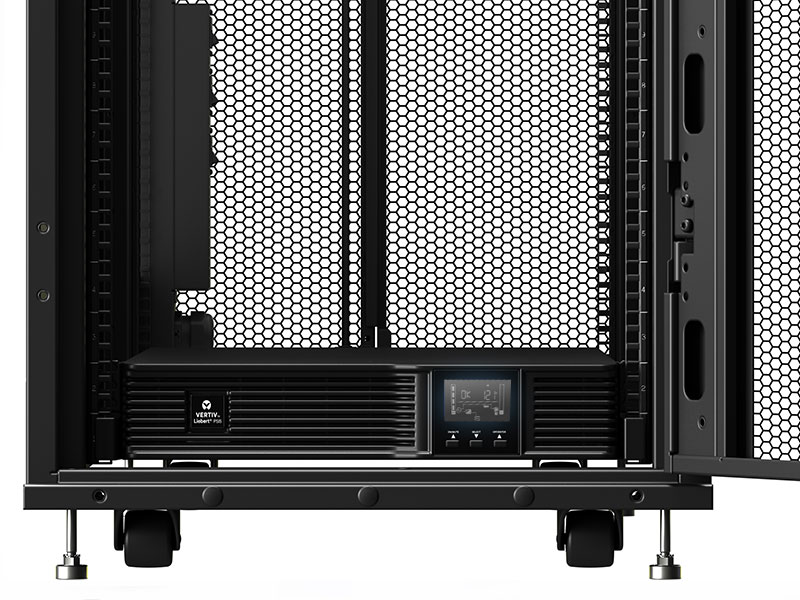

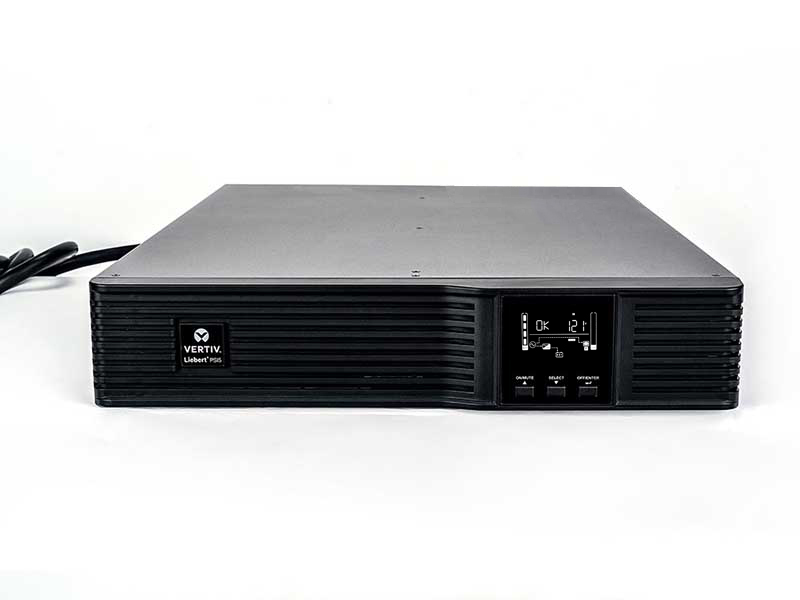

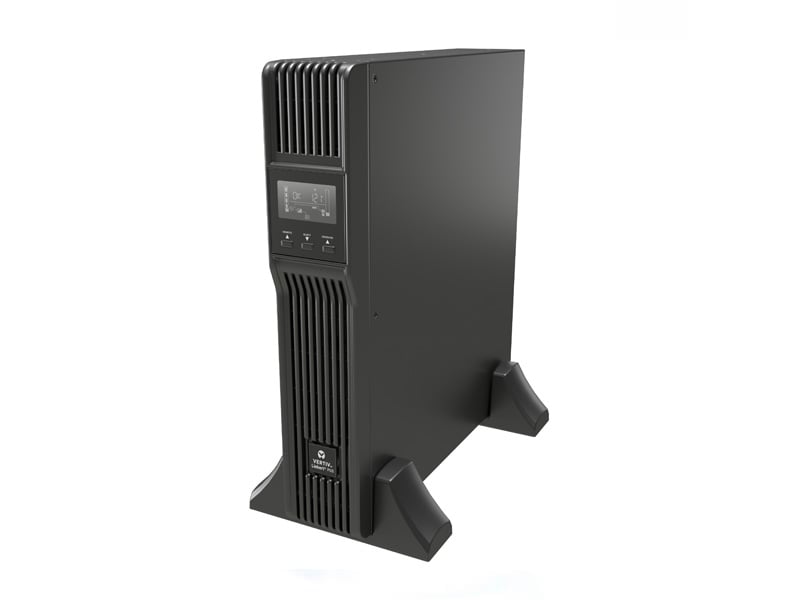

The flexible design of the Liebert® PSI5 allows the UPS to be tower (MT models), 1U rack mountable (1U models), or to be configured as a self-standing tower or to be rack-mounted within a 2U space (RT models). It is available from 750VA to 5000VA with both 120V or 208V models. The Liebert® PSI5 UPS features an innovative advanced line-interactive design incorporating buck/boost Automatic Voltage Regulation (AVR) technology. This protects against utility voltage fluctuation by raising and lowering utility power to the level needed by the connected equipment. It also allows the UPS to prolong battery life by maximizing its time on utility power before going to battery. Models with a capacity of 1500VA and below are not for sale in Vermont, Colorado, Washington.
|
PSI5-750MT120
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 750 VA / 675 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 97% (Normal Mode) | Input: 5-15P; Ouput: 5 x 5-15R | 9.4 in | 5.7 in | 14.8 in | 24.7 lb |
| See more product information | ||||||||
|
PSI5-1100MT120
|
||||||||
| 1,100 VA / 990 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 97% (Normal Mode) | Input: 5-15P; Ouput: 5 x 5-15R | 9.4 in | 5.7 in | 14.8 in | 26.0 lb |
| See more product information | ||||||||
|
PSI5-1500MT120
|
||||||||
| 1,440 VA / 1,350 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 97% (Normal Mode) | Input: 5-15P; Ouput: 6 x 5-15R | 9.4 in | 5.7 in | 19.1 in | 40.1 lb |
| See more product information | ||||||||
|

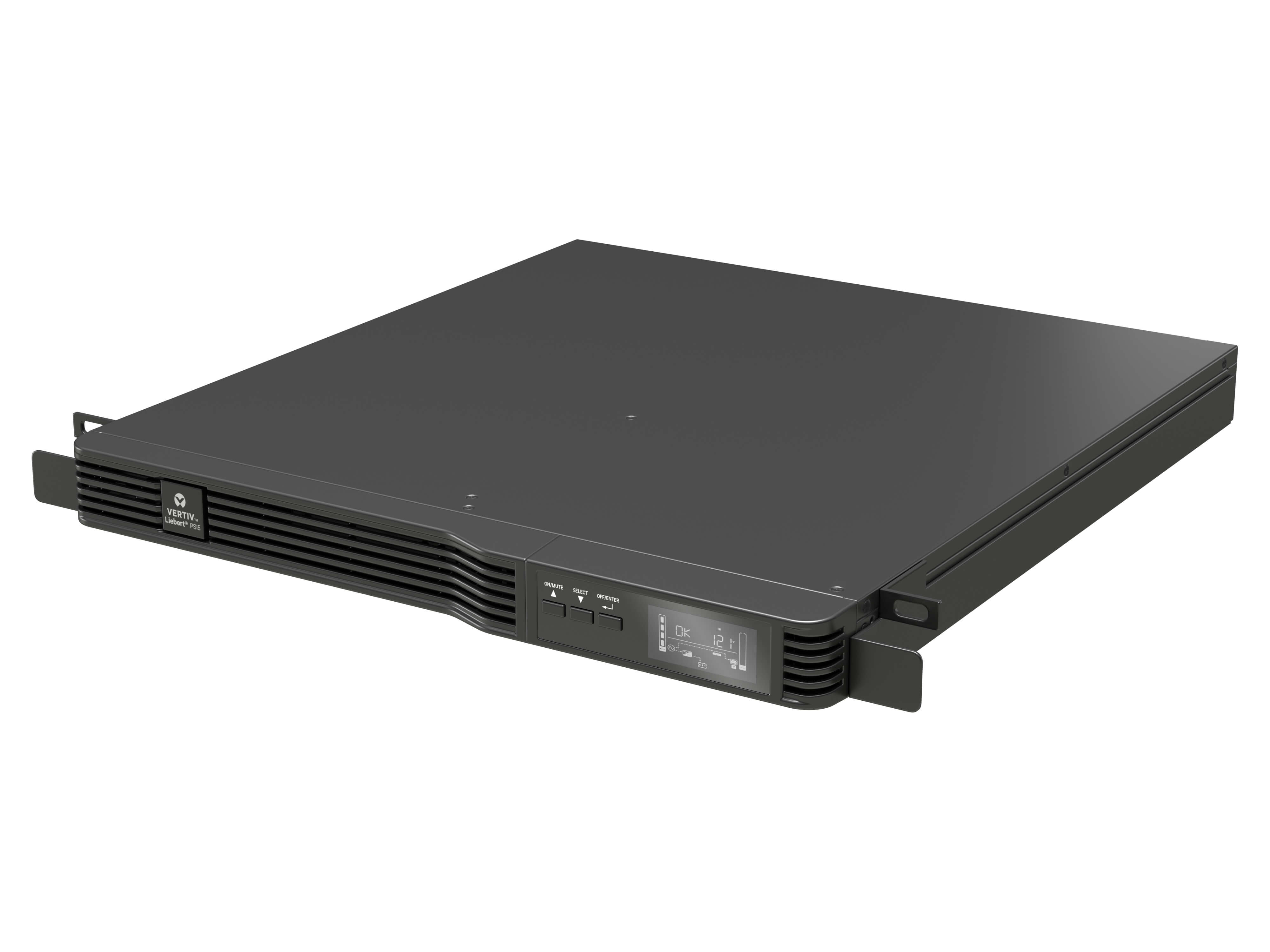

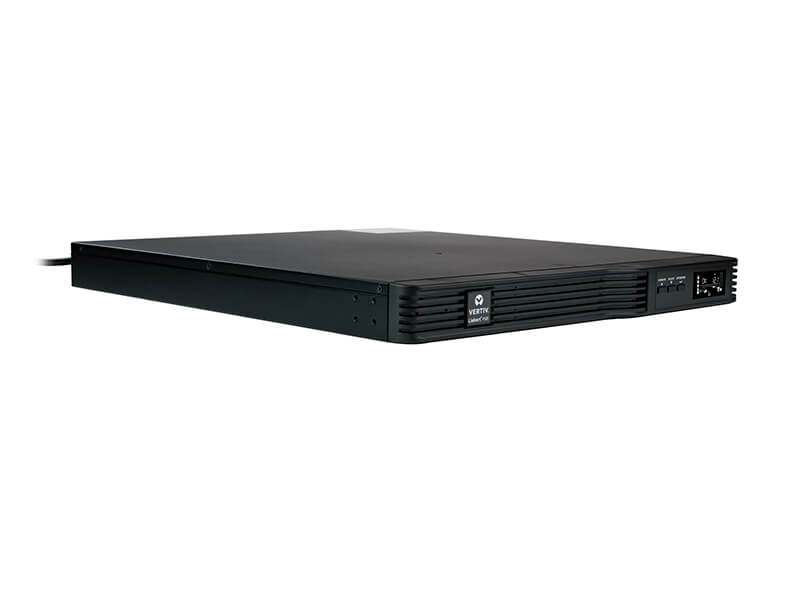

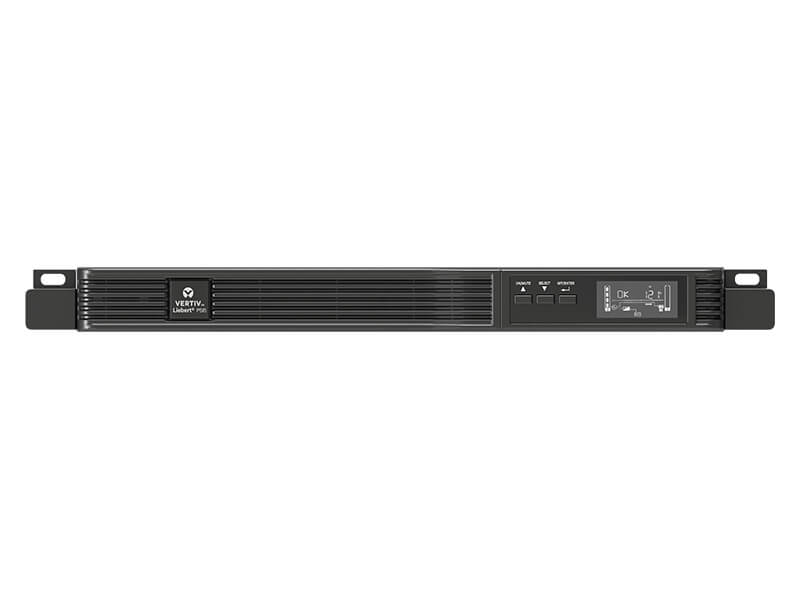

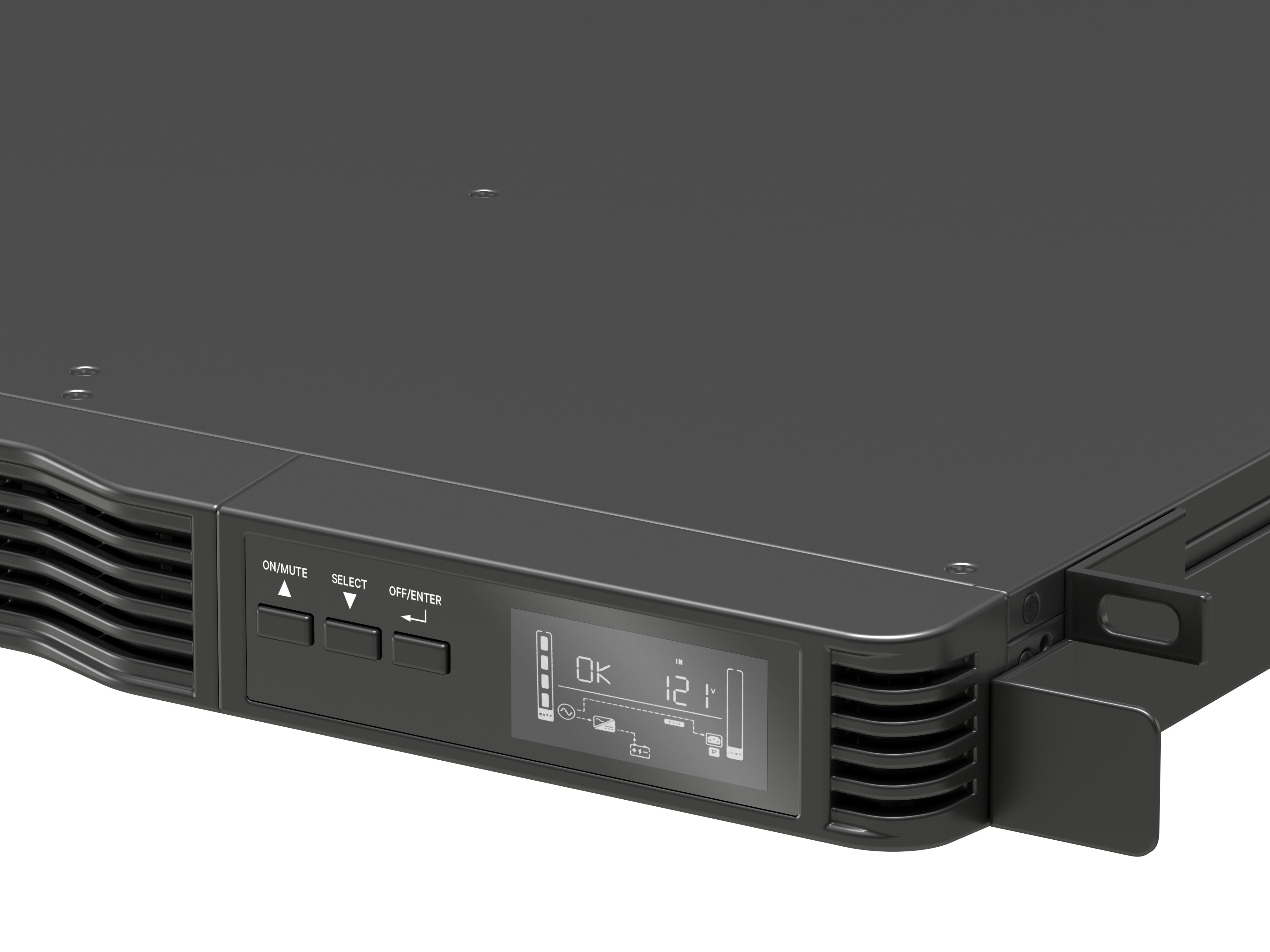

PSI5-1000RM1201U
|
||||||||
| 1,000 VA / 900 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 98% (Normal Mode) | Input: 5-15P; Ouput: 5 x 5-15R | 1.7 in | 17.2 in | 20.1 in | 36.4 lb |
| See more product information | ||||||||
|
PSI5-1500RM1201U
|
||||||||
| 1,440 VA / 1,350 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 98% (Normal Mode) | Input: 5-15P; Ouput: 5 x 5-15R | 1.7 in | 17.2 in | 24.8 in | 45.6 lb |
| See more product information | ||||||||
|
PSI5-800RT120
|
||||||||
| 800VA / 720W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 16.2 in | 28.9 lb |
| See more product information | ||||||||
|
PSI5-1100RT120
|
||||||||
| 1100VA / 990W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 16.2 in | 31.1 lb |
| See more product information | ||||||||
|

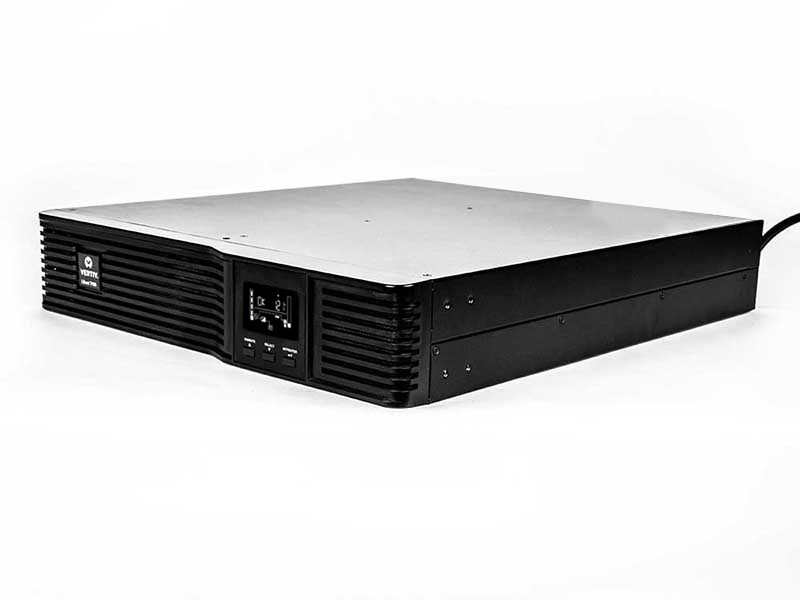

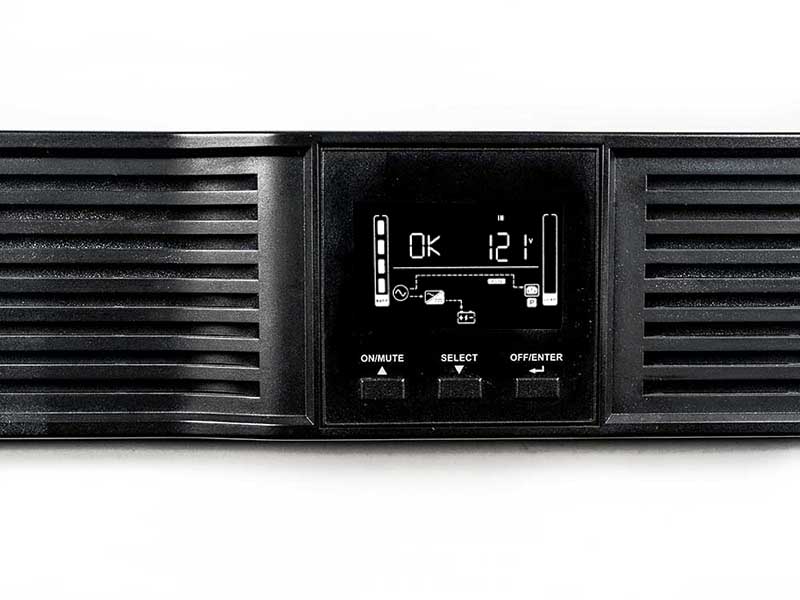

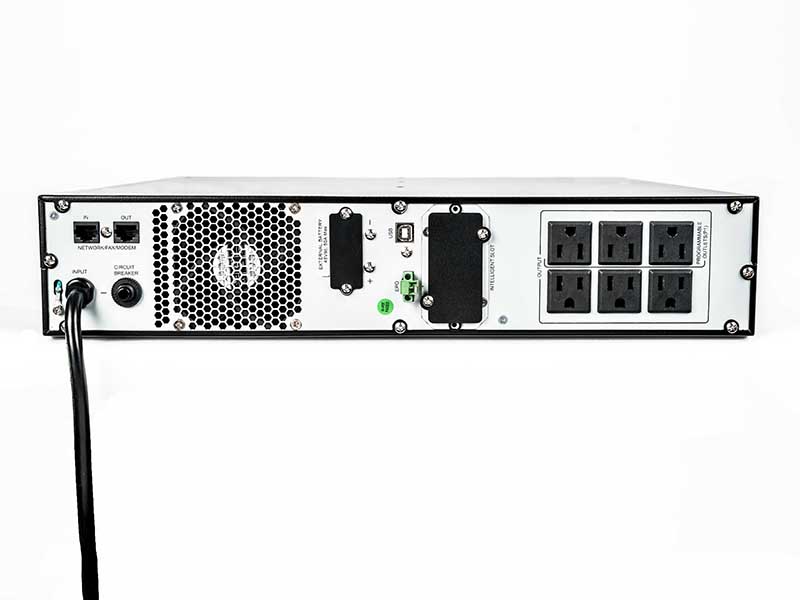

PSI5-1500RT120
|
||||||||
| 1500VA / 1350W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 20.1 in | 42.8 lb |
| See more product information | ||||||||
|
PSI5-2200RT120
|
||||||||
| 2200VA / 1920W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: L5-20P; Output: 6 x 5-15R, 1 x L5-20R | 3.5 in | 17.2 in | 24.8 in | 59.1 lb |
| See more product information | ||||||||
|
PSI5-3000RT120
|
||||||||
| 3000VA / 2700W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: L5-30P; Output: 6 x 5-15R, 1 x L5-30R | 3.5 in | 17.2 in | 24.8 in | 70.8 lb |
| See more product information | ||||||||
|

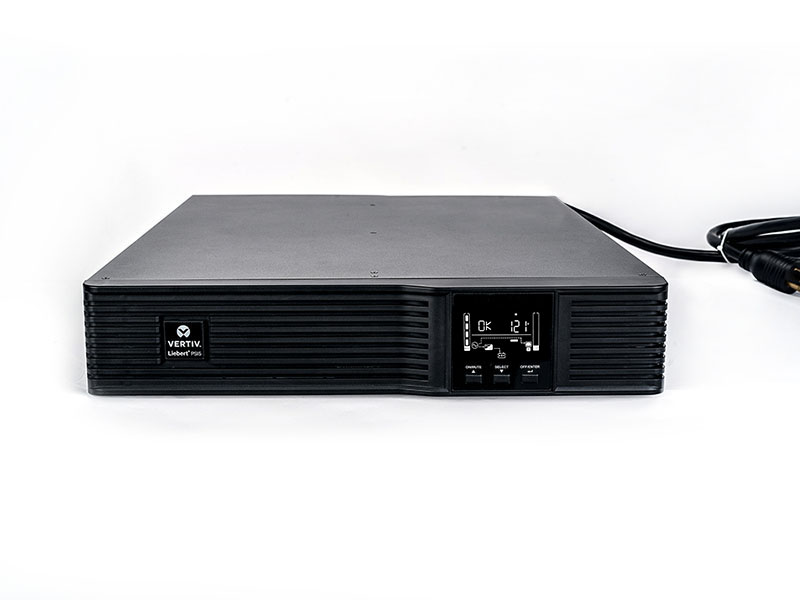

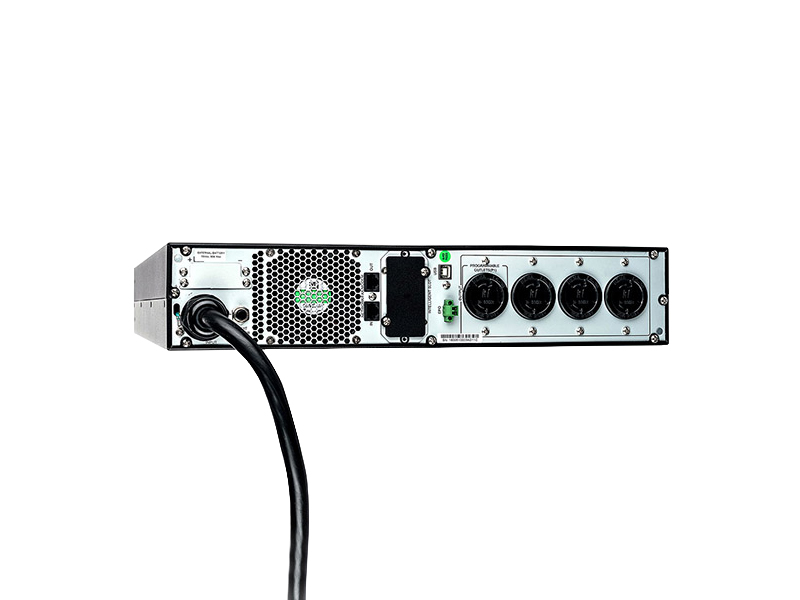

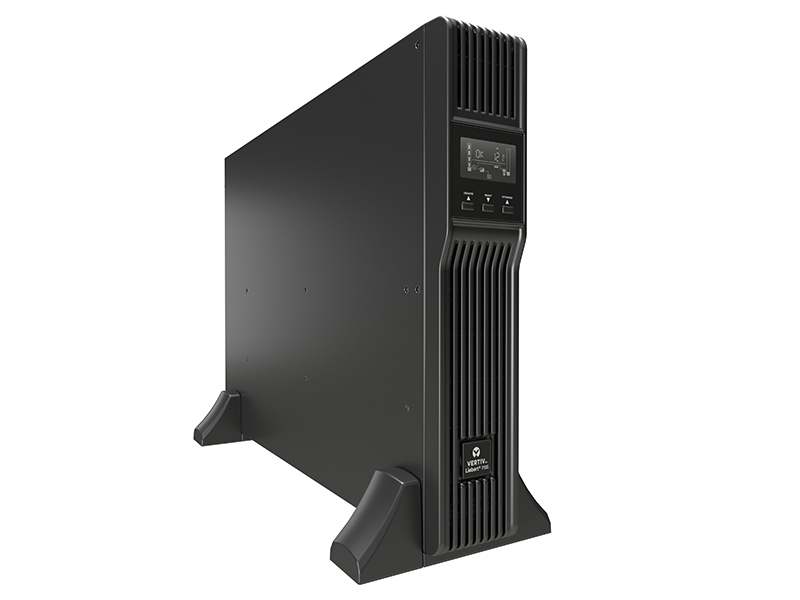

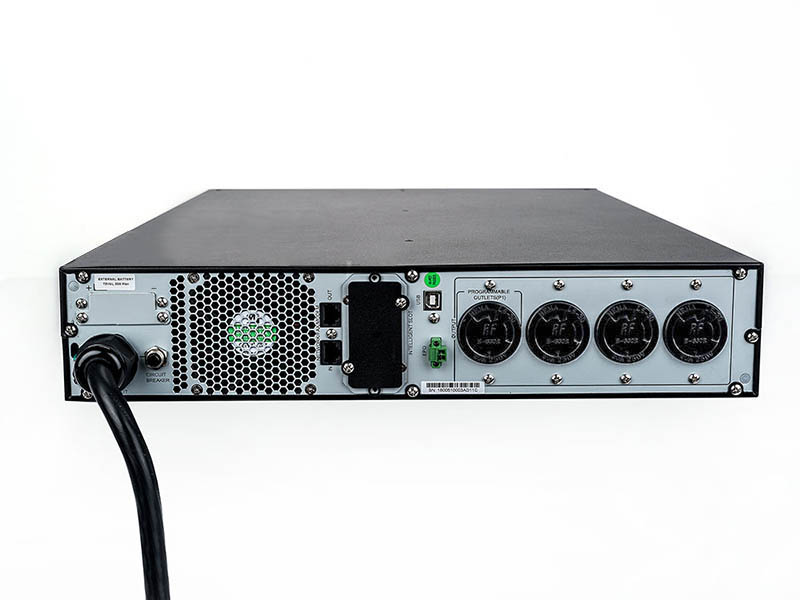

PSI5-5000RT208
|
||||||||
| 4250VA / 3825W | Nominal: 208VAC / Range: 150-281VAC | 208VAC (100/110/115/125 VAC TDU Required) | Up to 96% (Normal Mode) | Input: L6-30P; Output: 4 x L6-30R | 3.5 in | 17.2 in | 24.8 in | 87.7 lb |
| See more product information | ||||||||
|
PSI5-800RT120N
|
||||||||
| 800VA / 720W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 16.2 in | 28.9 lb |
| See more product information | ||||||||
|
PSI5-1100RT120N
|
||||||||
| 1100VA / 990W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 16.2 in | 31.1 lb |
| See more product information | ||||||||
|
PSI5-1500RT120N
|
||||||||
| 1500VA / 1350W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 20.1 in | 42.8 lb |
| See more product information | ||||||||
|
PSI5-2200RT120N
|
||||||||
| 2200VA / 1920W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: L5-20P; Output: 6 x 5-15R, 1 x L5-20R | 3.5 in | 17.2 in | 24.8 in | 59.1 lb |
| See more product information | ||||||||
|
PSI5-3000RT120N
|
||||||||
| 3000VA / 2700W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: L5-30P; Output: 6 x 5-15R, 1 x L5-30R | 3.5 in | 17.2 in | 24.8 in | 70.8 lb |
| See more product information |
- Vertiv™ Liebert® PSI5 UPS Brochure SL-23321
- Vertiv™ Liebert® Transformer Distribution Unit – Data Sheet
- Vertiv™ UPS Solutions for Desktop AI - Application Brief - NA - English
- Vertiv™ E-Rate Eligible - Brochure - English
- Vertiv™ Data Center Infrastructure Solutions - Channel Products Catalog - English
- Vertiv™ Liebert® Energy Star Qualified UPS Products Data Sheet
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
