Avocent HMX 8000 High Performance IP KVM Systems
The Vertiv Avocent HMX8000 IP keyboard, video and mouse (KVM) system is a high-performance extender offering 4K video over a single fiber connection, along with audio and universal serial bus (USB). It delivers pixel-perfect, color-accurate picture quality with 4K resolution at 60Hz using the USB 2.0 specification for fast switching, making it the preferred solution for broadcasting, post production, and other applications where high resolution and zero latency are required.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Healthcare
- Transportation
Avocent HMX 8000 High Performance IP KVM Systems
The Vertiv Avocent HMX8000 IP keyboard, video and mouse (KVM) system is a high-performance extender offering 4K video over a single fiber connection, along with audio and universal serial bus (USB). It delivers pixel-perfect, color-accurate picture quality with 4K resolution at 60Hz using the USB 2.0 specification for fast switching, making it the preferred solution for broadcasting, post production, and other applications where high resolution and zero latency are required.
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Healthcare
- Transportation
Specifications
The Vertiv Avocent HMX8000 IP KVM provides access to multiple computers via a standard IP network infrastructure, allowing users to share computing resources. It offers 4K video over a single fiber connection or dual head 4K with an additional fiber connection. The system is ideal for applications requiring high resolution and zero latency such as broadcasting, production editing, or any collaborative environments. This IP-based KVM extender enables computing hardware to be housed remotely from user workstations in secure, temperature-controlled environments. Designed to improve productivity and reduce IT costs, the system provides powerful administrative tools and connection-management control for network resources without compromising picture quality.
|

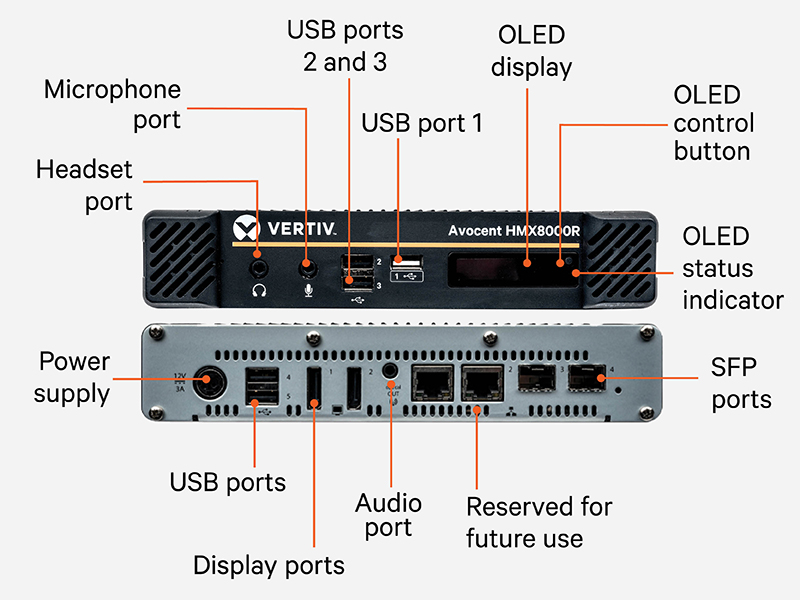

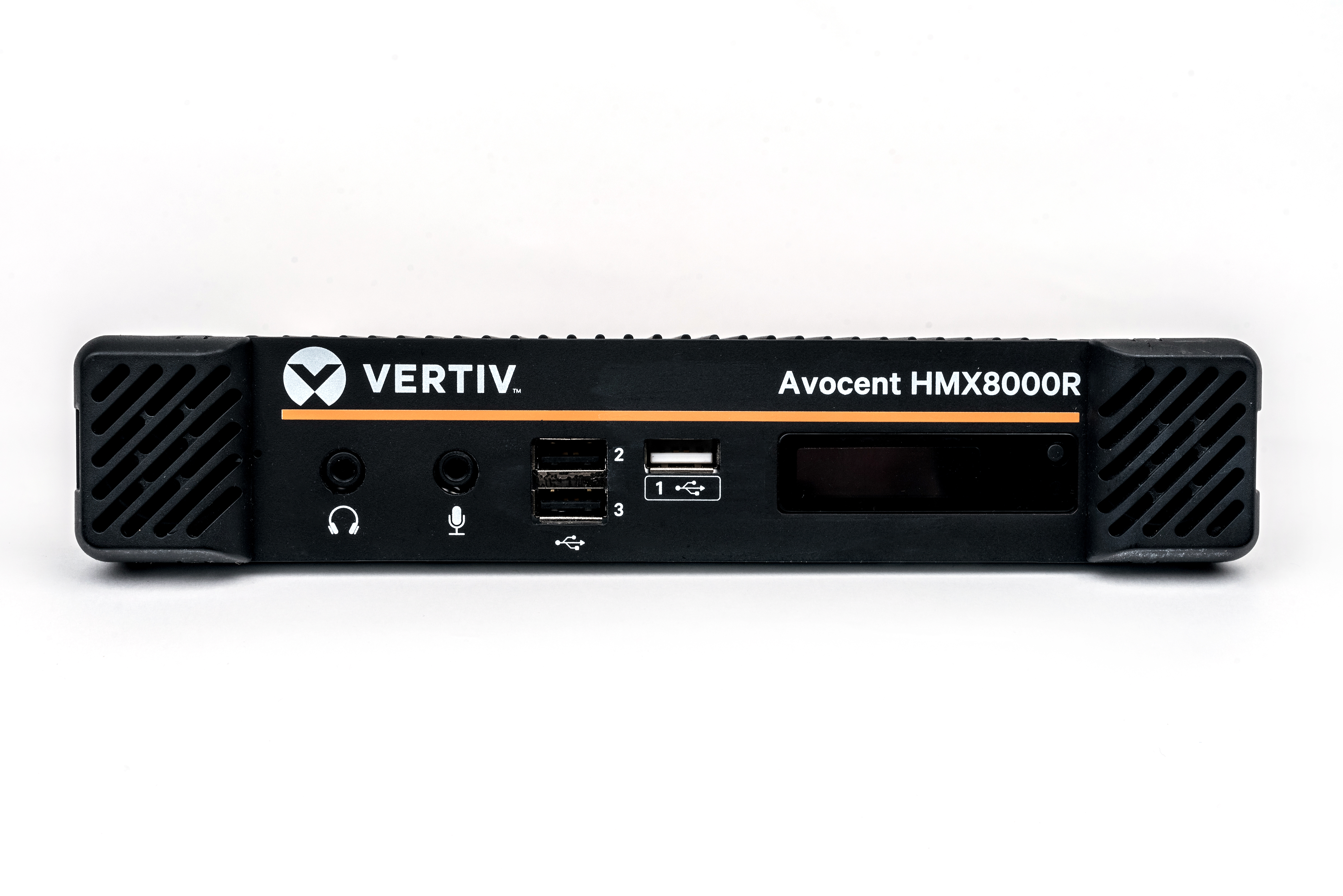

Vertiv Avocent HMX8000R - IP KVM Receiver | 4K video 10 GbE | 4 USB2.0
|
||||||||
|---|---|---|---|---|---|---|---|---|
| HPKVM | 5X USB Type A | Speaker & Mic | 2X Display Port | 4K @ 60 Hz (4096*2160) | 8.3 in | 8.5 in | 1.6 in | 4 lbs |
| See more product information | ||||||||
|
Vertiv Avocent HMX8000T - IP KVM Transmitter | 4K video 10 GbE | 4 USB2.0
|
||||||||
| HPKVM | 2X USB Type B | Speaker & Mic | 2X Display Port | 4K @ 60 Hz (4096*2160) | 8.3 in | 8.5 in | 1.6 in | 4 lbs |
| See more product information |
Features
- Less-than-a-second switching between target computers
- Any-to-any matrix configuration
- Multicast 1:1 pixel mapping with instant video transmission
- IP-based technology that removes distance limitations of the past
- USB 2.0 compatibility enabling use of most tablets, shuttle, and joy sticks (reference the USB6000 for non-supported USB requirements
- Fully redundant system with auto failover
- Remote access capability
- Vertiv™ Avocent® HMX High Performance KVM Extender System Installer User Guide
- Vertiv™ Avocent® HMX High Performance KVM Extender System Guide Specifications
- Vertiv™ Avocent® HMX 8000 6500 and Advanced Manager Rack Mount Installation Guide
- Vertiv™ Avocent® HMX 8000 High Performance KVM Extender System Rack Mount Quick Installation Guide 5902180501A
- Vertiv™ Avocent® HMX 5000 6000 & 8000 Data Sheet
- Vertiv™ Data Center Infrastructure Solutions - Channel Products Catalog - English
- Vertiv™ Avocent® Broadcast Solutions Brochure AV-11104
- Vertiv Avocent HPKVM Enhanced Emergency Management - Application Brief - English
- Vertiv™ Avocent® HMX with Multiviewer - Application Brief - English
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
