Product Family

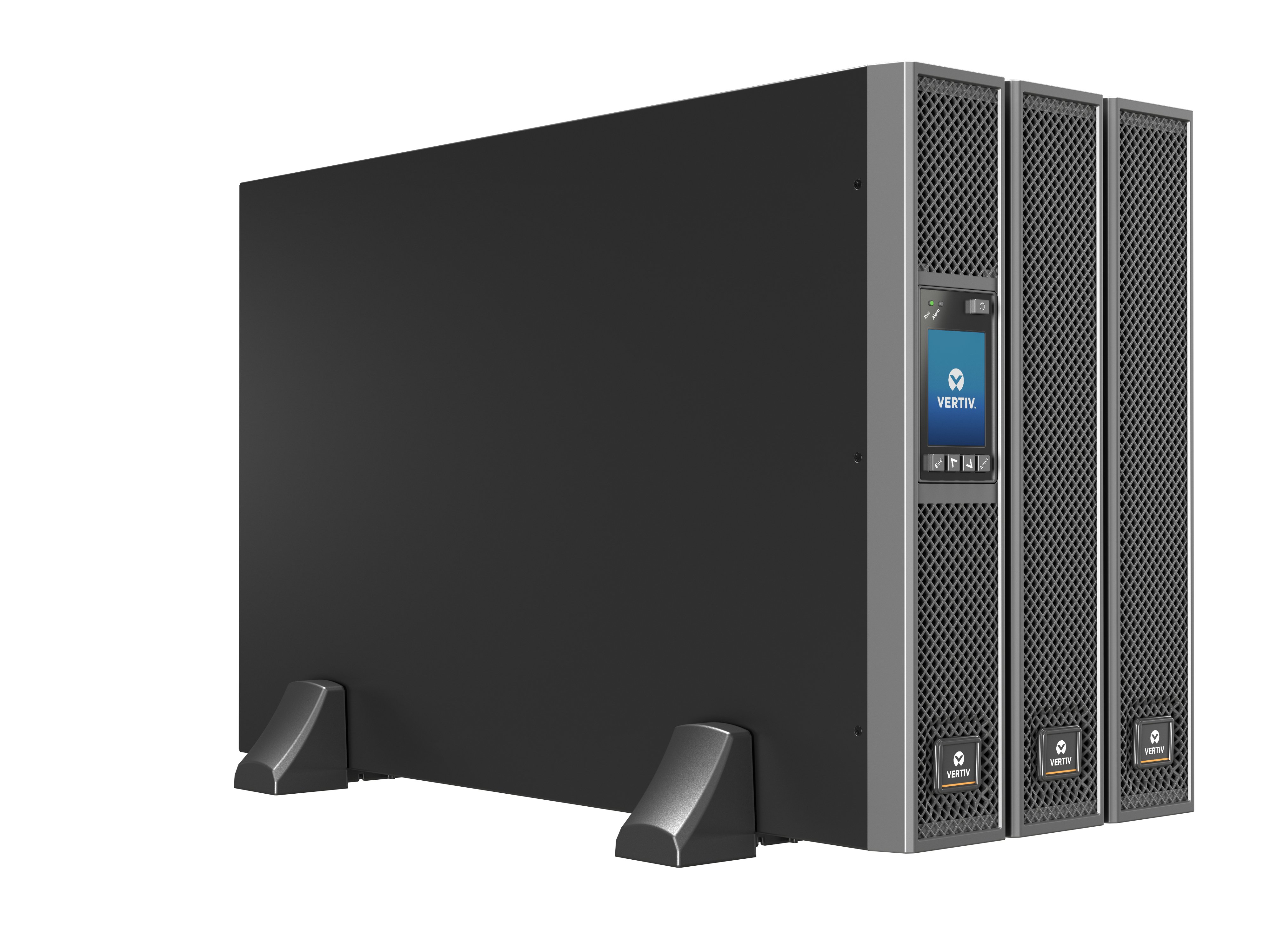

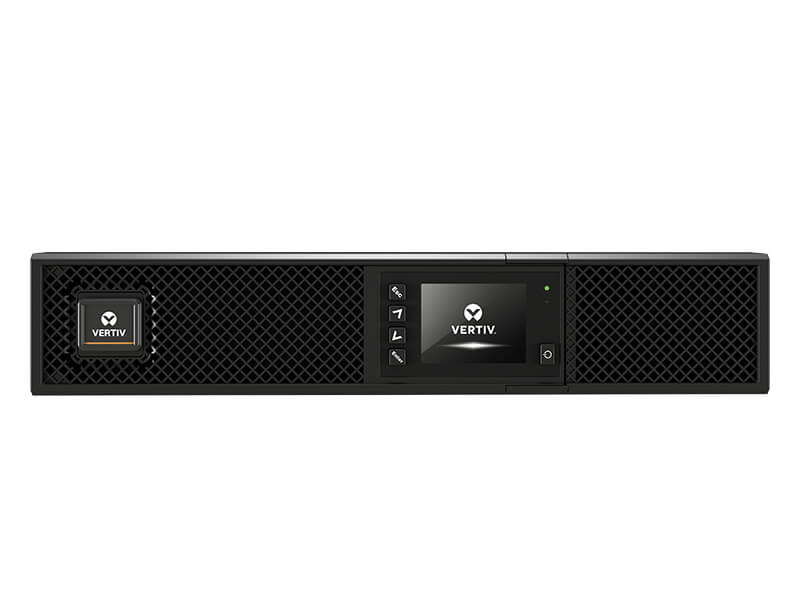

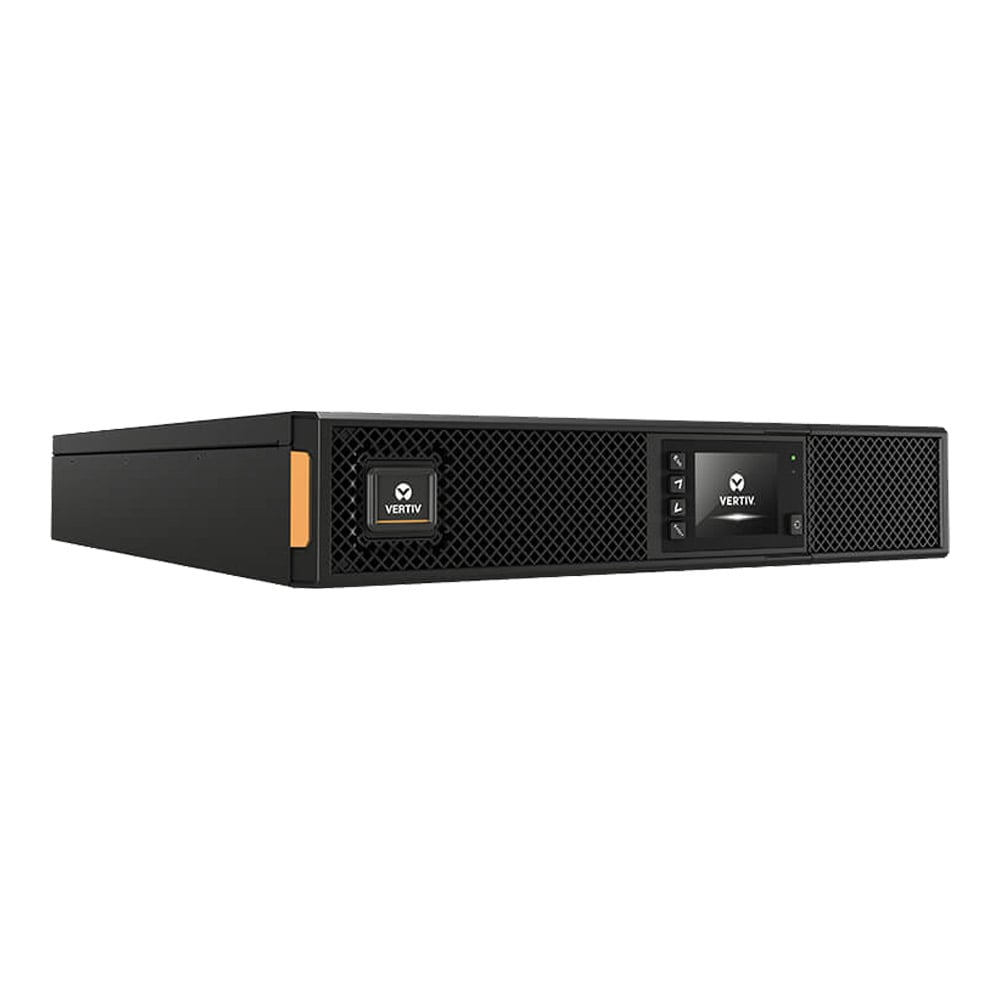

Vertiv™ Liebert® GXT5 UPS, 3,000-20,000VA 208VAC UPS

The Vertiv™ Liebert® GXT5 UPS is an online double conversion system offering premium power outage protection and continuous power conditioning in a flexible rack/tower design. This single-phase UPS family provides superior protection and remote management capability, making it ideally suited to protect critical infrastructure in both centralized and edge network applications. Additionally, the Liebert GXT5 UPS offers a scalable battery runtime solution through matching external battery cabinets.

Find Sales Contact Get Brochure Get Manual
Key Benefits
Three-year comprehensive factory warranty for UPS and battery with next-day advanced exchange to support maximum availability
High power factor operation up to unity, allows for more connected devices
Energy Star® 2.0 certification; high efficiency in online (95%) and Active ECO (98%) modes
Enhanced local and remote management capabilities for intelligent critical infrastructure management
SNMP network communications with Vertiv™ RDU101 NIC (optional for 3kVA units; factory pre-installed for 5-20kVA units) streamlines installation and maintenance
Auto-detection of external battery cabinets for scalable power
Best Suited For:
  • Banking, Financial and Insurance
  • Education
  • Government
  • Healthcare
  • Retail and Wholesale
Warranty: Three-year advanced replacement, full-coverage factory warranty with optional extended warranty available.

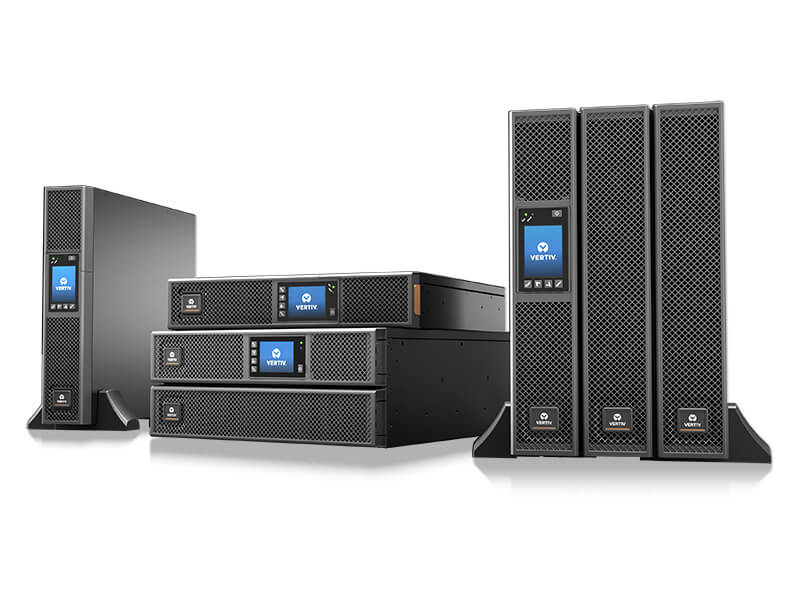

The full range of single-phase Vertiv™ Liebert® GXT5 UPS systems are easy to deploy with convertible rack/tower design that offers installation flexibility. Its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and integration are also easy with auto-detection of matching external battery cabinets for additional runtime solutions. With available network interface card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services are available to support your critical infrastructure. Designed for high availability and capacity, these compact UPS models with output power factors up to unity provide more usable power for connected equipment. High efficiency operation of this Energy Star® 2.0 certified UPS means you get protection while supporting sustainability. Increased efficiency is also achieved with Active ECO operating mode.

Model Specifications Overview

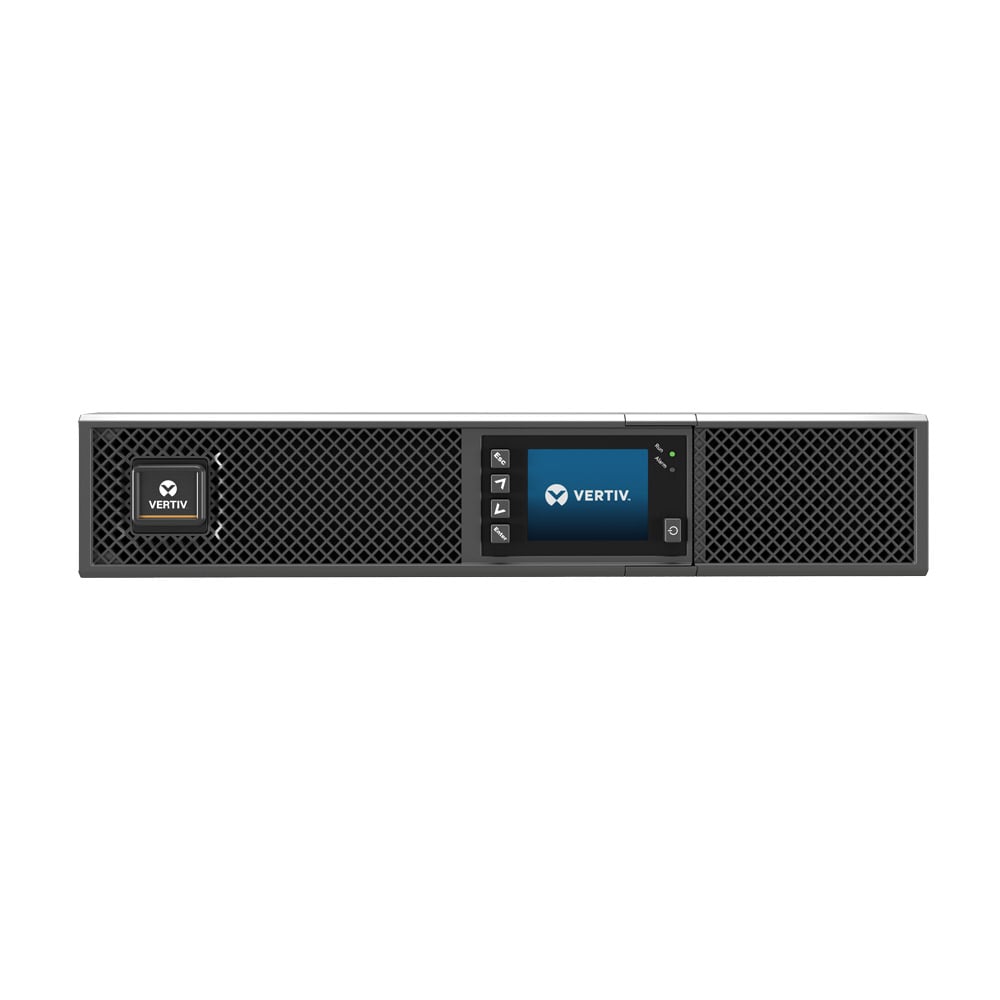

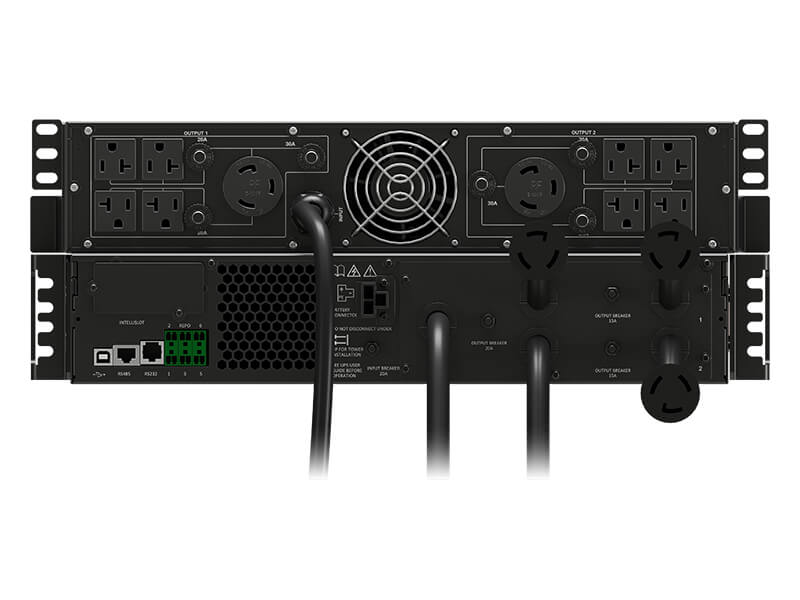

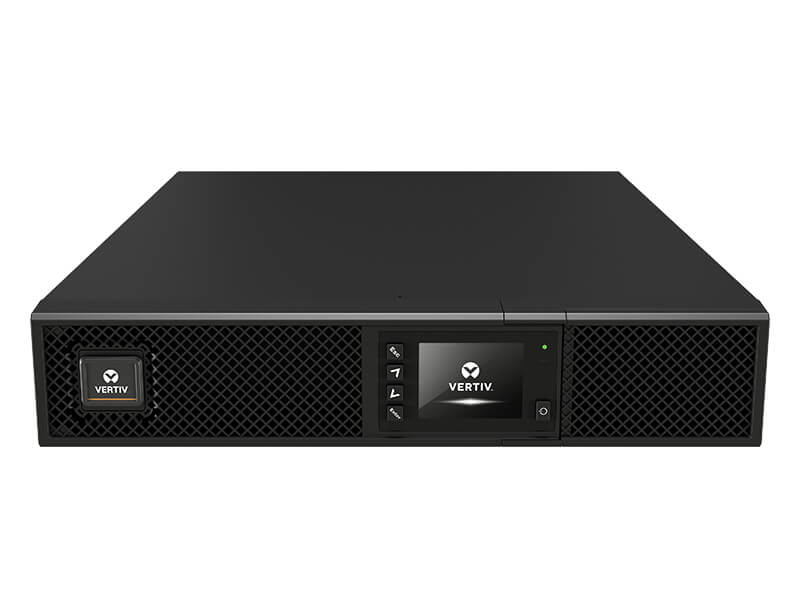

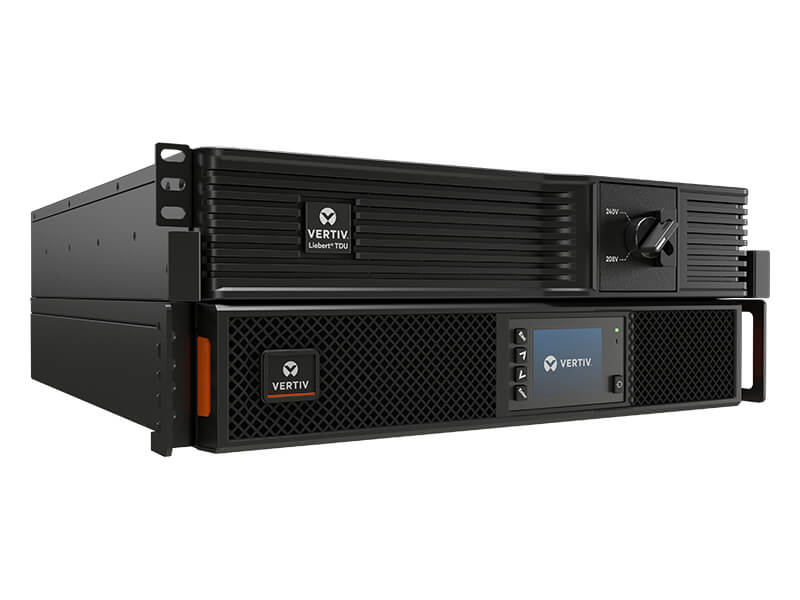

GXT5-3KL620RT2UXL
3,000 VA / 3,000 W   208 VAC nominal; variable based on output load   208 VAC   Up to 98% Active ECO Mode; up to 95% on-line mode   Input: L6-20P; Ouput: 2 x L6-15R and 2 x L6-20R   3.4 in   16.9 in   21.3 in   65.1 lb
GXT5-3KL630RT2UXL
3,000 VA / 3,000 W   208 VAC nominal; variable based on output load   208 VAC   Up to 98% Active ECO Mode; up to 95% on-line mode   Input: L6-30P; Ouput: 2 x L6-15R and 2 x L6-30R   3.4 in   16.9 in   21.3 in   65.1 lb

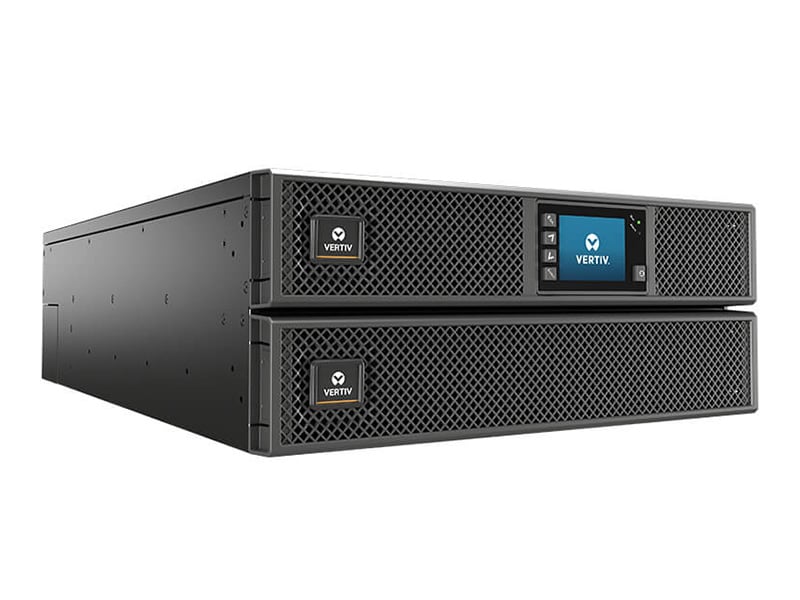

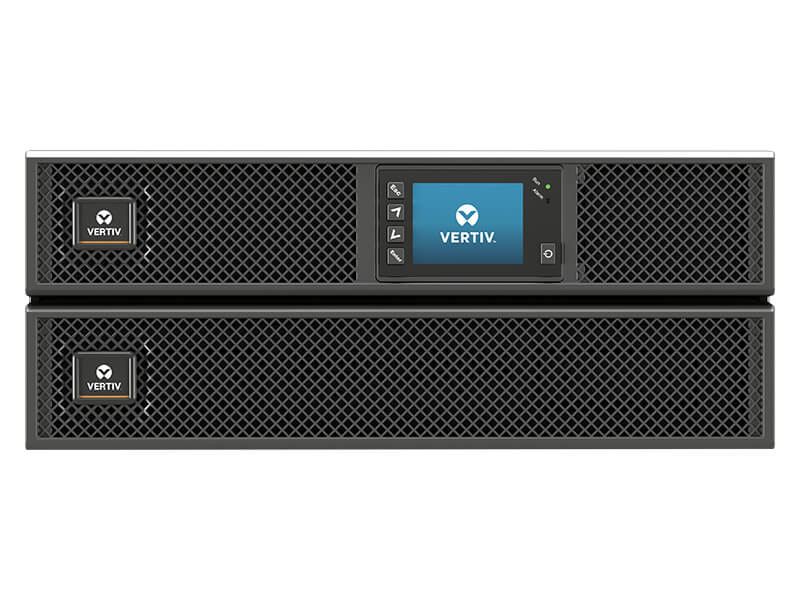

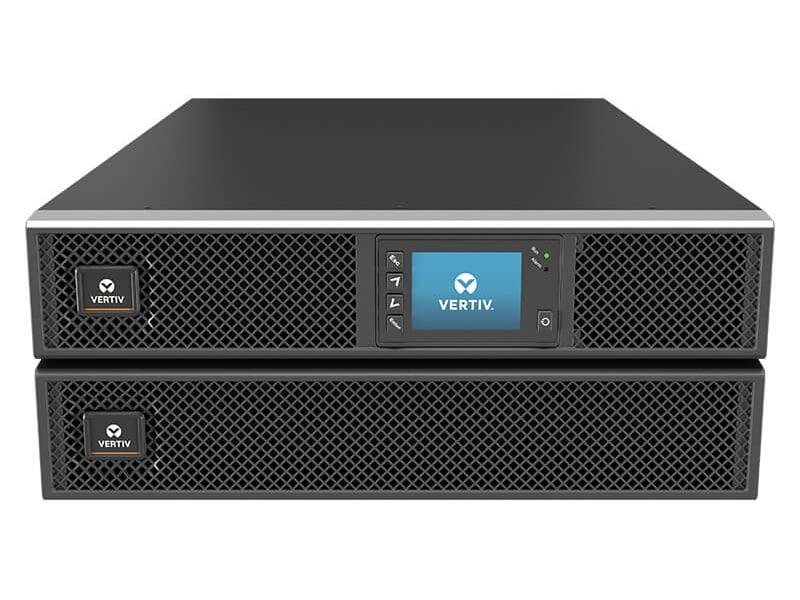

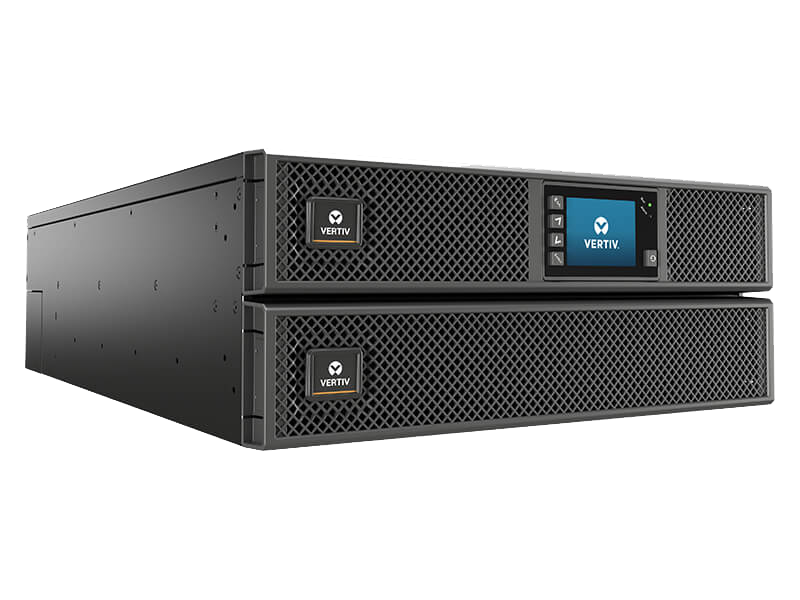

GXT5-5000MVRT4UXLN
5,000 VA / 5,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   6.8 in   16.9 in   25.6 in   125.6 lb
GXT5-6000MVRT4UXLN
6,000 VA / 6,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   6.8 in   16.9 in   25.6 in   125.6 lb
GXT5-8000MVRT6UXLN
8,000 VA / 8,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   10.2 in   16.9 in   25.6 in   224.8 lb
GXT5-10KMVRT6UXLN
10,000 VA / 10,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   10.2 in   16.9 in   25.6 in   224.8 lb

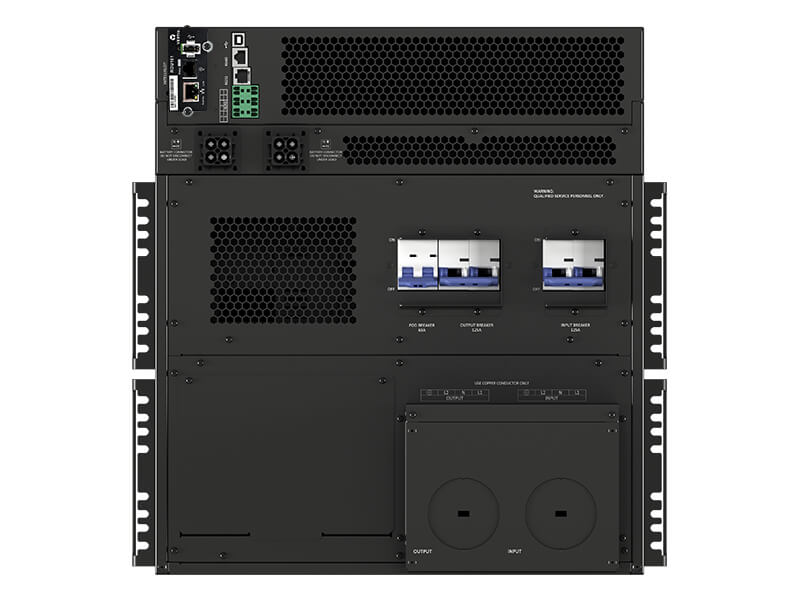

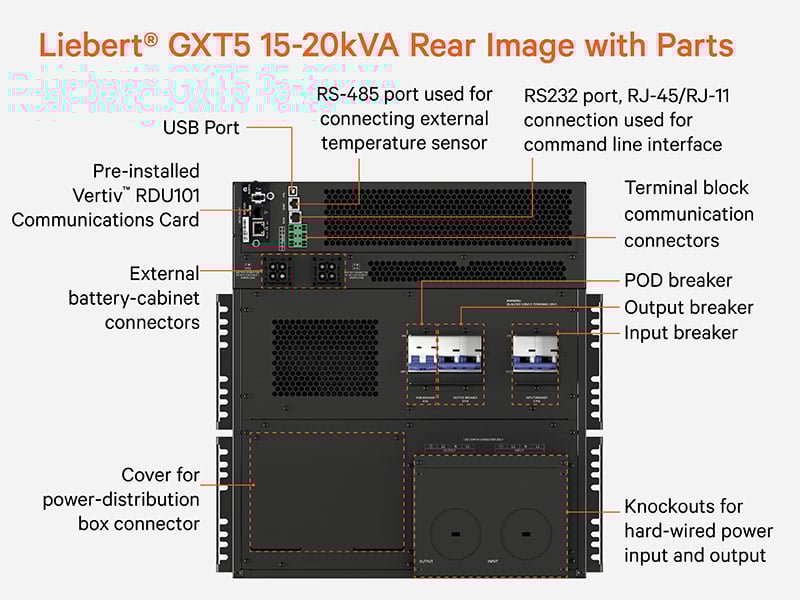

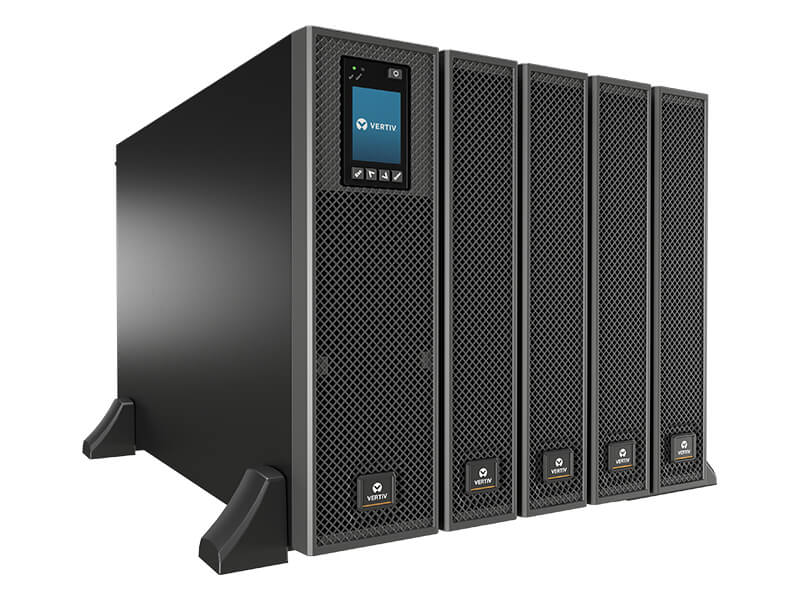

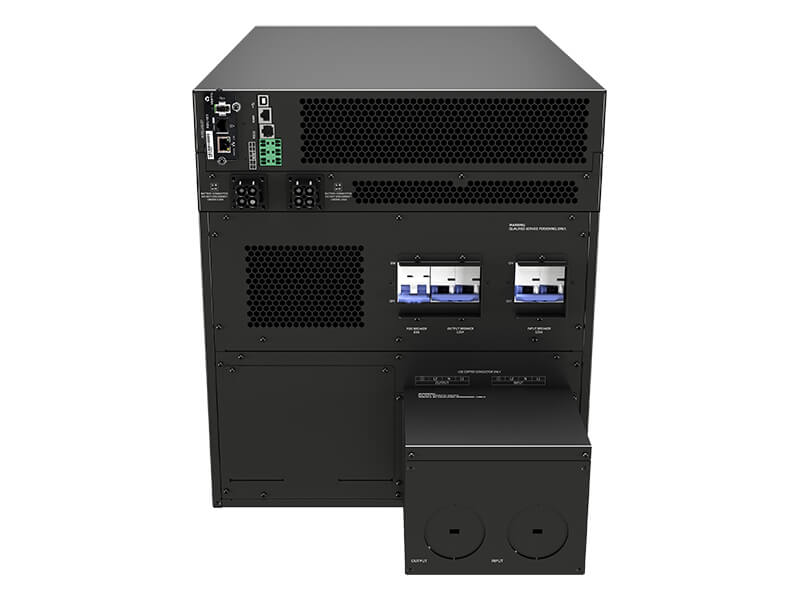

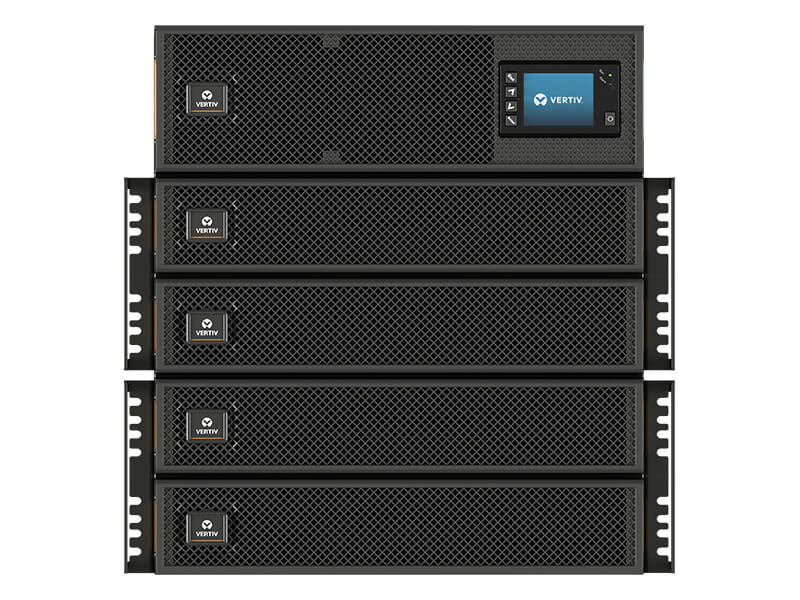

GXT5-15KMVRT11UXLN
15,000 VA / 15,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   19.0 in   16.9 in   26.7 in   396.6 lbs
GXT5-20KMVRT11UXLN
20,000 VA / 20,000 W   Typical: 208VAC / Range: 176-280VAC   208/120VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out; Optional PODs available   19.0 in   16.9 in   26.7 in   396.6 lbs
GXT5-5000HVRT5UXLN
5,000 VA / 5,000 W   Typical: 208VAC / Range: 176-288VAC   200/208/220/230/240 VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R   8.5 in   16.9 in   24.8 in   156.7 lb

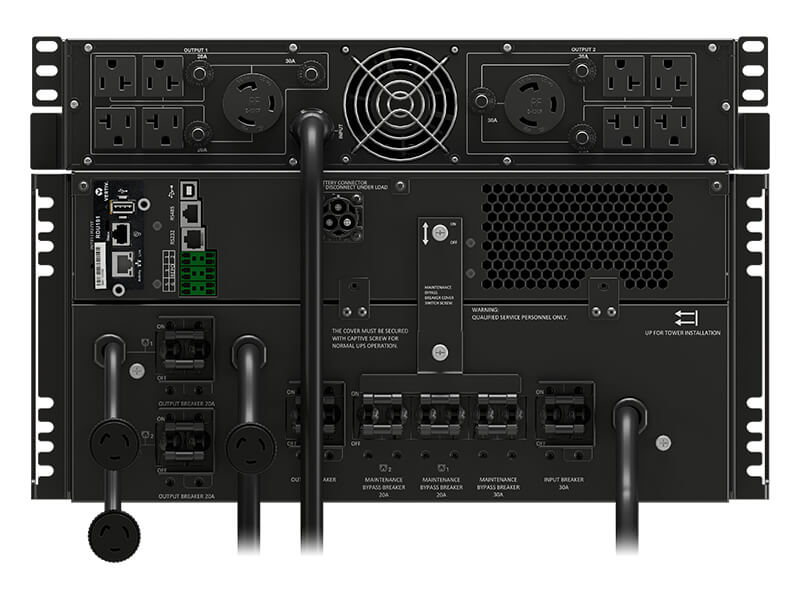

GXT5-6KL630RT5UXLN
4,900 VA / 4,600 W   Typical: 208VAC / Range: 175-280 VAC   200/208/220/230/240 VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Input: L6-30P; Outpu: 2 x L6-20R and 2 x L6-30R   8.5 in   16.9 in   23.6 in   149.1 lb

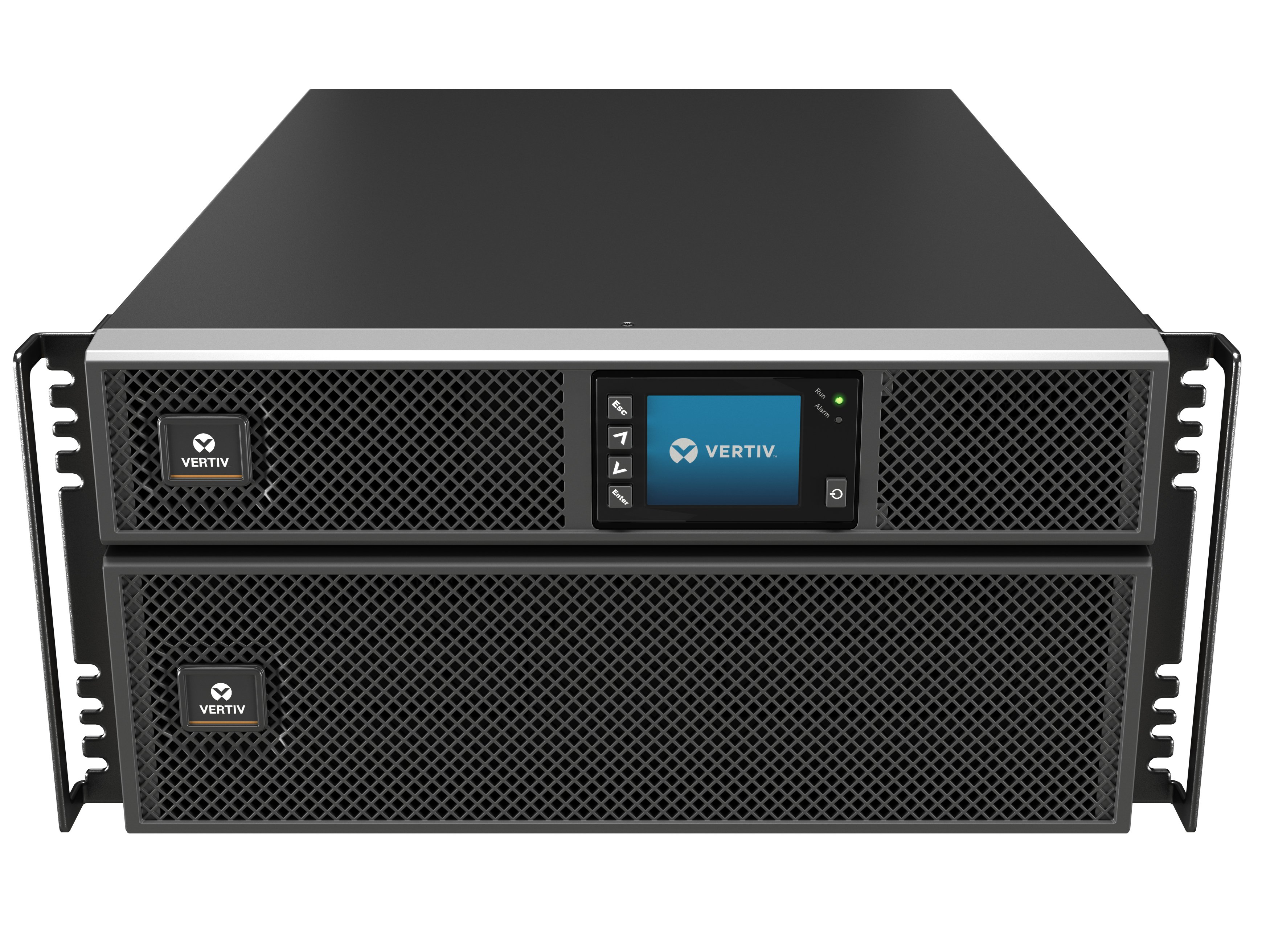

GXT5-8000HVRT5UXLN
8,000 VA / 8,000 W   Typical: 208VAC / Range: 176-288VAC   200/208/220/230/240 VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R   8.5 in   16.9 in   24.8 in   164.2 lb
GXT5-10KHVRT5UXLN
10,000 VA / 10,000 W   Typical: 208VAC / Range: 176-288VAC   200/208/220/230/240 VAC (user-configurable)   Up to 98% Active ECO Mode; up to 95% on-line mode   Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R   8.5 in   16.9 in   24.8 in   166.4 lbs

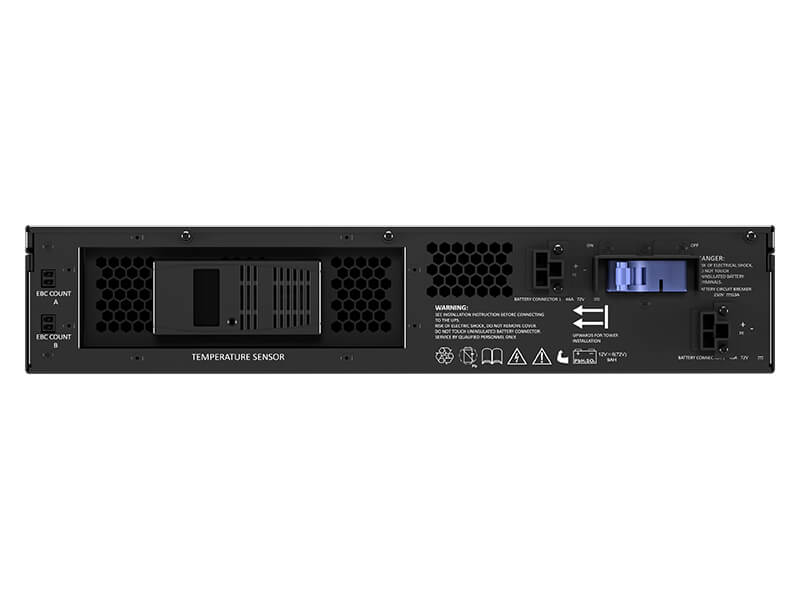

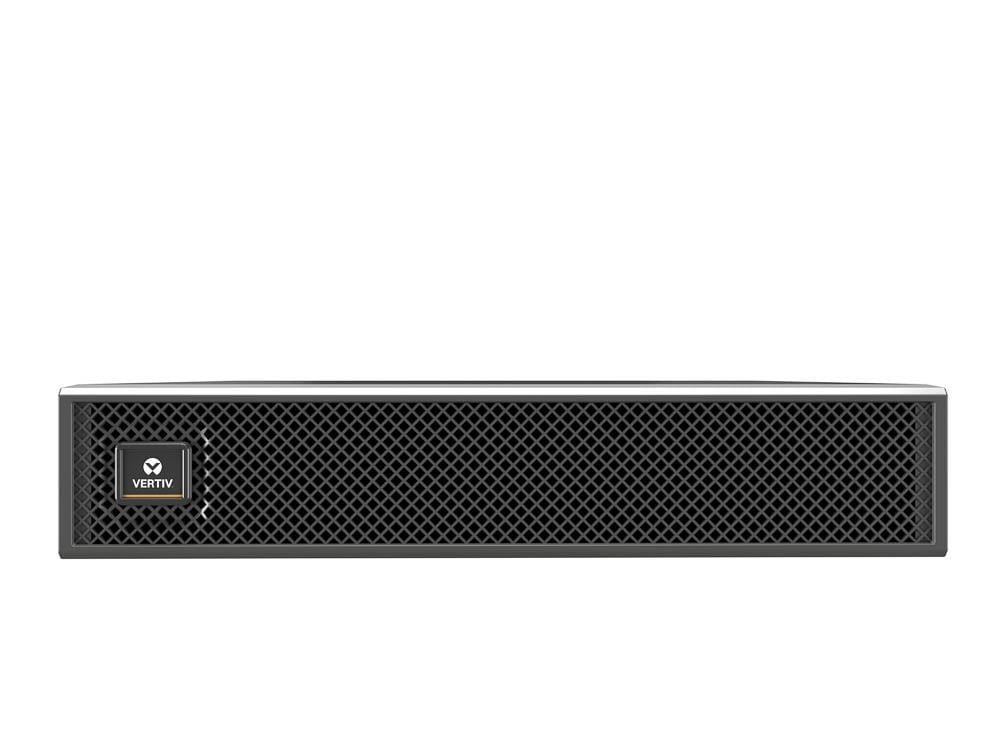

GXT5-EBC72VRT2U
          3.4 in   16.9 in   15.8 in   48.4 lbs
GXT5-EBC144VRT2U
          3.4 in   16.9 in   26.8 in   81.6 lbs
GXT5-EBC192VRT3U
          5.1 in   16.9 in   24.8 in   127 lb

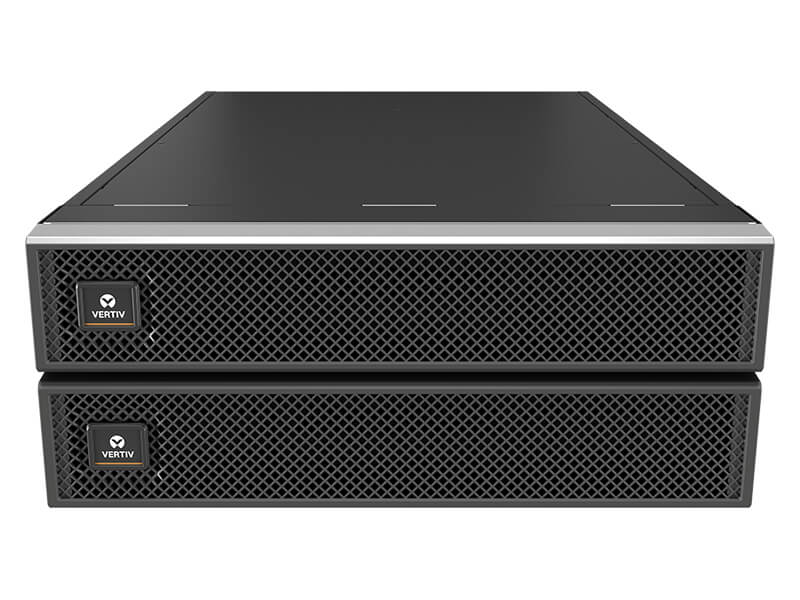

GXT5-EBC288VRT4U
          6.8 in   16.9 in   26.8 in   189.6 lb
More usable power to support more connected loads for cost and space savings
Simplified installation and operation
Remote UPS firmware upgrade capability
Ability to prioritize critical loads
Improved ability to manage connected devices without impacting continuity
Streamlined remote monitoring and operational efficiency
Faster deployment and accurate runtime information
Intelligent battery health management for optimized service life
Optimized energy and capacity management
Eligible for the Vertiv™ Trade-In Program. Contact a Vertiv partner for discount rates and to calculate your savings
High power factor from 0.9-1.0
Full-color graphic LCD with gravity sensing orientation
Programmable outlets for power cycling hung equipment and optimum battery usage

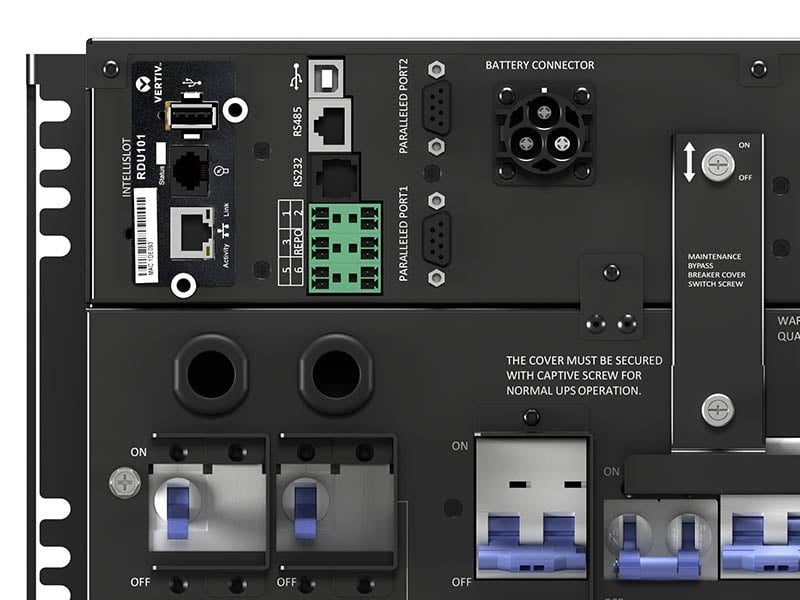

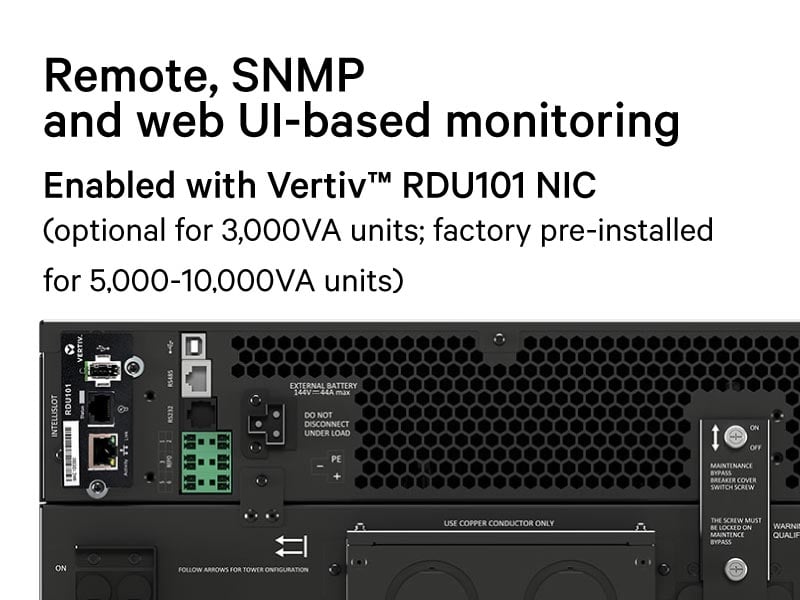

The RDU101 SNMP/Webcard provides remote management capability and support for environmental sensors.  It also supports orderly shutdown of connected equipment with FREE Trellis™ Power Insight shutdown software.
Integrated maintenance bypass on select models
Rack / tower convertible systems
Hot-swappable internal battery and scalable power with auto-detection of external battery cabinets
Energy Star® 2.0 certified

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
