Product Family
Warranty:
Vertiv™ PowerIT Switched Rack PDU comes with a standard five-year limited warranty.
Vertiv™ PowerIT Switched rPDU – Remote Outlet Control
The Vertiv™ PowerIT Switched rack PDU (rPDU) provides advanced rack-level power distribution with remote outlet-level control for critical IT equipment. Users can turn on, turn off, or reboot individual outlets to support efficient management and uptime. They are also available in multiple electrical and receptacle configurations for flexible deployment. Each unit is 100% tested for reliability and functionality to maintain consistent performance and operational integrity.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Product Family
Vertiv™ PowerIT Switched rPDU – Remote Outlet Control
The Vertiv™ PowerIT Switched rack PDU (rPDU) provides advanced rack-level power distribution with remote outlet-level control for critical IT equipment. Users can turn on, turn off, or reboot individual outlets to support efficient management and uptime. They are also available in multiple electrical and receptacle configurations for flexible deployment. Each unit is 100% tested for reliability and functionality to maintain consistent performance and operational integrity.
Warranty: Vertiv™ PowerIT Switched Rack PDU comes with a standard five-year limited warranty.Tools & Selectors
Select, compare, or configure PDUs
Use the rPDU Finder
Find the PDU you require based on a variety of configurations
Configure your own rPDU
Engineered solutions delivered in record time
Specifications
Vertiv™ PowerIT Switched rack PDUs provide advanced power management with integrated monitoring, remote connectivity, and environmental sensor compatibility. A 128x128, high-contrast LCD display provides local access to critical system information. It also has fault-tolerant daisy chaining with IP aggregation that simplifies large-scale deployment. This enables multiple devices to be managed through a single IP address.
|
Vertiv™ PowerIT Switched rPDU – 200-240V, 30A, VP7N32A0
|
|||||||
|---|---|---|---|---|---|---|---|
| 30A | 200-240V | 200-240V | Combination C13/C19 (24) | Horizontal | 3.39in | 17in | 12in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 200-240V, 30A, VP7N31A1
|
|||||||
| 30A | 200-240V | 200-240V | Combination C13/C19 (12) | Horizontal | 1.72in | 17in | 12in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 100-120/200-240V WYE, 30A, VP7N30AQ
|
|||||||
| 30A | 100-120V/200-240V WYE | 100-120V/200-240V WYE | Combination C13/C19 (36) | Vertical | 72in | 2in | 2.6in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 200-240V, 30A, VP7N30AP
|
|||||||
| 30A | 200-240V | 200-240V | Combination C13/C19 (24) | Vertical | 66.25in | 2in | 2.6in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 200-240V, 30A, VP5N31A1
|
|||||||
| 30A | 200-240V | 200-240V | Combination C13/C19 (12) | Horizontal | 1.72 in | 17 in | 12 in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 100-120V, 30A, VP5N31A0
|
|||||||
| 30A | 100-120V | 100-120V | NEMA 5-20R (12) | Horizontal | 1.72 in | 17 in | 12 in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 200-240V, 30A, VP5N30AU
|
|||||||
| 30A | 200-240V | 200-240V | Locking IEC C13 (20), Locking IEC C19 (4) | Vertical | 66.25in | 2in | 2.6in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 100-120V, 30A, VP5N30A5
|
|||||||
| 30A | 100-120V | 100-120V | NEMA 5-20R (24) | Vertical | 66.25in | 2in | 2.6in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 100-120V, 20A, VP5N21A1
|
|||||||
| 20A | 100-120V | 100-120V | NEMA 5-20R (12) | Horizontal | 1.72 in | 17 in | 12 in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 200-240V, 20A, VP5N20A4
|
|||||||
| 20A | 100-120V | 100-120V | NEMA 5-20R (24) | Vertical | 66.25in | 2in | 2.6in |
| See more product information | |||||||
|
Vertiv™ PowerIT Switched rPDU – 100-120V, 15A, VP5N11A0
|
|||||||
| 15A | 100-120V | 100-120V | NEMA 5-15R (6) | Horizontal | 1.72 in | 17 in | 12 in |
| See more product information |
Benefits
- CONTROLLED POWER SEQUENCING: Power sequencing time delays help prevent circuit overload by allowing users to define the order of power-up and shutdown for connected equipment.
- REAL-TIME POWER MONITORING: The unit supports both local and remote monitoring options, giving teams fast access to critical energy use data to evaluate trends and maintain uptime.
- ENVIRONMENTAL AWARENESS: Built‑in monitoring capabilities provide immediate temperature and humidity insights to help prevent equipment issues and avoid unplanned downtime.
- UPGRADEABLE MONITORING MODULE: The hot‑swappable monitoring device can be upgraded at any time, allowing organizations to adopt new technologies or adjust to evolving requirements without replacing the entire rPDU.
- SECURE POWER CONNECTIONS: Select models include U‑Lock receptacles that secure power cords firmly in place to reduce the risk of accidental disconnections during maintenance or high‑traffic activity.

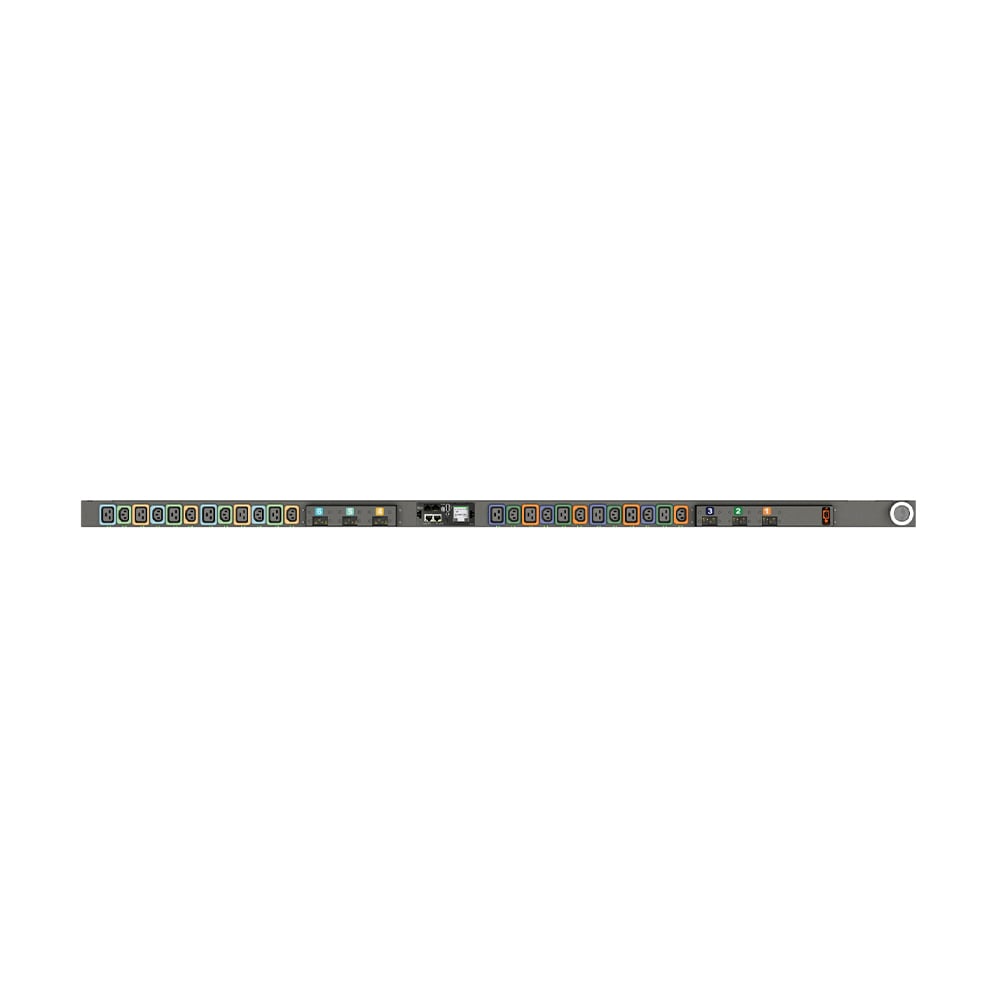

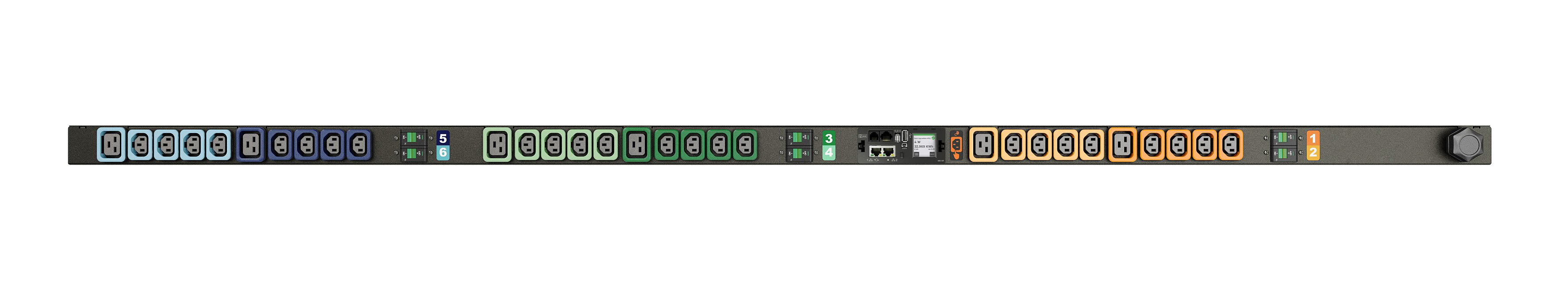

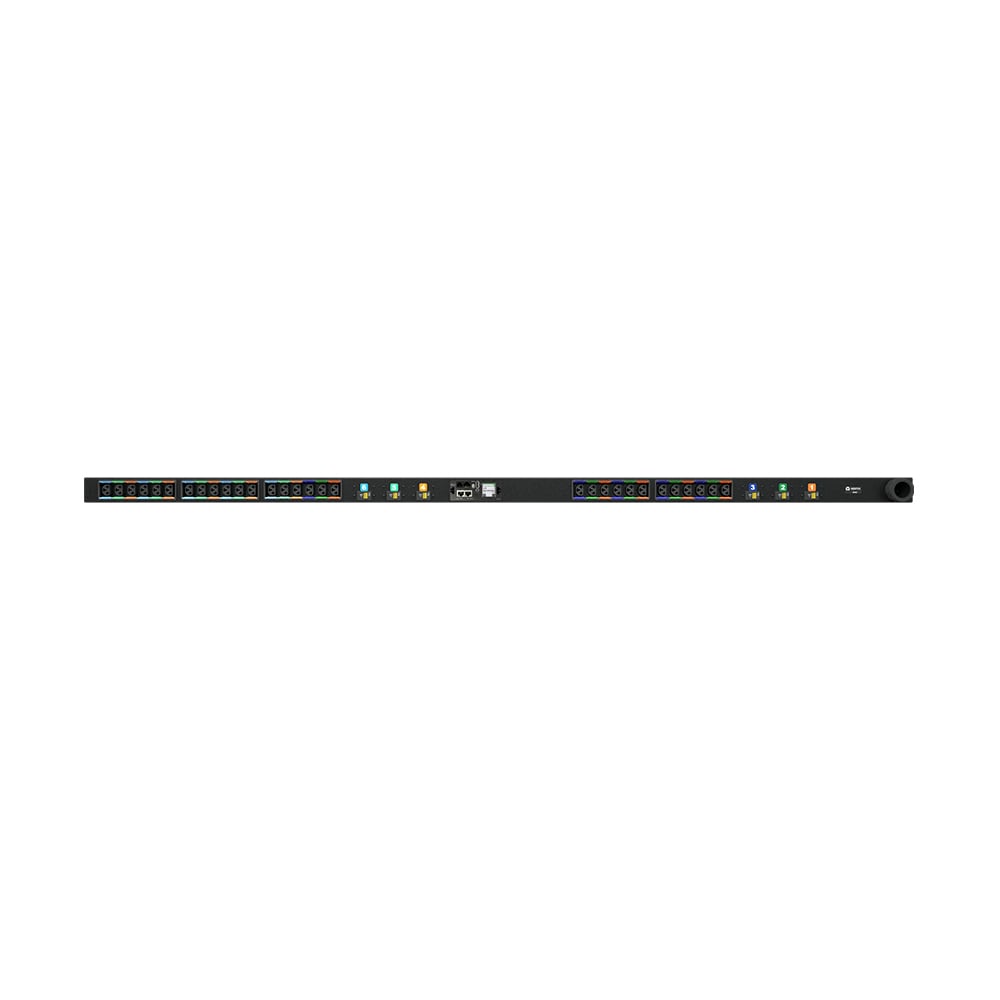

- SIMPLE PHASE IDENTIFICATION: Color‑coded receptacles available on select units help simplify circuit identification and phase balancing for faster, more accurate power management.
- OUTLET VISIBILITY: Outlet‑level monitoring options provide granular visibility into the power usage of individual devices, enabling more precise load management and capacity planning.
- SAFETY COMPLIANCE: North American units are UL-listed in accordance with common data center and insurance provider requirements.
- PRE‑INTEGRATED RPDU SETUP: Save time and reduce deployment costs by choosing rPDUs that are pre‑integrated with Vertiv™ VR Racks; contact your local Vertiv representative for configuration support.
Features
- POWER CONTROL: Outlet-level control provides the ability to turn on, turn off, or reboot individual outlets for precise power management.
- ENERGY EFFICIENCY: Bi-stable latching relays reduce idle power draw, improving overall energy efficiency.
- UPGRADEABLE MONITORING MODULE: The hot‑swappable, upgradeable monitoring device allows users to enhance functionality without replacing the entire rPDU.
- POWER MONITORING: Local and remote monitoring provide highly accurate power measurements (±1% per ANSI and IEC standards) for dependable energy‑use visibility.
- ENVIRONMENTAL SENSOR SUPPORT: Optional environmental sensors enable temperature and humidity monitoring to help prevent climate‑related equipment issues.
- HIGH-TEMPERATURE OPERATION: High‑temperature 60°C models are engineered to operate reliably in heat‑intensive environments.
- VERSATILE FORM FACTORS: Vertical and horizontal rackmount options make it easy to deploy the rPDU in a wide range of rack configurations.
- FLEXIBLE CONFIGURATIONS: Multiple electrical and receptacle configurations offer the flexibility to support diverse power distribution requirements.
- EASY INSTALLATION: Included mounting brackets enable quick, straightforward installation in standard racks and cabinets.
- TAA COMPLIANCE: TAA‑compliant models meet government and public‑sector procurement requirements.
- AUTO-ROTATING TOUCHSCREEN: The Vertiv™ PowerIT Next-Generation IMD‑5M touchscreen automatically rotates, providing optimal readability in both vertical and horizontal installations.
- SECURE BOOT PROTECTION: The Secure Boot protection enhances the Monitored rPDU security; hardware and firmware keys must match before the system can power on.
- REDUNDANT POWER SUPPORT: When connected to another rPDU using a redundant power cable, the The Vertiv™ PowerIT Next-Generation IMD‑5M remains powered even if the primary rPDU loses input power.
Manuals
Brochures and Data Sheets
- Vertiv™ PowerIT Rack PDU for high density applications - Brochure - English
- Vertiv™ PowerIT Product Overview - Brochure - English
- Vertiv™ PowerIT Custom Rack PDUs - Data Sheet - English
- Vertiv™ Data Center Infrastructure Solutions - Channel Products Catalog - English
- Vertiv™ PowerIT Rack PDU Color Coded Outlet Guide - Data Sheet - English
- Vertiv™ PowerIT Rack PDUs - Brochure - English
- Vertiv™ PowerIT Upgradeable rPDU IMD Feature Comparison - DataSheet - English
- Vertiv™ Distribution Assurance Package - Data Sheet - English
- Vertiv™ PowerIT Rack PDU Product Line Comparison - Data Sheet - English
Software
Warranties
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Vertiv™ Services
Email Contact
+1 800 543 2378
610 Executive Campus Drive
Westerville Ohio 43082
USA
Product areas of focus:
Uninterruptible Power Supplies (UPS), Power Distribution, Thermal Management, Integrated Solutions, Racks and Containment
Geist Support - Americas (Rack PDU and Watchdog)
Email Contact
+1 888 630 4445
1777 Yolande Avenue
Lincoln Nebraska
USA
Product areas of focus:
Power Distribution, Monitoring
Vertiv (Customer Service for DC Power Systems & Outdoor Enclosures)
Email Contact
+1 800 800 1280
USA
Product areas of focus:
DC Power Systems, Power Distribution, Outdoor Enclosures
Change
Frequently Asked Questions
The Monitored Upgradeable rPDU provides Input Power Monitoring (A, V, VA, kWh, PF) and Circuit Monitoring (A) where applicable determined by the base rPDU model.
Yes, the Switched rPDUs monitor and display the input/circuit power readings for the rPDU where applicable determined by the base rPDU model.
Monitoring at the outlet level allows you to pinpoint system-critical failures and take preventative measures. For example, a gradual rise in a server’s current draw over time might indicate a failing power supply. Outlet level monitoring can also track where power is being used for departmentalized power billing in large companies.
Outlet Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements.
Up to 16 external sensors can be connected to the Switched rPDUs. These sensors can include: Temperature, Temp/Humidity, Flood, Smoke, Door Position and more.
