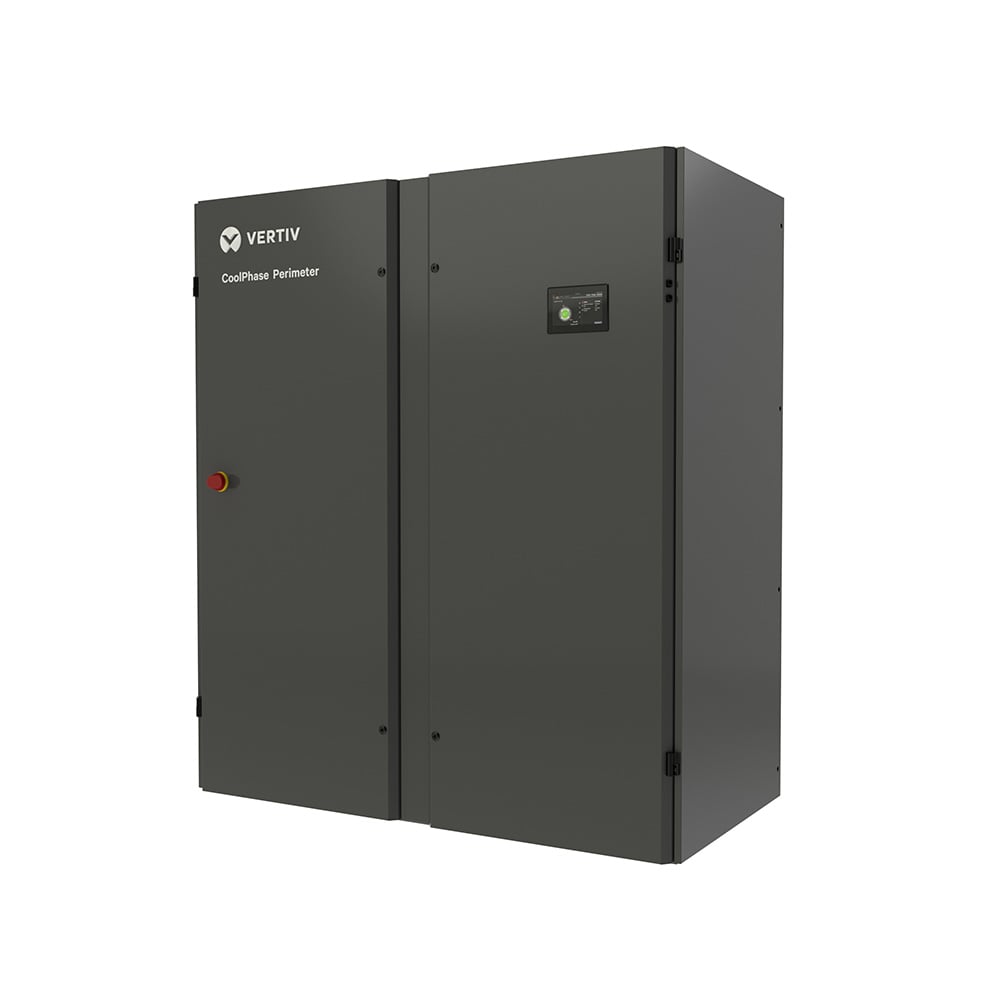

Vertiv™ CoolPhase Perimeter - DX Floor Mount, PAM010-140, R513A

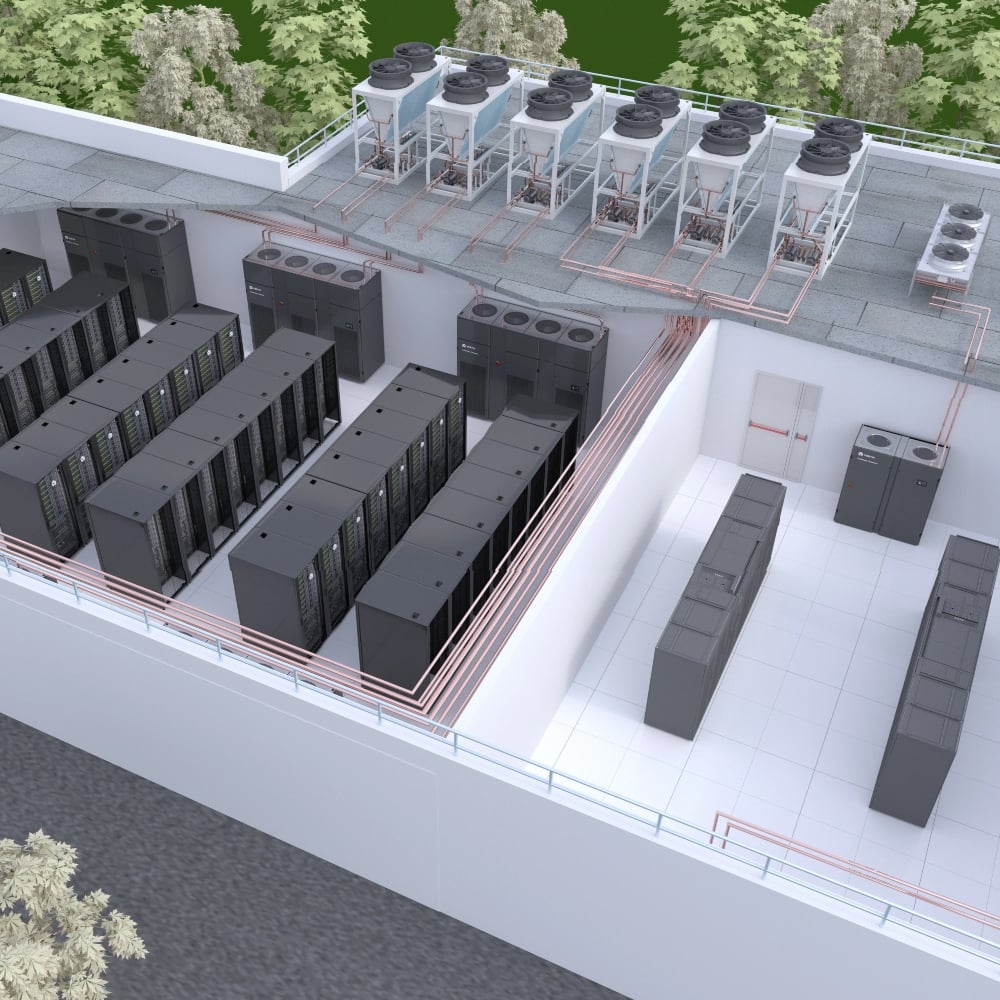

Vertiv™ CoolPhase Perimeter is the indoor floor-mounted unit designed to operate with inverter-driven compressors and optimized for the eco-friendly, non-flammable, low-toxicity R513A refrigerant (A1, GWP=633). Available in both air-cooled and water-cooled configurations, with the optional Vertiv™ EconoPhase free cooling function. In conjunction with the Vertiv CoolPhase Perimeter units, a wide choice of Vertiv™ CoolPhase Condenser solutions is available for managing heat rejection to the outside, depending on specific system configurations.
Bu Ürün Panonuza Kaydedildi
Bu ürünü, daha sonra görüntülemek üzere panonuza kaydettiniz. Artık kaydedilmesini istemediğinizde ürünü kolayca panonuzdan çıkarabilirsiniz.
Bunu daha sonrası için kaydetmek üzere lütfen oturum açın veya hesap oluşturun
Vertiv™ CoolPhase Perimeter - DX Floor Mount, PAM010-140, R513A

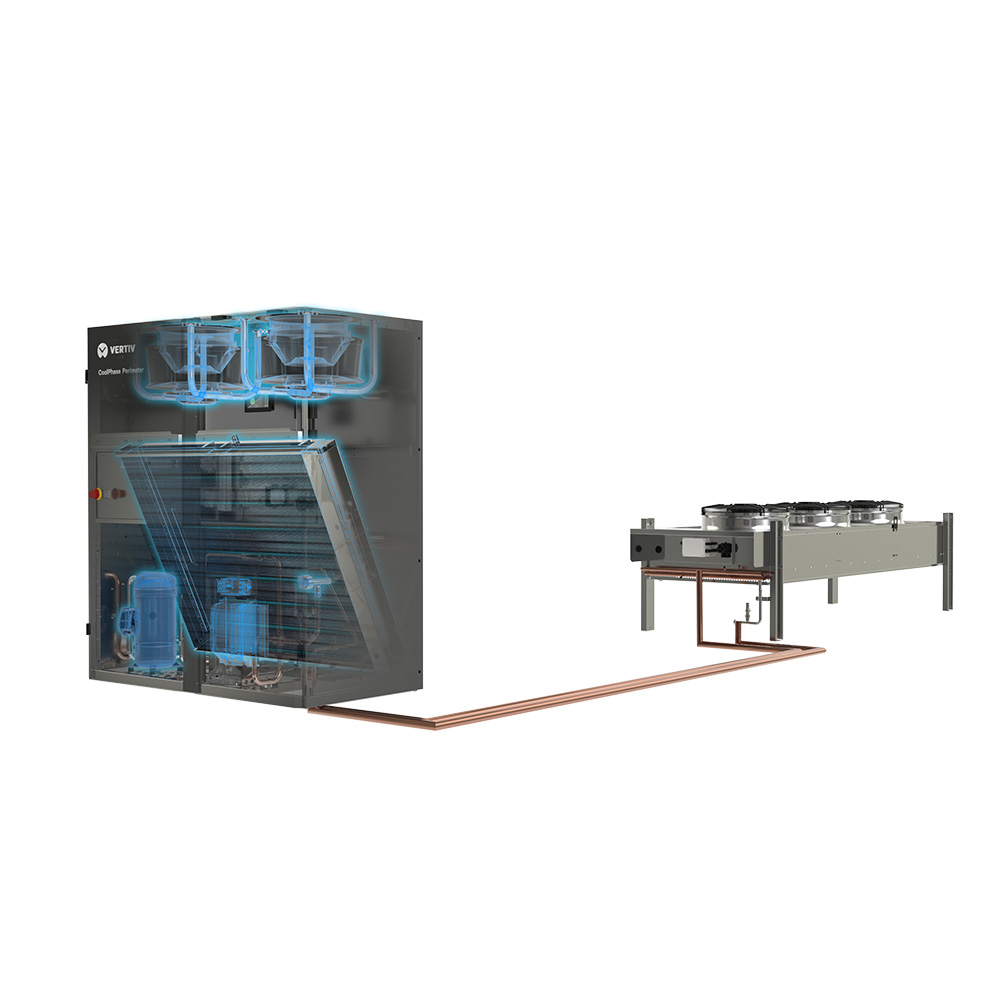

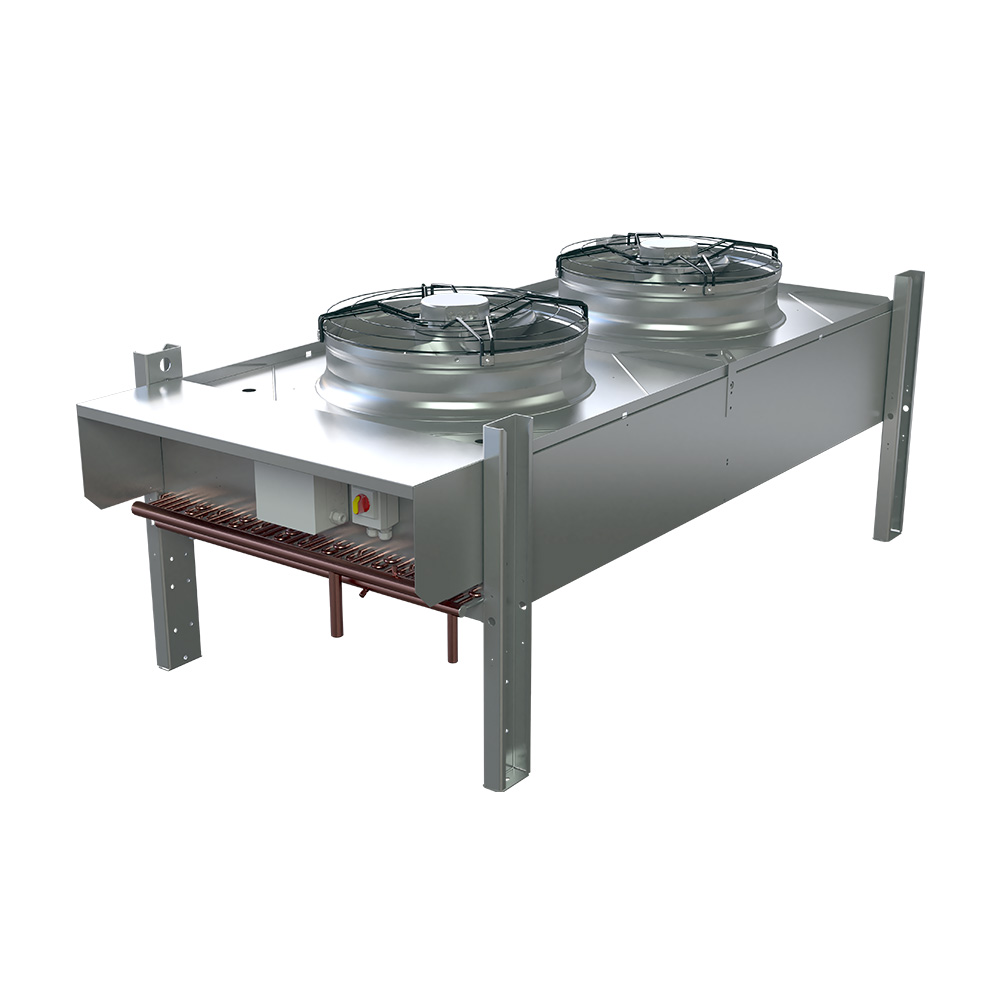

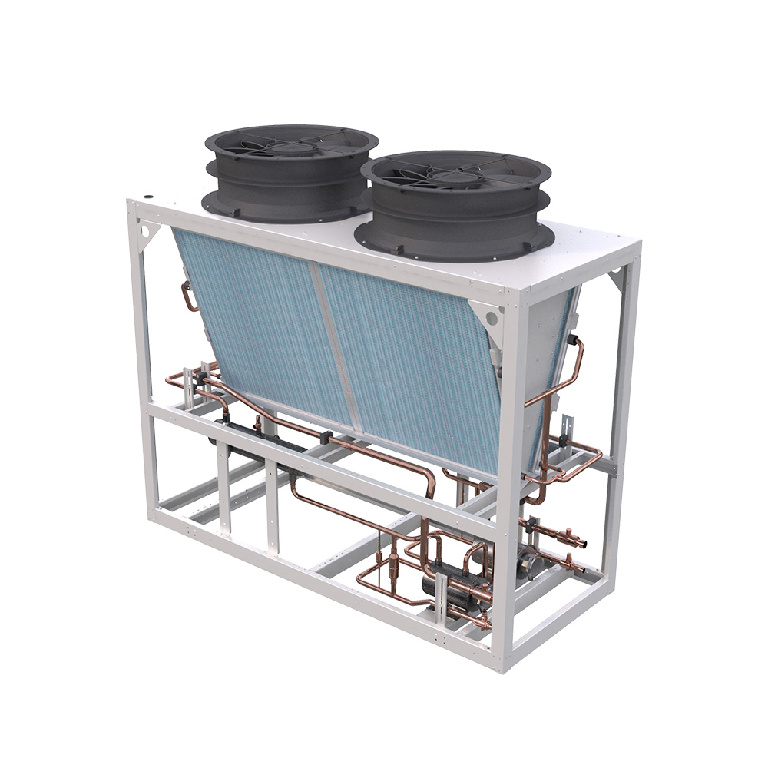

Vertiv™ CoolPhase Perimeter is the indoor floor-mounted unit designed to operate with inverter-driven compressors and optimized for the eco-friendly, non-flammable, low-toxicity R513A refrigerant (A1, GWP=633). Available in both air-cooled and water-cooled configurations, with the optional Vertiv™ EconoPhase free cooling function. In conjunction with the Vertiv CoolPhase Perimeter units, a wide choice of Vertiv™ CoolPhase Condenser solutions is available for managing heat rejection to the outside, depending on specific system configurations.
Teknik Özellikler

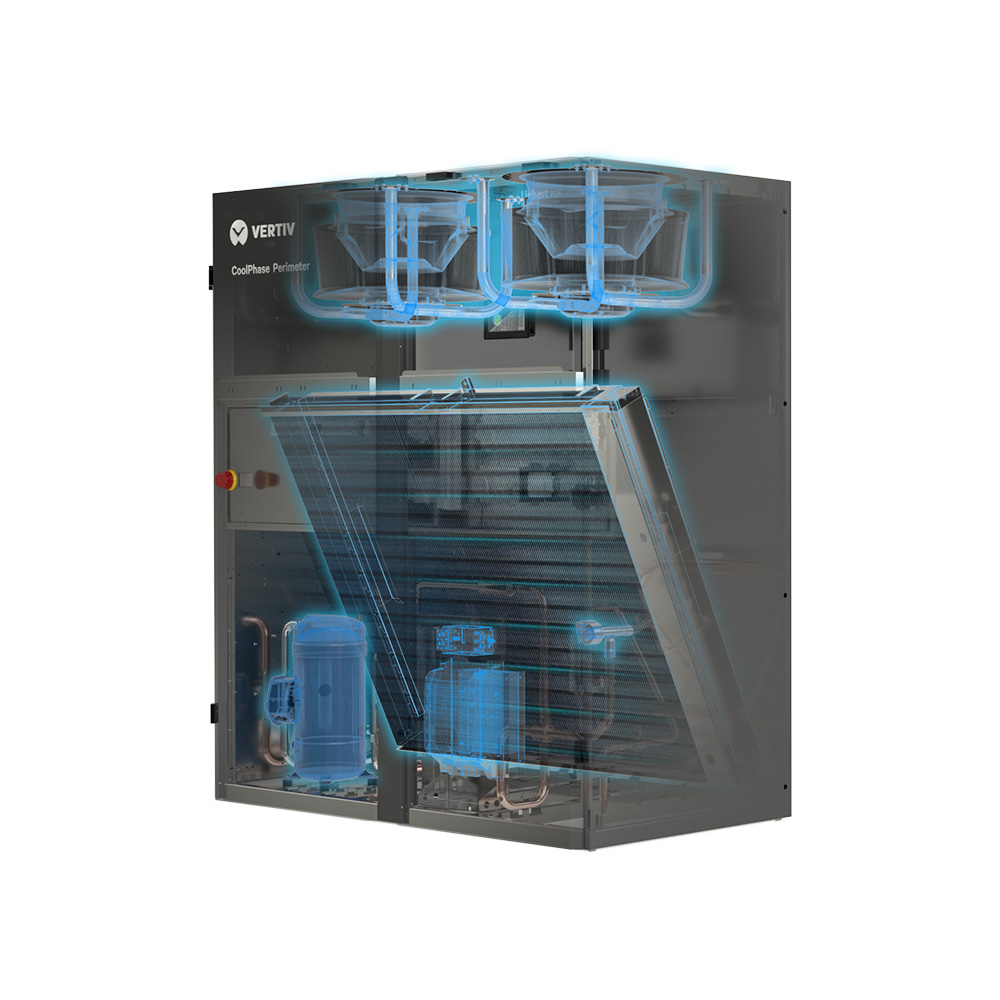

Deliver up to 160 kW of precision air cooling with the Vertiv™ CoolPhase Perimeter PAM range. These indoor, floor-mounted units use direct expansion technology and feature inverter-driven compressors for maximum efficiency. The design supports the eco-friendly, non-flammable R513A refrigerant and offers both air-cooled models, with the optional Vertiv™ EconoPhase free cooling, and water-cooled configurations. Each unit comes equipped with onboard compressors to ensure reliable performance in mission-critical environments.
Avantajlar
- EFFICIENCY: continuous performance modulation, max part-load efficiency, reduced operating costs and, with the patented Vertiv™ EconoPhase, lower TCO, enhanced efficiency enabling free cooling.
- ECO-FRIENDLY: ideal solution for a low carbon data center using a completely safe, low-GWP R513A refrigerant solution. The absence of flammability risks simplifies installation and limits costs increase.
- UNIQUE FLEXIBILITY: a wide range of airflow configurations and delivery options, versatile, compact and easy to install, engineered for long service lifetime performance.
- COOLING CONTINUITY: reliable cooling continuity through teamwork: units operate together yet independently to allow uninterrupted performance.
Özellikleri
- INVERTER-DRIVEN BRUSHLESS MOTOR COMPRESSORS: with modulation capability down to 20% of maximum capacity allowing an optimum EER at part load conditions. Less compressor on/off cycles reducing starting current and improving power factor.
- VERTIV™ ECONOPHASE TECHNOLOGY: increases free cooling potential, delivering significant energy savings thus improving data center efficiency and lowering operating costs.

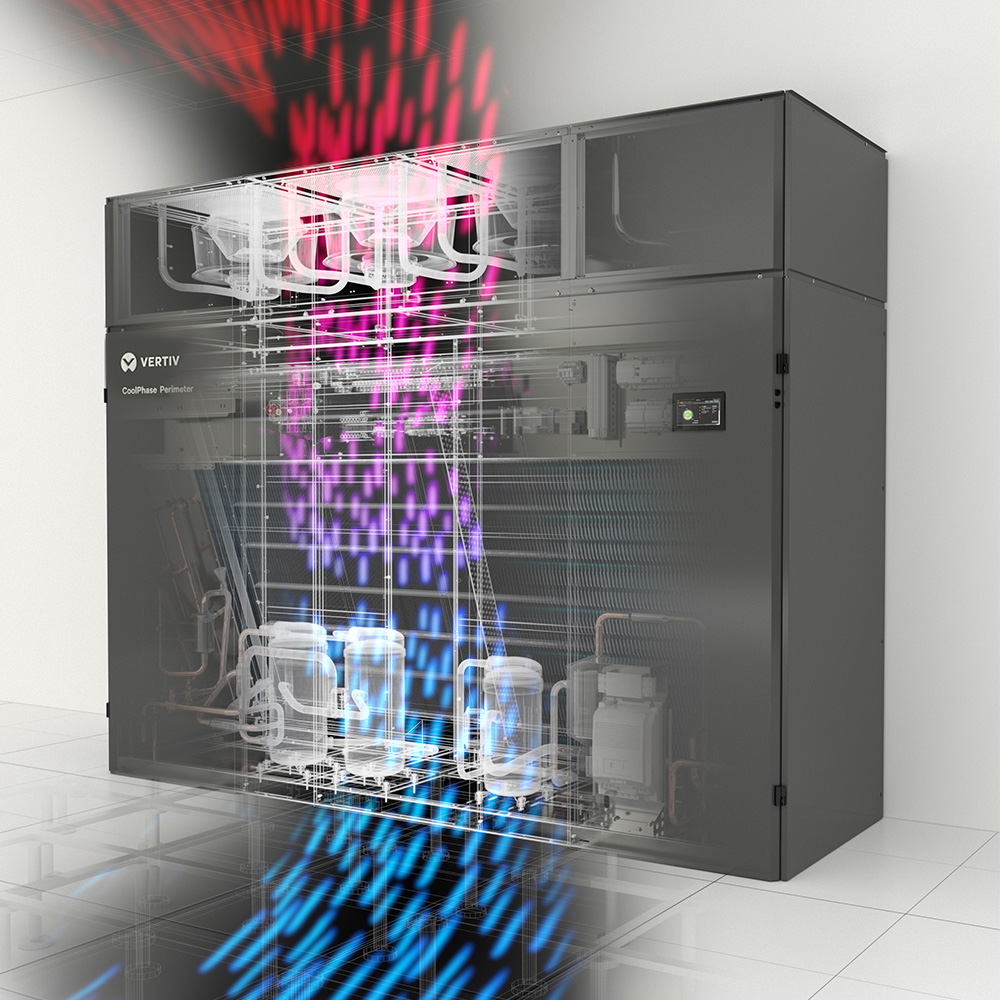

- LATEST GENERATION WITH LOW NOISE DESIGN CENTRIFUGAL EC FANS: with speed modulation down to 30% of maximum value.
- ELECTRONIC EXPANSION VALVE: allows precise control of the evaporator feeding permitting an increased evaporator efficiency thanks to an optimal superheat control.

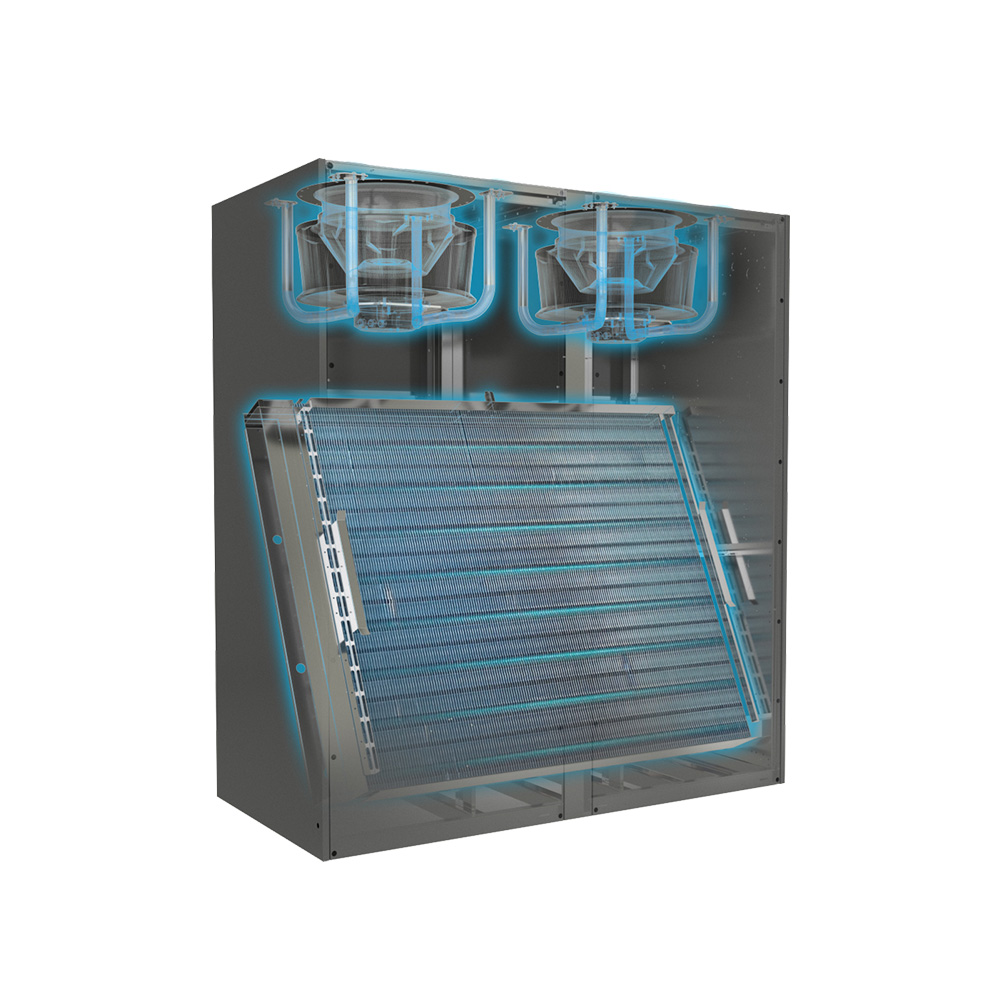

- STAGED COIL AND PATENTED FILTRATION: the extended and innovative filter surface allows for greater air flow, less air pressure drops and reduced fan consumption significantly improving ease of maintenance.
- VERTIV™ iCOM™ SMART CONTROL: the heart of the direct expansion cooling system, managing not only Vertiv™ CoolPhase Perimeter units, but also outdoor Vertiv™ CoolPhase Condensers.
