Vertiv™ CoolChip CDU
Designed to support liquid cooling within high density environments, the Vertiv CoolChip CDU is the next generation of coolant distribution units. They are suitable for direct-to-chip and rear door cooling applications that offer easy, cost-effective deployment in any data center. The CoolChip CDU family offers multiple system designs that operate with and without access to facility water, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities. Select between in-rack, in-row, or perimeter-based designs as well as liquid-to-liquid or liquid-to-air heat exchangers.
Bu Ürün Panonuza Kaydedildi
Bu ürünü, daha sonra görüntülemek üzere panonuza kaydettiniz. Artık kaydedilmesini istemediğinizde ürünü kolayca panonuzdan çıkarabilirsiniz.
Bunu daha sonrası için kaydetmek üzere lütfen oturum açın veya hesap oluşturun
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Vertiv™ CoolChip CDU
Designed to support liquid cooling within high density environments, the Vertiv CoolChip CDU is the next generation of coolant distribution units. They are suitable for direct-to-chip and rear door cooling applications that offer easy, cost-effective deployment in any data center. The CoolChip CDU family offers multiple system designs that operate with and without access to facility water, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities. Select between in-rack, in-row, or perimeter-based designs as well as liquid-to-liquid or liquid-to-air heat exchangers.
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Teknik Özellikler
As data centers adopt liquid cooling, fitting in new coolant distribution infrastructure can be a real challenge. From hyperscale and colocation environments to edge applications, the Vertiv™ CoolChip CDU (the next generation of the Liebert® XDU family) simplifies your work with the flexibility to support rear door heat exchangers or direct to chip liquid cooling. The Vertiv CoolChip CDU’s compact footprint allows for in-rack, end of row, or perimeter placement options. However, and wherever you incorporate the Vertiv CoolChip CDU, you can easily distribute coolant to efficiently manage power-dense hot spots with liquid-to-liquid heat exchange up to 100 kw, 450 kW, 600 kW, or 1,350 KW, and liquid-to-air heat exchange up to 70kW. The Vertiv CoolChip CDU provides a compact footprint for deployment flexibility, efficient coolant distribution to manage power dense hot-spots, precise temperature control to eliminate thermal shock, redundant pumps and dual power feeds for reliable operation, and remote monitoring and communications for added peace of mind.
|

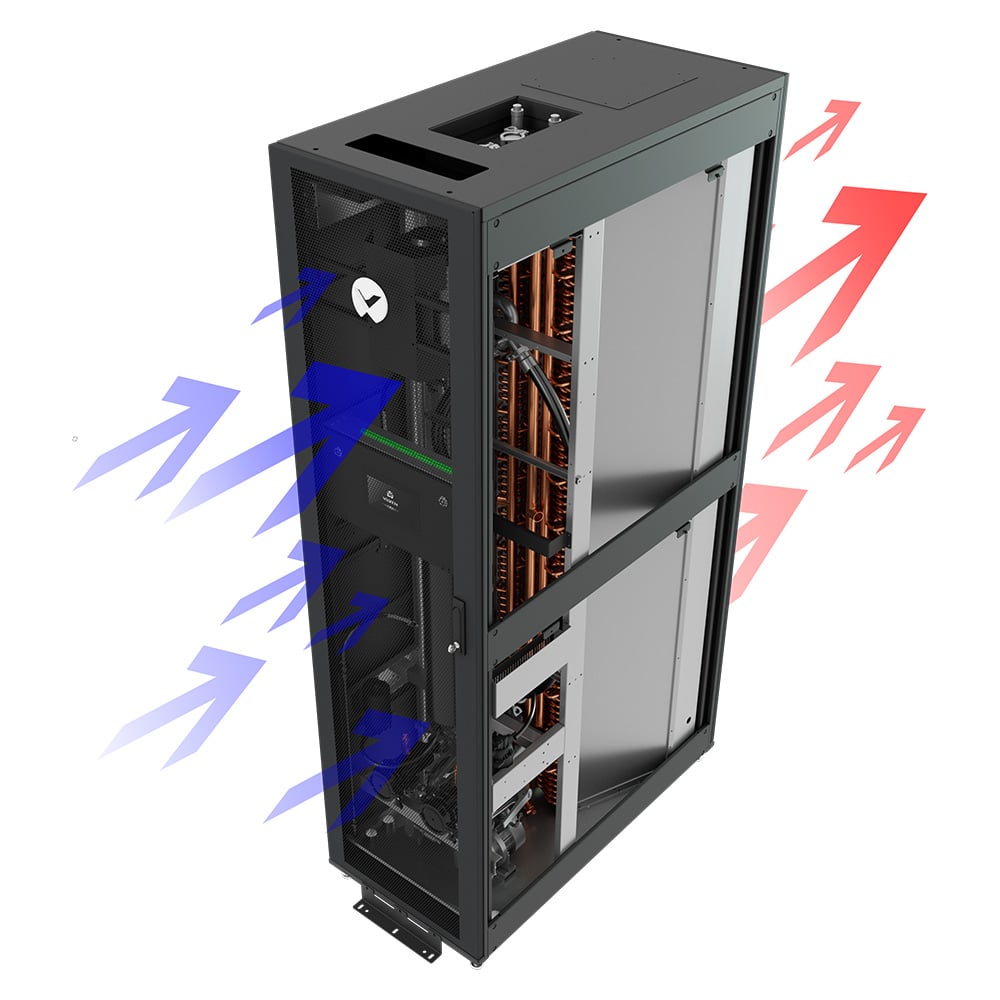

Vertiv™ CoolChip CDU 70
|
|||||
|---|---|---|---|---|---|
| 70.0 kW at 11C approach temperature difference | 10,100 m3/h (5,945 CFM) | 91 in | 24 in | 48 in | 899 lbs |
| Daha fazla ürün bilgisine bakın | |||||
|

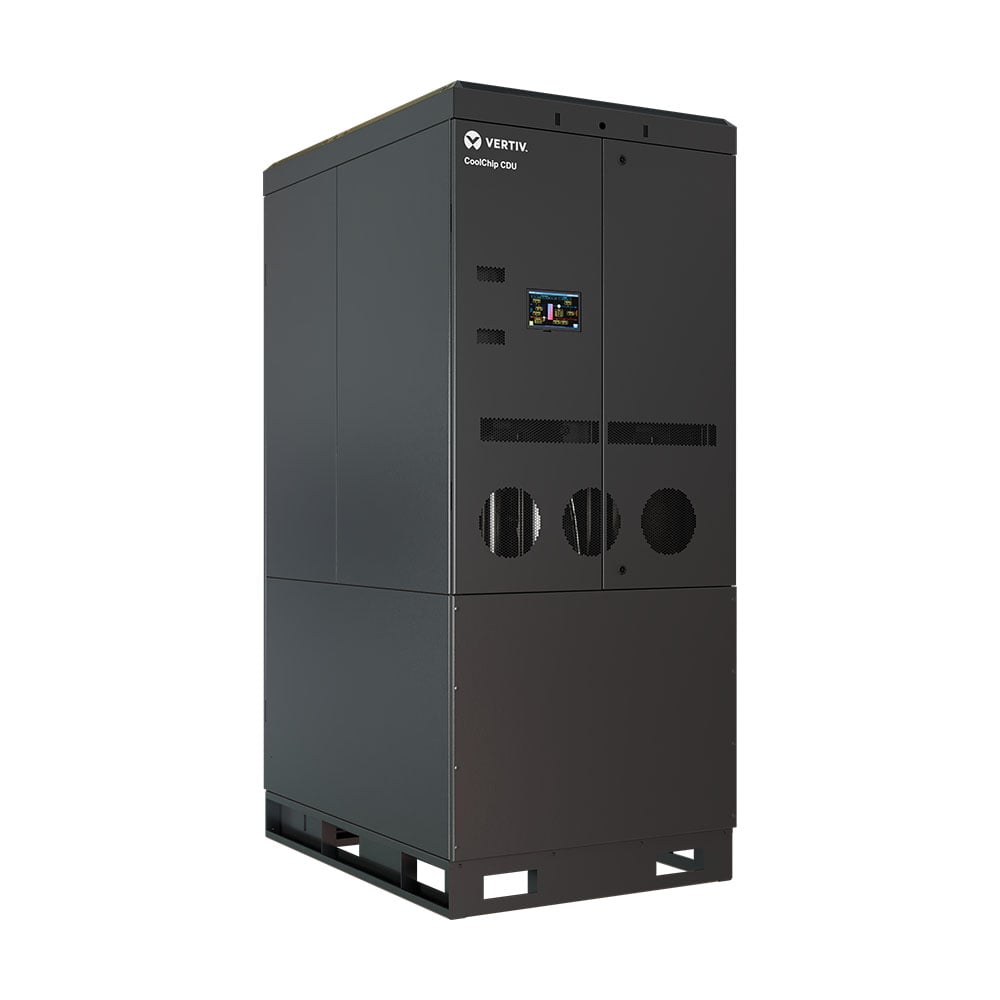

Liebert® XDU1350 Coolant Distribution Unit
|
|||||
| 1368 kW at 7.2°F (4°C) | N/A | 684 in | 35.4 in | 48.9 in | 1431 lbs |
| Daha fazla ürün bilgisine bakın | |||||
|
Vertiv™ CoolChip CDU, 100
|
|||||
| 101 kW at 7.2⁰F (4⁰C) approach temperature difference | N/A | 6.8 in; 4RU | 17.5 in | 34.2 in | 130 lbs |
| Daha fazla ürün bilgisine bakın | |||||
|

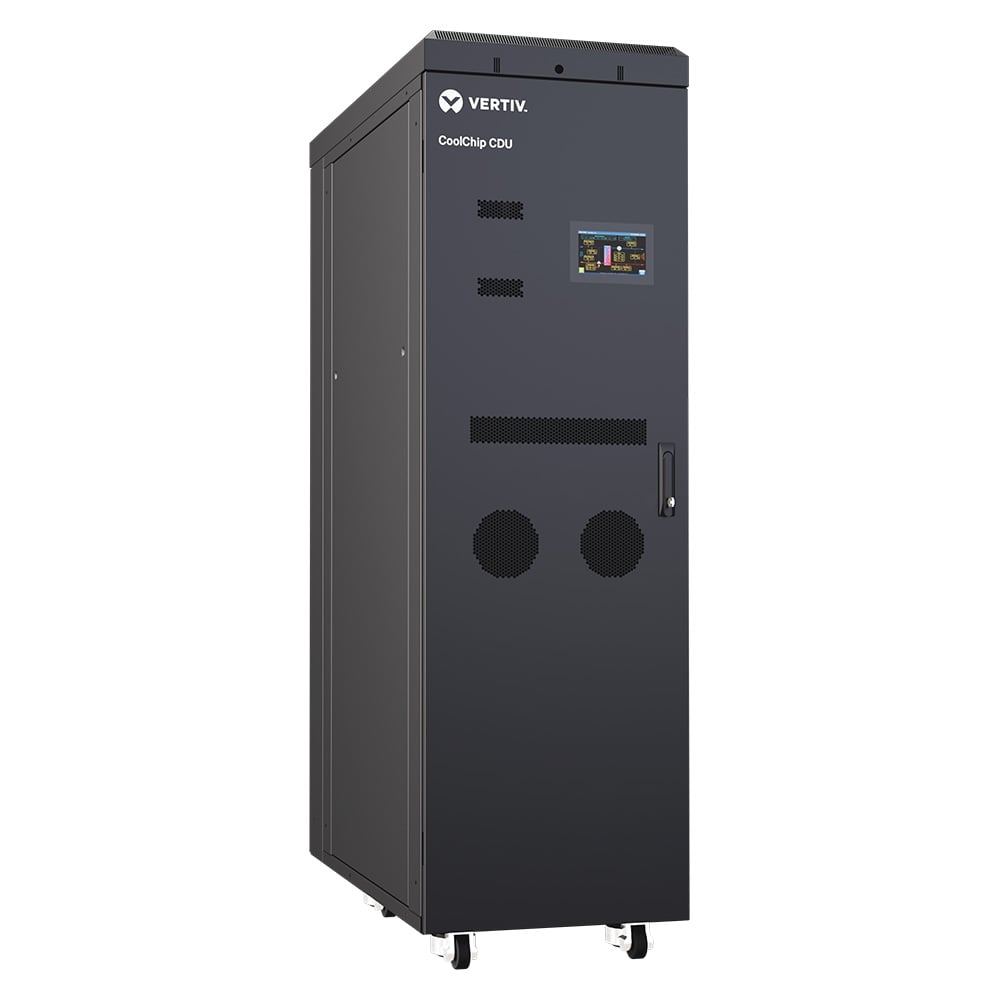

Vertiv™ CoolChip CDU 600
|
|||||
| 600kW at 7.2 F (4.0 C) approach temperature difference | N/A | 78.7 in | 23.6 in | 47.2 in | 1058 lbs |
| Daha fazla ürün bilgisine bakın |
Avantajlar
Özellikleri
- Vertiv™ CoolChip CDU 70 - Application and Planning Guide - GL - EN - R0325
- Vertiv™ CoolChip CDU 70 Operation and Maintenance Guide - GL - EN - R0325
- Vertiv CoolChip CDU100 - Installation and Commissioning Guide - English
- Vertiv™ CoolChip CDU 70 - Installation and Commissioning Guide - GL - EN - R0325
- Vertiv™ CoolChip CDU100 Application and Planning Guide
- Vertiv™ CoolChip CDU 121- Application and Planning Guide - GL - EN - R0925
- Vertiv™ CoolChip CDU 121 - Installation and Commissioning Guide - GL - EN - R0925
- Vertiv™ CoolChip CDU 121 - Operation Maintenance - GL - EN - R1025
- Vertiv™ CoolChip CDU 600 - Application and Planning Guide - GL - EN - R0825
- Vertiv™ CoolChip CDU 600 - Installation and Commissioning Guide - GL - EN - R0825
- Vertiv™ CoolChip CDU 600 Operation and Maintenance Guide - GL - EN - R0825
- Vertiv™ Liebert® XDU1350 - Installation and Commissioning Guide - GL - EN - R0225
- Vertiv™ Liebert® XDU1350 Coolant Distribution Unit - Application and Planning Guide - GL - EN - R0225
- Vertiv™ Liebert® XDU1350 - Operation and Maintenance Manual - GL - EN - R0225
- Guidelines for Deployment of Single Phase Technology Cooling System SL-80056
- Vertiv™ CoolChip CDU - Brochure - GL - EN - R1025
- Vertiv™ CoolChip CDU 121kW - Data Sheet - GL - EN - R0625
- Vertiv™ CoolChip CDU 70 Data Sheet
- Vertiv CoolChip CDU 600 - Data Sheet - English - 2025
- Liebert® XDU1350 Coolant Distribution Unit Data Sheet
- Vertiv™ CoolChip CDU 2300kW Data Sheet
- Vertiv™ CoolChip CDU Leak Detection Data Sheet SL-80182
*Modele özgü indirilebilir içerikleri görmek için yukarıdaki teknik özellikler grafiğinde model adını seçerek modele özgü ürün sayfasına gitmeniz gerekir.
