Vertiv™ CoolPhase Wall, Wall-Mount Split System Cooling for Small IT Rooms, 3.5-11kW

Name: Vertiv™ CoolPhase Wall, Wall-Mount Split System Cooling for Small IT Rooms, 3.5-11kW
Brand: Vertiv

The Vertiv™ CoolPhase Wall is a wall-mount split system cooling solution for small technical rooms, server rooms, and edge computing applications. This reliable IT thermal management equipment provides dedicated cooling up to 11kW even in extreme conditions and without the need for ducted air handling, reducing the risk of overheating and equipment failure. By taking up zero floor space and utilizing a low GWP refrigerant, this compact unit meets the constant data center cooling and energy efficiency demands of increasing equipment load and can be scaled for redundancy.

Obter brochura Obter manual

Principais benefícios

IDEAL FOR HEAVY EQUIPMENT LOADS: It occupies zero floor space while delivering up to 11kW of dedicated data center cooling, effectively handling increasing equipment loads.

LOWER OPERATING COSTS: With variable speed compressors and EC fans, it improves energy efficiency and helps reduce operating costs.

CONSISTENT TEMPERATURE CONTROL: It has higher airflow values than traditional comfort cooling systems, decreasing hot spots and supporting stable temperature control for mission-critical data center environments.

SMART MONITORING & CONTROL: It helps enhance thermal conditions and system reliability by leveraging remote monitoring capabilities and built-in intelligent Vertiv controls.

REDUCED ENVIRONMENTAL IMPACT: It uses R-32, a refrigerant with low global warming potential (GWP), to help lower carbon footprint and enhance energy efficiency.

Especialmente adequado para:

Banca, finanças e seguros
Transmissão e entretenimento
Químico/Petroquímico (excl. petróleo e gás)
Construção e Engenharia
Educação
Governo
Cuidados de saúde
Indústria
Militar, Defesa, Aeroespacial e Mísseis
Energia nuclear
Petróleo e gás
Geração de energia
Transmissão e distribuição de eletricidade/gás
Serviços profissionais
Retalho e grossistas
Telecomunicações
Transporte

Garantia: This product comes with an 18-month warranty from the product shipment date. Product shipment date is determined only from the bill of lading.

Família de produtos

Vertiv™ CoolPhase Wall, Wall-Mount Split System Cooling for Small IT Rooms, 3.5-11kW

Obter brochura Obter manual

Principais benefícios

IDEAL FOR HEAVY EQUIPMENT LOADS: It occupies zero floor space while delivering up to 11kW of dedicated data center cooling, effectively handling increasing equipment loads.

LOWER OPERATING COSTS: With variable speed compressors and EC fans, it improves energy efficiency and helps reduce operating costs.

SMART MONITORING & CONTROL: It helps enhance thermal conditions and system reliability by leveraging remote monitoring capabilities and built-in intelligent Vertiv controls.

REDUCED ENVIRONMENTAL IMPACT: It uses R-32, a refrigerant with low global warming potential (GWP), to help lower carbon footprint and enhance energy efficiency.

Especialmente adequado para:

Banca, finanças e seguros
Transmissão e entretenimento
Químico/Petroquímico (excl. petróleo e gás)
Construção e Engenharia
Educação
Governo
Cuidados de saúde
Indústria
Militar, Defesa, Aeroespacial e Mísseis
Energia nuclear
Petróleo e gás
Geração de energia
Transmissão e distribuição de eletricidade/gás
Serviços profissionais
Retalho e grossistas
Telecomunicações
Transporte

Garantia: This product comes with an 18-month warranty from the product shipment date. Product shipment date is determined only from the bill of lading.

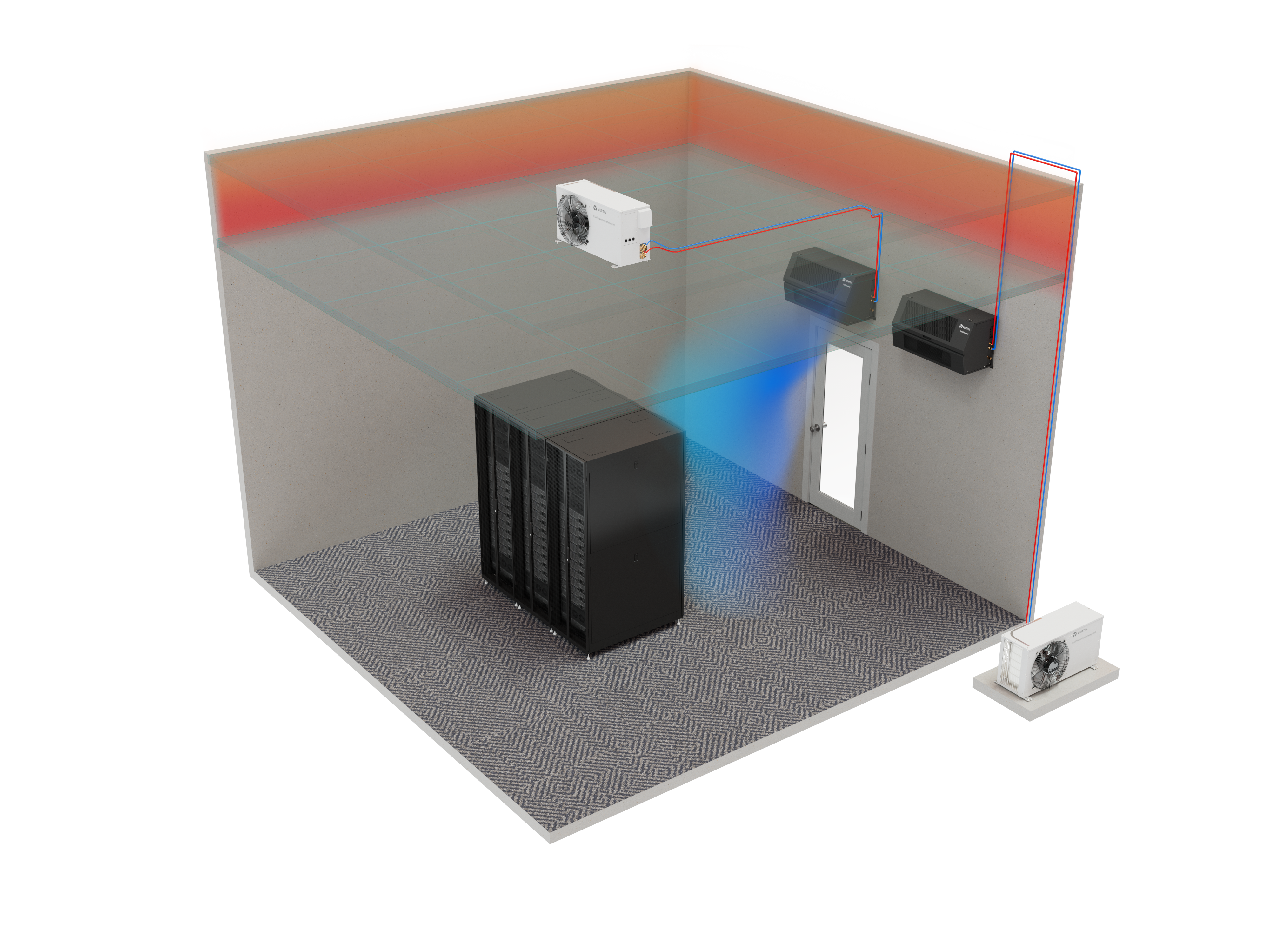

The Vertiv™ CoolPhase Wall is a wall-mount split system providing dedicated cooling from 3.5kW to 11kW for increasing equipment loads in small technical rooms, server rooms, and edge computing applications. It enables effective cooling across diverse environments with its heat rejection capability. Equipped with remote monitoring features and intelligent Vertiv™ controls, it also optimizes thermal management for critical equipment. By supporting consistent temperature control, it enhances system reliability even in extreme conditions.

Descrição geral das especificações do modelo

Imprimir Transferir Email

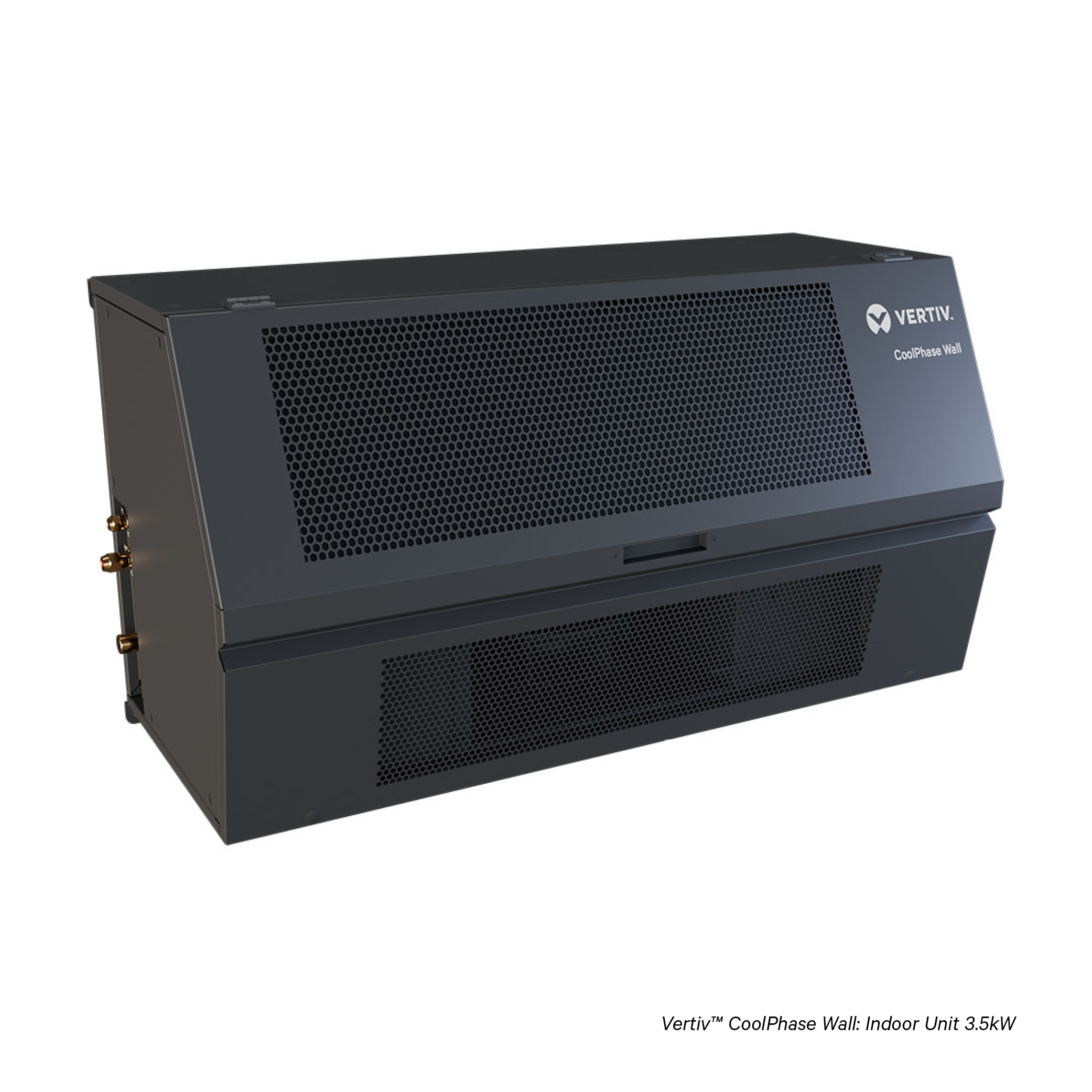

Vertiv™ CoolPhase Wall WLM030A, 3.5kW Wall-Mount Split System Cooling for Small IT Rooms
Modelos	Capacidade nominal total kBtuh [kW]	Net Sensible Capacity kBtuh [kW]	Fluxo de ar nominal [CFM]	Altura	Largura	Profundidade
Vertiv™ CoolPhase Wall WLM030A, 3.5kW Wall-Mount Split System Cooling for Small IT Rooms	12,000 BTUH (3.5kW)	10,800 BTUH (3.16 kW)	590 CFM	19.29in	36.02in	15.35in
Ver mais informações sobre o produto
Vertiv™ CoolPhase Wall WLM070A, 7.0kW Wall-Mount Split System Cooling for Small IT Rooms
Vertiv™ CoolPhase Wall WLM070A, 7.0kW Wall-Mount Split System Cooling for Small IT Rooms	24,000 BTUH (7kW)	21,600 BTUH (6.33 kW)	1,300 CFM	19.29in	49.8in	15.35
Ver mais informações sobre o produto

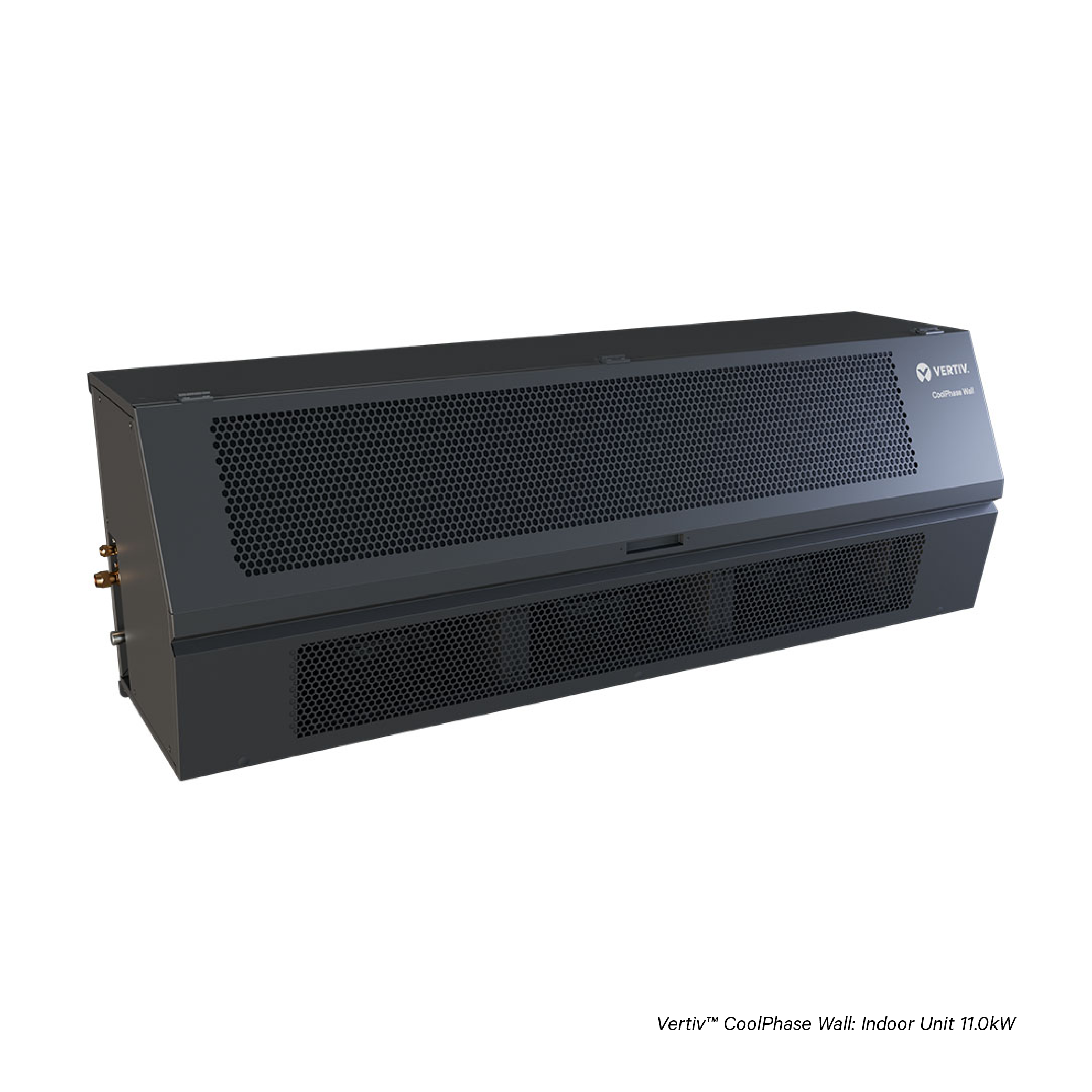

Vertiv™ CoolPhase Wall WLM0110A, 11.0kW Wall-Mount Split System Cooling for Small IT Rooms
Vertiv™ CoolPhase Wall WLM0110A, 11.0kW Wall-Mount Split System Cooling for Small IT Rooms	37,500 BTUH (11.0kW)	33,750 BTUH (9.89 kW)	1,885 CFM	19.29in	56.1in	15.35in
Ver mais informações sobre o produto

* Para ver uma página de produto de um modelo específico, clique no nome do modelo acima.

Vantagens

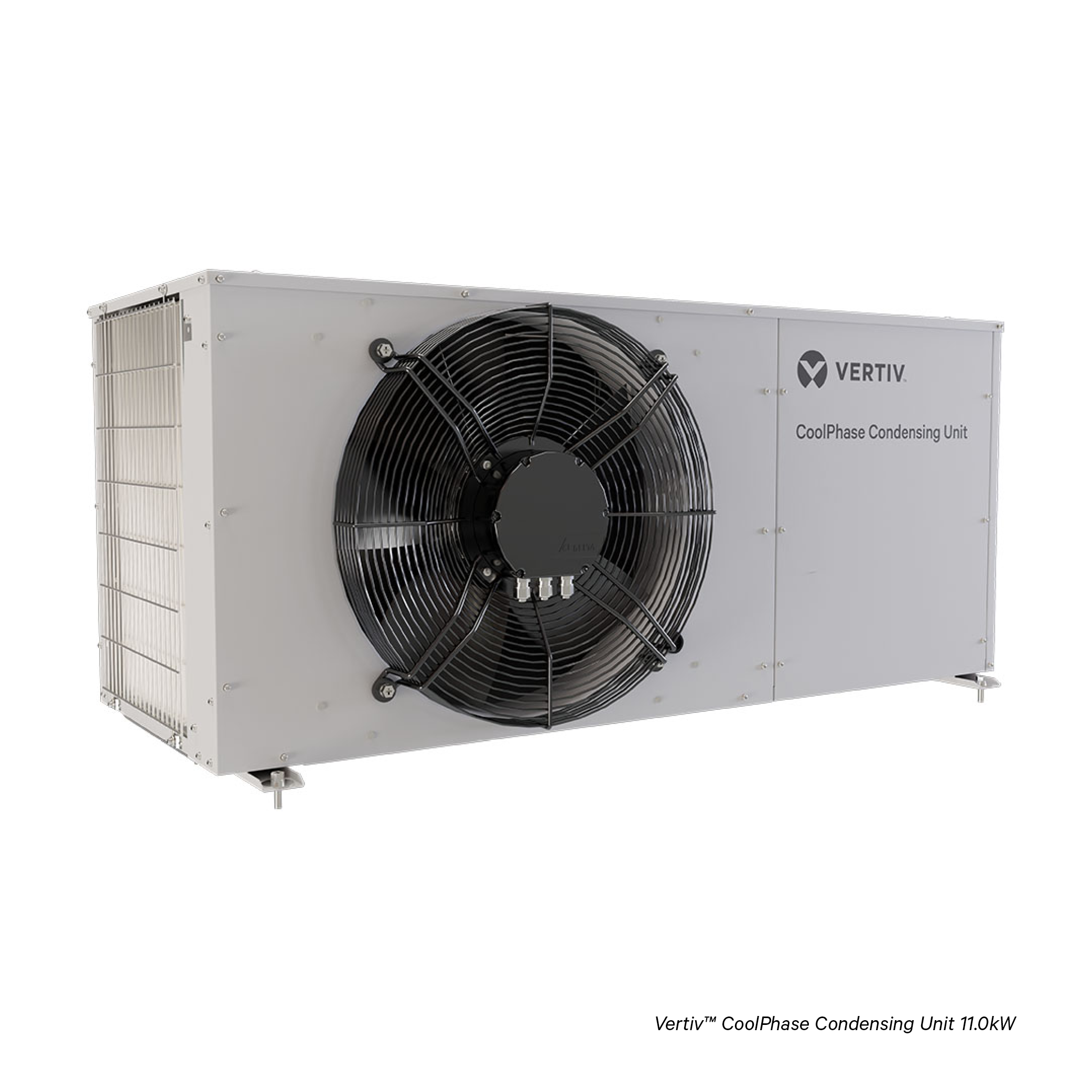

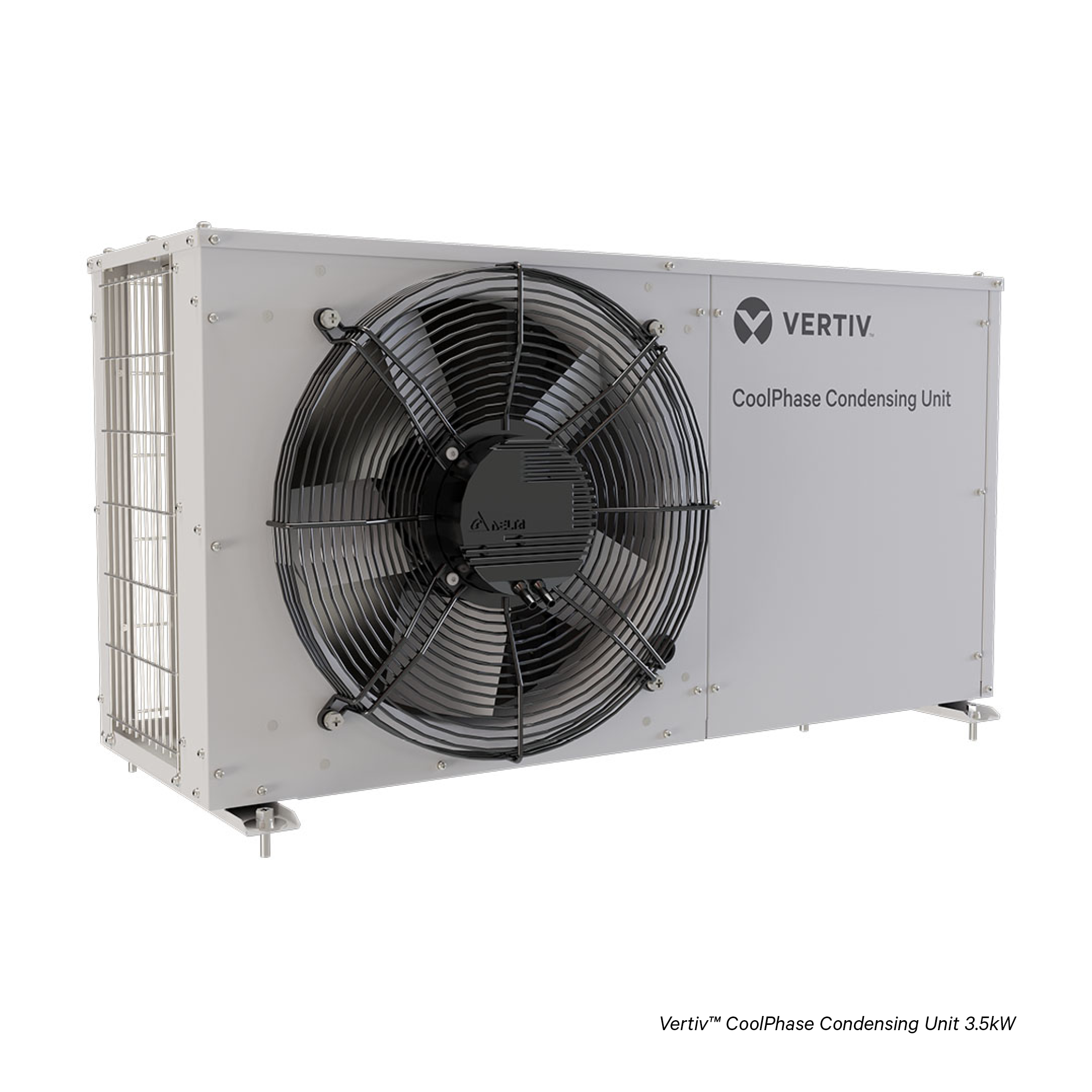

FLEXIBLE INSTALLATION OPTIONS: It offers indoor or outdoor installation choices for the condensing unit, giving you greater deployment flexibility.

QUICK DEPLOYMENT & REDUNDANT SCALING: It is designed to meet growing equipment demands and can be scaled for redundancy.

MULTIUNIT CONNECTION: It enables collaborative operation between multiple units for active standby lead/lag control.

Características

HIGH SENSIBLE HEAT RATIO (SHR): It has an SHR of ≥0.9 that provides dedicated IT heat removal for optimal cooling and enhanced performance.

VARIOUS AVAILABLE CAPACITIES: It comes in capacities of 3.5kW, 7.0kW, and 11.0kW to meet diverse requirements.

PLENUM-APPROVED HEAT REJECTION: It offers outdoor heat rejection from -31°F to 118°F, enabling safe installation and effective cooling in a wide range of working environments, including plenum spaces.

Manuais

Folhetos e fichas de dados

Software

Download Vertiv™ CoolPhase Wall, Wall-Mount Split System Cooling, 3.5-11kW BIM file

Especificações técnicas

*Para ver transferências específicas do modelo, terá de ir para a página de produto específica do modelo, selecionando o nome do modelo na tabela de especificações acima.
