Vertiv™ PowerIT Rack Transfer Switch
The Vertiv™ PowerIT Rack Transfer Switch delivers redundant power to single corded devices. Two independent power inputs enable users to connect to a primary and secondary power source. The Vertiv™ PowerIT Rack Transfer Switch automatically detects the loss of power and switches the power load to the alternative power source in less than 4-8 milliseconds without the need for human intervention. This ensures equipment remains powered until the primary power source returns providing ultimate mission-critical power reliability.
Guardar este produto no seu painel
Acabou de guardar este produto no seu painel para o visualizar mais tarde. Pode remover facilmente o item do seu painel de controlo quando já não quiser guardá-lo.
Inicie sessão ou crie uma conta para guardar isto para mais tarde
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Military
- Defense
- Aerospace and Missile
- Telecom
- Retail and Wholesale
Vertiv™ PowerIT Rack Transfer Switch
The Vertiv™ PowerIT Rack Transfer Switch delivers redundant power to single corded devices. Two independent power inputs enable users to connect to a primary and secondary power source. The Vertiv™ PowerIT Rack Transfer Switch automatically detects the loss of power and switches the power load to the alternative power source in less than 4-8 milliseconds without the need for human intervention. This ensures equipment remains powered until the primary power source returns providing ultimate mission-critical power reliability.
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Military
- Defense
- Aerospace and Missile
- Telecom
- Retail and Wholesale
Especificações
The Vertiv™ PowerIT Rack Transfer Switch delivers redundant power to single corded devices. Two independent power inputs enable users to connect to a primary and secondary power source. The Vertiv™ PowerIT Rack Transfer Switch automatically detects the loss of power and switches the power load to the alternative power source in less than 4-8 milliseconds without the need for human intervention. This ensures equipment remains powered until the primary power source returns providing ultimate mission-critical power reliability. The Rack Transfer Switch is an open transition switch utilizing a break-before-make process for transferring between the primary and secondary power source. This method of switching does not require phase synchronization between the two power feeds making it suitable for use in both data center and edge locations. It also includes enhanced redundant switches and fail-safe fused thermistors to mitigate current surge during transfers ensuring critical equipment is protected during fail-over.
|

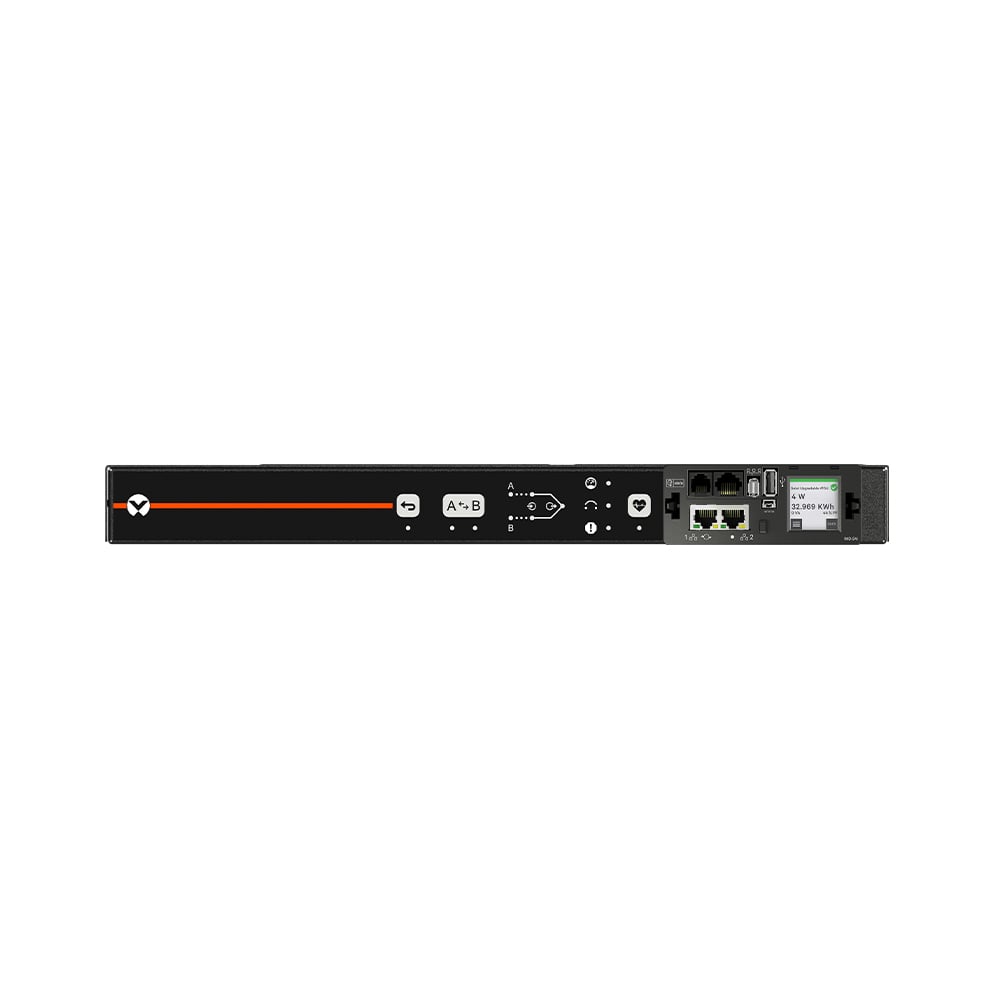

VA4U11A0
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 1.4kW (120V) or 2.4kW (208V) or 2.3kW (230V) | 10A or 15A | 100-240V | (10) U-Lock IEC C13 | Rack | 1.72 in | 17 in | 18 in | 15 lbs |
| Ver mais informações sobre o produto | ||||||||
|

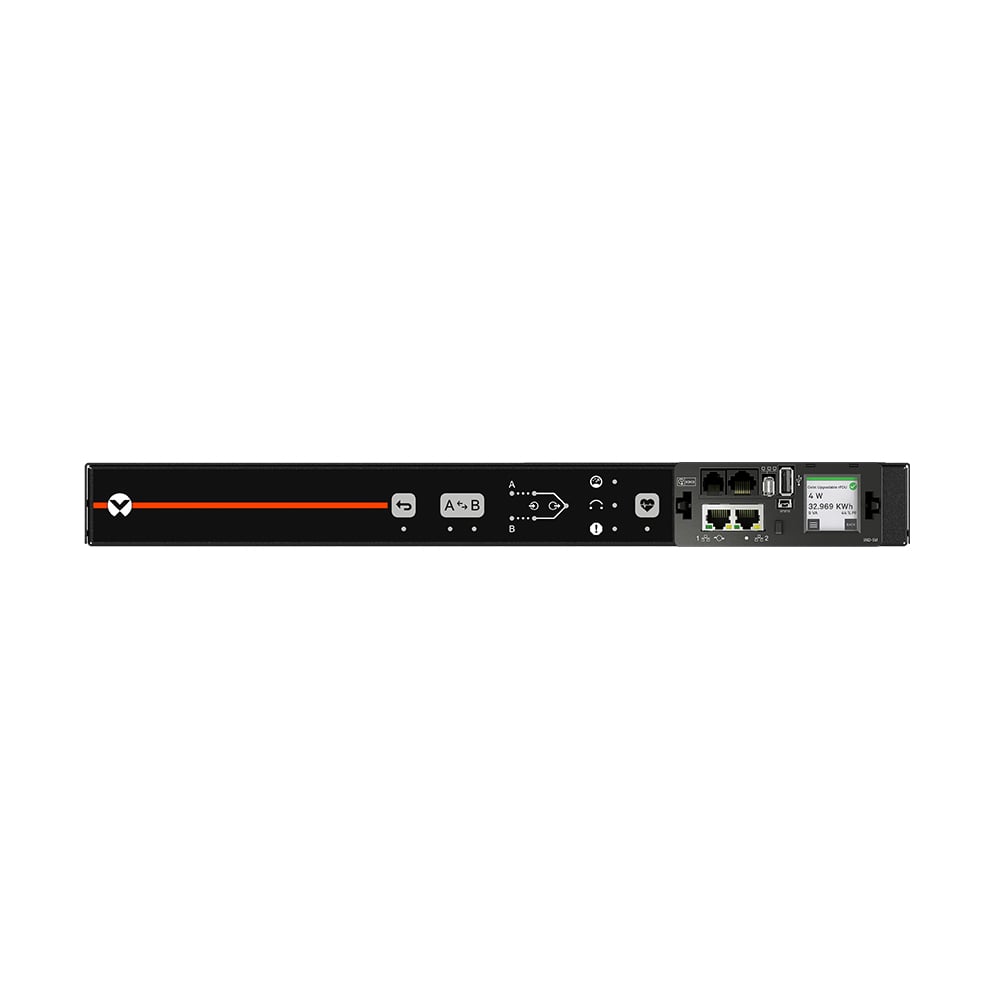

VA4N11A0
|
||||||||
| 1.4Kw (120V) | 100-120V | 120V | (10) NEMA 5-15R | Rack | 1.72 in | 17 in | 18 in | 17 lbs |
| Ver mais informações sobre o produto | ||||||||
|
VA4N21A0
|
||||||||
| 1.9Kw (120V) | 100-120V | 120V | (10) NEMA 5-20R | Rack | 1.72 in | 17 in | 18 in | 17 lbs |
| Ver mais informações sobre o produto | ||||||||
|
VA4N31A0
|
||||||||
| 4.9Kw (208V) | 200-240V | 208V | (1) NEMA L6-30R | Rack | 1.72 in | 17 in | 18 in | 19 lbs |
| Ver mais informações sobre o produto |
Vantagens
Características
- Vertiv™ PowerIT Rack Transfer Switch Installer User Guide SL-71272
- Vertiv™ Geist™ Upgradeable rPDU IMD Feature Comparison
- Vertiv™ PowerIT Upgradeable PDU and Universal PDU Quick Installation Guide (SL-70646)
- Safety and Regulatory Statements
- Vertiv PowerIT Quick Installation Guide PDU VM1246 SL-70646
*Para ver transferências específicas do modelo, terá de ir para a página de produto específica do modelo, selecionando o nome do modelo na tabela de especificações acima.
