Vertiv™ Geist™ Rack Transfer Switch
The Vertiv™ Geist™ Rack Transfer Switch (RTS) delivers redundant power to single corded devices. Two independent power inputs enables users to connect to a primary and secondary power source. The Vertiv™ Geist™ Rack Transfer Switch automatically detects the loss of power and switches the power load to the alternative power source in less than 4-8 milliseconds without the need for human intervention. This ensures equipment remains powered until the primary power source returns providing ultimate mission-critical power reliability.
Produit enregistré dans votre tableau de bord
Vous venez d’enregistrer ce produit dans votre tableau de bord afin de le consulter ultérieurement. Vous pourrez ensuite facilement le supprimer quand vous n’en aurez plus besoin.
Veuillez vous connecter ou créer un compte pour enregistrer ce contenu
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Military
- Defense
- Aerospace and Missile
- Telecom
- Retail and Wholesale
Vertiv™ Geist™ Rack Transfer Switch
The Vertiv™ Geist™ Rack Transfer Switch (RTS) delivers redundant power to single corded devices. Two independent power inputs enables users to connect to a primary and secondary power source. The Vertiv™ Geist™ Rack Transfer Switch automatically detects the loss of power and switches the power load to the alternative power source in less than 4-8 milliseconds without the need for human intervention. This ensures equipment remains powered until the primary power source returns providing ultimate mission-critical power reliability.
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Military
- Defense
- Aerospace and Missile
- Telecom
- Retail and Wholesale
Caractéristiques
The Vertiv™ Geist™ Rack Transfer Switch (RTS) delivers redundant power to single corded devices. Two independent power inputs enables users to connect to a primary and secondary power source. The Vertiv™ Geist™ Rack Transfer Switch automatically detects the loss of power and switches the power load to the alternative power source in less than 4-8 milliseconds without the need for human intervention. This ensures equipment remains powered until the primary power source returns providing ultimate mission-critical power reliability. The Rack Transfer Switch is an open transition switch utilizing a break-before-make process for transferring between the primary and secondary power source. This method of switching does not require phase synchronization between the two power feeds making it suitable for use in both data center and edge locations. It also includes enhanced redundant switches and fail-safe fused thermistors to mitigate current surge during transfers ensuring critical equipment is protected during fail-over.

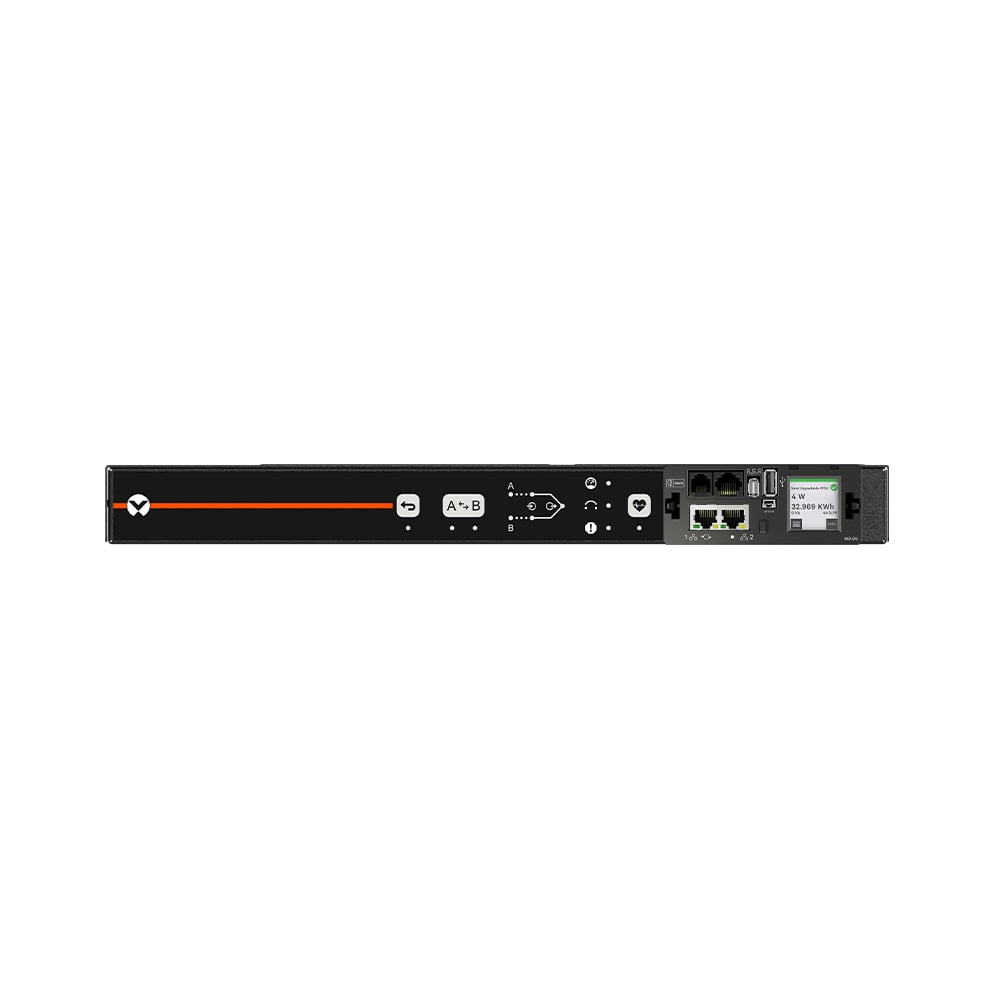

VA4U11A0
|
||||||||
---|---|---|---|---|---|---|---|---|
1.4kW (120V) or 2.4kW (208V) or 2.3kW (230V) | 10A or 15A | 100-240V | (10) U-Lock IEC C13 | Rack | 1.72 in | 17 in | 18 in | 15 lbs |
Voir plus d’informations produits | ||||||||

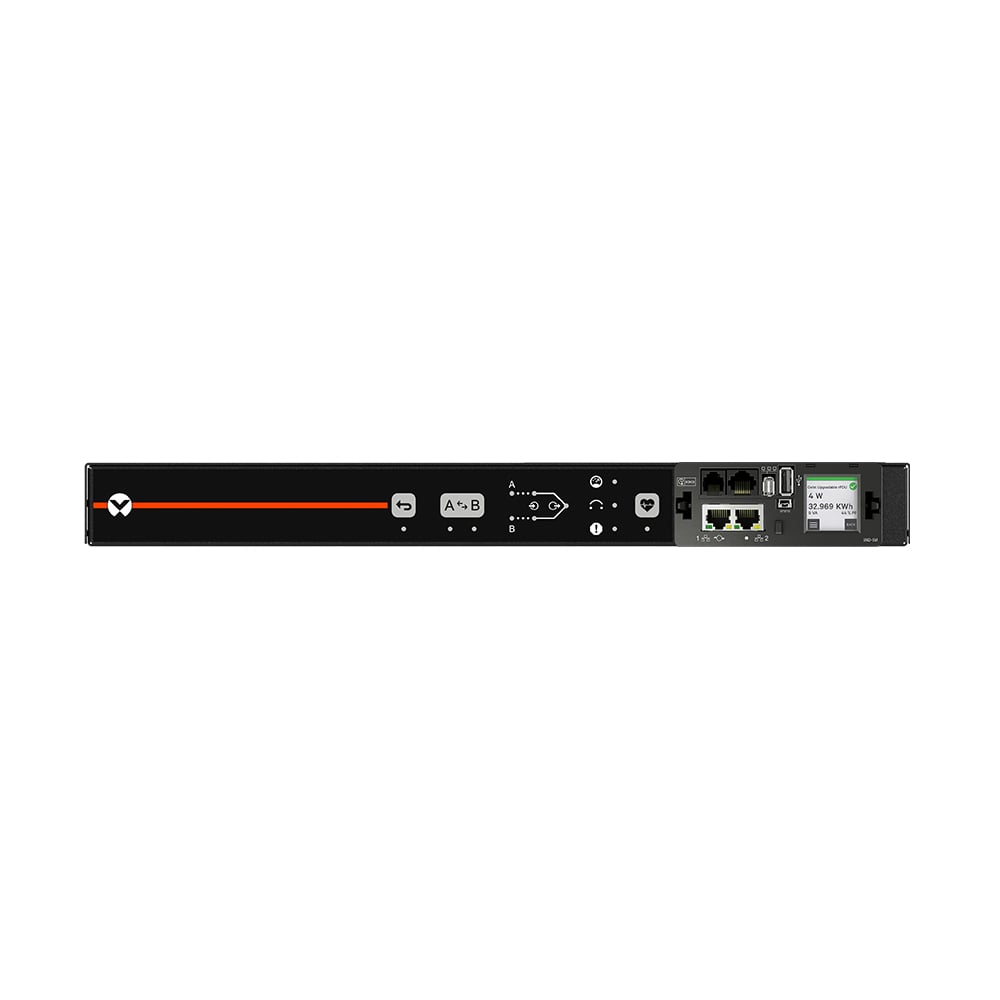

VA4N11A0
|
||||||||
1.4Kw (120V) | 100-120V | 120V | (10) NEMA 5-15R | Rack | 1.72 in | 17 in | 18 in | 17 lbs |
Voir plus d’informations produits | ||||||||
VA4N21A0
|
||||||||
1.9Kw (120V) | 100-120V | 120V | (10) NEMA 5-20R | Rack | 1.72 in | 17 in | 18 in | 17 lbs |
Voir plus d’informations produits | ||||||||
VA4N31A0
|
||||||||
4.9Kw (208V) | 200-240V | 208V | (1) NEMA L6-30R | Rack | 1.72 in | 17 in | 18 in | 19 lbs |
Voir plus d’informations produits |
Avantages
Caractéristiques
* Pour accéder aux téléchargements de modèles spécifiques, rendez-vous sur la page du produit en question en sélectionnant le nom de modèle dans le tableau de spécification plus haut.
