Famille du produit
Garantie:
Two Year Limited Warranty Against Defects in Material and Workmanship. 5-year warranty for lithium-ion products.

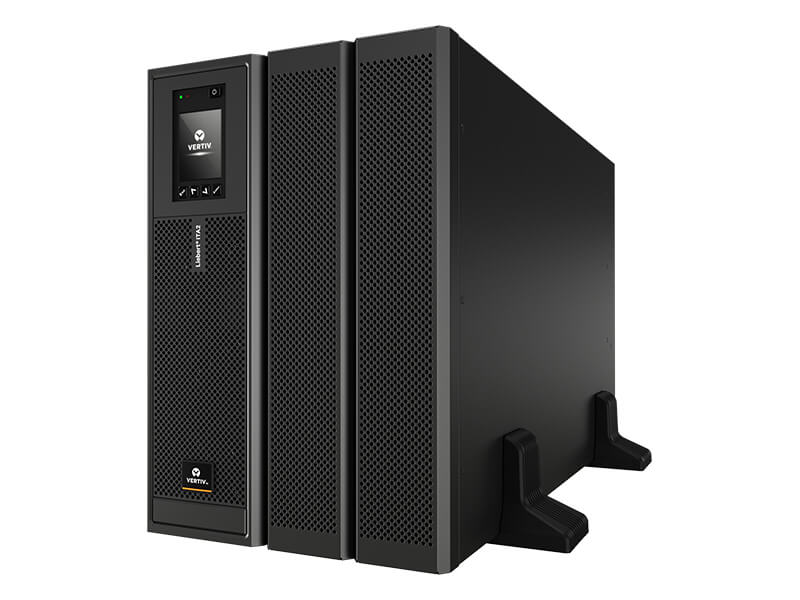

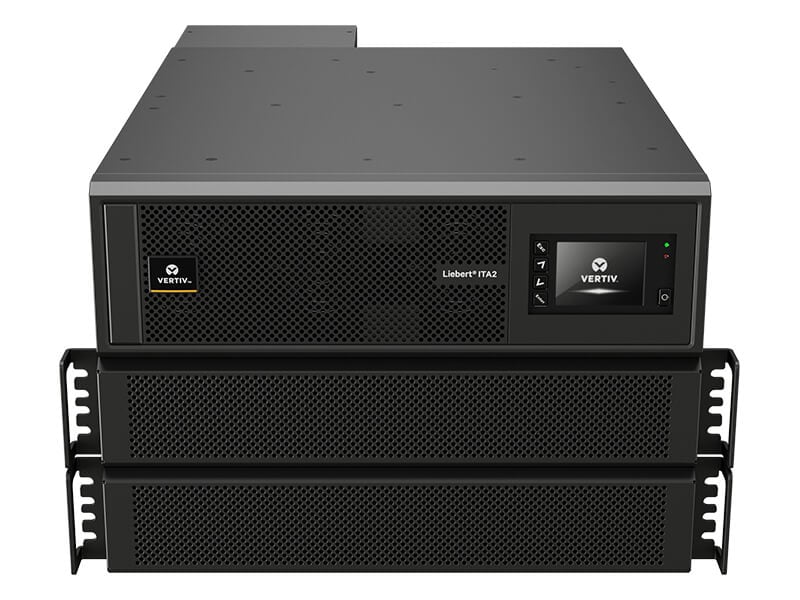

Vertiv™ Liebert® ITA2 -3 Phase UPS
The Vertiv Liebert® ITA2 UPS delivers economical, efficient, and reliable three-phase power for critical loads from 5 to 40 kW, and up to 80 kW with parallel systems. Use in a rackmount or tower configuration. This intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate. Optional lithium-ion battery cabinets available.
Sauvegardez ce produit dans votre tableau de bord
Vous venez de sauvegarder ce produit dans votre tableau de bord afin de le consulter ultérieurement. Vous pourrez ensuite facilement le supprimer quand vous n’en aurez plus besoin.
Veuillez vous connecter ou créer un compte pour sauvegarder ce contenu afin de le consulter ultérieurement
Adapté aux applications suivantes:
- Banque, finances et assurances
- Centre de données/colocation/hébergement
- Éducation
- Administration publique
- Santé
- Commerce de détail et de gros
Famille du produit
Garantie:
Two Year Limited Warranty Against Defects in Material and Workmanship. 5-year warranty for lithium-ion products.

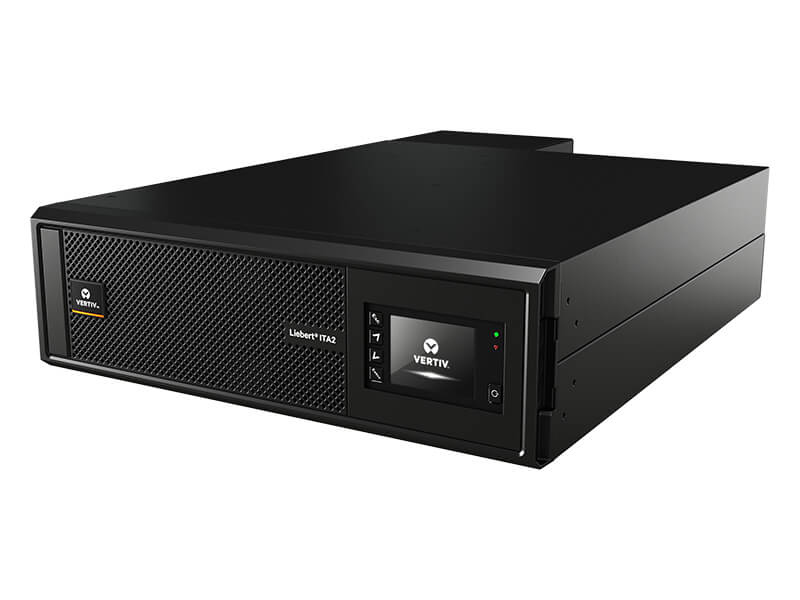

Vertiv™ Liebert® ITA2 -3 Phase UPS
The Vertiv Liebert® ITA2 UPS delivers economical, efficient, and reliable three-phase power for critical loads from 5 to 40 kW, and up to 80 kW with parallel systems. Use in a rackmount or tower configuration. This intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate. Optional lithium-ion battery cabinets available.
Adapté aux applications suivantes:
- Banque, finances et assurances
- Centre de données/colocation/hébergement
- Éducation
- Administration publique
- Santé
- Commerce de détail et de gros
Tools & Selectors
Select, compare, or configure UPS systems and models
Runtime Tool
Get detailed runtime information for various load levels
UPS Selector
Interactive product selector for single-phase UPS
UPS/Battery Upgrade Services
Explore options to maintain Liebert GXT & PSI UPS
Spécifications
The Vertiv™ Liebert® ITA2 -3 Phase UPS features: 5 to 40 kVA three-phase (3:3) online power protection, high power factor, compact design, rackmount or tower form factor, high operating efficiency, flexible output distribution, optional maintenance bypass cabinet, intuitive control panel. Easy to install, cable and operate.
|
Liebert® ITA2 UPS 5kVA, 208V
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 5kVA | 208/220 | 208/220 | 93% | 4W+G | 5.1 in | 16.9 in | 19.7 in | 50.7 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
Liebert® ITA2 UPS 8/10 kVA, 208V
|
||||||||
| 8/10kVA | 208/220 | 208/220 | 93% | 4W+G | 5.1 in | 16.9 in | 19.7 in | 50.7 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
Liebert® ITA2 UPS 15/20kVA, 208V
|
||||||||
| 15/20kVA | 208/220 | 208/220 | 93% | 4W+G | 5.1 in | 16.9 in | 19.7 in | 50.7 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|
Liebert® ITA2 UPS 15/20/30/40kVA 400V
|
||||||||
| 15/20/30/40kVA | 380/400/415 | 380/400/415 | 93% | 4W+G | 5.1 in | 16.9 in | 19.7 in | 50.7 lbs |
| Afficher plus d'informations sur le produit | ||||||||
|

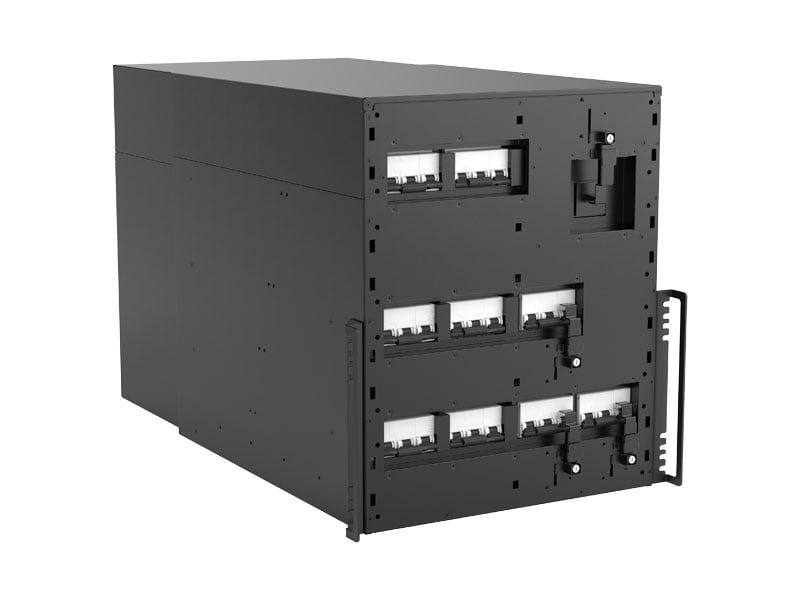

Vertiv Liebert ITA2 MBC Maintenance Bypass switch (rack/external) 20kVA 208V / 40K 400V | 2+1 MBC (ITA2-40KMBC42) - Rack-mountable/external | Facilitates UPS maintenance or replacement, if needed, without having to shutdown the connected equipment | 2+1 Parallel MBC
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 MBC Maintenance Bypass switch (rack/external) 20kVA 208V / 40K 400V | 1+1/2+0 MBC (ITA2-40KMBC41) - Rack-mountable/external | Facilitates UPS maintenance or replacement, if needed, without having to shutdown the connected equipment | Supports 1+1 redundancy or 2+0 parallel MBC
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 MBC Maintenance Bypass switch (rack/external) 20kVA 208V / 40K 400V Single Module MBC (ITA2-40KMBC40) - Rack-mountable/external | Facilitates UPS maintenance or replacement, if needed, without having to shutdown the connected equipment
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 40kVA/kW 400/230VAC 3-Phase 4 Wire Online UPS with Unity Card, Compact, Modular Rack/Tower (ITA2-40KRT400C) - Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 30kVA/kW 400/230VAC 3-Phase 4 Wire Online UPS with Unity Card, Compact, Modular Rack/Tower (ITA2-30KRT400C) - Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 20kVA/kW 400/230VAC 3-Phase 4 Wire Online UPS with Unity Card, Compact, Modular Rack/Tower (ITA2-20KRT400C) - Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 15kVA/kW 400/230VAC 3-Phase 4 Wire Online UPS with Unity Card, Compact, Modular Rack/Tower (ITA2-15KRT400C) - Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|

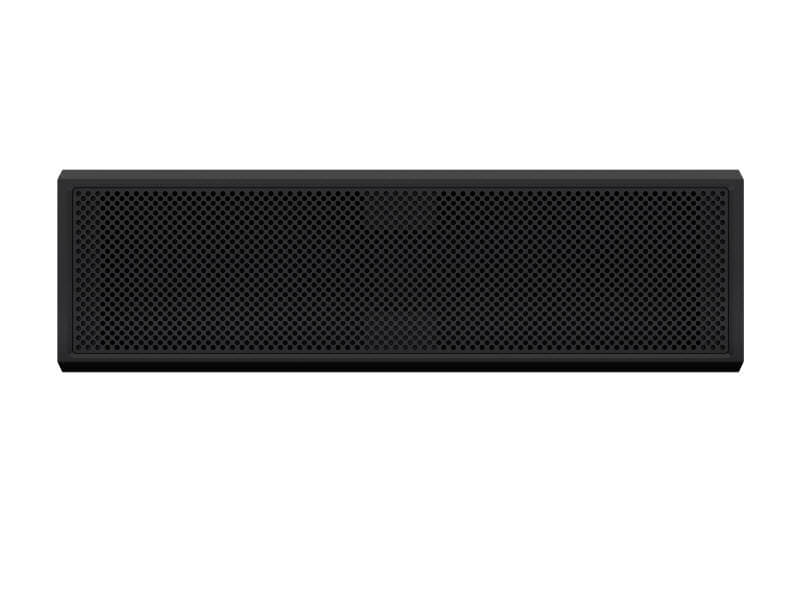

Vertiv Liebert ITA2 UPS External Battery Cabinet System (Qty 2-3U Cabinets)(ITA2-BCI0020K02) - rack-mountable / tower - Qty 2 cabinets/string - each cabinet is 2U (4U per string) - One ITA2-BCI20K02L2 cable kit required for each additional (2 or more) battery cabinet systems
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Liebert Bypass Cabinet - 10000 VA
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Liebert ITA2-08KMBC40 Bypass Cabinet - 8000 VA - 30 A
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 20kVA/kW 208/120VAC 3-Phase 4 Wire Online UPS with Unity Card, Compact, Modular Rack/Tower (ITA2-20KRT208C) - Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 15kVA/kW 208/120VAC 3-Phase 4 Wire Online UPS with Unity Card, Compact, Modular Rack/Tower (ITA2-15KRT208C) - Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Liebert ITA2 10KVA Tower/Rack Mountable UPS - Rack/Tower - 120 V AC, 230 V AC Input - 120 V AC, 127 V AC, 208 V AC, 220 V AC Output
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 5kVA/kW 208/120VAC 3-Phase 4 Wire Online UPS with Unity Card, Compact, Modular Rack/Tower (ITA2-05KRT208C) - Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Liebert ITA2 8kVA Rack/Tower UPS - Rack/Tower - 208 V AC, 220 V AC Input
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 20kVA/20kW 1+1 Redundant; 208/120VAC (220/127VAC) 3-phase 4 Wire w/ Unity Card, 4 pair of VRLA battery (ITA2-20KRT208V31URN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 15kVA/15kW 1+1 Redundant; 208/120VAC (220/127VAC) 3-phase 4 Wire w/ Unity Card, 4 pair of VRLA battery (ITA2-15KRT208V31URN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 40kVA/40kW; 400VAC (240VAC) 3-phase 4 Wire with Unity Card, Includes 2 pair of ITA2 VRLA battery (ITA2-40KRT400V11UN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 30kVA/30kW; 400VAC (240VAC) 3-phase 4 Wire with Unity Card, Includes 2 pair of ITA2 VRLA battery (ITA2-30KRT400V11UN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 20kVA/20kW; 208/120VAC (220/127VAC) 3-phase 4 Wire with Unity Card, Includes 2 pair of ITA2 VRLA battery(ITA2-20KRT208V11UN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 15kVA/kW 208/120VAC (220/127VAC) 3-phase 4 Wire with Unity Card, Includes 2 pair of ITA2 VRLA battery (ITA2-15KRT208V11UN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS 10kVA/10kW; 208/120VAC (220/127VAC) - 3-phase 4 Wire with Vertiv™ Liebert® IntelliSlot™ RDU120 Card, 1 pair of ITA2 Li-ion battery (ITA2-08KRT2087UN) - rack-mountable / tower | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card compatible with all Liebert SN Sensors | one pair of ITA2 VRLA battery cabinet system included
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS 8kVA/7.2kW; 208/120VAC (220/127VAC) - 3-phase 4 Wire with Vertiv™ Liebert® IntelliSlot™ RDU120 Card, 1 pair of ITA2 VRLA battery (ITA2LI-08KRT2085UN) - rack-mountable / tower | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card compatible with all Liebert SN Sensors | one pair of ITA2 VRLA battery cabinet system included
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|

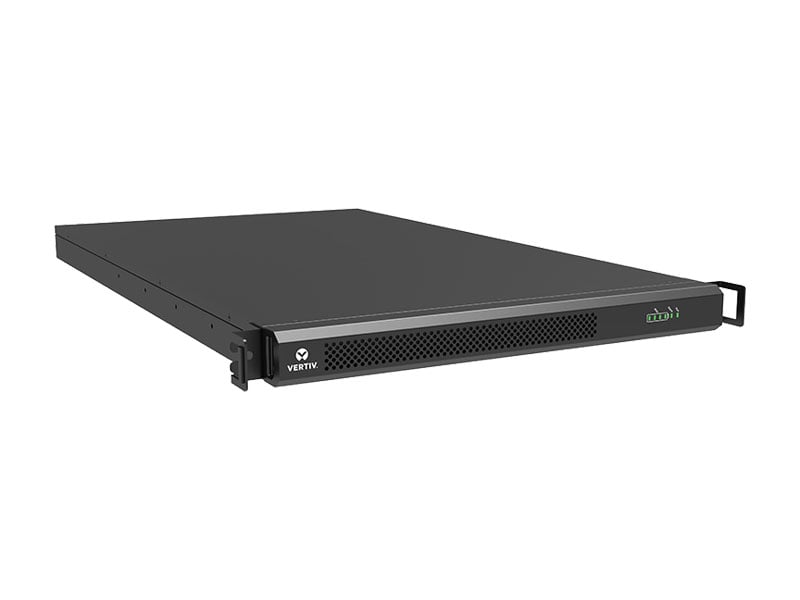

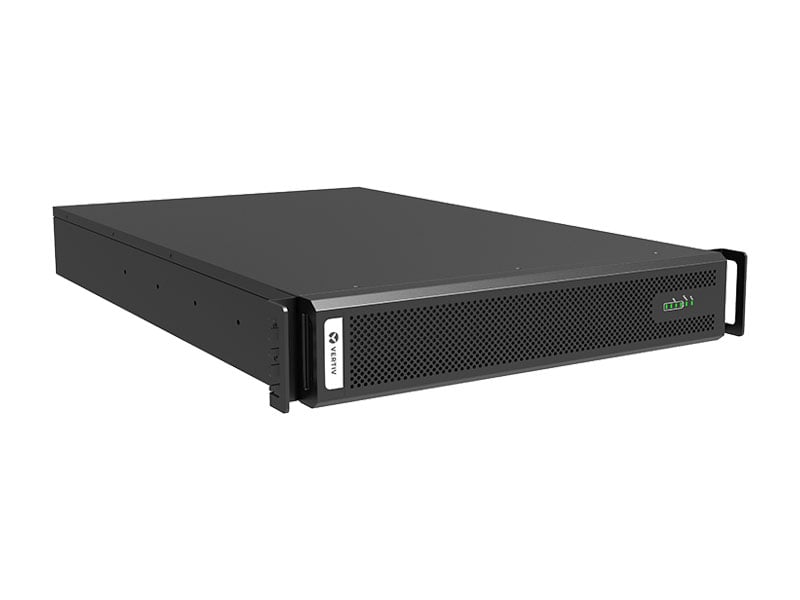

Vertiv Liebert ITA2 MPL UPS External Battery Cabinet System (rack/tower) 12Ah Lithium-Ion (Li-Ion) battery (ITA2-BCI0020KL2) - Qty 2 cabinets/string - each cabinet is 2U (4U per string)
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv MPL Li-Ion EBC(rack/tower) for Liebert ITA2 (Qty 2-1U Cabinets) (ITA2-BCI0020KL2) - External Battery Cabinet System - Qty 2 cabinets/string - each cabinet is 1U (2U per string)
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 40kVA/40kW 2+1 Redundant Parallel; 400VAC (240VAC) 3-phase 4 Wire w/SNMP, 4 pair VRLA battery (ITA2-80KRT400V37UPRN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 30kVA/30kW 2+1 Redundant Parallel; 400VAC (240VAC) 3-phase 4 Wire w/SNMP, 4 pair VRLA battery(ITA2-60KRT400V37UPRN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 20kVA/20kW 2+1 Redundant Parallel; 208/120VAC (220/127VAC) 3-phase 4 Wire w/SNMP, 4 pair VRLA battery (ITA2-40KRT208V37UPRN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 15kVA/15kW 2+1 Redundant Parallel; 208/120VAC (220/127VAC) 3-phase 4 Wire w/SNMP, 4 pair VRLA battery (ITA2-30KRT208V37UPRN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 40kVA/40kW 2+0 Parallel; 400VAC (240VAC) 3-phase 4 Wire w/ Unity Card, 4 pair of VRLA battery (ITA2-80KRT400V31UPN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 30kVA/30kW 2+0 Parallel; 400VAC (240VAC) 3-phase 4 Wire w/ Unity Card, 2 pair of VRLA battery (ITA2-60KRT400V31UPN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 20kVA/20kW 2+0 Parallel; 208/120VAC (220/127VAC) 3-phase 4 Wire w/ Unity Card, 4 pair of VRLA battery (ITA2-40KRT208V31UPN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 15kVA/15kW 2+0 Parallel; 208/120VAC (220/127VAC) 3-phase 4 Wire w/ Unity Card, 4 pair of VRLA battery (ITA2-30KRT208V31UPN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 40kVA/40kW 1+1 Redundant; 400VAC (240VAC) 3-phase 4 Wire w/ Unity Card, 4 pair of VRLA battery (ITA2-40KRT400V31URN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit | ||||||||
|
Vertiv Liebert ITA2 UPS - 30kVA/30kW 1+1 Redundant; 400VAC (240VAC) 3-phase 4 Wire w/ Unity Card, 4 pair of VRLA battery (ITA2-30KRT400V31URN) - Rack-mountable / tower | Online Double Conversion UPS Solution | with Vertiv™ Liebert® IntelliSlot™ RDU120 Card factory installed and is compatible with all Liebert SN Sensors
|
||||||||
| Afficher plus d'informations sur le produit |
Avantages
- Save space, footprint

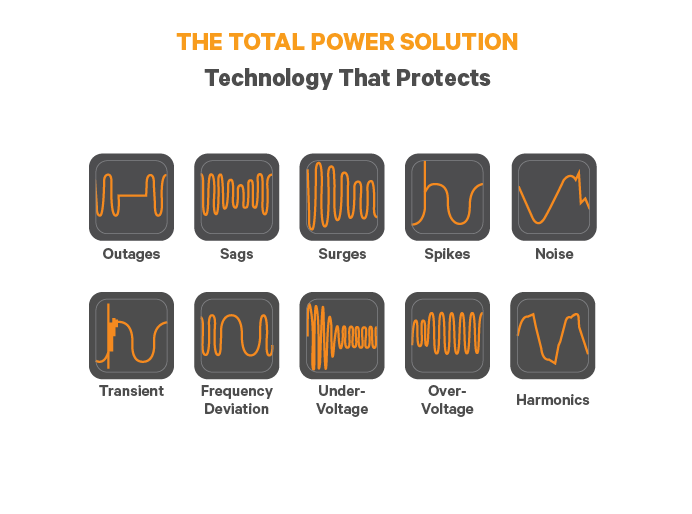

- Reliable power protection to protect critical systems (stabilizes bad power)
- Maximizes rated power output
- Extended battery life
- Extended backup times available
- Low operating costs
- Low capital costs
- Flexible distribution, mix and match to power a variety of loads
- Easy to use, minimizes human error
- Local and remote monitoring provides greater visibility
- Reduces installation time
- Vertiv Services improves uptime while reducing demands on the customer's staff
Caractéristiques
- Compact, high power density design
- Online Three-phase (3:3)
- High power factor

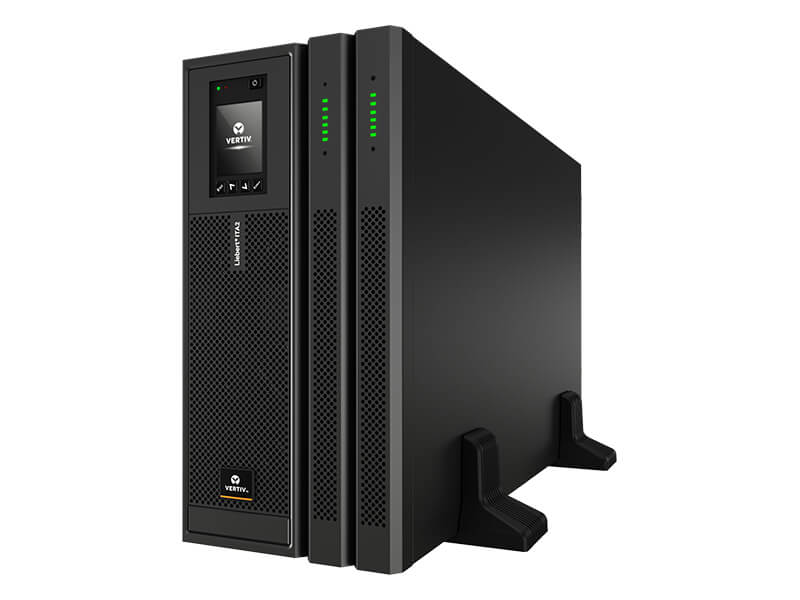

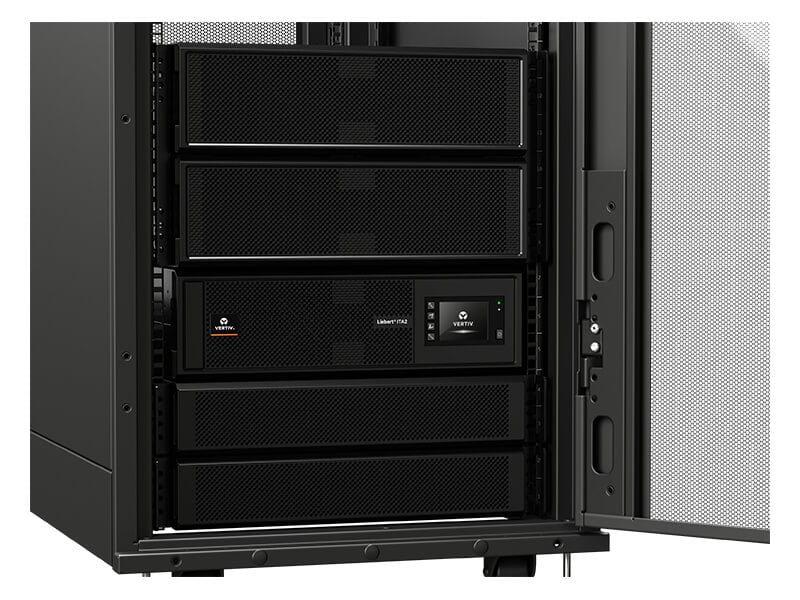

- Rackmount or tower form factor
- Scalable battery runtimes
- Lithium-Ion Availability
- Fast battery recharge
- High operating efficiency (>93% in dual conversion mode, 99% in eco mode)

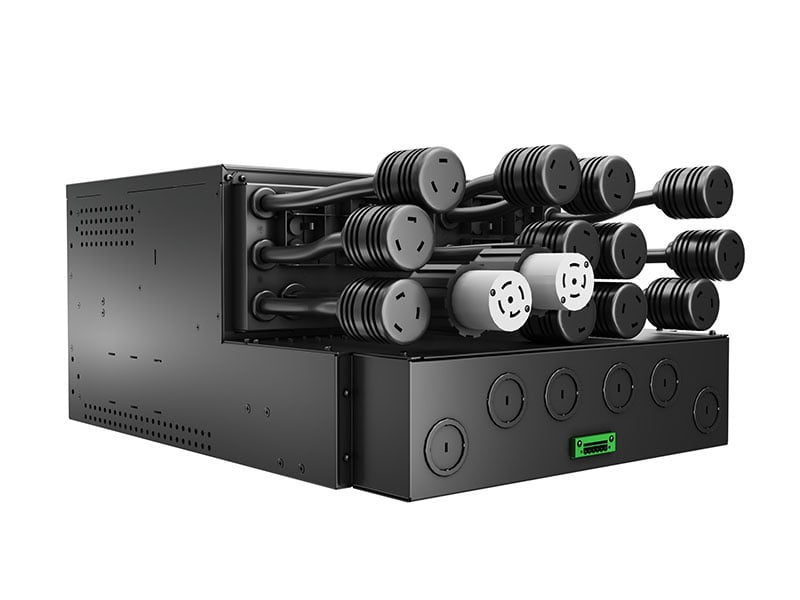

- Flexible output distribution and cord set options
- Controllable output terminals
- Wide input voltage range
- Maintenance bypass cabinet (optional)
- Intuitive control panel
- Advanced battery monitoring
- Unity network communications card (IT network and building management systems)
- Easy to install, wire and operate

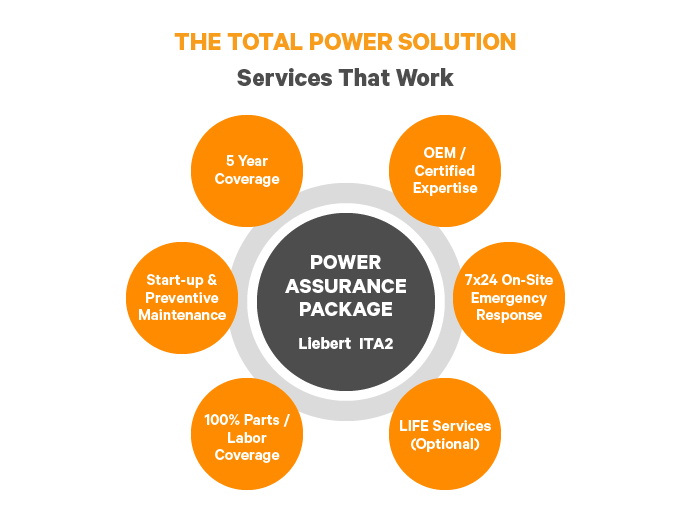

- Power Assurance Package and LIFE Services options
- RDU120 MIBs Monitoring (see software downloads)
Manuels
- Liebert® ITA2 Maintenance Bypass Cabinet User Manual (SL-26252)
- Liebert ITA2 Battery Cabinet 8-10kVA Installation Manual (SL-26250)
- Liebert® ITA2 MBC Quick Start Guide SL-26256QS
- Liebert ITA2 Battery Cabinet Quick Start Guide SL-26257QS
- Liebert® ITA2 UPS Quick Start Guide SL-26255QS
- Runtime Tool: Vertiv™ Liebert® ITA2 UPS
Brochures et fiches techniques
- Vertiv™ Liebert® ITA2 15,20kVA 208V-220V 30,40kVA 400V Brochure - NA - English
- Vertiv™ Liebert® 5KVA ITA2 UPS - Data Sheet - English
- Vertiv Liebert ITA2 3PH UPS VRLA Li-ion 8/10kVA 208V/220V - Brochure
- Vertiv™ Data Center Infrastructure Solutions - Channel Products Catalog - English
- Vertiv APM2 Healthcare Brochure SL-25685
- Addressing Challenges to Powering Midsize IT Systems - Brochure
- Liebert ITA2 Infographic
Logiciel
Spécifications techniques
* Pour accéder aux téléchargements propres à des modèles particuliers, rendez-vous sur la page du produit en question en sélectionnant le nom de modèle dans le tableau de spécifications ci-dessus.
Trouver la personne-ressource de votre région
Personnes-ressources pour l'assistance produits
Vertiv™ Services
Contact courriel
+1 800 543 2378
610 Executive Campus Drive
Westerville Ohio 43082
USA
Domaines d'intérêt concernant les produits :
Alimentation sans coupure (ASC), Distribution électrique, Gestion thermique, Solutions intégrées, Bâtis et confinement
Modifier
Foire aux questions (FAQ)
Yes. From the base UPS and all the batteries to the maintenance bypass .... each conveniently fits in the rack.
Yes, the optional Output Distribution assembly can accept numerous types. These offer greater flexibility and ease of installation. See the POD diagram in the brochure.
Vertiv strives to make it easy. Each standard UPS shipment contains: UPS module, CD with instruction/user manuals (multiple languages), USB cable, Rackmount rail kit and handles, tower base kit, copper jumpers for single-input configuration, IS-UNITY communications card and UPS to battery cabinet cable. Battery modules and maintenance bypass options packaged separately. Every unit is expertly and conveniently packaged.
Liebert ITA2 overload limits are 5 minutes up to 125% load and 1 minute up to 150% load. These values are measured at full active power (unity output PF)
Yes, Liebert ITA2 supports the ECO Mode with an efficiency up to 99%.
