Vertiv PowerUPS 9000 480V
This system offers a power capacity ranging from 625kW to 1250kW within a single frame. Additionally, it supports parallel installation of up to four frames, achieving a combined power output of up to 5MW.
Se ha guardado este producto en su dashboard
Acaba de guardar este producto en su dashboard para verlo más tarde. Cuando ya no quiera tenerlo guardado, puede eliminar fácilmente el elemento de su dashboard.
Inicie sesión o cree una cuenta para guardar esto para más tarde
Vertiv PowerUPS 9000 480V
This system offers a power capacity ranging from 625kW to 1250kW within a single frame. Additionally, it supports parallel installation of up to four frames, achieving a combined power output of up to 5MW.
Beneficios
Características
Especificaciones

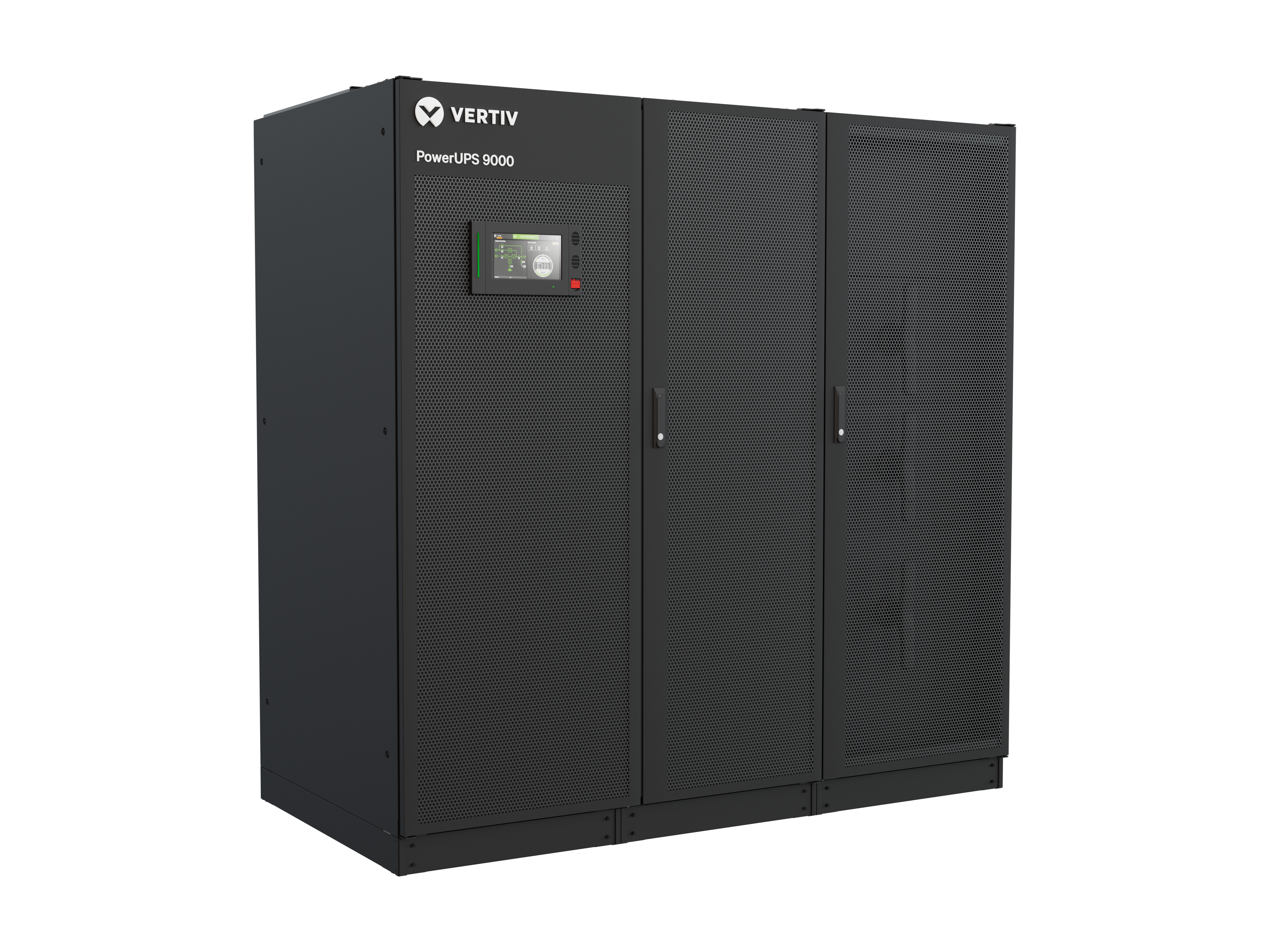

The Vertiv™ PowerUPS 9000 is a high-power density, energy-efficient, and compact uninterruptible power supply (UPS) system. It is designed to support IT applications from traditional computing to high-density applications, including space-constrained environments. It is available globally in UL and CE models, from 250 to 1250kVA/kW. It is Vertiv’s most efficient UPS in its product class, with a physical footprint 32% smaller than previous generations. This system offers double-conversion efficiency of up to 97.5% for superior reliability. It is compatible with Vertiv™ EnergyCore lithium battery cabinet, and other battery technologies, including Valve-Regulated Lead-Acid (VRLA) and Nickel-Zinc. It includes scalable 125kVA power modules to grow with your power needs with ease.
- Product Overview
- Capacidad
- 1250kW
- Rango de voltaje de entrada
- 480Vac
- Rango del voltaje de salida
- 480Vac
- Eficiencia
- 97.6%
- Cableado
- 3Ph + PE
- Peso (lbs / kg)
- 4321 lbs
- Peso (lbs / kg)
- 4321 kgs
- Alto (pulgadas / mm)
- 82.6 in
- Alto (pulgadas / mm)
- 1998.9 mm
- Ancho (pulgadas / mm)
- 82.6 in
- Ancho (pulgadas / mm)
- 2098.04 mm
- Fondo (pulgadas / mm)
- 39.3 in
- Fondo (pulgadas / mm)
- 998.2 mm
- Interfaces/Ports
- Protocolos
- Modbus TCP/IP
- Panel de control
- Pantalla táctil de 9 pulgadas
- Acceso por cable
- Arriba o Abajo
- Acceso de servicio
- Acceso frontal
- Operational Conditions
- Temperatura de funcionamiento
- 0-50°C
- General
- Sistema de alimentación ininterrumpida
- Topología
- Topología de 3 niveles IGBT
- Miscellaneous
- General
- Sistema de alimentación ininterrumpida
- Topología
- Topología de 3 niveles IGBT
* Para ver descargas específicas de modelos, debe ir a la página de producto específica del modelo al seleccionar el nombre del modelo en el gráfico de especificaciones arriba.
