Producto

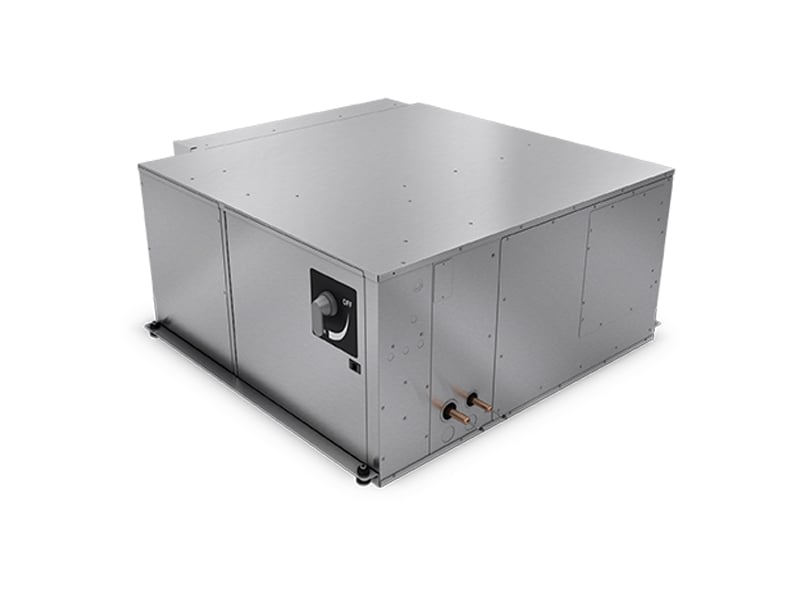

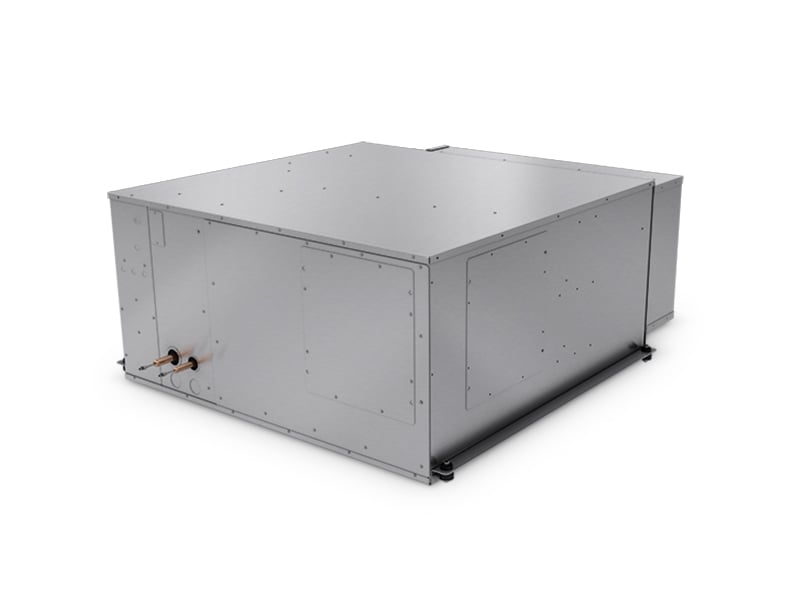

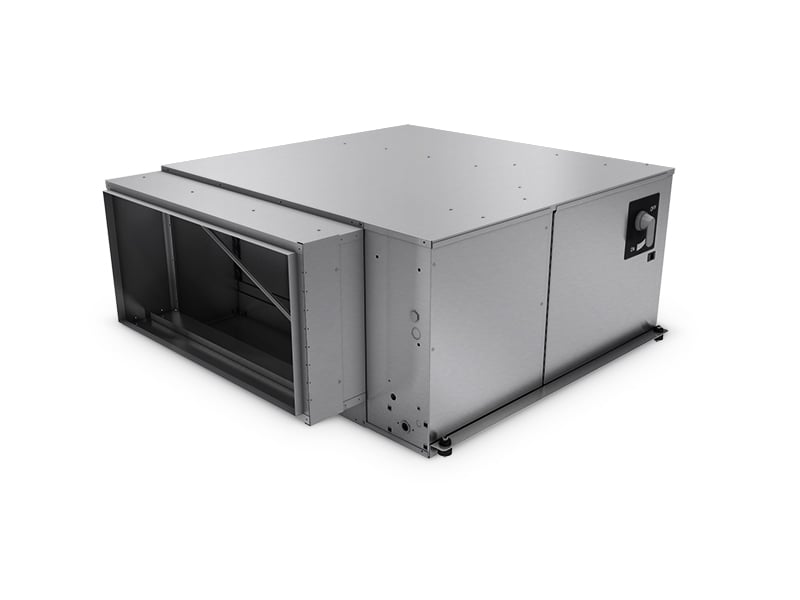

Liebert Mini-Mate, enfriamiento de capacidad variable montado en el techo, 10.5, 14 y 17.5 kW

El nuevo sistema de capacidad variable Liebert Mini-Mate de 3, 4 y 5 toneladas (10.5, 14 y 17.5 kW) es un sistema de enfriamiento de precisión eficaz y confiable que se monta en el techo para las aplicaciones en el borde de la red y otros espacios de TI pequeños. Ahorra dinero a los clientes y aumenta la protección de TI a través de un diseño de capacidad variable de alta eficiencia, una instalación rápida, menos requisitos de mantenimiento, y gestión y monitoreo remoto integrados.

Obtener el folleto Obtener el manual
Resulta ideal para:
  • Banca, finanzas y seguros
  • Centro de datos/Coubicación/Hosting
  • Educación
  • Gobierno
  • Salud
  • Venta minorista y mayorista
Garantía: One Year Limited Warranty Against Defects in Material and Workmanship

Beneficios

Saves You Money
As much as 20 percent lower energy use than previous models
Zero-footprint ceiling mounted unit
Lower maintenance costs
Increased management productivity

Lowers Your Risks
Integrated controls with automated protection routines
Remote monitoring, management and alarm troubleshooting through optional monitoring software
Can be mounted outside IT space to support IT security

Simplifies Thermal Management
Automated control routines coordinate multi-unit operation for redundant systems to optimize efficiency
Advanced control algorithms manage unit lead/lag, protect against coil freeze, minimize compressor wear, and operate your system efficiently.
Remote monitoring alerts you of system problems and enables you to easily contact service personnel

Características

Direct-drive variable speed fans
Variable capacity compressor
Ceiling-mounted, zero footprint
Single-sided maintenance access reduces ceiling space requirements

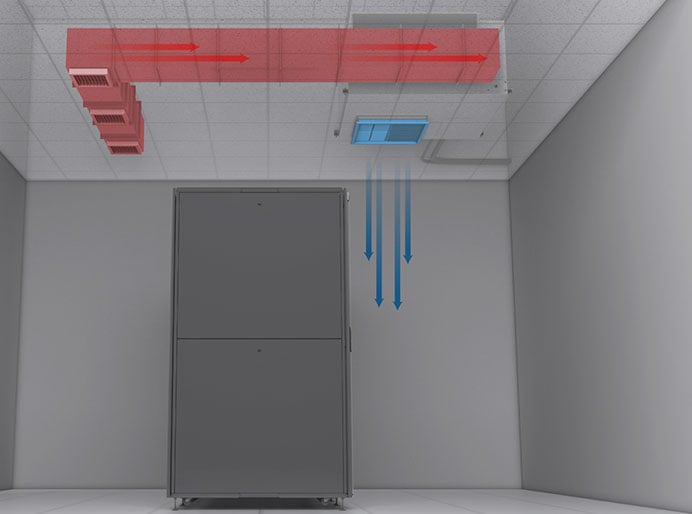

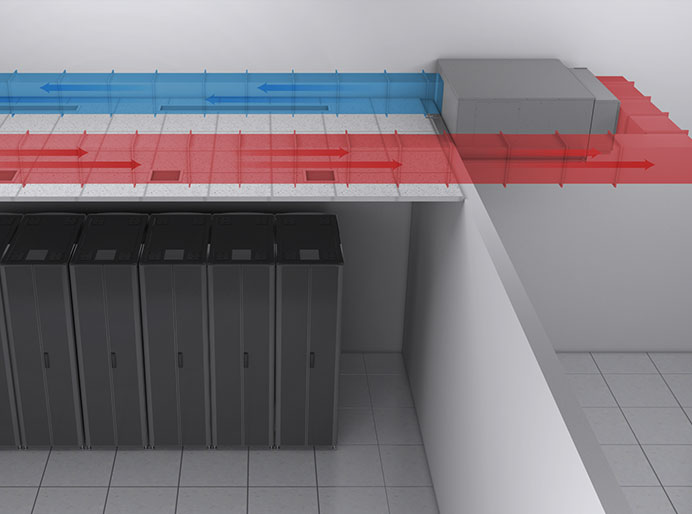

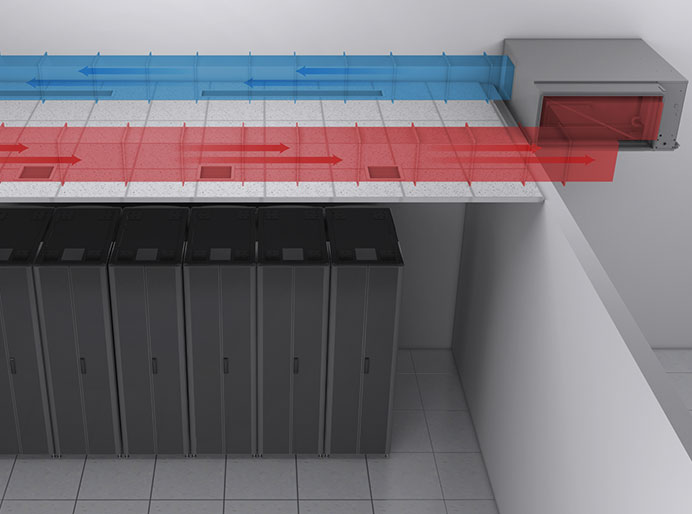

Side, back and down airflow configurations
Installation inside IT room or outside the space for physical security of the IT space and round-the-clock accessibility of the cooling unit
No drive belts and fewer moving parts than alternative systems
No need for inefficient hot-gas bypass – no manual capacity adjustment required

The Liebert Mini-Mate with variable capacity compressor and variable speed fans comes in a 4-ton (14kW) & 5 ton (17.5kW) capacity. Available as an air-cooled split system, the Liebert Mini-Mate is an economical and reliable solution for mission critical applications. It is designed to operate reliably 7 by 24 for over 10 years. In addition, it provides the maximum efficiency and scalability needed in small IT spaces through direct-drive variable speed fans and variable capacity compressors. The Liebert Mini-Mate comes with advanced Liebert iCOM™ controls for multi-unit teamwork and automated protection routines. In addition, remote monitoring, management and alarm troubleshooting are available through an integrated iCOM CMS Monitoring and Control System, which operates as a mobile app, on secure desktops and via building management systems. Of special importance to contractors and facilities managers, the Liebert Mini-Mate3 simplifies installation and maintenance. It can be accessed for maintenance from the front, and its single-side access reduces ceiling space requirements, compared to systems which require two-sided access. It also can be installed in side, back and down airflow configurations, making it highly adaptable to locations with space limitations. It also uses no belts and has fewer moving parts than alternative systems, significantly reducing the need for repair and replacement.

Liebert Mini-Mate, enfriamiento de capacidad variable montado en el techo, 10.5, 14 y 17.5 kW
Product Specifications
Capacidad nominal total en kBtuh [kW]
59 [17.5]
Net Sensible Capacity kBtuh [kW]
54.6 [16]
Flujo de aire nominal [CFM]
2750
Total Capacity
59 [17.5]
Net Sensible Capacity
54.6 [16]
Nominal Airflow
2750 CFM
Airflow Direction
Side, Back, Down
Heat Rejection Medium
Air
Capacity Modulation
Digital scroll, variable speed EC plug fans
Controls and Monitoring
Integrated unit controls
Key Components
Split air cooled
Physical Characteristics
Peso (lbs / kg)
498
Peso (lbs / kg)
226
Alto (pulgadas / mm)
24
Alto (pulgadas / mm)
610
Ancho (pulgadas / mm)
52 13/16
Ancho (pulgadas / mm)
1341
Fondo (pulgadas / mm)
46.5
Fondo (pulgadas / mm)
1180
