Vertiv™ CoolChip CDU
The Vertiv™ CoolChip CDU is designed to support liquid cooling within high density environments. It is suitable for direct-to-chip and rear door cooling applications that offer easy, cost-effective deployment in any data center. The Vertiv CoolChip CDU family has models that operate with and without access to facility water, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities. Select between in-rack, in-row, or perimeter-based designs as well as liquid-to-liquid or liquid-to-air heat exchangers.
Se ha guardado este producto en su dashboard
Acaba de guardar este producto en su dashboard para verlo más tarde. Cuando ya no quiera tenerlo guardado, puede eliminar fácilmente el elemento de su dashboard.
Inicie sesión o cree una cuenta para guardar esto para más tarde
- Centro de datos/Coubicación/Hosting
- Educación
- Gobierno
- Salud
- Venta minorista y mayorista

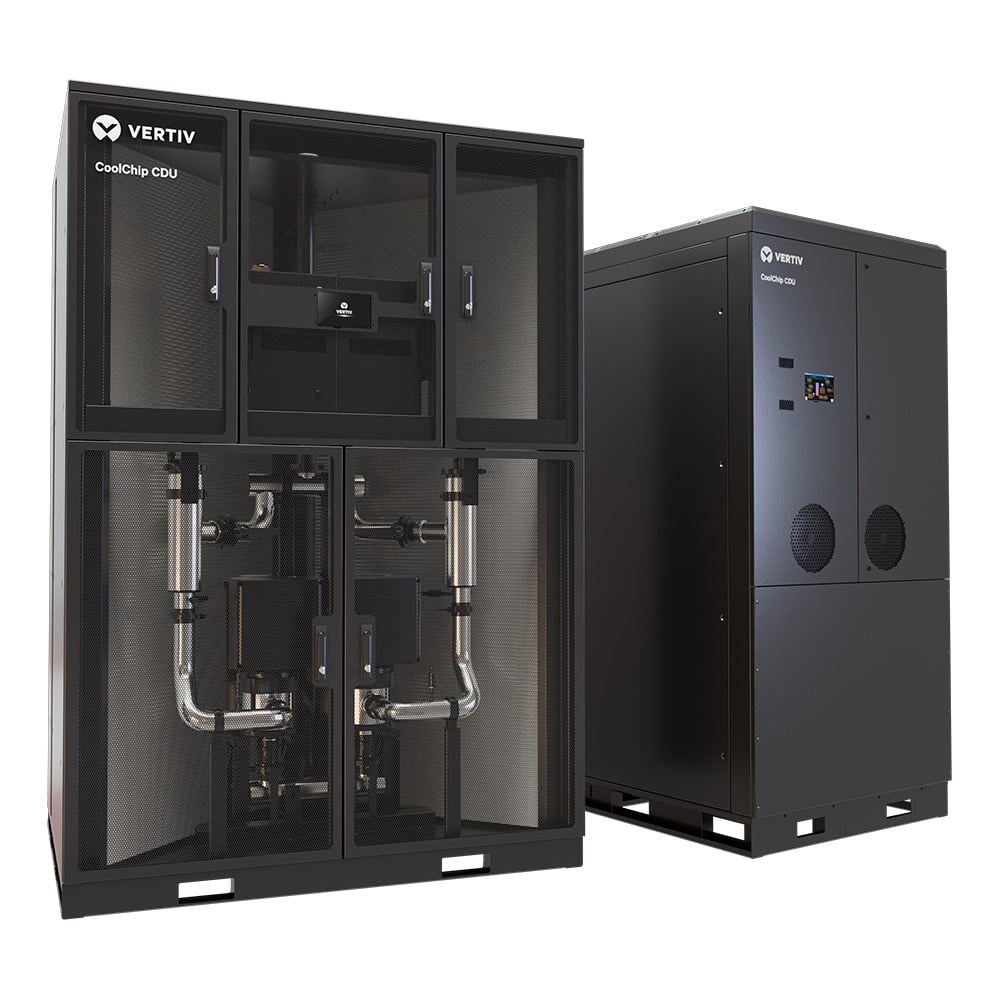

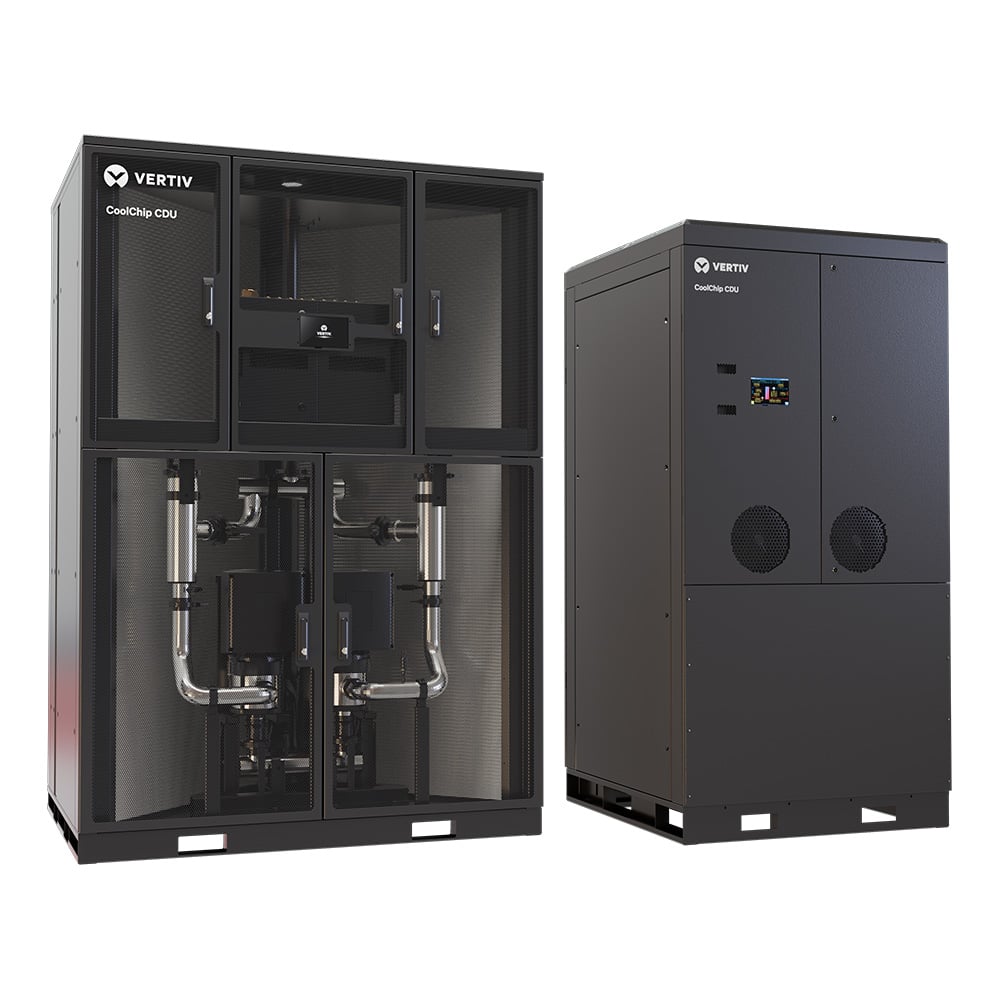

Vertiv™ CoolChip CDU
The Vertiv™ CoolChip CDU is designed to support liquid cooling within high density environments. It is suitable for direct-to-chip and rear door cooling applications that offer easy, cost-effective deployment in any data center. The Vertiv CoolChip CDU family has models that operate with and without access to facility water, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities. Select between in-rack, in-row, or perimeter-based designs as well as liquid-to-liquid or liquid-to-air heat exchangers.
- Centro de datos/Coubicación/Hosting
- Educación
- Gobierno
- Salud
- Venta minorista y mayorista
Especificaciones
Realice una transición perfecta a la tecnología de enfriamiento líquido de alta eficiencia con la CDU Vertiv™ CoolChip (la última generación de la familia Vertiv™ Liebert® XDU). Desde los entornos de hiperescala y coubicaciones hasta las aplicaciones en el borde, la CDU Vertiv CoolChip ofrece implementaciones flexibles para intercambiadores de calor de puerta trasera o el enfriamiento líquido de contacto directo. Puede instalarse en el rack, al final de la fila o de manera perimetral. Distribuya el refrigerante fácilmente para gestionar de manera eficiente las implementaciones con alta densidad energética con intercambio de calor de líquido a líquido de hasta 100 kW, 450 kW, 600 kW o 1350 kW, y el intercambio de calor de líquido a aire de hasta 70 kW. Gracias a un control preciso de la temperatura, esta unidad puede eliminar el choque térmico. Ofrece operaciones confiables gracias a sus bombas redundantes y suministro eléctrico doble, además de una mayor tranquilidad gracias a las comunicaciones y el monitoreo remotos.
|

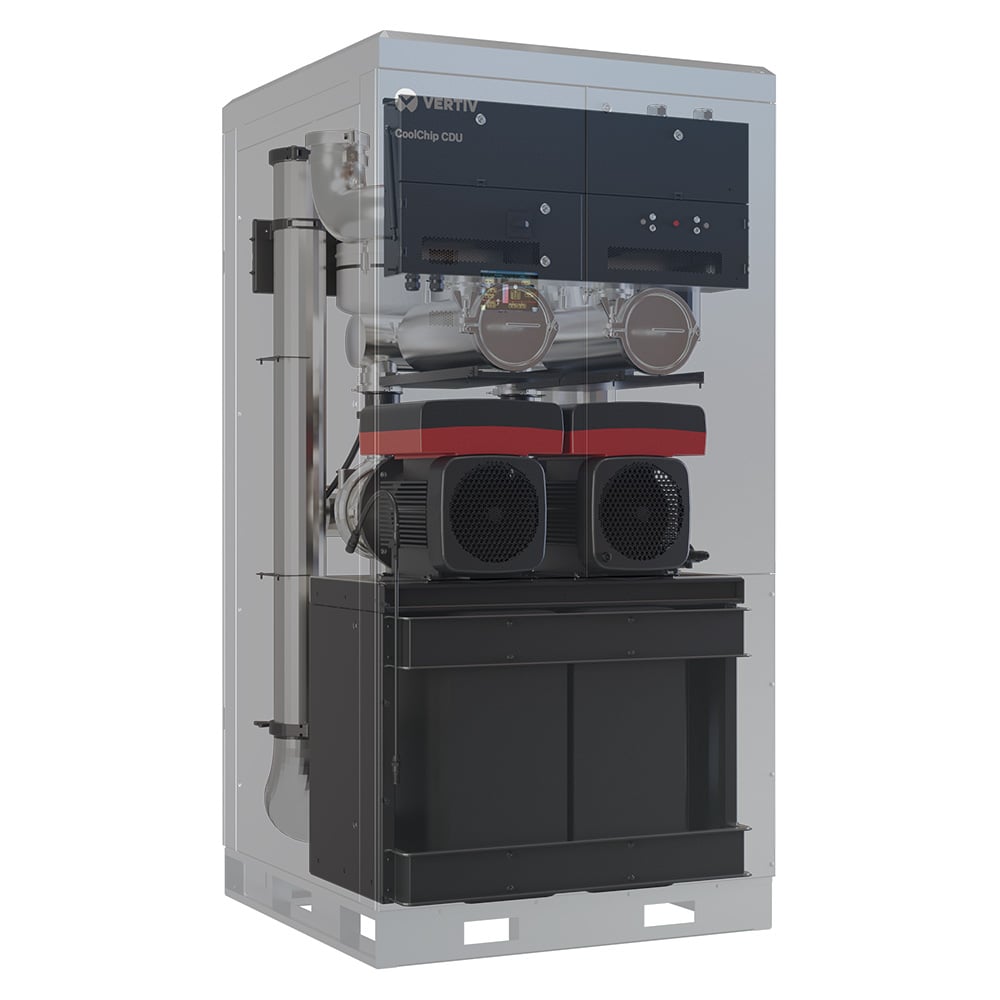

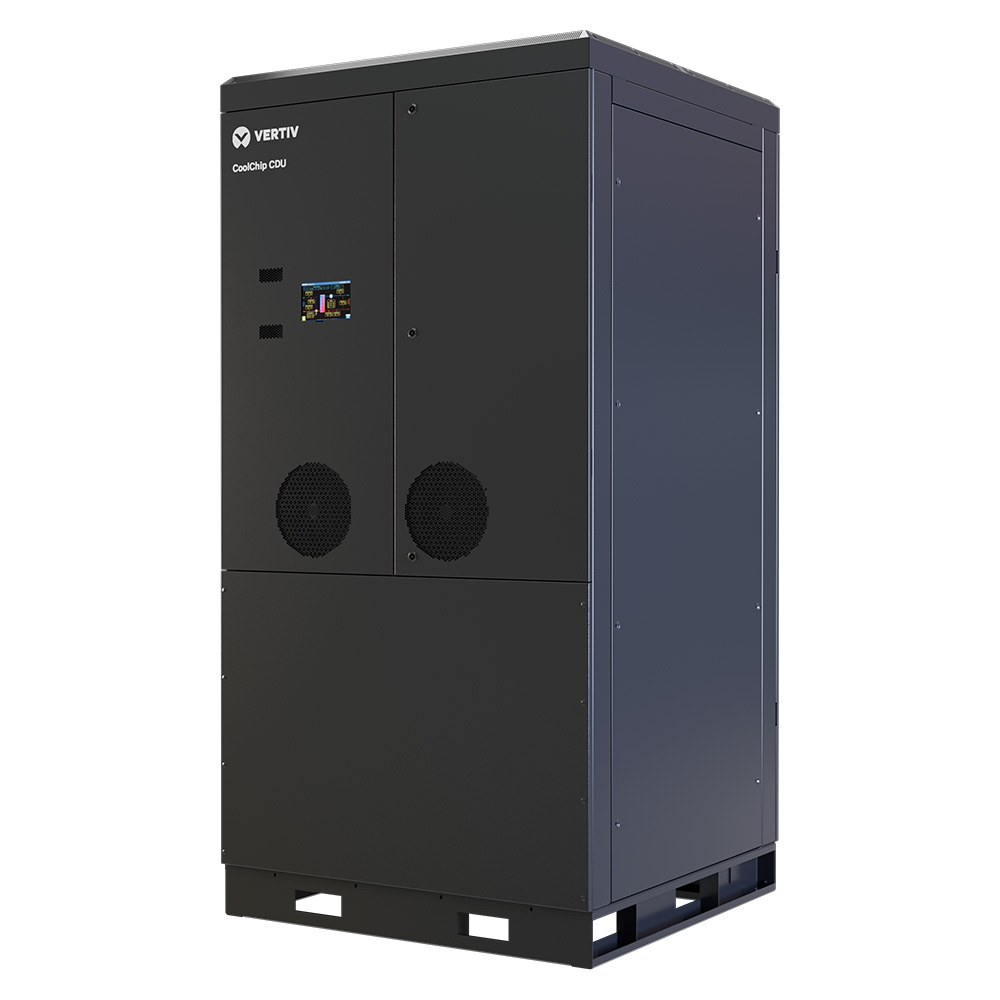

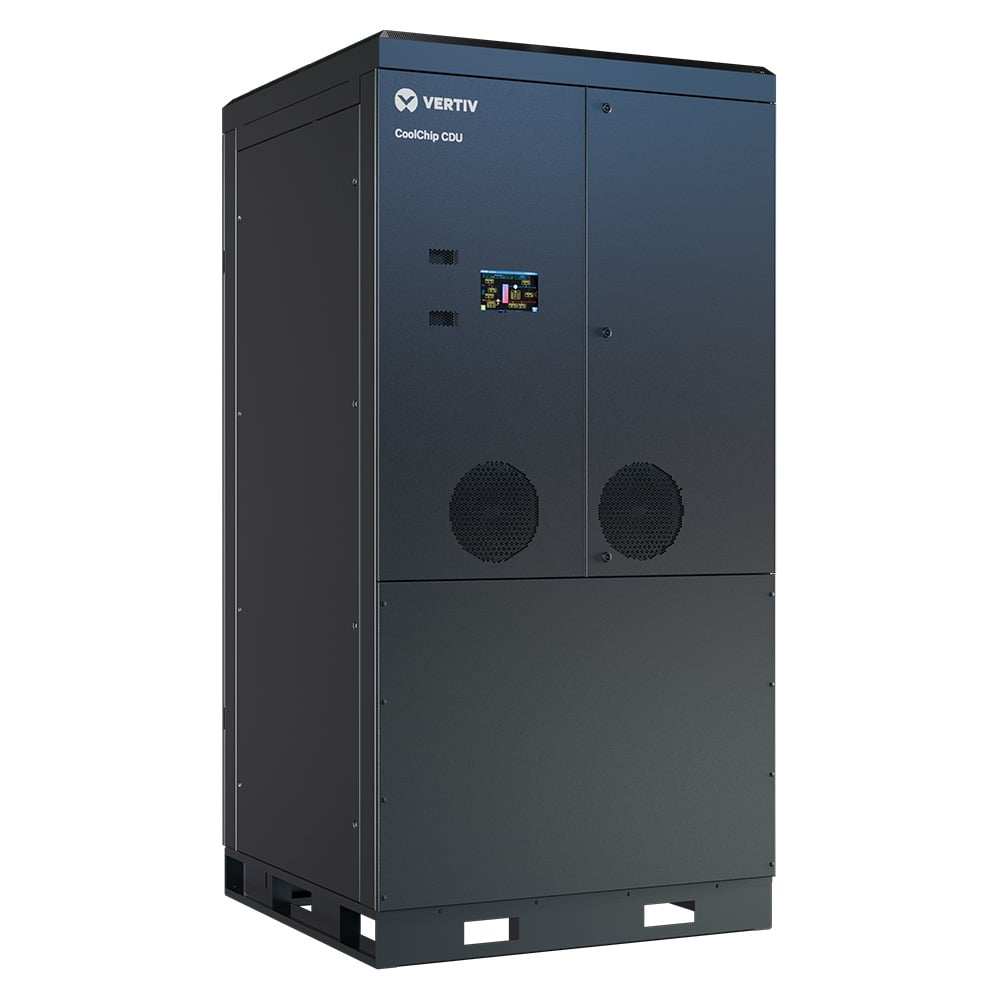

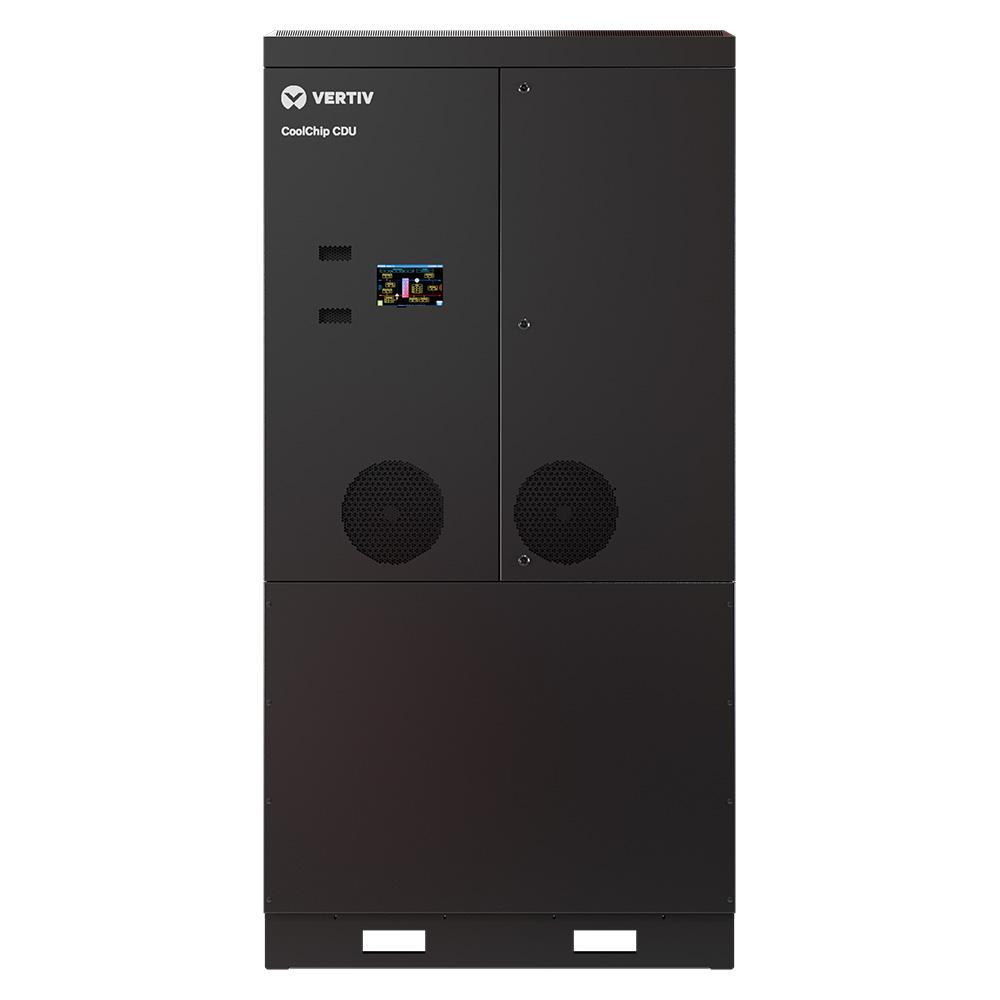

Liebert® XDU1350 Coolant Distribution Unit
|
|||||
|---|---|---|---|---|---|
| 1368 kW at 7.2°F (4°C) | N/A | 684 in | 35.4 in | 48.9 in | 1431 lbs |
| Ver más información del producto | |||||
|

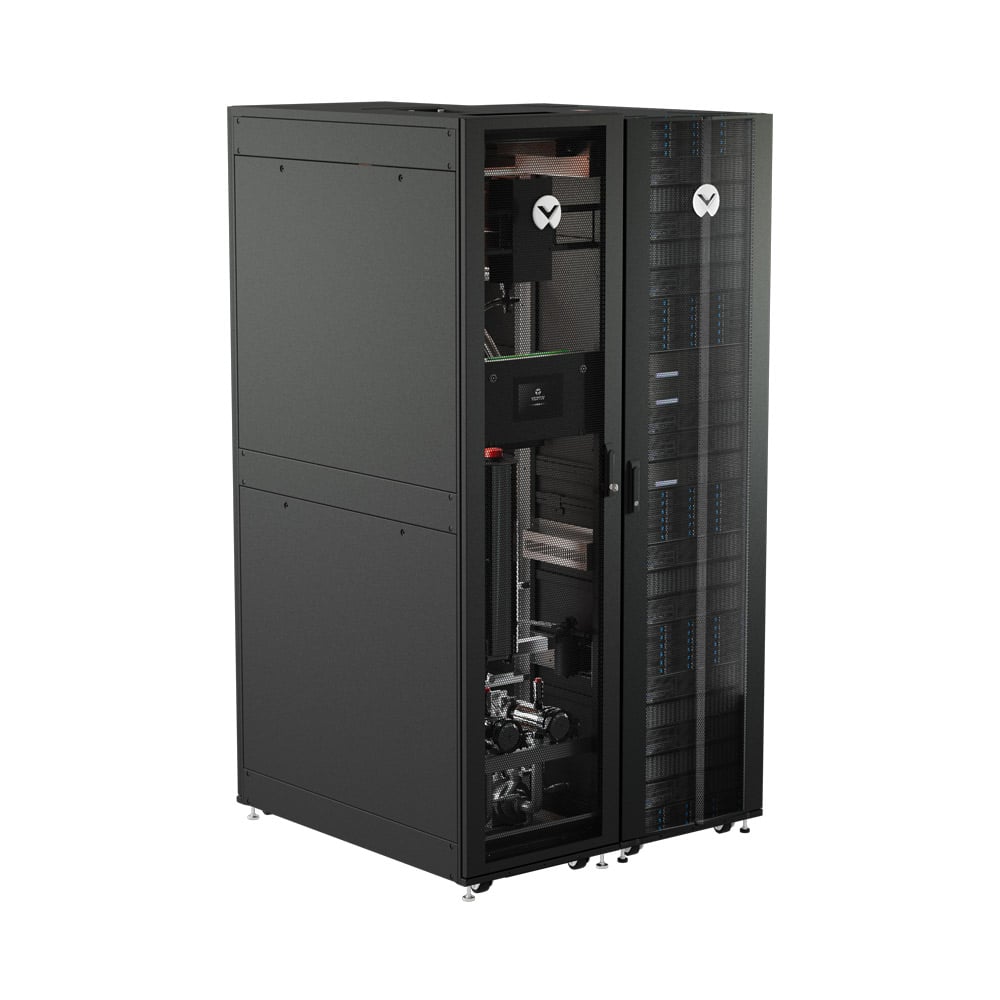

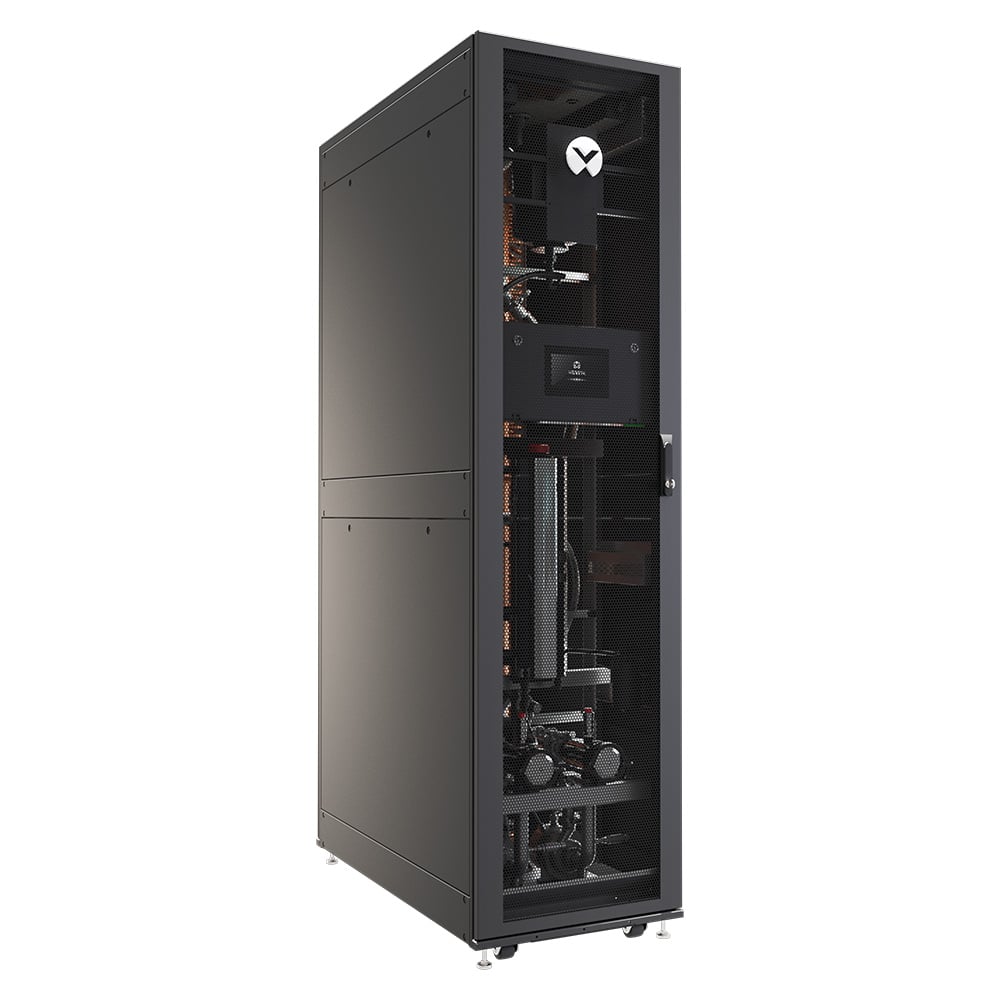

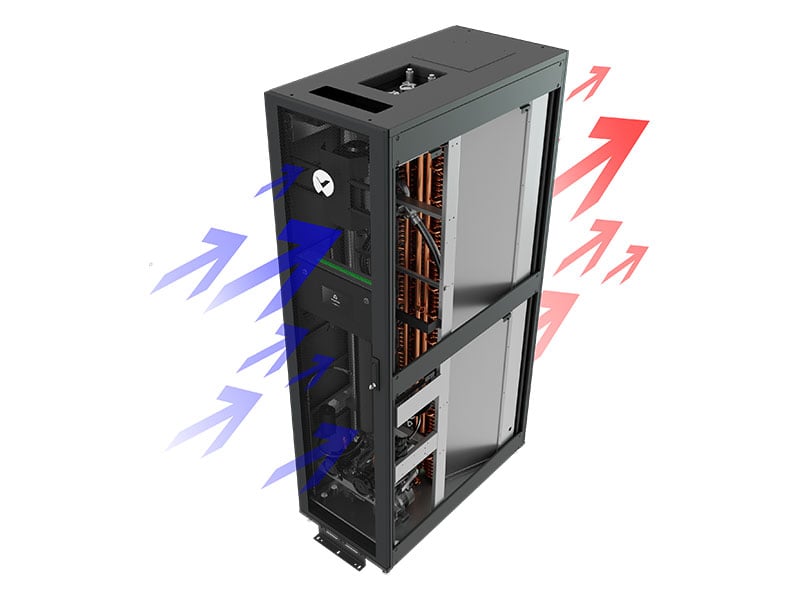

Vertiv™ CoolChip CDU 70
|
|||||
| 70,0 kW a una diferencia de temperatura de aproximación de 11 °C | 10,100 m3/h (5,945 CFM) | 91 in | 24 in | 48 in | 899 lbs |
| Ver más información del producto | |||||
|
Vertiv™ CoolChip CDU, 121
|
|||||
| 121 kW a una diferencia de temperatura de aproximación de 7,2 °F (4 °C) | 6.8 in; 4RU | 17.5 in | 34.2 in | 130 lbs | |
| Ver más información del producto | |||||
|

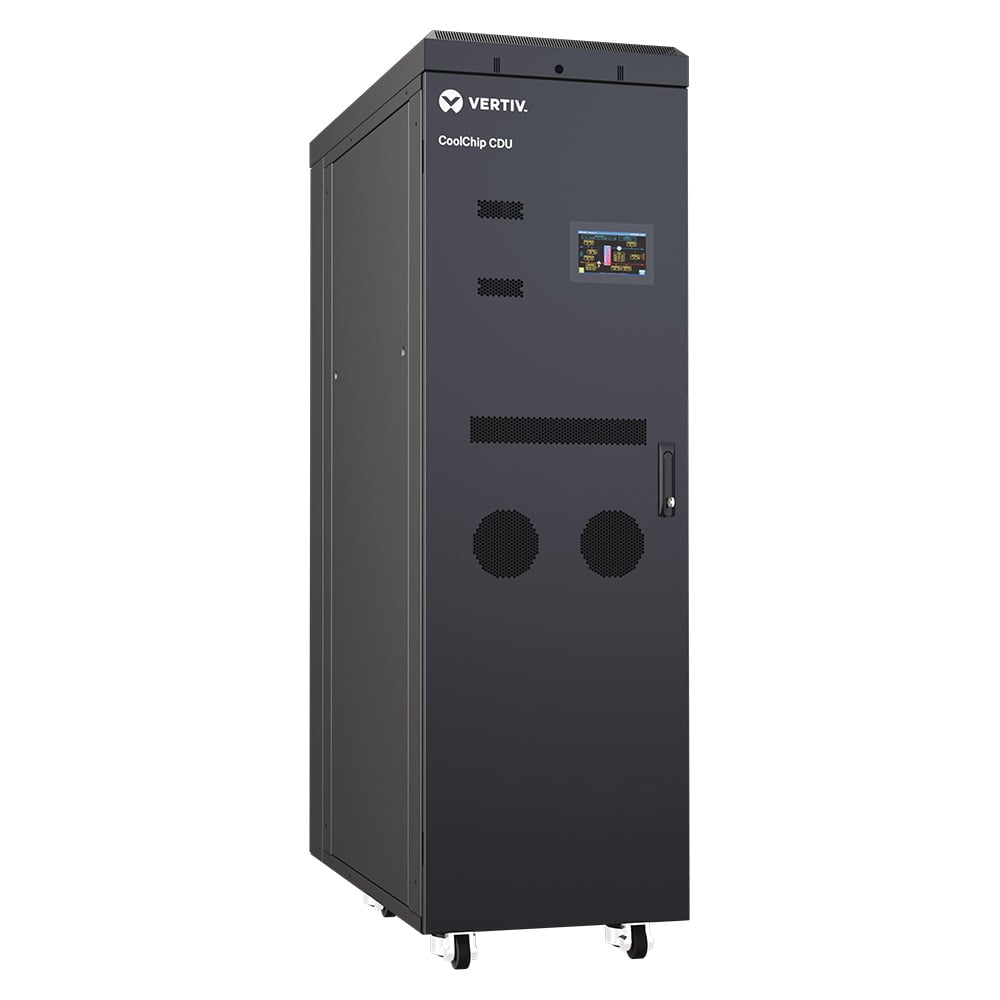

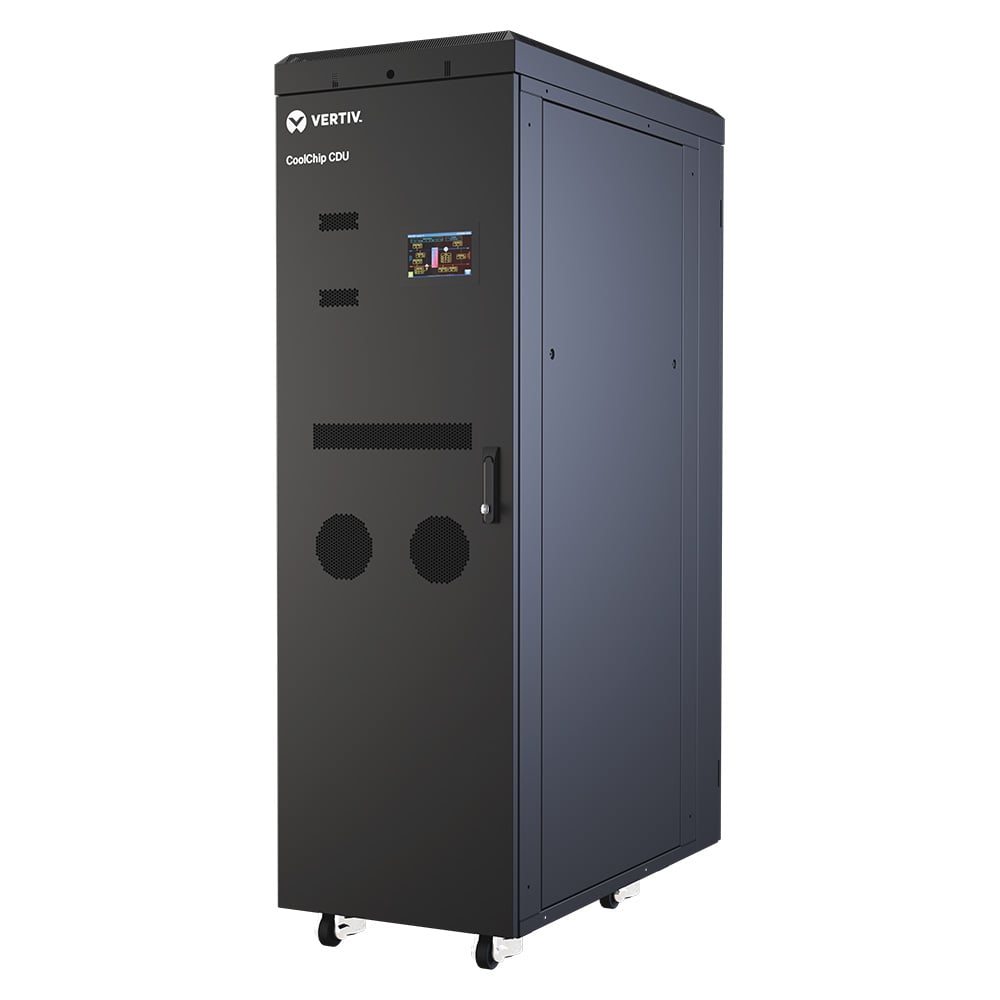

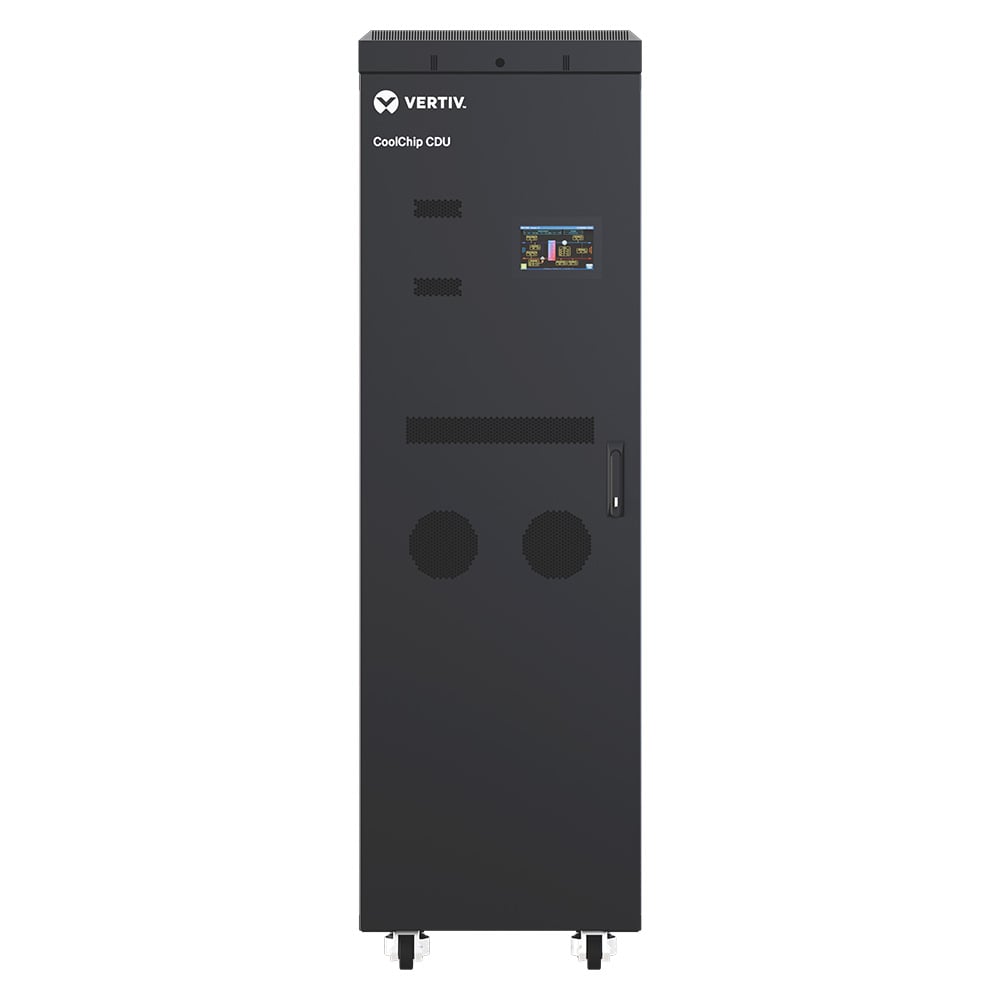

Vertiv™ CoolChip CDU 600
|
|||||
| 600kW at 7.2 F (4.0 C) approach temperature difference | N/A | 78.7 in | 23.6 in | 47.2 in | 1058 lbs |
| Ver más información del producto |
Beneficios
- HIGHER EFFICIENCY & RELIABILITY: Achieve greater efficiency with redundancy options for high-density environments.
- PROTECTS SECONDARY LIQUID NETWORK: Ensures strict conformance to wetted material compatibility.
- EASY DEPLOYMENT: Intuitively designed for quick and simple deployment.
- FLEXIBLE DESIGN: Accommodates any facility layout with multiple cooling configurations.
- PACKED FEATURES: Integrated controller designed from the ground up for easy deployment and supports leak detection.
- READY SUPPORT: Industry-leading service with local installation and same-day maintenance support.
Características

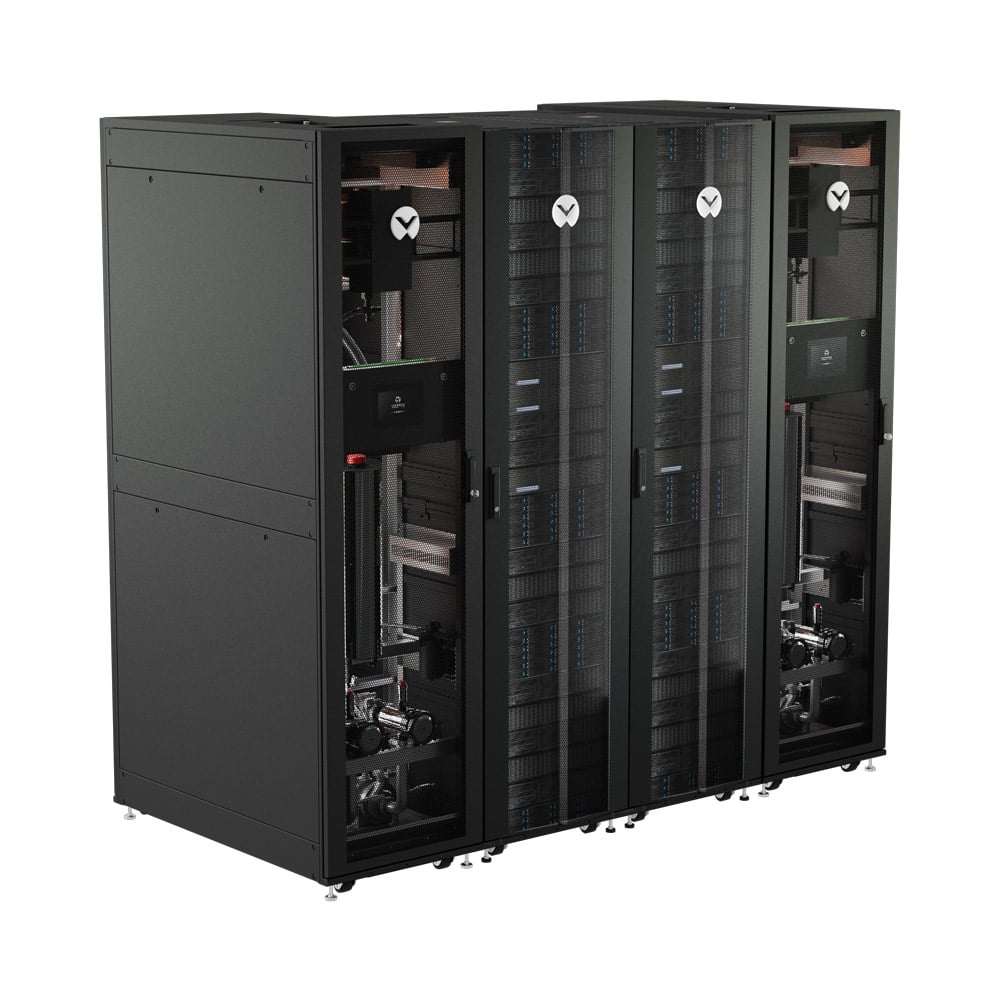

- COMPACT FOOTPRINT allows for in-row deployments.
- CONFIGURABLE LIQUID SUPPLY & RETURN CONNECTIONS.
- INTEGRATED 50 MICRON FILTER keeps supply water contaminant-free to protect server integrity and performance.
- LARGE 7” RESPONSIVE COLOR TOUCH SCREEN DISPLAY.
- PRECISE TEMPERATURE CONTROL to eliminate thermal shock for server CPU and GPUs.
- INTELLIGENT FLOW MONITORING with alarm features.
- CLOSED-LOOP PIPE DESIGN with integrated leak detection.
- EASILY ACCESSIBLE FILL PORT & DRAIN LOCATIONS for simplified maintenance.
- INNOVATIVE STAINLESS-STEEL DESIGN & HYGIENIC COUPLINGS help ensure Secondary Fluid Network integrity.
- Vertiv™ CoolChip CDU 600 Application Guide SL-07624
- CDU 121 Operation Maintenance EN SL-80278
- Vertiv™ CoolChip CDU100 Installation and Commissioning Guide SL-71337
- Vertiv™ CoolChip CDU 600 Operation and Maintenance Guide SL-07626
- Vertiv™ CoolChip CDU 600 Installation and Commissioning Guide SL-07625
- Vertiv™ CoolChip CDU100 Operation and Maintenance Manual SL-71338
- Vertiv™ CoolChip CDU100 Application and Planning Guide
- Guidelines for Deployment of Single Phase Technology Cooling System SL-80056.pdf
- Vertiv™ Liebert® XDU1350 Coolant Distribution Unit - Application and Planning Guide
* Para ver descargas específicas de modelos, debe ir a la página de producto específica del modelo al seleccionar el nombre del modelo en el gráfico de especificaciones arriba.
