Modelo

VP7U60A3

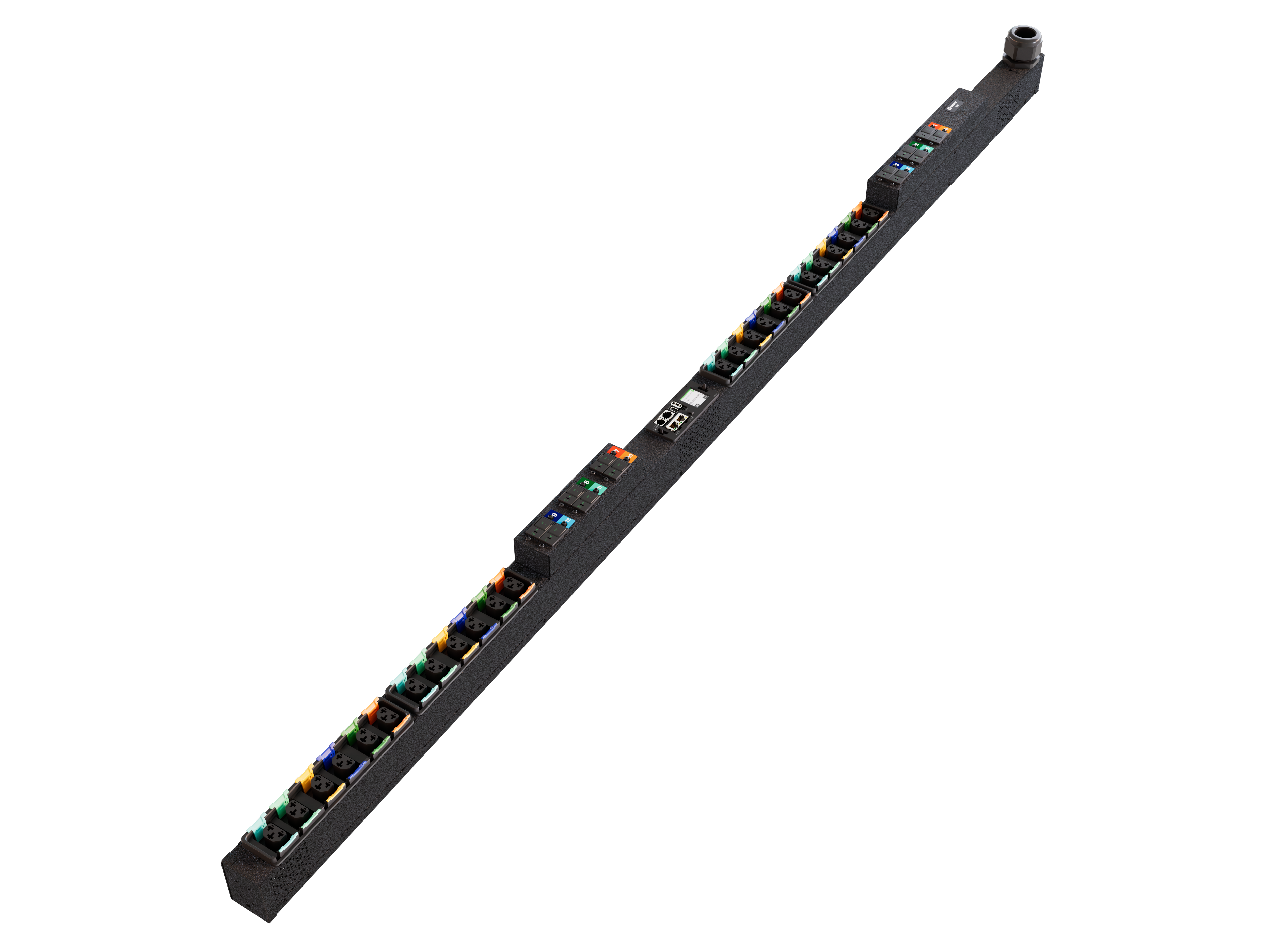

The Vertiv PowerIT Switched Outlet Level Monitored rPDU VP7U60A3 is an upgradeable, 60/63A, 240/415V WYE, 0U, vertical rPDU with input monitoring and outlet level monitoring and switching, 24 Combination C13/C19 outlets, and a 3P+N+E (IP44) plug with 43.4kW of power capacity. This unit allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment.

Buscar contacto de ventas

Principales ventajas

ENHANCED PERFORMANCE AND MANAGEMENT: The Vertiv PowerIT switched rPDU offers a reliable, space-saving, and cost-effective power distribution that meets a broad range of requirements for all IT applications. OUTLET FLEXIBILITY: The Combination C13/C19 receptacle can be used to connect both C14 and C20 plugs interchangeably. SECURED OUTLETS: The Combination C13/C19 receptacle has high-retention, color-coded outlets that are P-Lock cable compatible. REMOTE CONNECTIVITY: Access the rPDU remotely via the network interface or serial connection to monitor power consumption HOT-SWAPPABLE: Easily update your rPDU's monitoring capabilities to adapt to latest technologies and changing business needs

Garantía: Vertiv™ PowerIT Monitored Rack PDU come with a standard five-year limited warranty. Warranty: 5-Year limited warranty

Modelo

VP7U60A3

Buscar contacto de ventas

Principales ventajas

Garantía: Vertiv™ PowerIT Monitored Rack PDU come with a standard five-year limited warranty. Warranty: 5-Year limited warranty

Beneficios

Enhanced Intelligence: With advanced monitoring and management, users have a comprehensive view of critical IT equipment power usage either at the rack or via remote access. Users can also power cycle unresponsive IT equipment remotely with select switched RTS models. You can set thresholds to receive alarms when power conditions fall outside the desired range for added protection. Outlet Control: Address unresponsive equipment or increase runtime of critical equipment upon power failure with outlet-level control. 100% Tested: Individually tested, functional, and reliable Vertiv PowerIT rPDU units meet local compliance requirements: UL, RoHS, China RoHS, and TAA Five-Year Warranty: All Vertiv PowerIT rPDU units come with a default three-year warranty which can be extended to five years if the units are registered within 120 days of purchase

Características

Upgradable Technology: The Vertiv PowerIT rPDUs equipped with the upgradeable Interchangeable Monitoring Device (IMD) allow you to upgrade your monitoring technology as the needs of your business evolves. The IMDs are hot-swappable so scheduled downtime is not required for an upgrade. Outlet Flexibility: Select models in the Vertiv PowerIT rPDU product line are equipped with the Combination Outlets C13/C19. These hybrid outlets function as both a C13 and C19 receptacle. The outlets accommodate both C14 and C20 plug types interchangeably, providing you the flexibility to support common critical IT equipment using just a single rack PDU. Simplified Management: Daisy-chain up to 50 devices on a single IP address with Vertiv Intelligence Director. Reduce deployment time with self-configuration of downstream devices. Easy-to-Use Front Panel: The rPDU has an easy-to-use front panel that provides visual identification of the active power source for easy monitoring. It also allows users to do a manual transfer of the power source. The transfer can be done either by touch of a button or remotely, so users have options on how to manage power loads during maintenance or emergency power loss.

Imprimir Descargar Correo electrónico

VP7U60A3

Product Overview

Capacidad: 63A

Rango de tensión de entrada: 3P + N + E (IP44)

Rango de tensión de salida: 240/415V WYE

Opciones de salida: (24) Combination Outlet C13/C21

Ubicación: Vertical

Physical Characteristics

Peso (lbs / kg): 22

Altura (pulgadas / mm): 3.48

Anchura (pulgadas / mm): 17.12

Profundidad (pulgadas / mm): 12

Tools & Selectors

Select, compare, or configure PDUs

Use the rPDU Finder

Find the PDU you require based on a variety of configurations

Configure your own rPDU

Engineered solutions delivered in record time

Selecting an rPDU

Software

Download Vertiv Rack PDU BIM file
