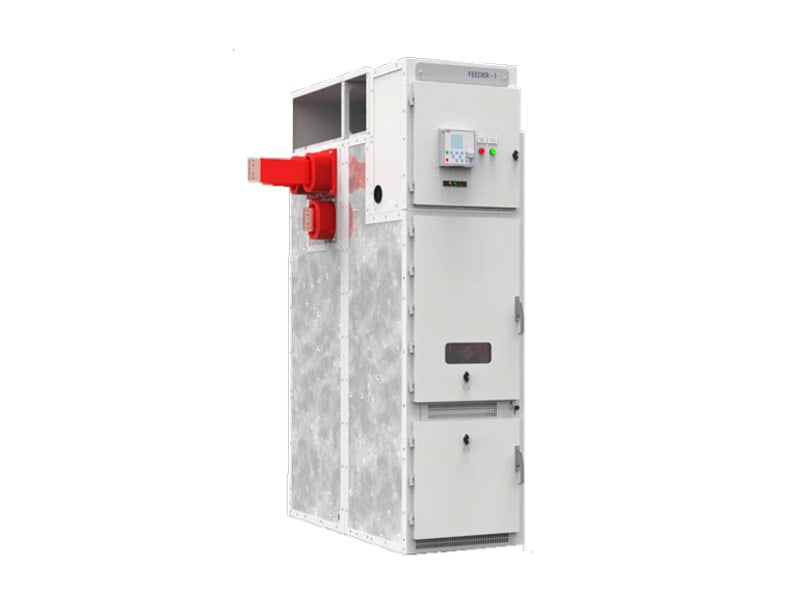

Vertiv™ PowerBoard Medium Voltage Switchgear - AI-ready data center power distribution
The Vertiv™ PowerBoard Medium Voltage Switchgear is engineered for AI-scale infrastructure, providing flexible power distribution up to 38 kV for data centers and other critical facilities. It is available in modular Air-Insulated Switchgear (AIS) and Gas-Insulated Switchgear (GIS) configurations to meet site needs and scale with demand. Designed to IEEE standards, the solution enables rapid deployment, supports high-power-density applications, and can reduce electrical room footprint by up to 60% with GIS technology.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Vertiv™ PowerBoard Medium Voltage Switchgear - AI-ready data center power distribution
The Vertiv™ PowerBoard Medium Voltage Switchgear is engineered for AI-scale infrastructure, providing flexible power distribution up to 38 kV for data centers and other critical facilities. It is available in modular Air-Insulated Switchgear (AIS) and Gas-Insulated Switchgear (GIS) configurations to meet site needs and scale with demand. Designed to IEEE standards, the solution enables rapid deployment, supports high-power-density applications, and can reduce electrical room footprint by up to 60% with GIS technology.
Benefits
- VENDOR-AGNOSTIC FLEXIBILITY: Specify preferred protection relays and vacuum circuit breakers, providing greater control over component selection and long-term serviceability.
- SPACE SAVINGS: Its gas-insulated configuration can reduce your electrical room footprint by up to 60%, ideal where floor space is limited or expensive.
- ETL STANDARDS COMPLIANCE: Compliance with recognized safety and performance standards supports reliable protection of critical power infrastructure.
- RAPID DEPLOYMENT: Its compact, modular construction supports faster installation and reduced on-site assembly, helping you meet tight project timelines.
- SERVICEABILITY AND SAFETY: The clear-view air insulation and withdrawable vacuum circuit breakers (for AIS configuration) simplify maintenance and enhance technician safety during routine service.
Features
- DUAL CONFIGURATIONS: Availability in AIS and GIS configurations up to 38 kV provides flexibility to address varying space, performance, and expansion requirements.
- METAL-CLAD OR METAL-ENCLOSED DESIGNS: Metal-clad and metal-enclosed construction supports application flexibility across primary and secondary power distribution systems.
- NORTH AMERICAN COMPLIANCE NETWORK: Compliance with ANSI/IEEE C37.20.2, ANSI/IEEE C37.20.3, and IEEE C37.20.9 (GIS configuration) standards, along with ETL listing, supports deployment across North American applications.
- FLEXIBLE GAS DIELECTRIC OPTIONS: Availability of SF₆ and SF₆-free configurations supports a range of environmental and regulatory requirements.
- ARC-RESISTANT CONSTRUCTION: Arc-resistant construction with mechanical and electrical safety interlocks provides enhanced protection for personnel and equipment during internal fault events.
Specifications
The Vertiv™ PowerBoard Medium Voltage Switchgear is available in metal-clad or metal-enclosed construction for primary and secondary distribution. Compliant with ANSI/IEEE C37.20.2/3 and IEEE C37.20.9 (for GIS configuration) standards and ETL-listed for North America, it supports safe and reliable operation across critical applications. It is built with withdrawable vacuum circuit breakers, configurable protection and control systems, integrated communications, and arc-resistant construction with safety interlocks. It also offers front or front-and-rear access for installation and maintenance in NEMA 1-rated enclosures for indoor applications.
