Vertiv™ CoolChip CDU 70

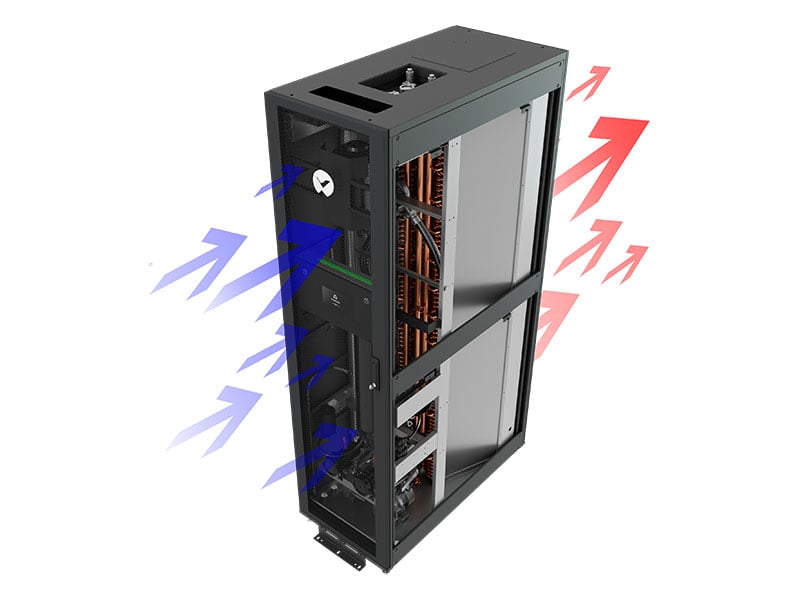

The Vertiv™ CoolChip CDU 70 is designed to remove barriers to liquid cooling in an air-cooled environment. It is a liquid-to-air heat exchanger for direct to chip cooling applications that offers easy, cost-effective deployment in any data center. The Vertiv™ CoolChip CDU 70 operates without facility chilled water. It provides an isolated secondary fluid network, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities without incurring the costs of major infrastructure changes.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Vertiv™ CoolChip CDU 70
The Vertiv™ CoolChip CDU 70 is designed to remove barriers to liquid cooling in an air-cooled environment. It is a liquid-to-air heat exchanger for direct to chip cooling applications that offers easy, cost-effective deployment in any data center. The Vertiv™ CoolChip CDU 70 operates without facility chilled water. It provides an isolated secondary fluid network, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities without incurring the costs of major infrastructure changes.
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Benefits
- HIGHER EFFICIENCY & RELIABILITY: Achieve greater efficiency and have redundancy options for high-density environments.
- PROTECTS SECONDARY LIQUID NETWORK: With strict conformance to wetted material compatibility.
- EASY DEPLOYMENT: Intuitively designed for easy deployment.
- FLEXIBLE DESIGN: Accommodates any facility design and with multiple cooling configurations.
- PACKED FEATURES: Integrated controller designed from the ground up to be easy to deploy and supports leak detection.
- READY SUPPORT: Industry leading service support with local installation and same-day maintenance support.
Features
- COMPACT FOOTPRINT: Allow for in-row deployments.
- INTEGRATED 50 MICRON FILTER: Keep supply water contaminant-free to protect server integrity and performance.
- PRECISE TEMPERATURE CONTROL: Eliminate thermal shock for server CPU and GPUs.
- INTELLIGENT FLOW MONITORING WITH ALARM FEATURES: Help maintain system performance and efficiency.
- EASILY ACCESSIBLE FILL PORT & DRAIN LOCATIONS: Streamline and simplify maintenance.
- INNOVATIVE STAINLESS-STEEL DESIGN & HYGIENIC COUPLINGS: Help ensure Secondary Fluid Network integrity.
Specifications
Seamlessly transition to high-efficiency liquid cooling technology with Vertiv™ CoolChip CDU (next generation of Vertiv™ Liebert® XDU family). From hyperscale and colocation environments to edge applications, the Vertiv CoolChip CDU offers flexible deployments for rear door heat exchangers or direct contact liquid cooling. It allows for in-rack, end of row, or perimeter placement options. Easily distribute coolant to efficiently manage power dense deployments with liquid-to-liquid heat exchange up to 100 kW, 450 kW, 600 kW, or 1,350 kW, and liquid-to-air heat exchange up to 70kW. With precise temperature control, this unit can eliminate thermal shock. Have reliable operations with its redundant pumps and dual power feeds and added peace of mind with remote monitoring and communications.
- Technical Specifications
- Net Sensible Nominal Capacity kBtuh[kW]*
- 70.0 kW at 11C approach temperature difference
- Nominal Airflow Data Center Air (CFM, m3/h)
- 10,100 m3/h (5,945 CFM)
- Net Sensible Nominal Capacity kBtuh[kW]*
- 70.0 kW at 11C approach temperature difference
- Nominal Airflow Data Center Air (CFM, m3/H)
- 10,100 m3/h (5,945 CFM)
- Controls and Monitoring

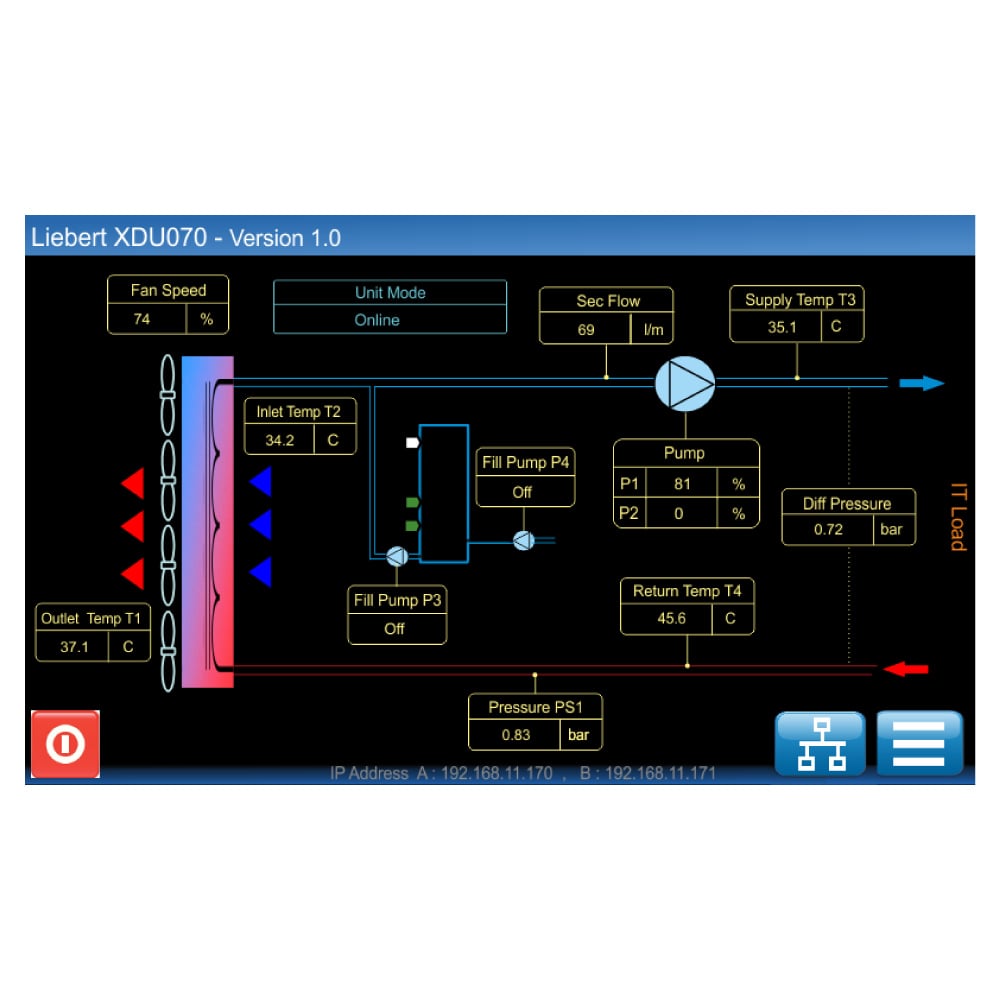

- Color touch screen display, Communication via Modbus RTU (RS485) and TCP/IP
- Agency Approvals
- CE, cULus, RoHS
- Key Components
- Redundant pump design, variable-speed pump controls, and electronically commutated (EC) fans
- Physical Characteristics
- Weight
- 899 lbs
- Weight
- 408 kg
- Height
- 91 in
- Height
- 2300mm
- Width
- 24 in
- Width
- 600 mm
- Depth
- 48 in
- Depth
- 1200 mm
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
