Vertiv™ Liebert® PSI5 UPS, 750-5,000VA Line Interactive AVR, Mini Tower, 1U and 2U Rack/Tower
Compact, Automatic Voltage Regulation (AVR) line-interactive UPS system designed especially for IT applications such as network closets and small data centers. Supports advanced pure sine wave output on battery to safeguard critical IT equipment and electronics. Provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, and others. Three form-factors available: 1U rack mount, 2U rack/tower and mini tower.
Vertiv™ Liebert® PSI5 UPS, 750-5,000VA Line Interactive AVR, Mini Tower, 1U and 2U Rack/Tower
Compact, Automatic Voltage Regulation (AVR) line-interactive UPS system designed especially for IT applications such as network closets and small data centers. Supports advanced pure sine wave output on battery to safeguard critical IT equipment and electronics. Provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, and others. Three form-factors available: 1U rack mount, 2U rack/tower and mini tower.
Specifications
The flexible design of the Liebert® PSI5 allows the UPS to be tower (MT models), 1U rack mountable (1U models), or to be configured as a self-standing tower or to be rack-mounted within a 2U space (RT models). It is available from 750VA to 5000VA with both 120V or 208V models. The Liebert® PSI5 UPS features an innovative advanced line-interactive design incorporating buck/boost Automatic Voltage Regulation (AVR) technology. This protects against utility voltage fluctuation by raising and lowering utility power to the level needed by the connected equipment. It also allows the UPS to prolong battery life by maximizing its time on utility power before going to battery. Models with a capacity of 1500VA and below are not for sale in Vermont, Colorado, Washington.
|
Liebert® PSI5-750MT120, Liebert® PSI5 Mini Tower UPS, 750VA/675W, 120V
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 750 VA / 675 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 97% (Normal Mode) | Input: 5-15P; Ouput: 5 x 5-15R | 9.4 in | 5.7 in | 14.8 in | 24.7 lb |
| See more product information | ||||||||
|
Liebert® PSI5-1100MT120, Liebert® PSI5 Mini Tower UPS, 1100VA/990W, 120V
|
||||||||
| 1,100 VA / 990 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 97% (Normal Mode) | Input: 5-15P; Ouput: 5 x 5-15R | 9.4 in | 5.7 in | 14.8 in | 26.0 lb |
| See more product information | ||||||||
|
Liebert® PSI5-1500MT120, Liebert® PSI5 Mini Tower UPS, 1440VA/1350W, 120V
|
||||||||
| 1,440 VA / 1,350 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 97% (Normal Mode) | Input: 5-15P; Ouput: 5 x 5-15R | 9.4 in | 5.7 in | 19.1 in | 40.1 lb |
| See more product information | ||||||||
|
Liebert® PSI5-1000RM1201U, Liebert® PSI5 1U UPS, 1000VA/900W, 120V
|
||||||||
| 1,000 VA / 900 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 98% (Normal Mode) | Input: 5-15P; Ouput: 5 x 5-15R | 1.7 in | 17.2 in | 20.1 in | 36.4 lb |
| See more product information | ||||||||
|
Liebert® PSI5-1500RM1201U, Liebert® PSI5 1U UPS, 1440VA/1350W, 120V
|
||||||||
| 1,440 VA / 1,350 W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 98% (Normal Mode) | Input: 5-15P; Ouput: 5 x 5-15R | 1.7 in | 17.2 in | 24.8 in | 45.6 lb |
| See more product information | ||||||||
|
Liebert® PSI5-800RT120, Liebert® PSI5 2U Rack/Tower UPS, 800VA/720W, 120V
|
||||||||
| 800VA / 720W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 16.2 in | 28.9 lb |
| See more product information | ||||||||
|
Liebert® PSI5-1100RT120, Liebert® PSI5 2U Rack/Tower UPS, 1100VA/990W, 120V
|
||||||||
| 1100VA / 990W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 16.2 in | 31.1 lb |
| See more product information | ||||||||
|

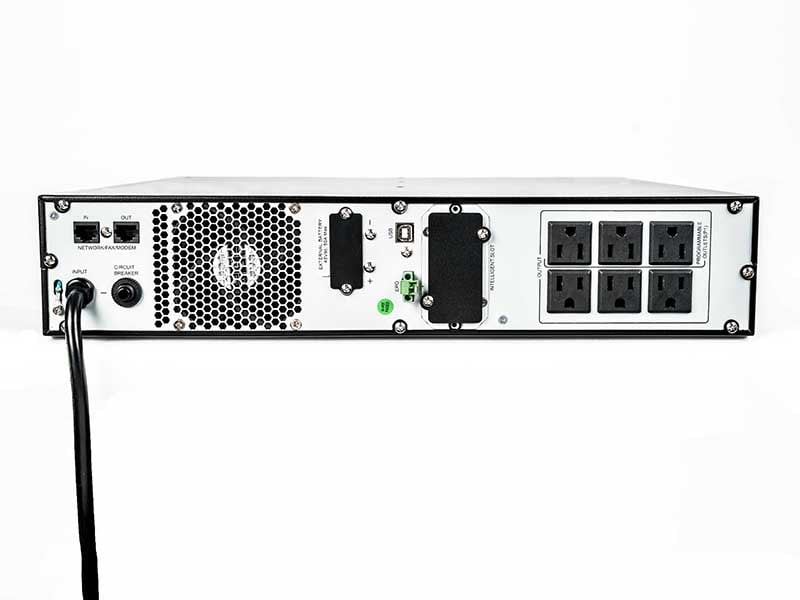

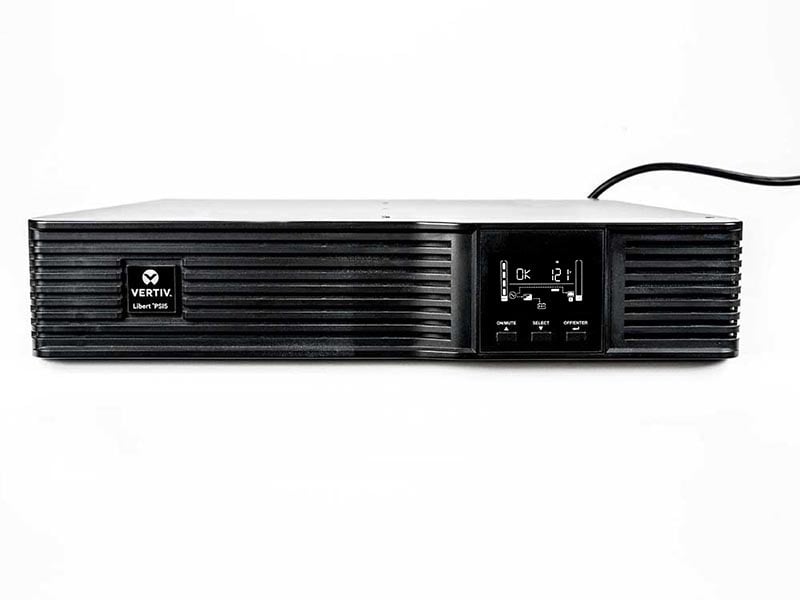

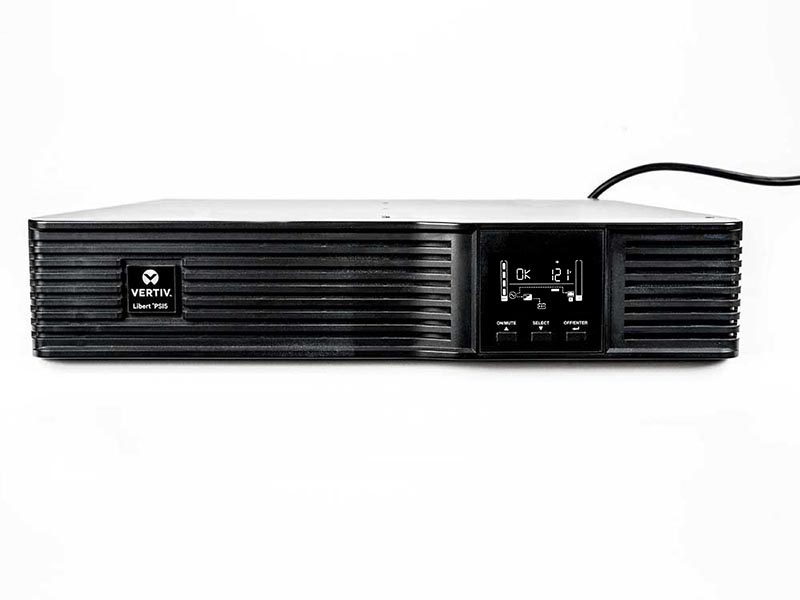

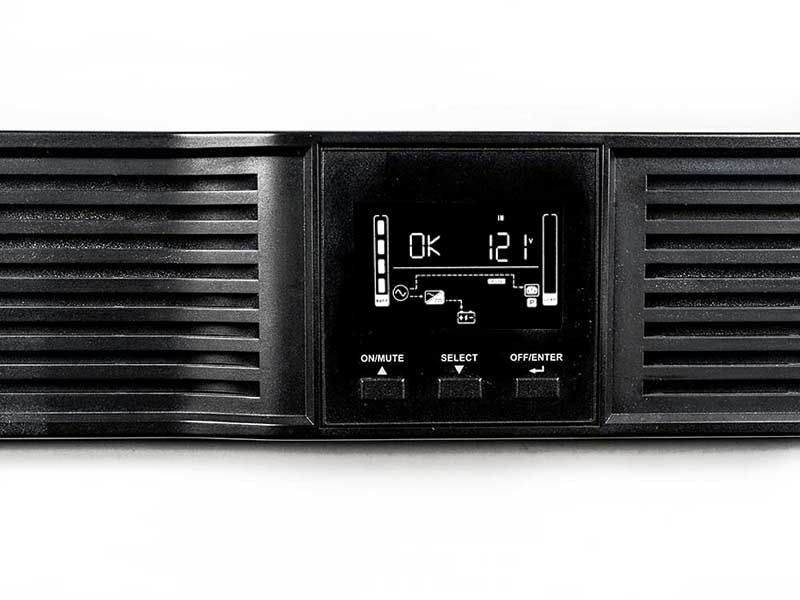

Liebert® PSI5-1500RT120, Liebert® PSI5 2U Rack/Tower UPS, 1500VA/1350W, 120V
|
||||||||
| 1500VA / 1350W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 20.1 in | 42.8 lb |
| See more product information | ||||||||
|
Liebert® PSI5-2200RT120, Liebert® PSI5 2U Rack/Tower UPS, 2200VA/1920W, 120V
|
||||||||
| 2200VA / 1920W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: L5-20P; Output: 6 x 5-15R, 1 x L5-20R | 3.5 in | 17.2 in | 24.8 in | 59.1 lb |
| See more product information | ||||||||
|

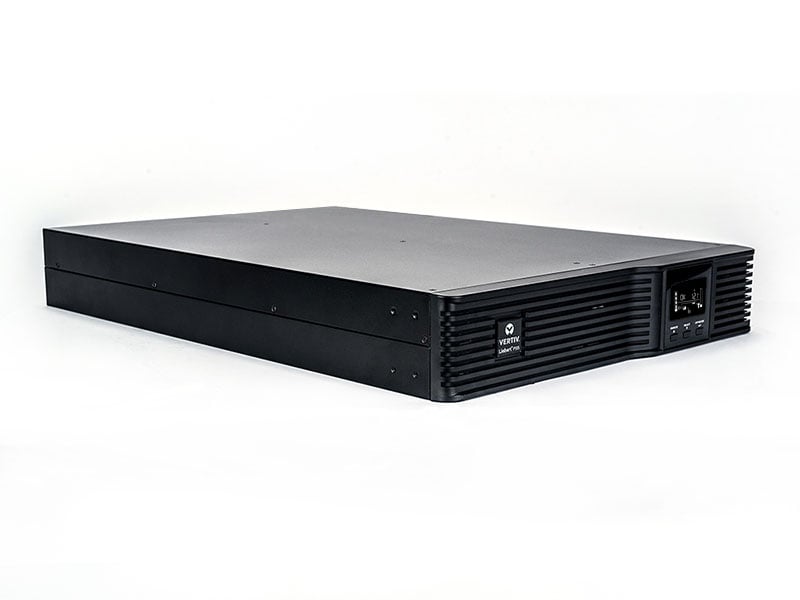

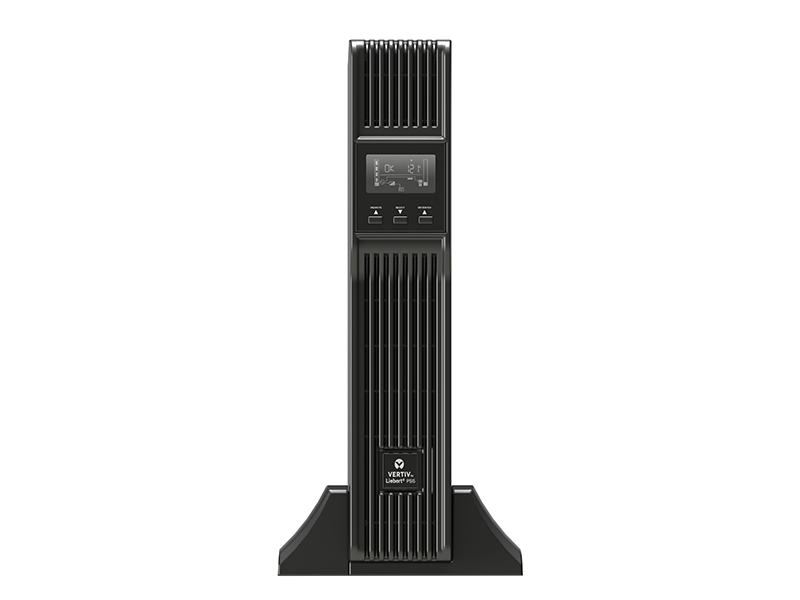

Liebert® PSI5-3000RT120, Liebert® PSI5 2U Rack/Tower UPS, 3000VA/2700W, 120V
|
||||||||
| 3000VA / 2700W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: L5-30P; Output: 6 x 5-15R, 1 x L5-30R | 3.5 in | 17.2 in | 24.8 in | 70.8 lb |
| See more product information | ||||||||
|

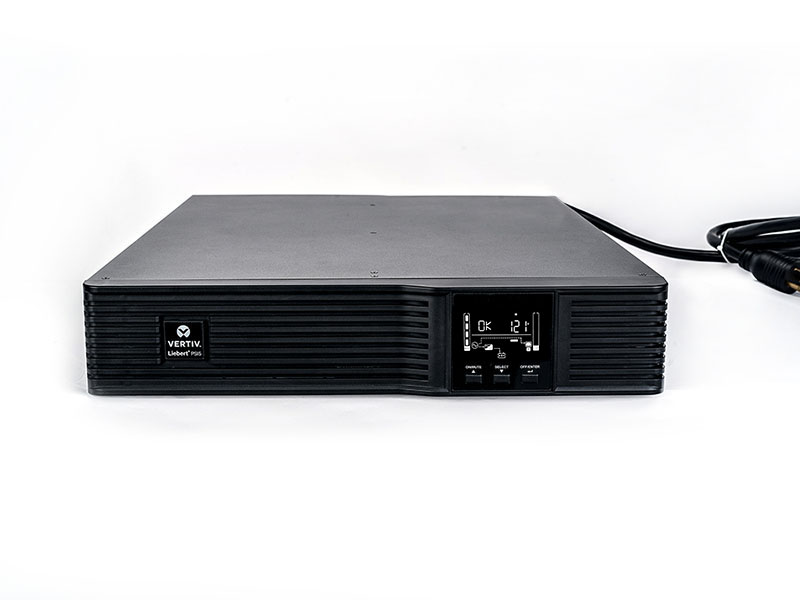

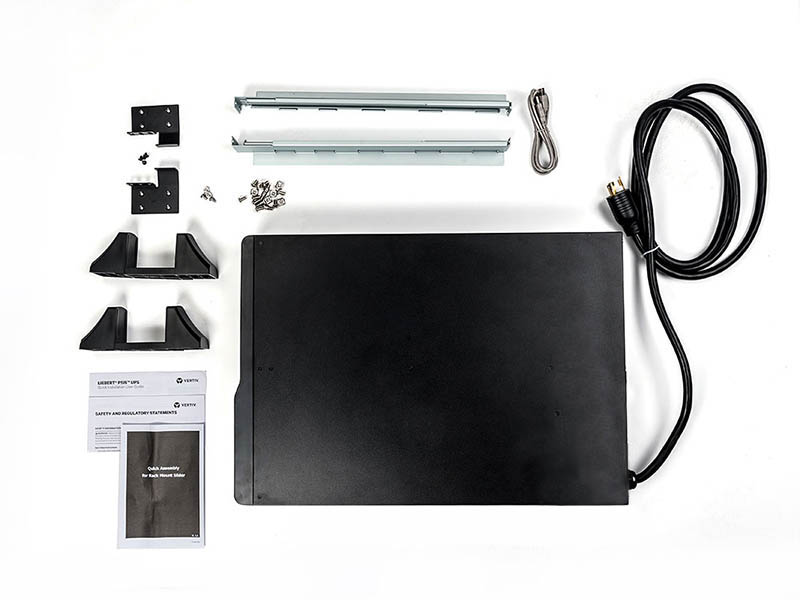

Liebert® PSI5-5000RT208, Liebert® PSI5 2U Rack/Tower UPS, 4250VA/3825W, 120V
|
||||||||
| 4250VA / 3825W | Nominal: 208VAC / Range: 150-281VAC | 208VAC (100/110/115/125 VAC TDU Required) | Up to 96% (Normal Mode) | Input: L6-30P; Output: 4 x L6-30R | 3.5 in | 17.2 in | 24.8 in | 87.7 lb |
| See more product information | ||||||||
|
Liebert® PSI5-800RT120N, Liebert® PSI5 2U Rack/Tower UPS 800VA/720W, bundle with IS-UNITY-SNMP
|
||||||||
| 800VA / 720W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 16.2 in | 28.9 lb |
| See more product information | ||||||||
|
Liebert® PSI5-1100RT120N, Liebert® PSI5 2U Rack/Tower UPS, 1100VA/990W, bundle with IS-UNITY-SNMP
|
||||||||
| 1100VA / 990W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 16.2 in | 31.1 lb |
| See more product information | ||||||||
|
Liebert® PSI5-1500RT120N, Liebert® PSI5 2U Rack/Tower UPS, 1500VA/1350W, bundle with IS-UNITY-SNMP
|
||||||||
| 1500VA / 1350W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: 5-15P; Output: 6 x 5-15R | 3.5 in | 17.2 in | 20.1 in | 42.8 lb |
| See more product information | ||||||||
|
Liebert® PSI5-2200RT120N, Liebert® PSI5 2U Rack/Tower UPS, 2200VA/1920W, bundle with IS-UNITY-SNMP
|
||||||||
| 2200VA / 1920W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: L5-20P; Output: 6 x 5-15R, 1 x L5-20R | 3.5 in | 17.2 in | 24.8 in | 59.1 lb |
| See more product information | ||||||||
|
Liebert® PSI5-3000RT120N, Liebert® PSI5 2U Rack/Tower UPS, 3000VA/2700W, bundle with IS-UNITY-SNMP
|
||||||||
| 3000VA / 2700W | Nominal: 120VAC / Range: 75-146VAC | 120VAC (100/110/115/125VAC user-configurable) | Up to 96% (Normal Mode) | Input: L5-30P; Output: 6 x 5-15R, 1 x L5-30R | 3.5 in | 17.2 in | 24.8 in | 70.8 lb |
| See more product information |
Benefits
Features
and power management capability — Local USB or SNMP via optional Vertiv™ Liebert® UNITY communication card
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
