Vertiv™ Liebert® GXT5 UPS, 3,000-20,000VA 208VAC UPS
The Vertiv™ Liebert® GXT5 UPS is an online double conversion system offering premium power outage protection and continuous power conditioning in a flexible rack/tower design. This single-phase UPS family provides superior protection and remote management capability, making it ideally suited to protect critical infrastructure in both centralized and edge network applications. Additionally, the Liebert GXT5 UPS offers a scalable battery runtime solution through matching external battery cabinets.
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Retail and Wholesale
Specifications

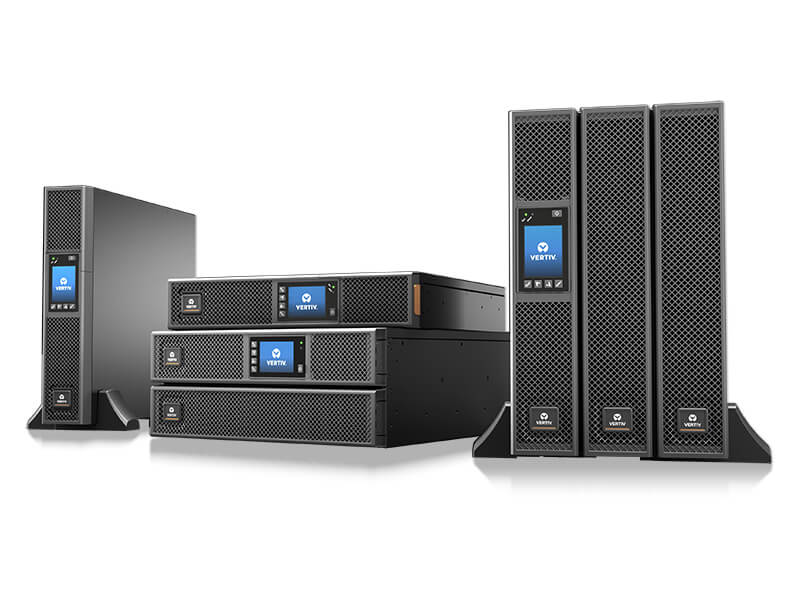

The full range of single-phase Vertiv™ Liebert® GXT5 UPS systems are easy to deploy with convertible rack/tower design that offers installation flexibility. Its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and integration are also easy with auto-detection of matching external battery cabinets for additional runtime solutions. With available network interface card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services are available to support your critical infrastructure. Designed for high availability and capacity, these compact UPS models with output power factors up to unity provide more usable power for connected equipment. High efficiency operation of this Energy Star® 2.0 certified UPS means you get protection while supporting sustainability. Increased efficiency is also achieved with Active ECO operating mode.
|

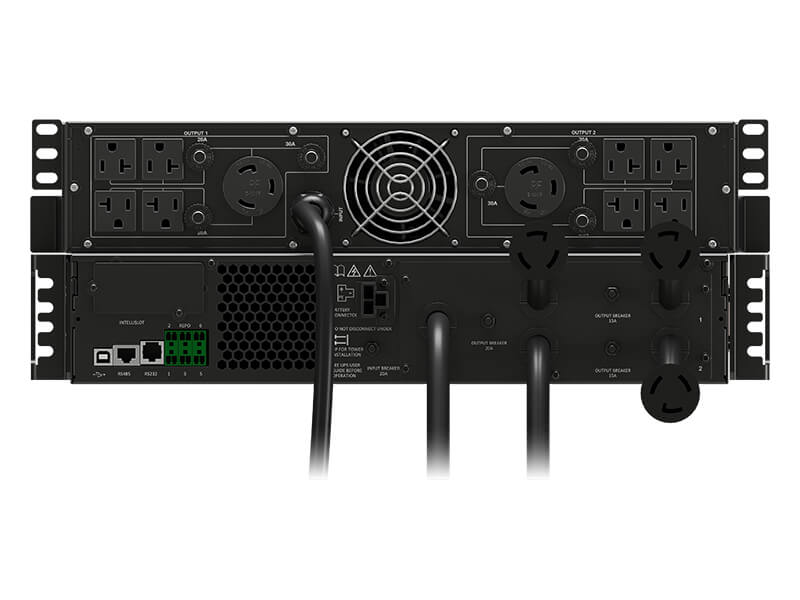

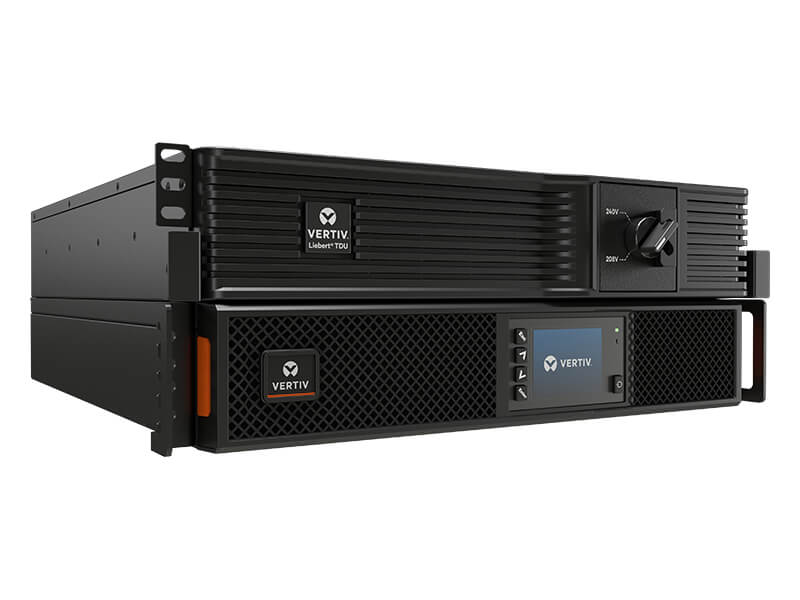

GXT5-3KL620RT2UXL
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 3,000 VA / 3,000 W | 208 VAC nominal; variable based on output load | 208 VAC | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: L6-20P; Ouput: 2 x L6-15R and 2 x L6-20R | 3.4 in | 16.9 in | 21.3 in | 65.1 lb |
| See more product information | ||||||||
|
GXT5-3KL630RT2UXL
|
||||||||
| 3,000 VA / 3,000 W | 208 VAC nominal; variable based on output load | 208 VAC | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: L6-30P; Ouput: 2 x L6-15R and 2 x L6-30R | 3.4 in | 16.9 in | 21.3 in | 65.1 lb |
| See more product information | ||||||||
|

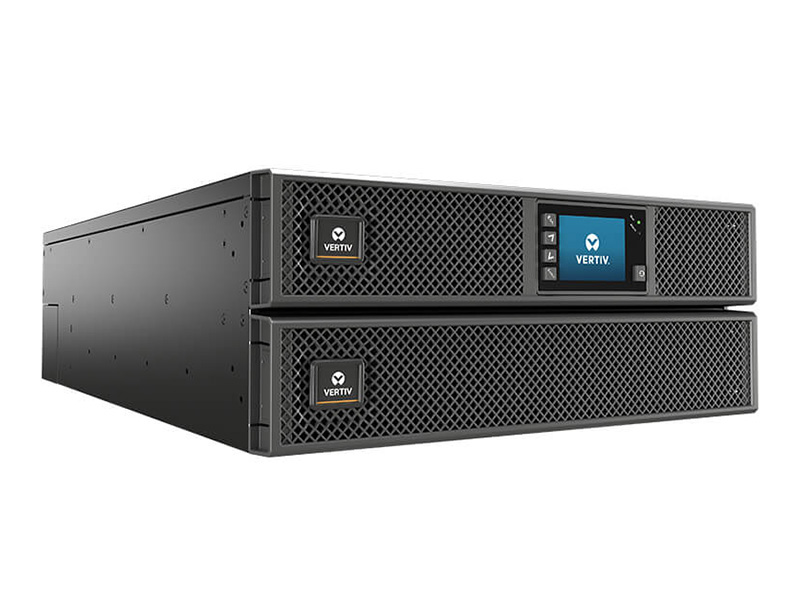

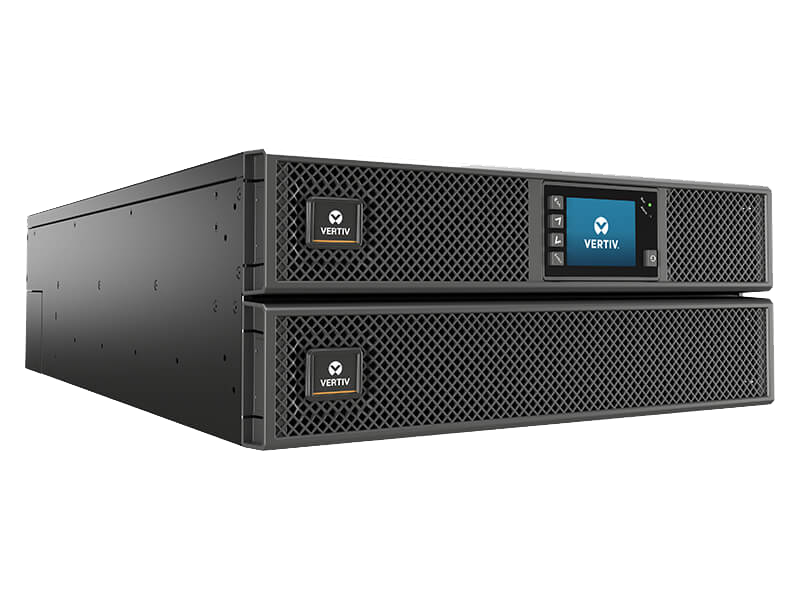

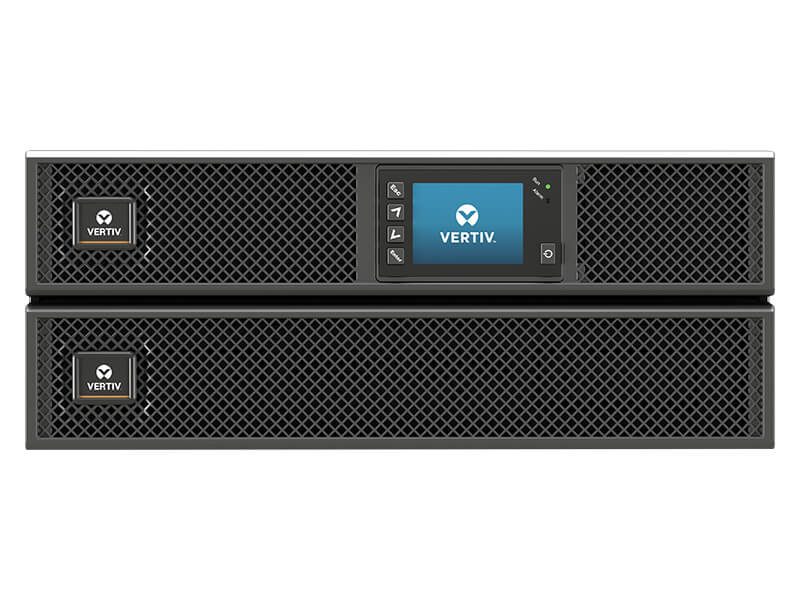

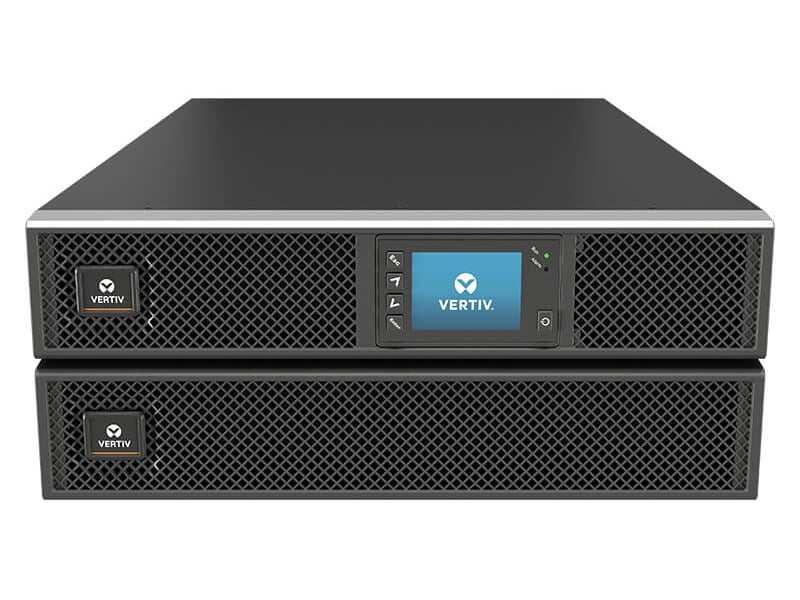

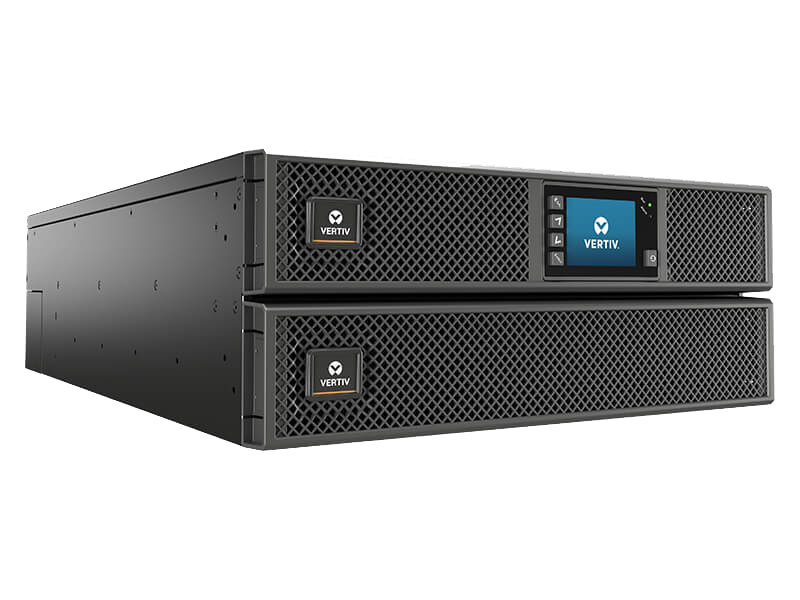

GXT5-5000MVRT4UXLN
|
||||||||
| 5,000 VA / 5,000 W | Typical: 208VAC / Range: 176-280VAC | 208/120VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Hardwired in/out; Optional PODs available | 6.8 in | 16.9 in | 25.6 in | 125.6 lb |
| See more product information | ||||||||
|
GXT5-6000MVRT4UXLN
|
||||||||
| 6,000 VA / 6,000 W | Typical: 208VAC / Range: 176-280VAC | 208/120VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Hardwired in/out; Optional PODs available | 6.8 in | 16.9 in | 25.6 in | 125.6 lb |
| See more product information | ||||||||
|
GXT5-8000MVRT6UXLN
|
||||||||
| 8,000 VA / 8,000 W | Typical: 208VAC / Range: 176-280VAC | 208/120VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Hardwired in/out; Optional PODs available | 10.2 in | 16.9 in | 25.6 in | 224.8 lb |
| See more product information | ||||||||
|

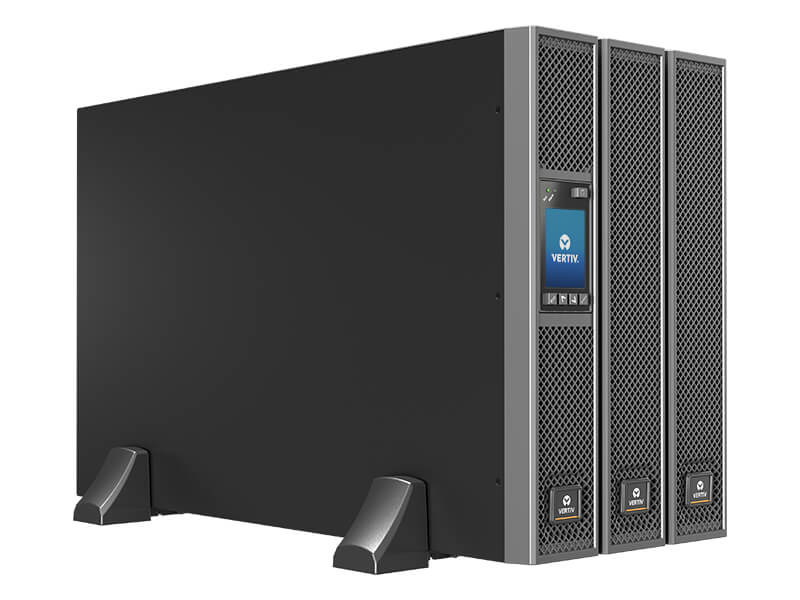

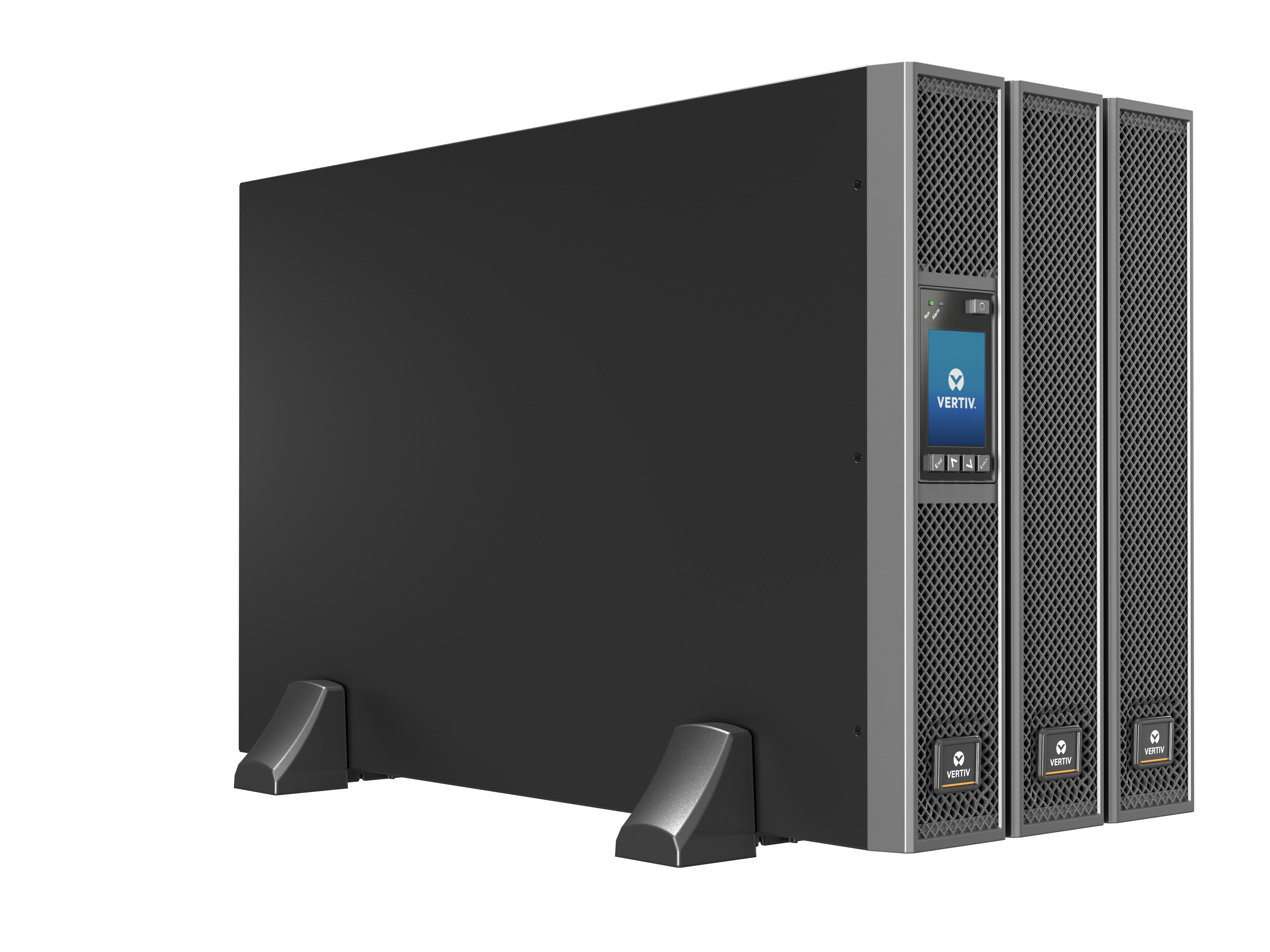

GXT5-10KMVRT6UXLN
|
||||||||
| 10,000 VA / 10,000 W | Typical: 208VAC / Range: 176-280VAC | 208/120VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Hardwired in/out; Optional PODs available | 10.2 in | 16.9 in | 25.6 in | 224.8 lb |
| See more product information | ||||||||
|

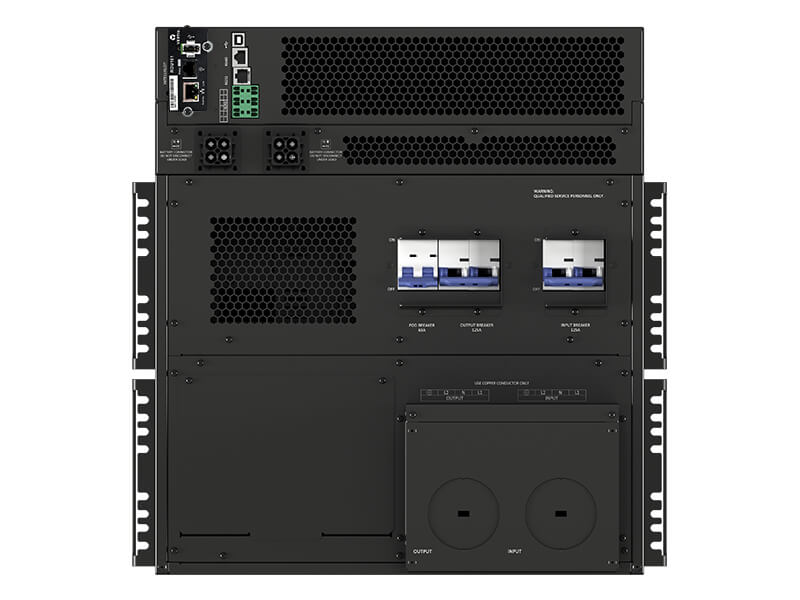

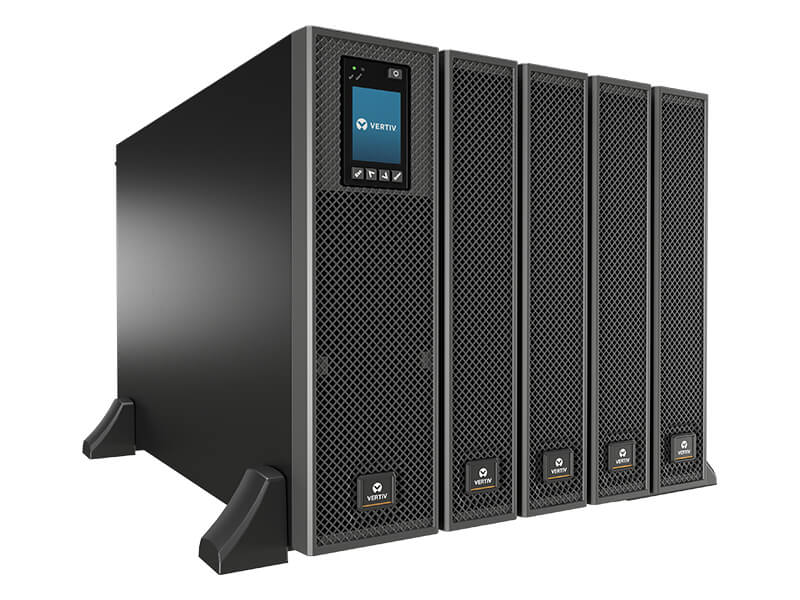

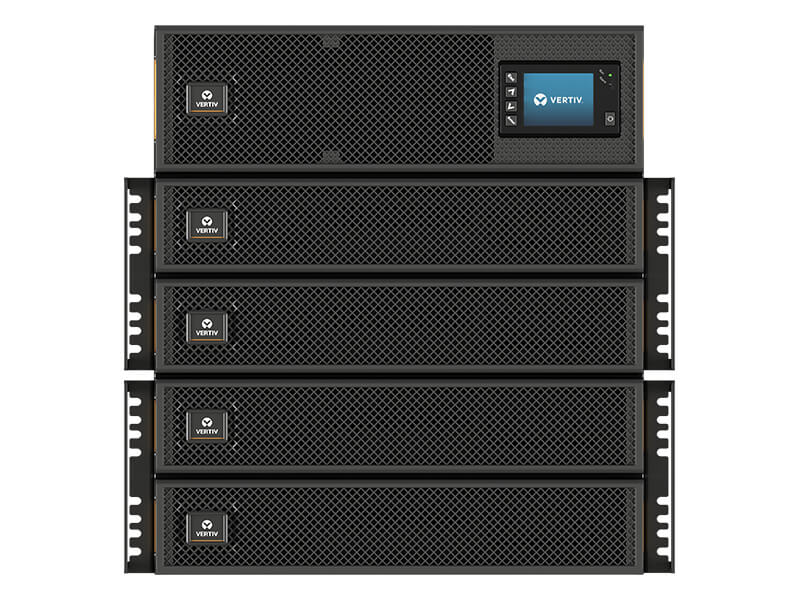

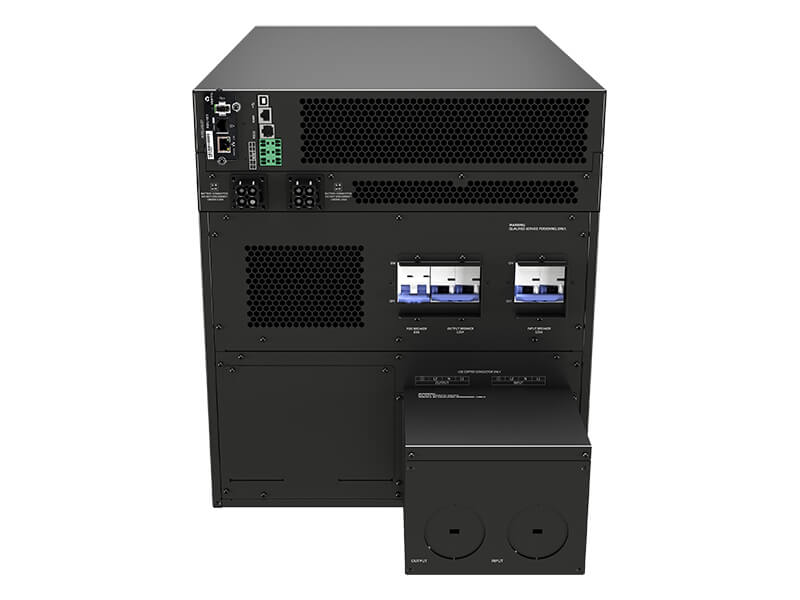

GXT5-15KMVRT11UXLN
|
||||||||
| 15,000 VA / 15,000 W | Typical: 208VAC / Range: 176-280VAC | 208/120VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Hardwired in/out; Optional PODs available | 19.0 in | 16.9 in | 26.7 in | 396.6 lbs |
| See more product information | ||||||||
|
GXT5-20KMVRT11UXLN
|
||||||||
| 20,000 VA / 20,000 W | Typical: 208VAC / Range: 176-280VAC | 208/120VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Hardwired in/out; Optional PODs available | 19.0 in | 16.9 in | 26.7 in | 396.6 lbs |
| See more product information | ||||||||
|
GXT5-5000HVRT5UXLN
|
||||||||
| 5,000 VA / 5,000 W | Typical: 208VAC / Range: 176-288VAC | 200/208/220/230/240 VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R | 8.5 in | 16.9 in | 24.8 in | 156.7 lb |
| See more product information | ||||||||
|

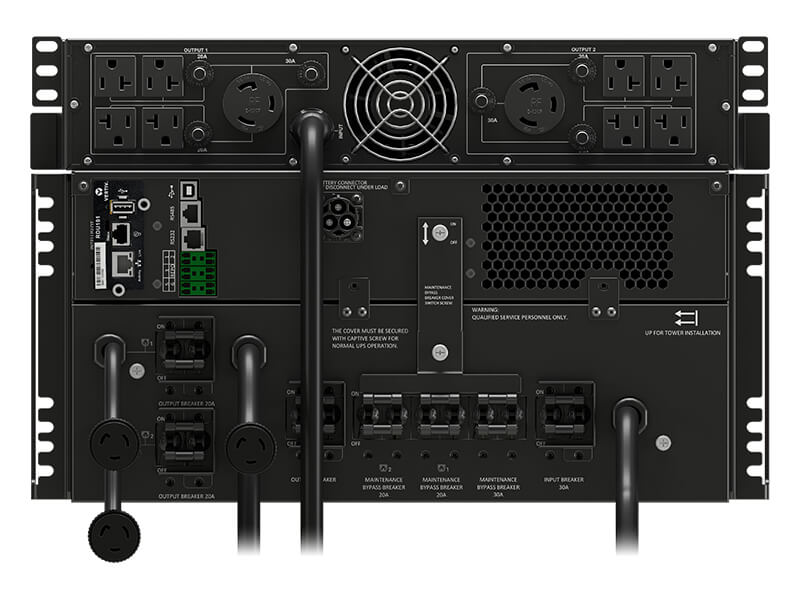

GXT5-6KL630RT5UXLN
|
||||||||
| 4,900 VA / 4,600 W | Typical: 208VAC / Range: 175-280 VAC | 200/208/220/230/240 VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: L6-30P; Outpu: 2 x L6-20R and 2 x L6-30R | 8.5 in | 16.9 in | 23.6 in | 149.1 lb |
| See more product information | ||||||||
|

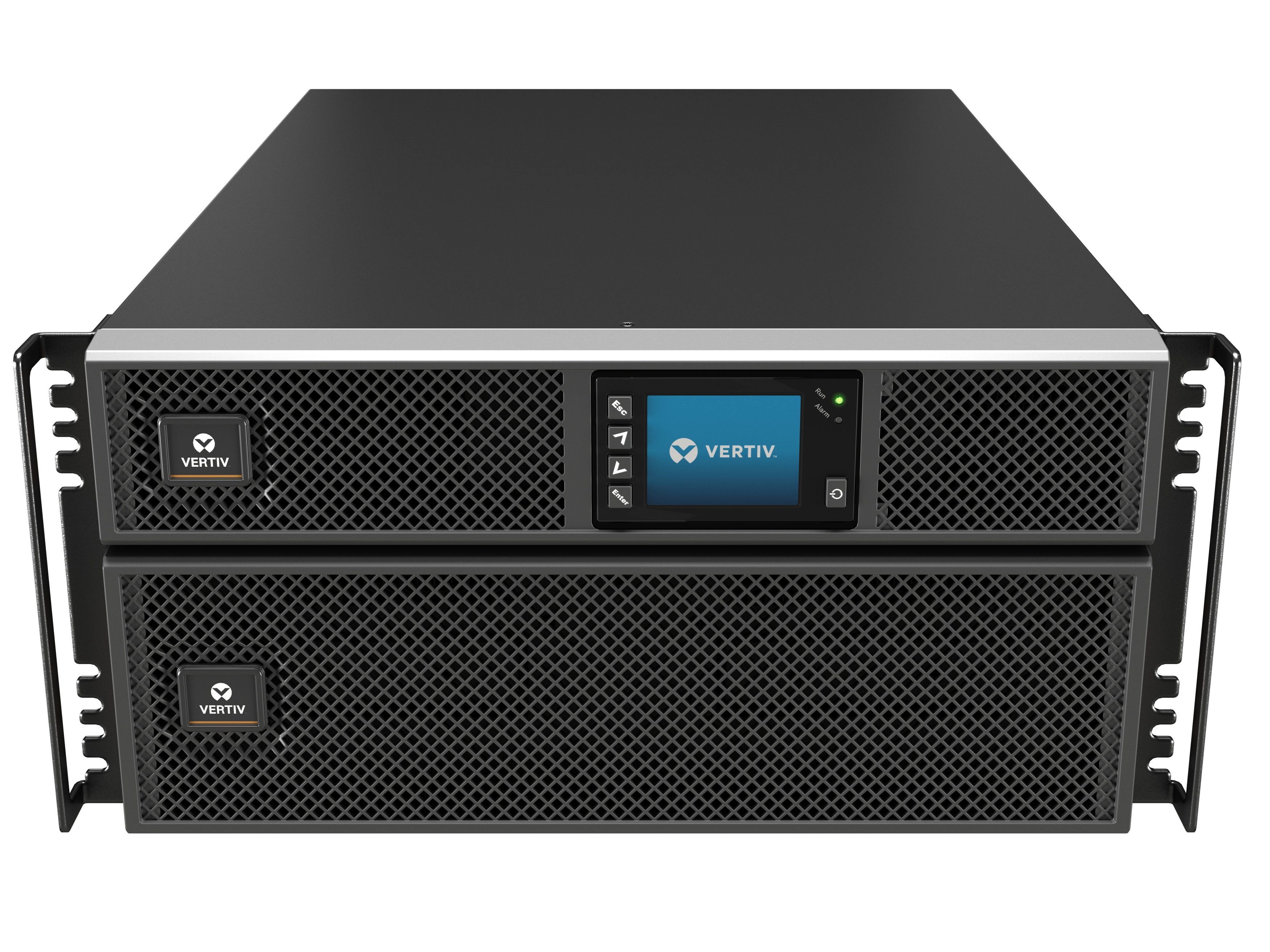

GXT5-8000HVRT5UXLN
|
||||||||
| 8,000 VA / 8,000 W | Typical: 208VAC / Range: 176-288VAC | 200/208/220/230/240 VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R | 8.5 in | 16.9 in | 24.8 in | 164.2 lb |
| See more product information | ||||||||
|
GXT5-10KHVRT5UXLN
|
||||||||
| 10,000 VA / 10,000 W | Typical: 208VAC / Range: 176-288VAC | 200/208/220/230/240 VAC (user-configurable) | Up to 98% Active ECO Mode; up to 95% on-line mode | Hardwired in/out + Output: 2 x L6-20R, 2 x L6-30R | 8.5 in | 16.9 in | 24.8 in | 166.4 lbs |
| See more product information | ||||||||
|

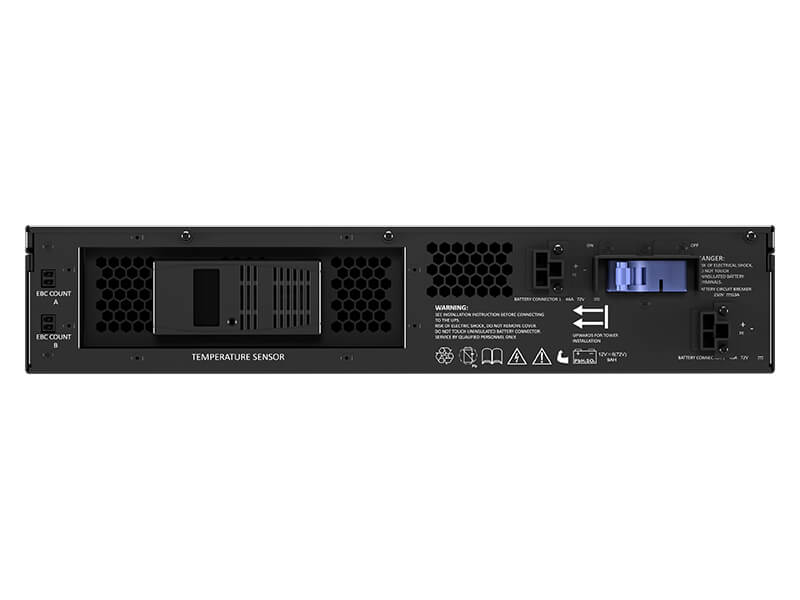

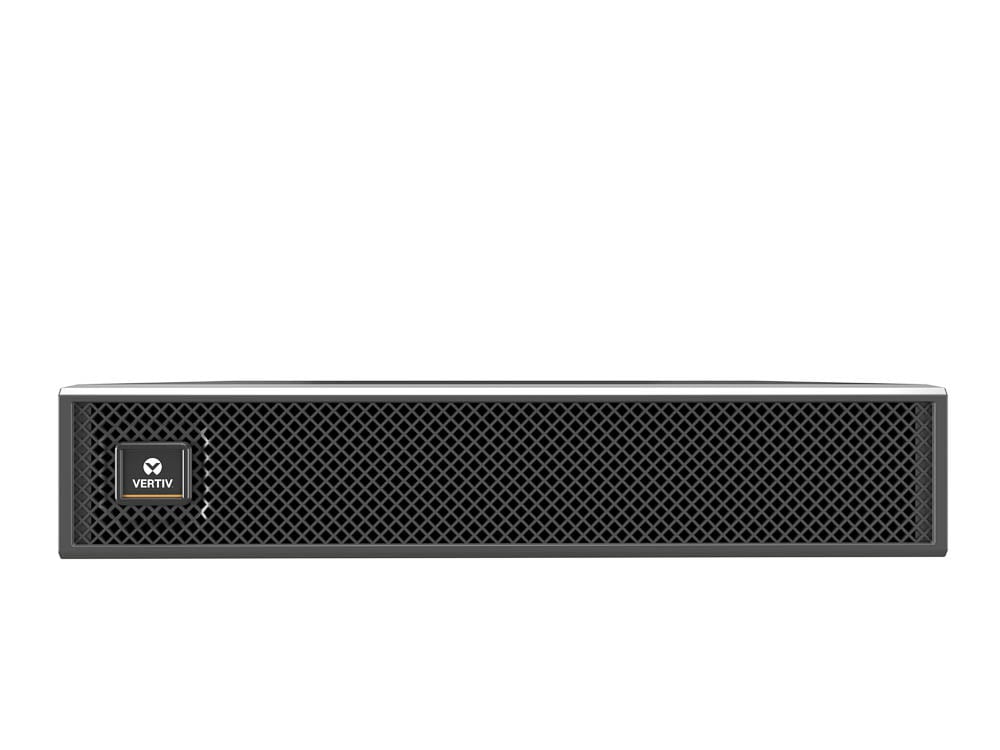

GXT5-EBC72VRT2U
|
||||||||
| 3.4 in | 16.9 in | 15.8 in | 48.4 lbs | |||||
| See more product information | ||||||||
|
GXT5-EBC144VRT2U
|
||||||||
| 3.4 in | 16.9 in | 26.8 in | 81.6 lbs | |||||
| See more product information | ||||||||
|
GXT5-EBC192VRT3U
|
||||||||
| 5.1 in | 16.9 in | 24.8 in | 127 lb | |||||
| See more product information | ||||||||
|

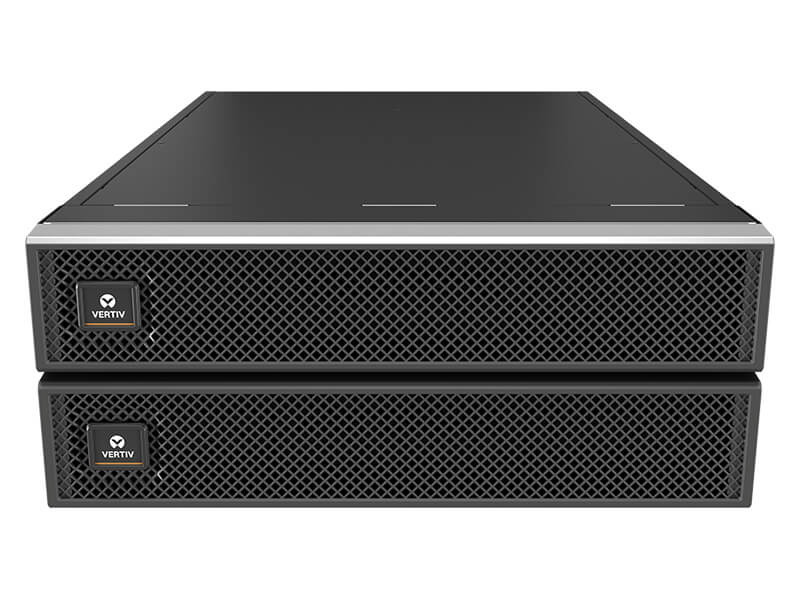

GXT5-EBC288VRT4U
|
||||||||
| 6.8 in | 16.9 in | 26.8 in | 189.6 lb | |||||
| See more product information |
Benefits
Features
- Vertiv Liebert GXT5 15-20kVA 208/120V VRLA Data Sheet
- Vertiv Liebert GXT5 15kVA - 20kVA VRLA Brochure
- Vertiv-Equipment-Protection-Plan-Information-DS-EN-NA-SL-70771-WEB.pdf
- Vertiv™ End User Trade-In Program
- Vertiv™ E-Rate Eligible Brochure.pdf
- Data Center Infrastructure Solutions-Channel Products Catalog VR-01407
- ENERGY STAR Qualified UPS Products Data Sheet
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Related Products And Services
The Vertiv™ Liebert® GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower design. This single-phase UPS family provides superior protection and remote management capability, making it ideally suited to protect critical infrastructure in both centralized and edge network applications. Additionally, the Liebert GXT5 UPS offers a scalable battery runtime solution through matching external battery cabinets.

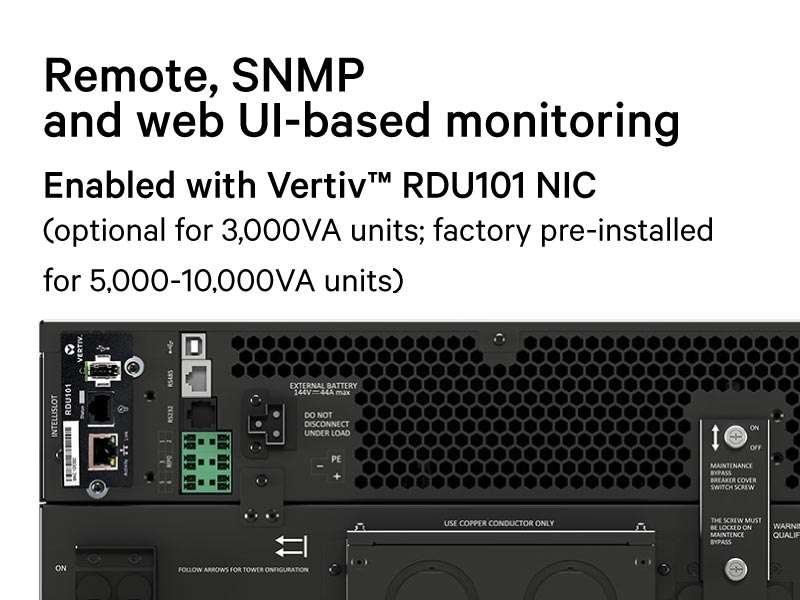

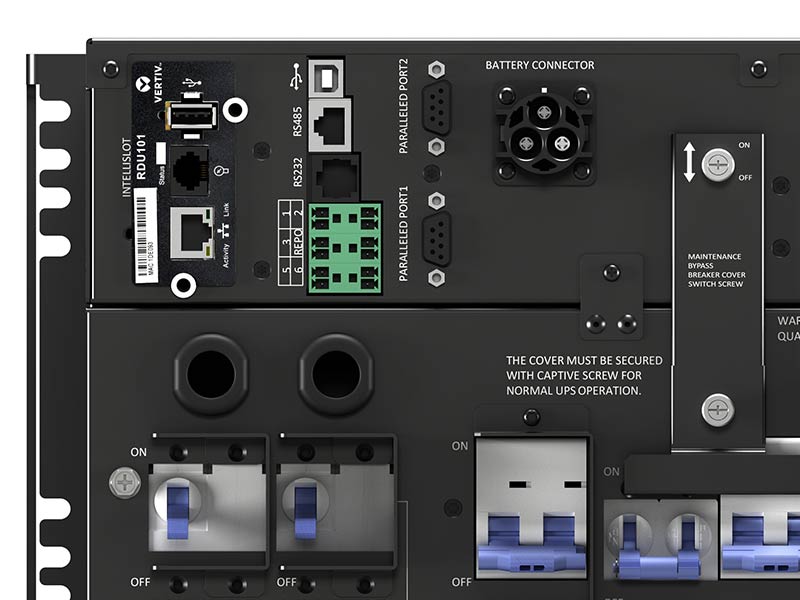

The Vertiv™ Liebert® IntelliSlot™ RDU101 Communications Card enables communication between Vertiv™ products such as Trellis™ Enterprise, Trellis™ Power Insight and LIFE™ Services. It provides web access, data via SNMP and Modbus TCP for Vertiv equipment. Environmental sensor data is provided via web and SNMP.
