PSI5-750MT120
The Vertiv™ Liebert® PSI5 line interactive UPS family provides network grade uninterruptible power protection with pure sinewave output power and automatic voltage regulation ensuring availability of critical systems and information. Reliable and efficient power protection for servers, network equipment, medical devices, point-of-sale (POS) devices and security systems.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
PSI5-750MT120
The Vertiv™ Liebert® PSI5 line interactive UPS family provides network grade uninterruptible power protection with pure sinewave output power and automatic voltage regulation ensuring availability of critical systems and information. Reliable and efficient power protection for servers, network equipment, medical devices, point-of-sale (POS) devices and security systems.
Warranty: It has a 39-month UPS warranty.Benefits
Features
Specifications
The flexible design of the Liebert® PSI5 allows the UPS to be tower (MT models), 1U rack mountable (1U models), or to be configured as a self-standing tower or to be rack-mounted within a 2U space (RT models). It is available from 750VA to 5000VA with both 120V or 208V models. The Liebert® PSI5 UPS features an innovative advanced line-interactive design incorporating buck/boost Automatic Voltage Regulation (AVR) technology. This protects against utility voltage fluctuation by raising and lowering utility power to the level needed by the connected equipment. It also allows the UPS to prolong battery life by maximizing its time on utility power before going to battery. Models with a capacity of 1500VA and below are not for sale in Vermont, Colorado, Washington.
- Product Overview
- Power Rating
- 750 VA / 675 W
- Input Voltage Range
- Nominal: 120VAC / Range: 75-146VAC
- Output Voltage Range
- 120VAC (100/110/115/125VAC user-configurable)
- Efficiency
- Up to 97% (Normal Mode)
- Wiring
- Input: 5-15P; Ouput: 5 x 5-15R
- Weight
- 24.7 lb
- Weight
- 11.2 kg
- Height
- 9.4 in
- Height
- 239 mm
- Width
- 5.7 in
- Width
- 145 mm
- Depth
- 14.8 in
- Depth
- 376 mm
- Interfaces/Ports
- Interface Options

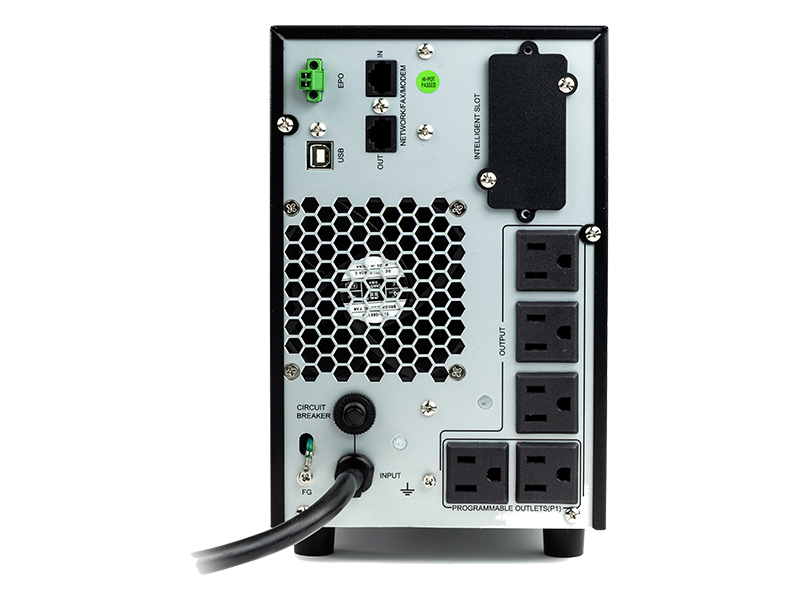

- Optional communications card (Vertiv™ Liebert® IntelliSlot™ RDU120 Card), USB, RJ-45, EPO Terminals
- Protocols
- SNMP and web management enabled with optional Vertiv™ Liebert® IntelliSlot™ RDU120 Card; serial connection for out-of-band management
- Control Panel
- LCD display, provides insight to UPS status for easy installation, configuration and operation
- Operational Conditions
- Operating Temperature
- +32 to +104 °F (0 to 40 °C)
- Listings
- ANSI C62.41 Category A, Level 3, UL 1778, RoHS2, REACH
- Topology

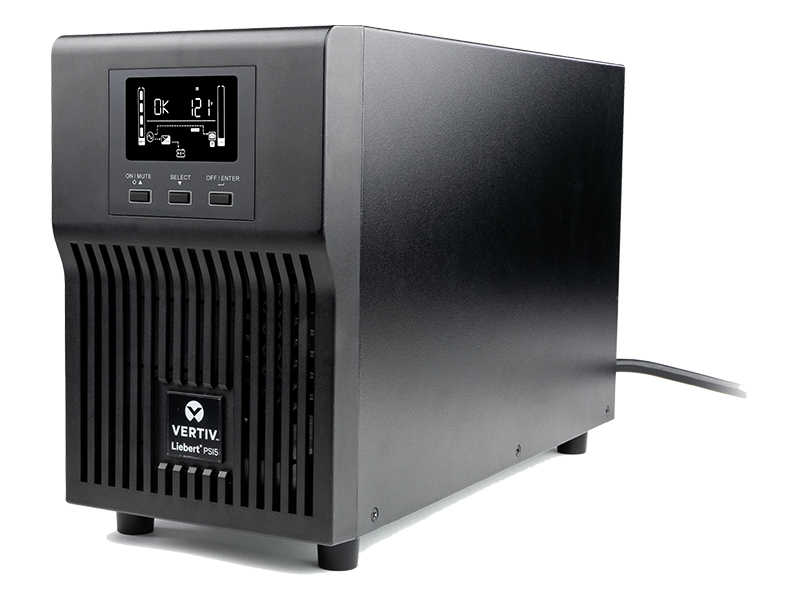

- Line-Interactive AVR UPS; compact mini tower form factor
- Miscellaneous
- Listings
- ANSI C62.41 Category A, Level 3, UL 1778, RoHS2, REACH
- Topology
- Line-Interactive AVR UPS; compact mini tower form factor
- Vertiv™ Liebert® PSI5 UPS Brochure SL-23321
- Vertiv™ UPS Solutions for Desktop AI - Application Brief - NA - English
- Vertiv™ E-Rate Eligible - Brochure - English
- Vertiv™ Data Center Infrastructure Solutions - Channel Products Catalog - English
- Vertiv™ Liebert® Energy Star Qualified UPS Products Data Sheet
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
