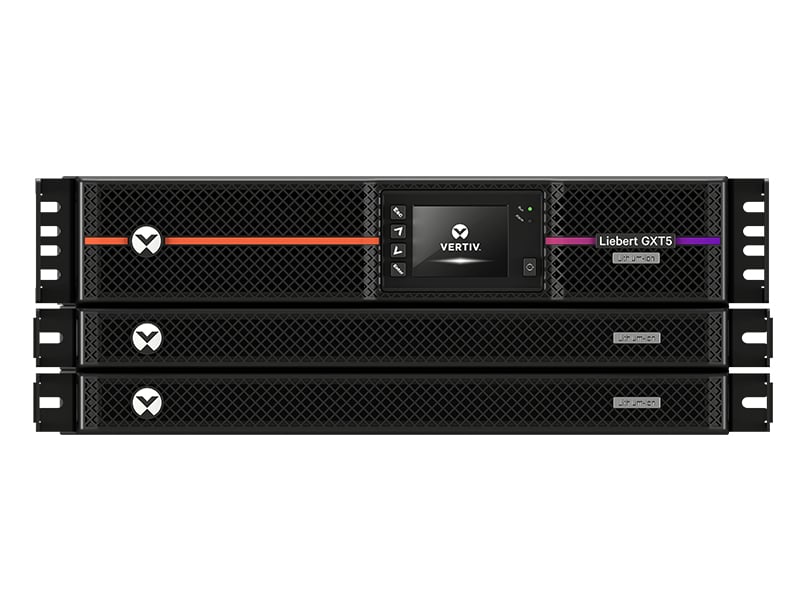

GXT5LI-10KGVRT3UXLN
The Vertiv™ Liebert® GXT5 Lithium-Ion online double conversion UPS family offers the highest level of power conditioning and power protection for critical business IT systems. Continuous power conditioning, zero transfer time, pure sinewave output, and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking
- Financial and Insurance
- Education
- Government
- Healthcare
- Manufacturing
- Retail and Wholesale
GXT5LI-10KGVRT3UXLN
The Vertiv™ Liebert® GXT5 Lithium-Ion online double conversion UPS family offers the highest level of power conditioning and power protection for critical business IT systems. Continuous power conditioning, zero transfer time, pure sinewave output, and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications.
- Banking
- Financial and Insurance
- Education
- Government
- Healthcare
- Manufacturing
- Retail and Wholesale
Benefits
Wide range of capacities allow you to select the power and runtime that best meet your needs.
Rack/Tower convertible form factors provide flexibility at sites with variable installation needs.
Reliable online double conversion topology isolates connected equipment from utility power disturbances while providing top of the line voltage/frequency regulation and surge protection. It is generator-friendly with zero transfer time and features an internal automatic bypass.
Pure sinewave output while on battery simulates utility power and is compatible with active power factor corrected power supplies.
Unity power factor provides more actual power to the load increasing power density.
An intuitive LCD display that provides UPS status, power metrics, configuration options, alarms, and fault codes to manage the UPS.
Features
Automatic internal bypass provides seamless power to the connected load in the unlikely event of a system issue.
Integrated external maintenance bypass supports the load during planned maintenance or UPS upgrades.
Lithium-ion batteries use less material for equal output and up to 99% of the battery elements are recyclable. The longer lifespan of a lithium-ion battery reduces waste and material consumption.
Safest lithium-ion (LiFePO4) battery chemistry and integrated Battery Management System (BMS) ensure safe and reliable operation.
The BMS monitors the lithium-ion battery health at the cell level. It manages the charging, depth of discharge, temperature, and voltage of the battery. The BMS prevents overcharging, ensures safe operation, and preserves the battery throughout its life.
User-replaceable batteries may be swapped out quickly and safely without disruption and without having to turn off connected equipment.
Configurable outlets for load management. Cycle power to hung devices and load shed connected equipment, prioritizing critical devices to extend availability while on battery backup power.
A government certification for energy efficiency. This product meets strict energy-efficiency specifications that reduces energy consumption, saving money and helping protect the environment.
Integrates seamlessly into site power infrastructure
Re-settable breaker protects against equipment damage from a short circuit or overload.
Network grade surge protection meets ANSI C62.41, Category B standards, providing a high level of input surge protection.
Remote UPS shutoff in the event of a fire or other onsite emergency.
USB and Serial ports support monitoring and management of the UPS.
Intellislot™ enables network integration connectivity and allows remote monitoring, start-up or restart of the connected equipment. SNMP, Modbus, BACnet and environmental sensor options are available.
Power Assist software for local management via USB. Easy to install and allows for simple configuring, monitoring, alarm notifications and management of the UPS. Automatic shutdown options protect connected equipment during an extended power loss and ensure against data loss.
Power Insight software for on-premise and remote UPS monitoring and management with notifications and control of network connected devices. Configurable, automatic shutdown for physical and virtual servers. Includes integrations with VMWare vCenter, Dell VXRail Manager, and Nutanix Prism Central. Provides a single dashboard view of the UPS status, alarms, notifications, and summary data.
Complete coverage on UPS including batteries.
$500,000 Equipment Protection Plan provides reimbursement or replacement of any connected equipment that is damaged by a power surge while connected to your Vertiv UPS.
Allows you to trade in an aging Vertiv or competitor's UPS for a new Vertiv equivalent UPS at a discount. Vertiv will manage the collection and disposal of your old UPS at no cost.
Specifications

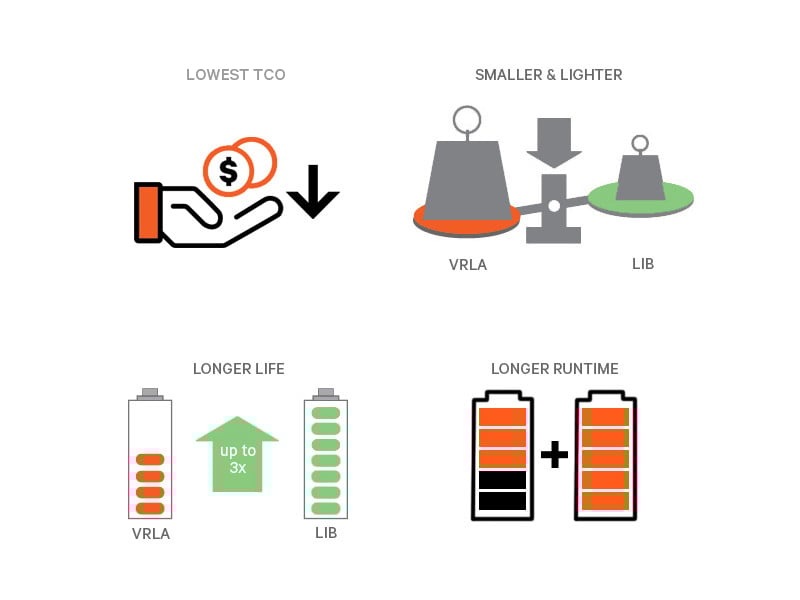

Vertiv™ Liebert® GXT5 Lithium-Ion online UPS protects critical IT applications against outages and power disturbances. It offers highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as VRLA batteries reducing maintenance, labor, and replacement costs (lower TCO). Hot-swappable, user-replaceable batteries increase the useable life of the UPS.
- Interfaces/Ports
- Agency Approvals
- IEC 62040-1:2008+A1 2013, IEC 62619 1st Ed., IEC 62040-2 2nd Ed., IEC 61000-3-2, IEC 61000-3-12, CISPR22, Class A, FCC Part 15, Class A, UL 1778
- Operational Conditions
- Operating Temperature
- 32°F to 104°F (0°C to 40°C) (10% Derating at 50°C)
- Vertiv™ Liebert® GXT5 Lithium-Ion UPS 5-10kVA MV GV Brochure SL-70996
- Vertiv™ E-Rate Eligible Brochure
- Vertiv™ Equipment Protection Plan
- Data Center Infrastructure Solutions - Channel Products Catalog
- Vertiv Liebert GXT5 Lithium Ion Frequently Asked Questions
- Vertiv™ Liebert® GXT5 Lithium-Ion UPS 5-10kVA Application Brief SL-71003
- Vertiv™ Liebert® GXT5 Lithium-Ion 5-10kVA GV UPS Data Sheet SL-70912
- Vertiv™ Liebert® GXT5 Lithium-Ion 5-10kVA UPS Guide to Output Power Distribution
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
