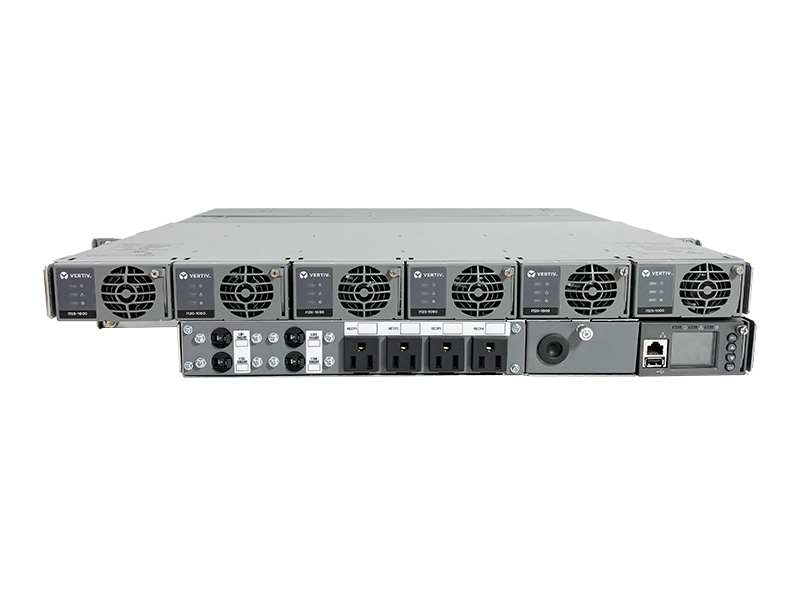

Stand-Alone 120V Inverter Systems
Stand-Alone Vertiv™ NetSure™ Inverter System allows you to support AC loads from existing DC power systems and batteries. Systems feature 1 kVA inverters with an output capacity up to 24 kVA.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Data Center/Colocation/Hosting
- Telecom
Product Model

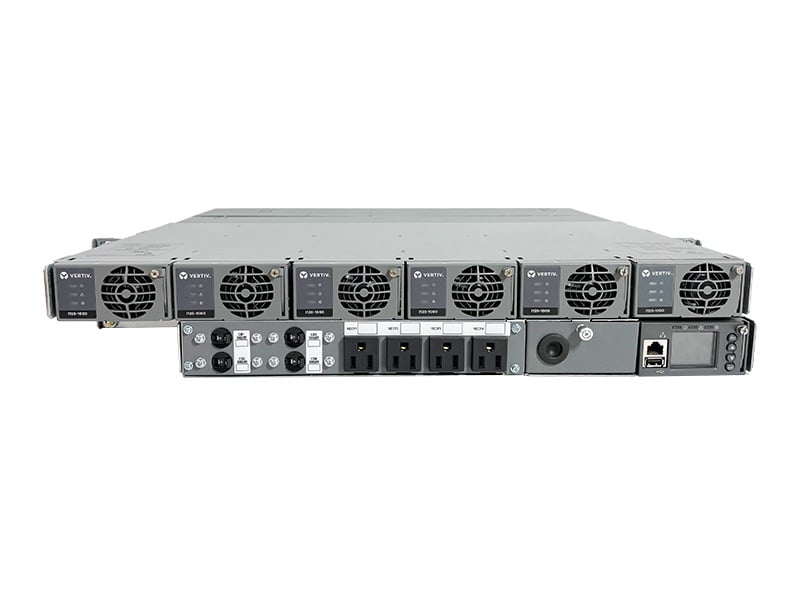

Stand-Alone 120V Inverter Systems
Stand-Alone Vertiv™ NetSure™ Inverter System allows you to support AC loads from existing DC power systems and batteries. Systems feature 1 kVA inverters with an output capacity up to 24 kVA.
Best Suited For:
- Data Center/Colocation/Hosting
- Telecom
Benefits
- Free up floor space by backing-up AC and DC loads with a common battery bank
- Minimize energy consumption with up to 95.2% inverter efficiency in normal AC-AC mode
- Maximize site availability thanks to zero transfer time from grid to battery
- Seamlessly manage your complete back-up solution locally or remotely through an advanced interface
Features
- Market leading inverter power density (19 VA/in3)
- Same battery bank for both AC and DC loads
- Long battery back up for both AC and DC loads

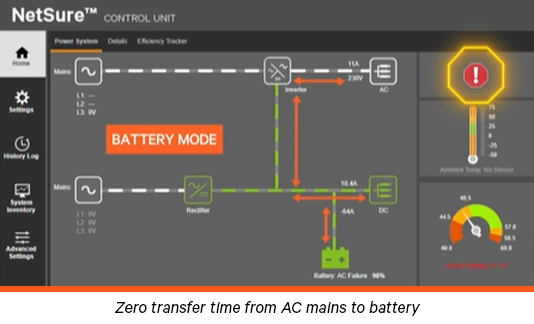

- Zero transfer time from AC mains to battery sources
Specifications
Stand-Alone 120V Inverter Systems
- Product Overview
- Power Capacity
- 5 to 24 kVA
- Output Voltage, Nominal
- 120 VAC
- Input Voltage, Nominal
- -48 VDC/120 VAC
- System Type
- Rack mounted
- Input
- Input Voltage, Nominal
- -48 VDC/120 VAC
- Output
- Output Voltage, Nominal
- 120 VAC
- Physical Characteristics
- Weight
- 9.5 to 33.1 kg
- Height
- 88.9 to 355.6.8 mm
- Width
- 444.5 to 535.9 mm
- Depth
- 421.6 to 458.7 mm
Manuals
- eSure™ Inverter Module User Manual UM1I1201000
- Vertiv™ NetSure™ Inverter System Installation Manual IM584130100
- Vertiv™ Stand-Alone Inverter System NCU Integration Kit IM10150523
- Vertiv™ NetSure™ Inverter System Application Guide SAG584130100
- NetSure™ - Control Unit (NCU) Controller - User Manual - English
- UM584130100
