Product Model

NetSure 7100 Series

The modular NetSure™ 7100 Series power system with 3500 watt or 2000 watt rectifiers and DC to DC converters provides up to 12,000 amps of current for -48 volt systems with up to 520 amps at +24 volts or -58 volts. The basic components of the power system include the NetSure Control Unit (NCU), module mounting shelf assemblies which house the rectifiers and converters, and a modular distribution cabinet.

Get Brochure Get Manual
Best Suited For:
  • Data Center/Colocation/Hosting
  • Telecom

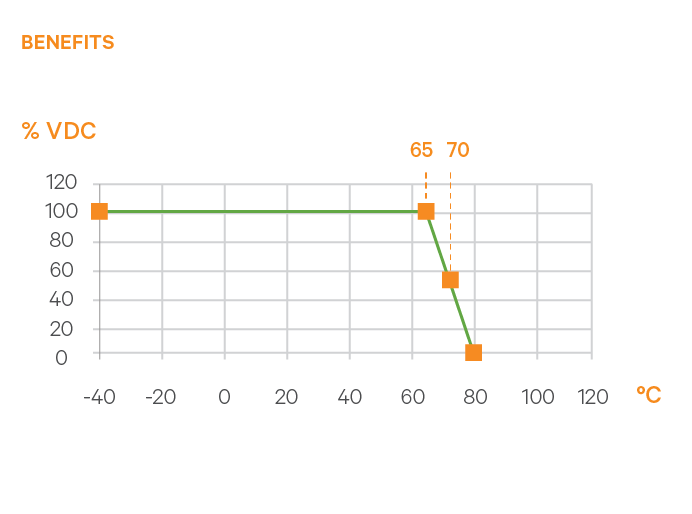

Benefits

Optimized total cost of ownership
Safe and simple to install and operate
Enhanced real-time visibility into what's powering your network
Includes DHCP Ethernet connection and local access via an additional port with a default IP address
Meets strict agency standards for safety and reliability

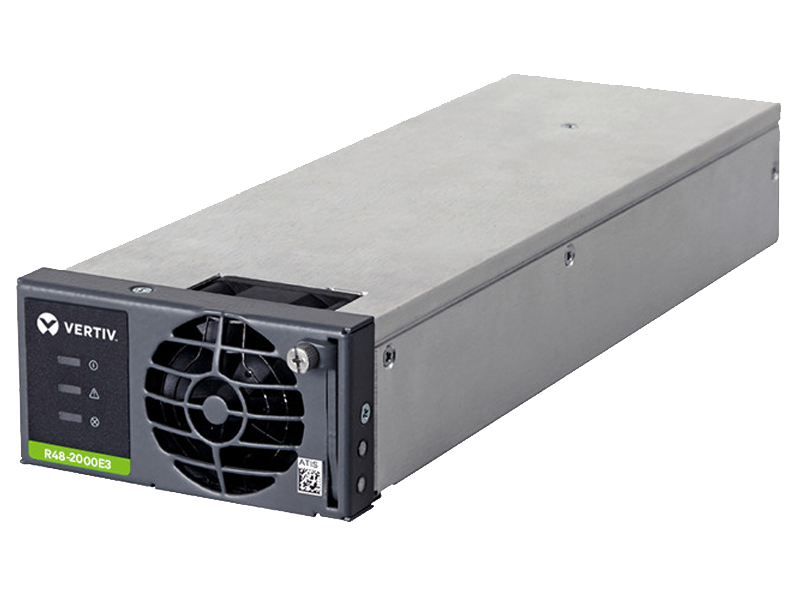

Reduce energy cost with high-efficiency eSure rectifiers
Low initial investment with scalable  configuration that allows for incremental system growth
High reliability with N+1 configuration redundancy

Features

Advanced controller offers battery management, AC service monitoring, site monitoring and configuration management
Remote access supports HTTPS with multiple browsers, network element management via Modbus or SNMP (v2 or v3)
Dual Ethernet port option
Modular design with hot-swappable rectifiers and distribution units

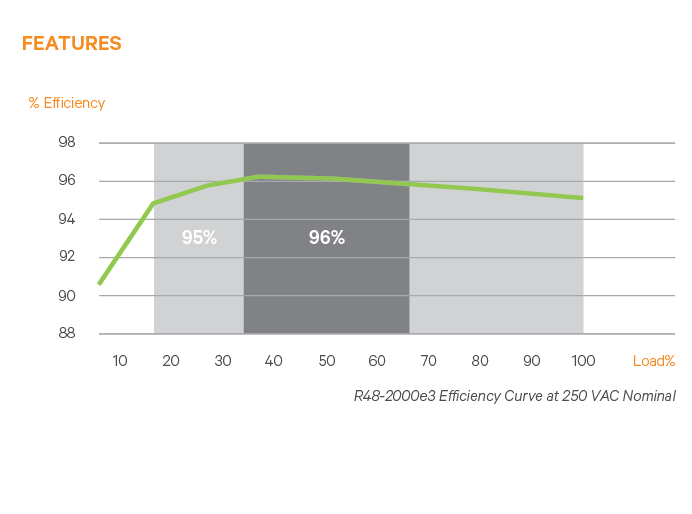

High system efficiency over 96%
Multi-bay configurations
Multiple AC input configurations
NEBS Level 3 certified and UL Listed to UL subject 1801

NetSure 7100 Series
Product Overview
Power Capacity
600 kW (6 bays)
Current Capacity
12,000 A (6 bays)
Output Voltage, Nominal
-48 VDC, +24 VDC, -58 VDC
Input Voltage, Nominal
208 VAC to 277/480 VAC
System Type
Cabinet or Relay Rack
Input
Input Voltage, Nominal
208 VAC to 277/480 VAC
Input Voltage, Operational
176 VAC to 305/528 VAC
Input Connections
Terminal Blocks or Line Cords
Equipment Dimensions (H x W x D)
D Cabinet:12.2" (7RU) to 33.25" (19RU) x 23" x 20.1", R Shelves:1.7" (1RU) or 5.2" (3RU) x 23" x 20.1"
Access
Front for installation, operation and maintenance, Rear for multi-bay, rectifier shelf or battery tray expansion
Output
Output Voltage, Nominal
-48 VDC, +24 VDC, -58 VDC
Output Voltage, Operational
Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC
Output Capacity
Up to 2000 amps per bay at -48 VDC plus redundancy, maximum of six bays; Up to 520 amps at +24 VDC or -58 VDC plus redundancy
Peak Efficiency
Rectifier: 96.5%; Converter: 95% (+24 VDC or -58 VDC)
Load Circuit Breakers / Fuses
Up to (104) Bullet CBs, 1 to 300 A, Up to (24) GJ/218 CBs, 100 to 800 A, Up to (16) TPH Fuses, 70 to 600 A, Up to (16) TBL-B Fuses, 70 to 250 A
Physical Characteristics
Battery Circuit Breakers / Fuses
Up to (24) Bullet CBs, 1 to 300 A, Up to (4) GJ/218 CBs, 100 to 800 A, Up to (4) TPH Fuses, 70 to 600 A /up to 200A CB Disconnect mounted on each batt
Options
Low Voltage Load Disconnect, Low Voltage Batttery Disconnect, Battery Shunt, Battery Trays - Pre-cabled, Bulk Output Panel, Up to (68) Temp Sensors
Weight
90.9 to 295.5 kg
Height
2134 mm
Width
584.2 to 711.2 mm
Depth
510.5 to 711.2 mm
Environmetal & Standard Compliance
Control and Monitoring
Dual Ethernet, Embedded web pages, SNMP, Modbus, Battery Management, Programmable Relay Outputs and Binary Inputs, Energy Management
Operating Temperature
-40 °C to +40 °C (-40 °F to +104 °F)
Safety Compliance
UL 1801 Listed (“c UL”), NEBS Level 3
EMC Compliance
FCC Class B
