Product Family

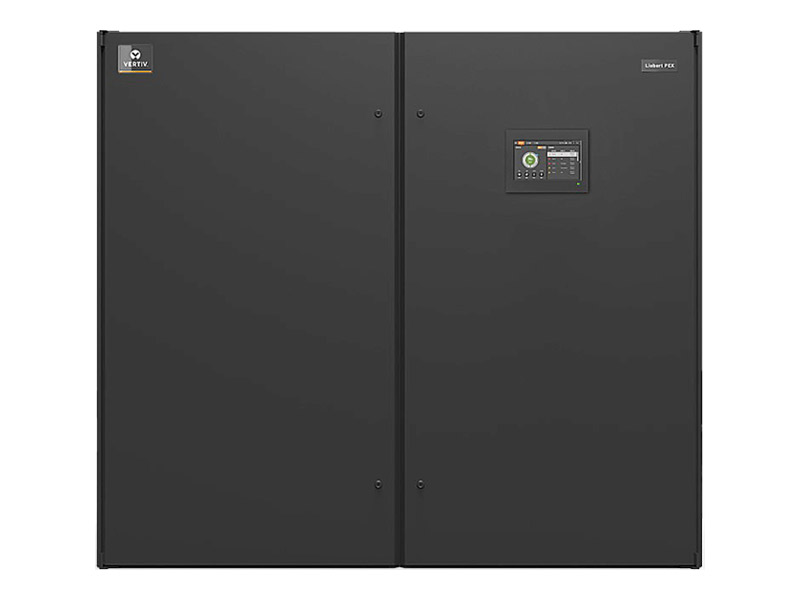

Liebert PEX3

The Liebert PEX3 DX cooling unit comes with the advanced features ensuring the precise and efficient cooling of data centers and technological rooms. It comes with R410a refrigerant, enabling the unit to achieve significant efficiency level. This 3.0 generation PEX series is equipped with the advanced heat exchanger tech-nology, using a microchannel coil (evaporator coil) that enhances unit efficiency. PEX3 DX is available from 30 kW to 100 kW in both upflow & downflow configuration. This edition introduces various collaterals of PEX3 to promote in the internal and external arena.

Get Brochure Get Manual
Best Suited For:
  • Banking, Financial and Insurance
  • Education
  • Government
  • Healthcare
  • Manufacturing
  • Telecom
  • Retail and Wholesale
  • Transportation

Features

EVAPORATOR COIL - MICROCHANNEL
Microchannel coils are 40% smaller, 40% more eff icient, and use 50% less refrigerant than standard tube and fin coils.
Multiple micro channels improve heat transfer.
Flat tube results in lesser air side pressure drop, less power consumption.
Compact design & less also resulting in reduced unit weight.
ELECTRONIC EXPANSION VALVE
Necessary for integrated and optimal variable capacity control.
Maintain constant superheat
EEV is standard feature in PEX3
EC FAN
The unit is equipped with high efficiency, single inlet, reserve curved, centrifugal plug type innovative EC fan(s).
The EC fan technology regulates airflow and reduces the fan input power. In-floor configuration further reduces energy consumption in downflow units.
Liebert EC 2.0 fan modulates the fan speed according to load density; saving nearly 30% of energy consumption
COMPACT DESIGN
PEX3 has a footprint nearly 15~30% lower than other brands, available in 4 frame sizes.
WIDE CAPACITY RANGE
PEX3 DX is available from 30kW up to 100kW both down flow and uplow configurations.
PRECISE TEMPERATURE & RH CONTROL
PEX3 technology enables close monitoring and control of room temperature, the standard version includes advanced controller, heater, humidifier and other components.
ENVIRONMENT FRIENDLY OPTION
The use of the eco-friendly refrigerant R410A ( standard) is particularly advantageous. The best parameters in terms of heat exchange to improve greenhouse performance.

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
