Product Model

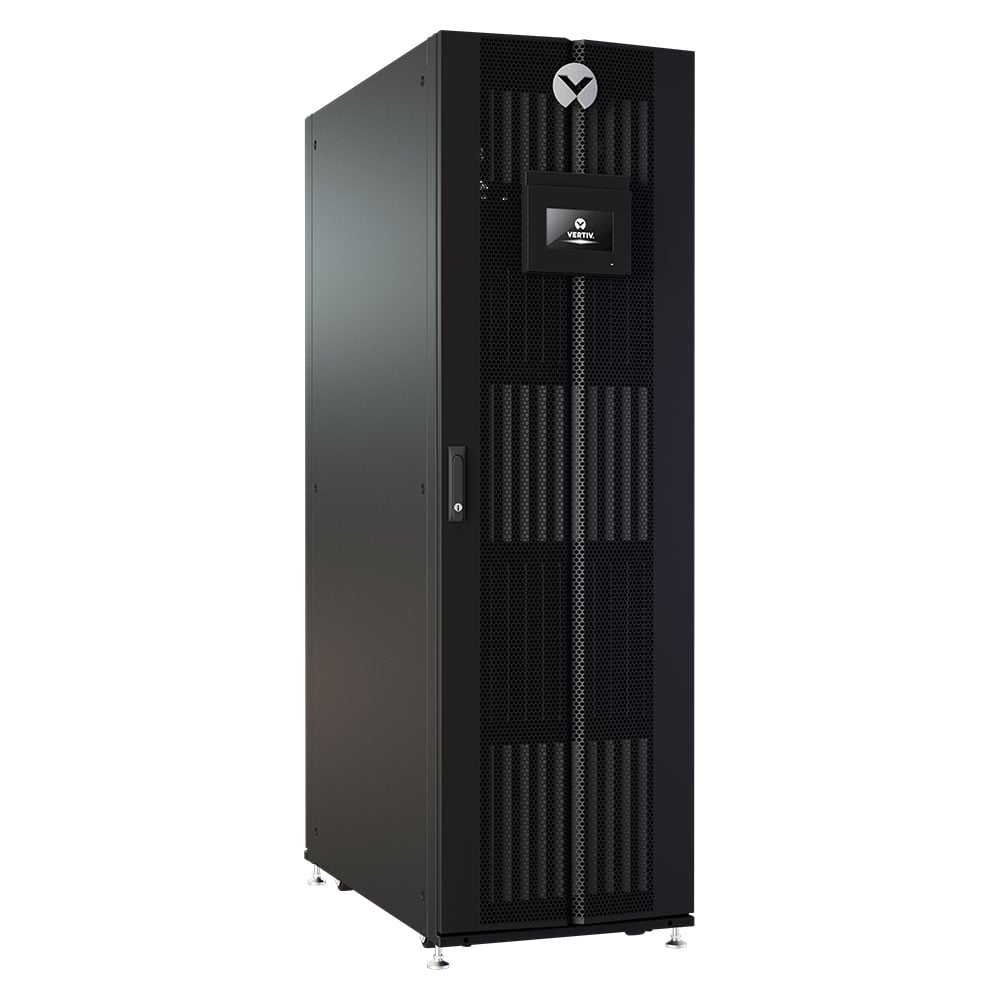

Vertiv™ CoolPhase Row, Row Based Cooling, 40kW
Vertiv™ CoolPhase Row is a high-efficiency, row-based cooling solution designed to meet the demanding thermal management needs of modern high-density data centers.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Retail and Wholesale
Product Model
Vertiv™ CoolPhase Row, Row Based Cooling, 40kW
Vertiv™ CoolPhase Row is a high-efficiency, row-based cooling solution designed to meet the demanding thermal management needs of modern high-density data centers.
Best Suited For:
- Banking
- Financial and Insurance
- Data Center/Colocation/Hosting
- Government
- Healthcare
- Retail and Wholesale
Benefits
- Multiple monitoring protocols and multi-unit teamworking allows users to stay informed of system conditions at all times.
- Space-saving, flexible row-based design offers more valuable floorspace for critical IT deployment.
- Scalable cooling from 20-100% capacity with load matching controls provides lower energy consumption and operational costs.
Features
- Higher cooling capacity with offerings up to 40kW delivering reliable performance to support high-density IT environments.
- Outdoor heat rejection capability from -31°F to 126°F ensuring dependable operation across extreme climate conditions.
- Low GWP Refrigerant (R-32) reduces environmental impact and meets environmental regulations.
Specifications
Vertiv™ CoolPhase Row, Row Based Cooling, 40kW
- Product Specifications
- Total Nominal Capacity kBtuh [kW]
- 136,000 BTUH (40kW)
- Nominal Airflow [CFM]
- 4709 CFM
- Total Capacity
- 40kW
- Input Voltage (V/Phase/Frequency Hz)
- 460V/3ph/60Hz, 65kAIC 230V/3ph/60Hz, 65kAIC
- Heat Rejection Medium
- Air-Cooled
- Controls and Monitoring
- SNMP, BACnet, Liebert® iCOM
- Allowable Heat Rejection
- -31° F to 126° F
- Physical Characteristics
- Height
- 43.3in
- Height
- 1100mm
- Width
- 23.6in
- Width
- 600mm
- Depth
- 47.2in
- Depth
- 1200mm
