Product Model

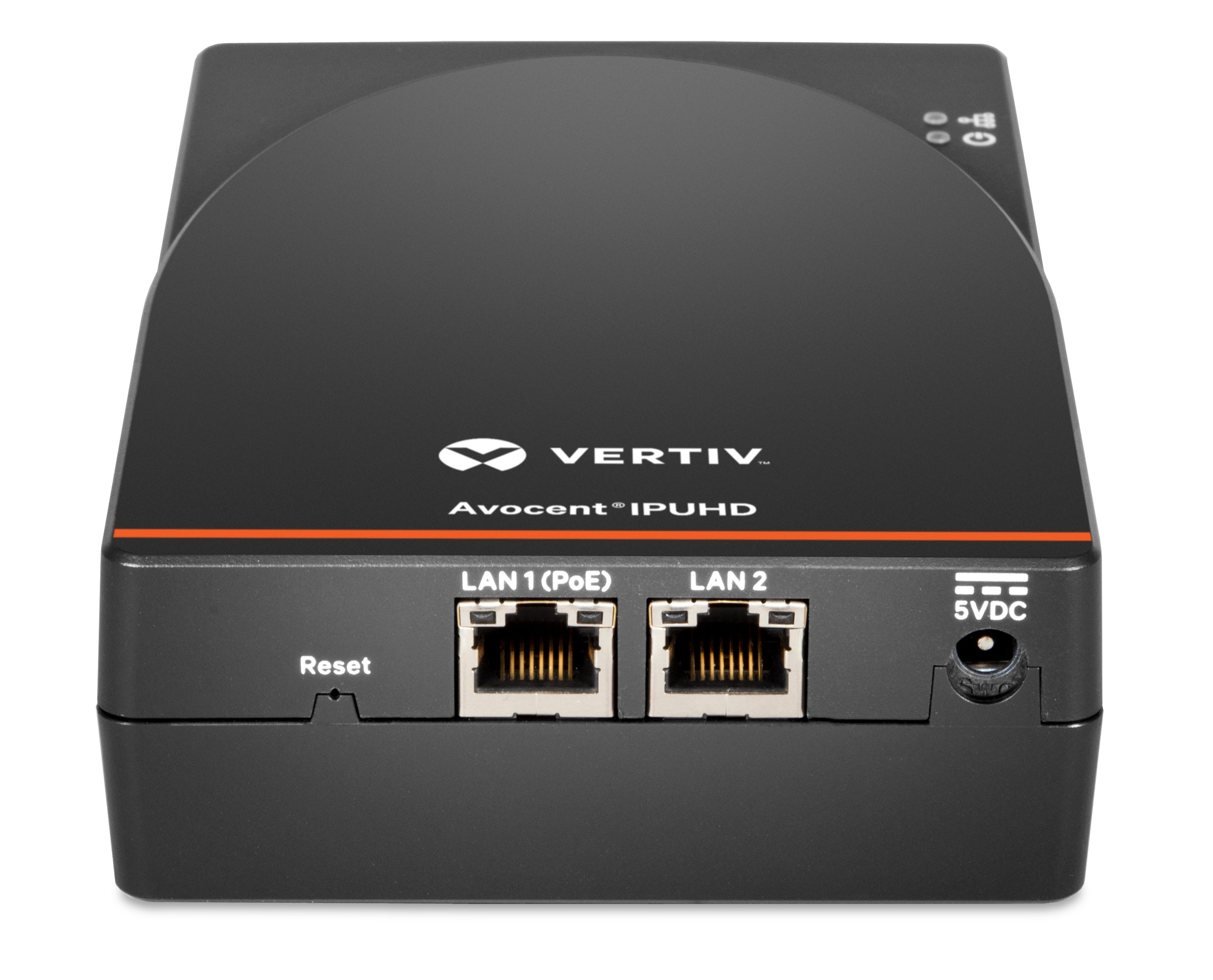

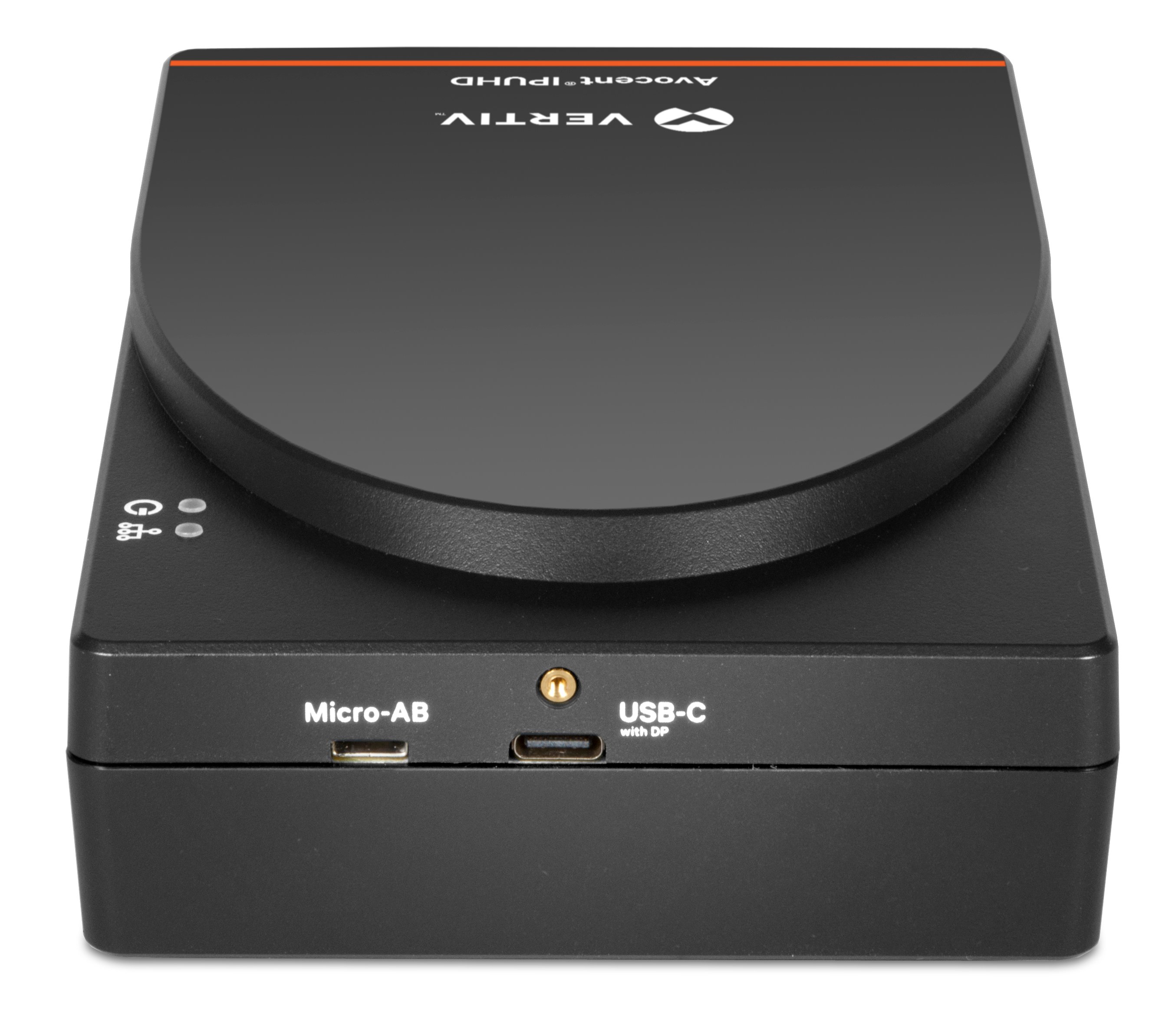

Vertiv™ Avocent® IPUHD 4K IP KVM

The Vertiv™ Avocent® IPUHD 4K IP KVM Device provides users with remote access to servers with 4K video resolution. Empower employees to do their best work by providing fast, seamless access to confidential on-premises and other business applications, increasing productivity and reducing work strain. The Avocent IPUHD is flexible in that it can be used either as an integrated 4K IP KVM with the Avocent MP1000 or RM1048P management appliances or as a standalone device with the Avocent DSView IPPS power supply.

Find Sales Contact Get Brochure Get Manual
Login to Save for Later
Key Benefits
Fastest and most feature rich KVM experience on a single device
Take advantage of total cost savings with Virtual Appliance
All digital architecture for flexible and scalable deployments
Most expansive management of IT devices
Resilient and secure technology support 100+ simultaneous users
Best Suited For:
  • Banking
  • Financial and Insurance
  • Broadcast and Entertainment
  • Data Center/Colocation/Hosting
  • Education
  • Healthcare
  • Government
  • Manufacturing
  • Retail and Wholesale
  • Telecom
  • Transportation
Warranty: 2 Year Standard Warranty

Benefits

Increased productivity for remote access and remote working
Scalable to meet diverse connectivity and resolution needs
Increased operational flexibility through native USB-C
Simplifies development and test cycles

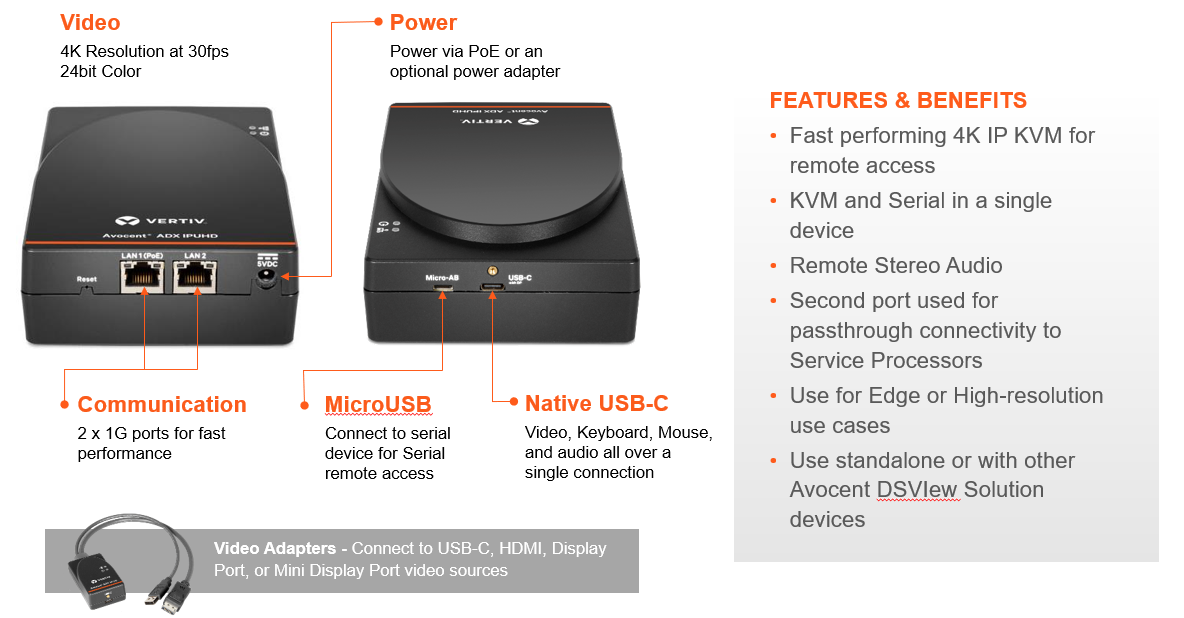

Features

IP addressable 4K KVM device
4K (3840 x 2160) @ 30Hz, 1920 x 1200 @ 60HZ
24-bit color for rich user experience
USB-C connector cable
Powered over PoE via LAN1 port
Secure Boot
LAN2 for Service Processor connectivity
Video adapters for HDMI, DP, and MiniDP
Serial connections over MicroUSB

The Vertiv™ Avocent® DSView™ Solution is built upon a secure common architecture which seamlessly integrate and scale to create an open yet resilient IT management platform – from Enterprise to Edge configurations. Avocent® DSView™ Solution provides the highest performance and agility, security, and enables automation, management, monitoring and control of all your devices like no other solution in the market. The Vertiv™ Avocent® MP1000 Management Platform allows users to manage service processors, virtual machines, IP KVM modules and remote access appliances. It also provides centralized firmware update capability to IT devices and limits security risks. The Vertiv™ Avocent® RM1048 Rack Manager uses a single IP to access devices, reduces power and cabling costs with PoE and can offer over 100+ user sessions without more hardware. The Vertiv™ Avocent® IPUHD 4K IP KVM offers remote 4K KVM with fast and precise mouse synchronization and end to end encryption of all traffic. It offers HDMI, DP, MiniDP adapters along with native USB-C for plug and play connectivity. The Vertiv™ Avocent® IPIQ IP KVM solution scales from edge to enterprise and increases productivity by simplifying remote access and troubleshooting of IT devices with enhanced video resolution.

Vertiv™ Avocent® IPUHD 4K IP KVM
Graphic Mode
Humidity
Operational - 5% to 80% Non-Operational 5% to 90%
Power Supply(s)
External Power Supply +5V 25W
Power Description
Network Interfaces
2 x 1G, w/lan1 PoE port - 802.3 @Type 2 PoE +
Serial Ports
1 x Micro USB
Interfaces/Ports
USB Ports
1 USBC, 1 Micro-USBC
Operating Temperature
32 to 122 degrees F (0 to 50 degrees C)
Fans
1
Operational Conditions
Agency Approvals
Please reference Data Sheet for Agency Approvals
Miscellaneous
Storage Temperature
-4 to 158 degrees F (-20 to 70 degrees C)
