Product Family

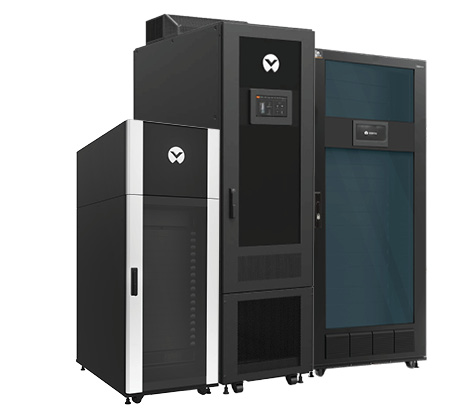

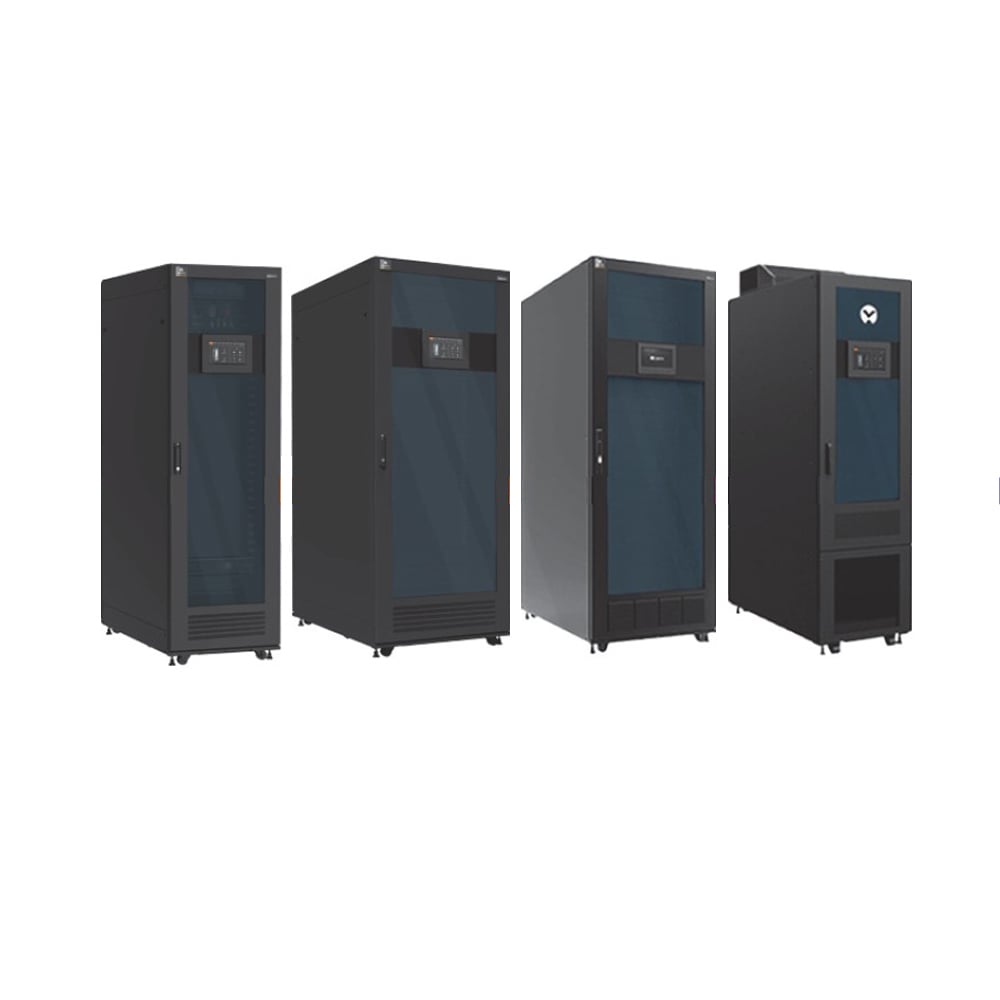

SmartCabinet™

Self-contained, pre-configured, pre-engineered and factory tested infrastructure solutions for data centers and telecom networks.​

Get Brochure Get Manual
Best Suited For:
  • Banking, Financial and Insurance
  • Broadcast and Entertainment
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Manufacturing
  • Retail and Wholesale
  • Telecom

Benefits

Fully integrated - Factory assembled and tested for power, thermal management, rack enclosure, power distribution, monitoring and management, and security for IT applications. No dedicated IT room is required.
Dust protection and noise insulation - Fully closed operation, cold/hot air is circulated within the rack for better temperature and humidity control, expanding lifespan of IT equipment, low noise level. Highly suitable for office environment.
Highly Efficient - Built-in high efficiency UPS and cooling equipment, that uses DC frequency conversion technology for energy savings.
User-friendly interface - Large 9-inch LCD touch panel that allows for easy access to system status/alarms/ setting.
Fast deployment – SmartCabinet provides faster deployment and is ready to use from day one, removing the need to build, construct and design computer rooms which dramatically reduces the required deployment period compared to a traditional IT facility build.
Central Management – optional feature of RDU-M that provides central management of multiple SmartCabinet sites.

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

Find Your Area Contact

Products Support Contacts

Showing contacts for Virginia, 20149, USA Change
Vertiv (Liebert Services)
+1 800 543 2378
610 Executive Campus Drive Westerville Ohio 43082 USA
Product areas of focus: Uninterruptible Power Supplies (UPS), Power Distribution, Thermal Management, Integrated Solutions, Racks and Containment

Frequently Asked Questions

Q
How many rack spaces available for client IT equipment?
A
29 Rack Unit (RU) spaces
Q
What is the power required to supply SmartCabinet?
A
Single-phase, 198Vac ~ 254Vac, with 50A circuit breaker minimum size
Q
What monitoring system is installed?
A
SmartCabinet monitoring uses the RDU-C card is a specialized card (a part of the RDU platform)
Q
What are the Vertiv services that are mandatory to SmartCabinet on purchase?
A
There are two items (1) Startup & Commissioning business hours 5x8 and (2) Labour Warranty minimum business hours 5x8. Upgrades are available on request
Q
Vertiv gives me two (2) years warranty to the 5kVA inrack UPS installed in SmartCabinet, how come I get only one (1) year in SmartCabinet?
A
Vertiv SmartCabinet is a system offering and not to be treated at component level. It includes not only hardware but also superior monitoring capability with its software pre-installed
