Product Family
Liebert® TDU

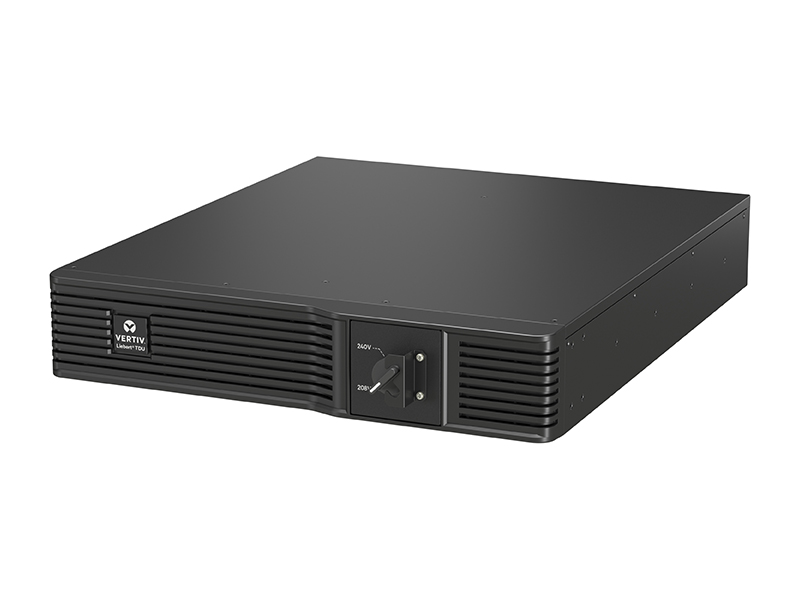

The Liebert® (TDU) Transformer Distribution Unit is a transformer in a rack-tower enclosure with integral distribution and forced air cooling.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Retail and Wholesale
Product Family
Liebert® TDU
The Liebert® (TDU) Transformer Distribution Unit is a transformer in a rack-tower enclosure with integral distribution and forced air cooling.
Best Suited For:
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Retail and Wholesale
Specifications
|
Vertiv™ Liebert® TDU - 3440W 120VAC | Step Down Transformer/Voltage Converter
|
||||||
|---|---|---|---|---|---|---|
| 3440VA / 3440W | 208 VAC or 240 VAC (200/220/230 VAC acceptable) | 120 VAC (100/110/115/127 VAC) | 94% | 3.4 in | 16.9 in | 22.6 in |
| See more product information | ||||||
|
Vertiv™ Liebert® TDU - 4000W 120VAC |Step Down Transformer/Voltage Converter
|
||||||
| 4000VA / 4000W | 208 VAC or 240 VAC (200/220/230 VAC acceptable) | 120 VAC (100/110/115/127 VAC) | 94% | 3.4 in | 16.9 in | 22.6 in |
| See more product information | ||||||
|
Vertiv™ Liebert® TDU - 5050W 120VAC | Step Down Transformer/Voltage Converter
|
||||||
| 5050VA / 5050W | 208 VAC or 240 VAC (200/220/230 VAC acceptable) | 120 VAC (100/110/115/127 VAC) | 94% | 3.4 in | 16.9 in | 22.6 in |
| See more product information |
Benefits
- Delivers 120VAC power to support critical IT infrastructure
- Offers 120V load support for 208V only UPS operation
- Designed to accommodate a range of input voltages
- Has input selection for 240VAC or 208VAC operation
- Energy efficient with its AC-AC efficiency of 94%
- Meets agency standards for safety, RFI/EMI, environmental and transportation
- Simple and quick installation in all standard racks or cabinets with included mounting brackets
Features

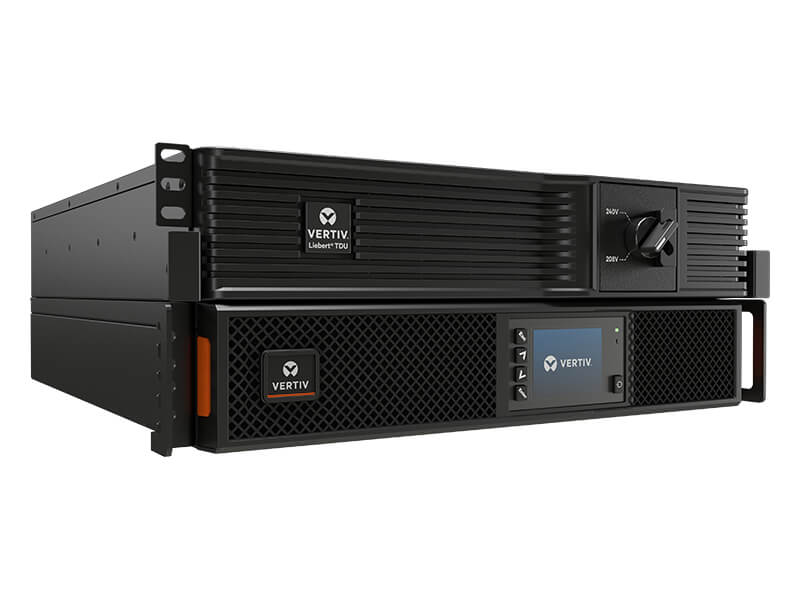

- Designed to work with the Liebert GXT3/GXT4 6000RTL630/3000RT208 and PSI5-5000RT208 model UPS
- Provides continuous use divided equally between two outlet groups
- Unit accepts either 208 or 240 VAC input and provides 120 VAC (L-N) output
- Incorporates a voltage selector switch for the user to select appropriate input voltage (208 or 240)
- Optional feet for tower configuration
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
