Product Family

Vertiv™ Geist™ Facility Side Cable

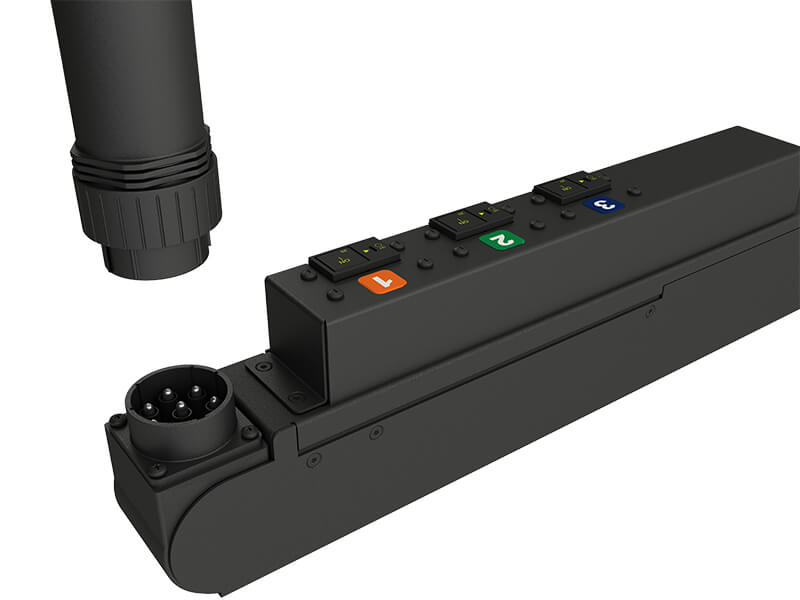

The Facility Side Cable is designed to mate with the Universal Input on the Vertiv™ Geist™ UPDU. It is available in common worldwide AC power specs ranging from 16A-60A and 120V-415V. The flexibility offered by the Universal PDU and Facility Side Cable enable any rack architecture to be installed around the world, regardless of power infrastructure. Select the Facility Side Cable specific to the local power configuration to power the Universal PDU (sold separately).

Find Sales Contact Get Brochure
Best Suited For:
  • Banking
  • Financial and Insurance
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Power/Gas Transmission and Distribution
Warranty: Vertiv™ Geist™ Facility Side Cables come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.
Tools & Selectors
Select, compare, or configure PDUs
Use the rPDU Finder
Find the PDU you require based on a variety of configurations
Configure your own rPDU
Engineered solutions delivered in record time

Vertiv™ Geist™ Facility Side Cable is available in a wide range of power configurations. To view the full list of available models, visit the rPDU Finder.

Model Specifications Overview
16/20A   230/400V WYE   230V   Universal Connector   Plug Type: 3P+N+E (IP44)
30A   208V   208V   Universal Connector   Plug Type: L6-30P
30A   120/208V WYE   120V or 208V   Universal Connector   Plug Type: L21-30P
30/32A   230/400V WYE   230V   Universal Connector   Plug Type: 3P+N+E (IP44)
60A   208V Delta   208V   Universal Connector   Plug Type: 3P+E (IP67)
30/32A   230V   230V   Universal Connector   Plug Type: 2P+E (IP44)

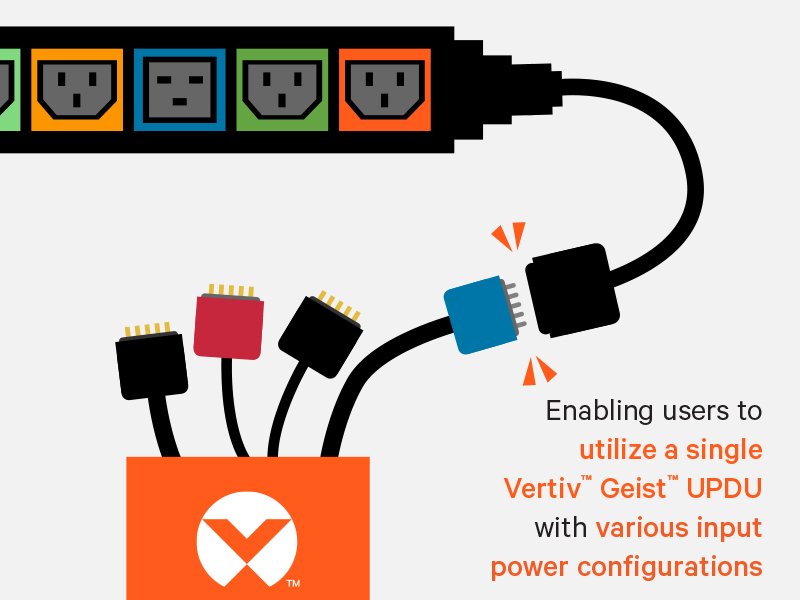

Simplify global IT infrastructure deployments with a single Universal PDU model using regionally specific power cables. Save time and money by pre-integrating Vertiv™ Geist™ rPDUs with the VR Rack. Contact your local sales representative to get started.


Power cable for the Vertiv™ Geist™ UPDU, Universal Power Distribution Unit Theuniversalconnector mates to the universal input on any Universal PDU.

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
