Product Model

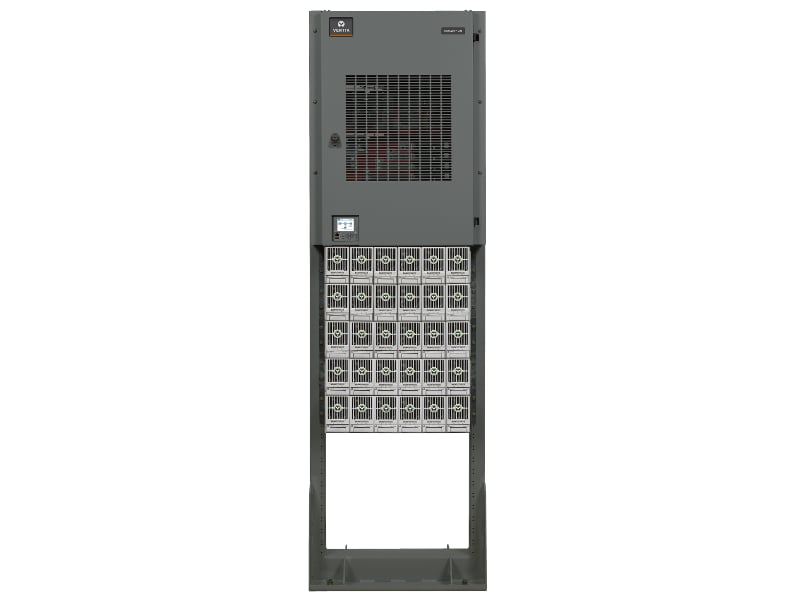

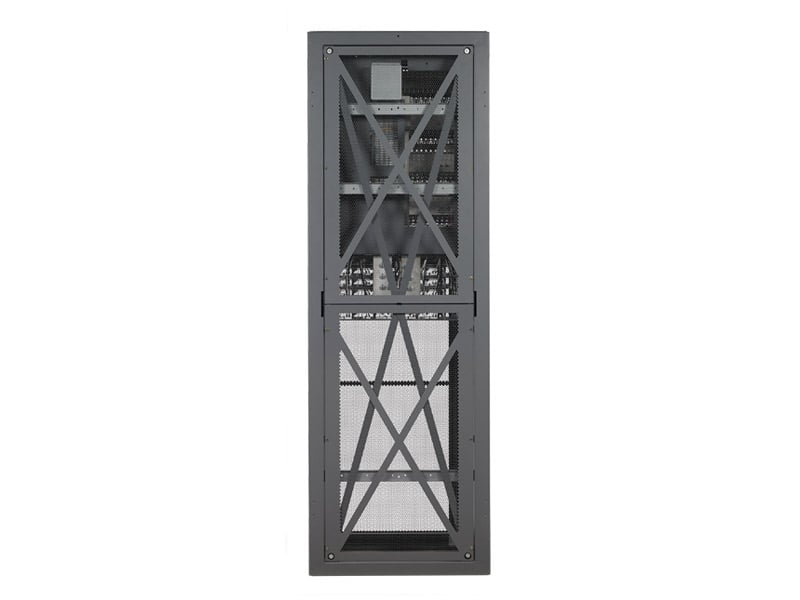

NetSure 7100 Series
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
- Data Center/Colocation/Hosting
- Government
Product Model
NetSure 7100 Series
Best Suited For:
- Telecom
- Data Center/Colocation/Hosting
- Government
Benefits
- Optimized total cost of ownership
- Safe and simple to install and operate
- Enhanced real-time visibility into what’s powering your network
- Includes DHCP Ethernet connection and local access via an additional port with a default IP address
- Meets strict agency standards for safety and reliability

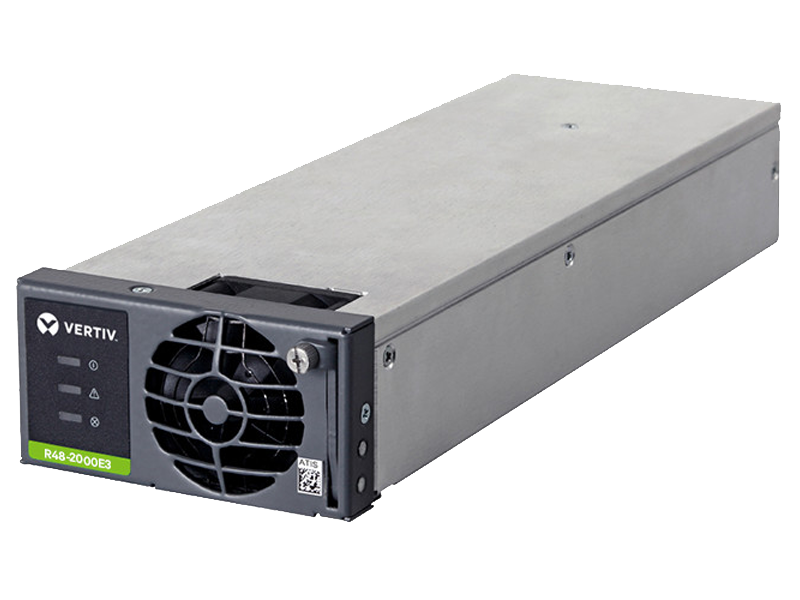

- Reduced energy costs with high-efficiency eSure rectifiers
- Low initial investment with scalable configuration that allows for incremental system growth
- High reliability with N+1 configuration redundancy
Features
- Advanced controller offers battery management, AC service monitoring, site monitoring, and configuration management
- Remote access supports HTTPS with multiple browsers, network element management via Modbus or SNMP (v2 or v3)
- Dual Ethernet port option
- Modular design with hot-swappable rectifiers and distribution units
- High system efficiency over 96%
- Multi-bay configurations
- Multiple AC input configurations
- NEBS Level 3 certified and UL Listed to UL Subject 1801
Specifications
NetSure 7100 Series
- Product Overview
- Power Capacity
- 600 kW (6 bays)
- Current Capacity
- 12,000 A (6 bays)
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Input Voltage, Nominal
- 208 VAC to 277/480 VAC
- System Type
- Cabinet or Relay Rack
- Input
- Input Voltage, Nominal
- 208 VAC to 277/480 VAC
- Input Voltage, Operational
- 176 VAC to 305/528 VAC
- Input Connections
- Terminal Blocks or Line Cords
- Equipment Dimensions (H x W x D)
- D Cabinet:12.2" (7RU) to 33.25" (19RU) x 23" x 20.1", R Shelves:1.7" (1RU) or 5.2" (3RU) x 23" x 20.1"
- Access
- Front for installation, operation and maintenance, Rear for multi-bay, rectifier shelf or battery tray expansion
- Output
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC
- Output Capacity
- Up to 2000 amps per bay at -48 VDC plus redundancy, maximum of six bays; Up to 520 amps at +24 VDC or -58 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.5%; Converter: 95% (+24 VDC or -58 VDC)
- Load Circuit Breakers / Fuses
- Up to (104) Bullet CBs, 1 to 300 A, Up to (24) GJ/218 CBs, 100 to 800 A, Up to (16) TPH Fuses, 70 to 600 A, Up to (16) TBL-B Fuses, 70 to 250 A
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- Up to (24) Bullet CBs, 1 to 300 A, Up to (4) GJ/218 CBs, 100 to 800 A, Up to (4) TPH Fuses, 70 to 600 A /up to 200A CB Disconnect mounted on each batt
- Options
- Low Voltage Load Disconnect, Low Voltage Batttery Disconnect, Battery Shunt, Battery Trays - Pre-cabled, Bulk Output Panel, Up to (68) Temp Sensors
- Weight
- 90.9 to 295.5 kg
- Height
- 2134 mm
- Width
- 584.2 to 711.2 mm
- Depth
- 510.5 to 711.2 mm
Manuals
- IM60029556 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- Vertiv™ NetSure™ 7100 Series -48 VDC Power System - User Manual - English
- Rectifier User Manual UM1R483500E3
- um02440103-sm-io2-user-manual
- NetSure™ - Control Unit (NCU) Controller - User Manual - English
- IM60027905 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual.pdf
- IM559251 (Rev E).pdf
- UM1C48582000P3 eSure Power Extend Converter User Manual
- IM559252 NetSure Controller Ethernet Kit
- IM60028248 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60028039 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
- IM60028017 Netsure -48 VDC to -58 VDC Output Converter Upgrade Kit Installation Manual
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
