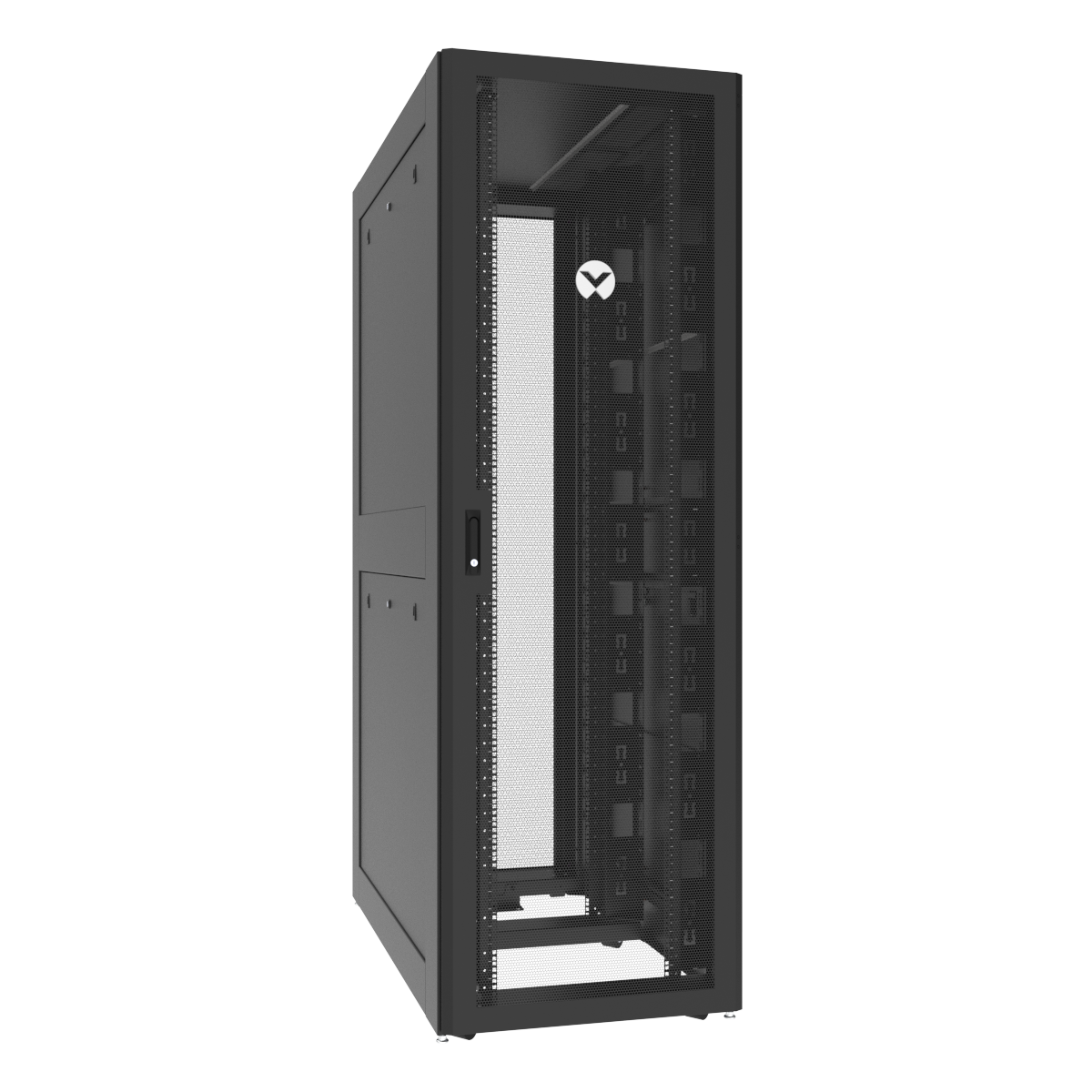

Vertiv™ Rack Extreme, High‑Density Rack‑Mount Equipment Platform
The Vertiv™ Rack Extreme delivers unmatched performance for high‑density IT and industrial environments. It supports evolving infrastructure needs with its 4,500‑lb dynamic and static weight capacity, supporting taller and deeper rack‑mount equipment. It also offers configurable airflow, cable management, and power options while maintaining compliance with UL 2416 standards. With multiple sizes, accessories, and mounting options, the Vertiv™ Rack Extreme offers the durability and adaptability requirements of modern data center operations.
Produit enregistré dans votre tableau de bord
Vous venez d’enregistrer ce produit dans votre tableau de bord afin de le consulter ultérieurement. Vous pourrez ensuite facilement le supprimer quand vous n’en aurez plus besoin.
Veuillez vous connecter ou créer un compte pour enregistrer ce contenu
Vertiv™ Rack Extreme, High‑Density Rack‑Mount Equipment Platform
The Vertiv™ Rack Extreme delivers unmatched performance for high‑density IT and industrial environments. It supports evolving infrastructure needs with its 4,500‑lb dynamic and static weight capacity, supporting taller and deeper rack‑mount equipment. It also offers configurable airflow, cable management, and power options while maintaining compliance with UL 2416 standards. With multiple sizes, accessories, and mounting options, the Vertiv™ Rack Extreme offers the durability and adaptability requirements of modern data center operations.
Avantages

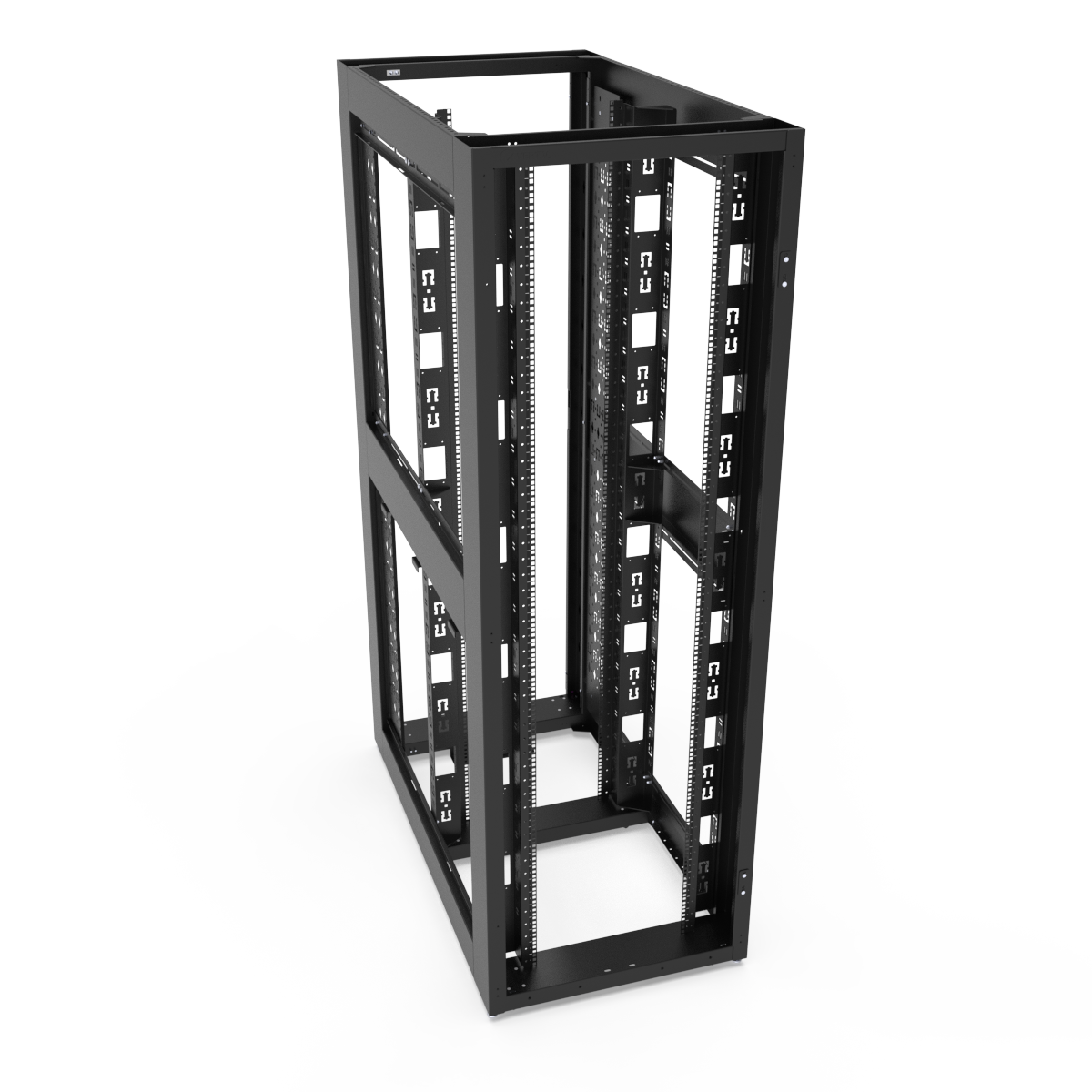

- SUPERIOR STRENGTH: Its fully welded frame and 2.5-mm mounting rails support up to 2,045 kg. of static and dynamic load for exceptional performance and durability in high‑density environments.
- ENHANCED STRUCTURAL CAPACITY: It accommodates heavier, taller, and deeper rack-mount equipment with both static and dynamic weight ratings.
- EFFICIENT AIRFLOW AND CABLING: Its integrated features and optional accessories optimize airflow and cable management in high-density environments.
- RELIABLE TRANSPORT AND DEPLOYMENT: It uses innovative shipping solutions, including shock pallets and multi‑use ramps, to protect equipment and enable efficient global deployment.
Caractéristiques
- HEX-MESH DOOR DESIGN: It enables efficient cooling and equipment performance within the cabinet and across the data center.
- TOP CABLE TROUGH (TCT): It provides an optional overhead pathway that keeps cables organized and accessible, optimizing airflow and simplifying maintenance.
- CABLE ACCESS TOP PANEL: It offers horizontal or vertical access through a brush‑grommet opening, keeping cables organized and reducing clutter.
- ADJUSTABLE RAILS: It uses depth‑adjustable rails with FMP, T‑slots, and square‑hole patterns to improve flexibility for D-ring accessories.
- CORNER POWER DISTRIBUTION UNIT (PDU) BARS: It includes two PDU cable bars per cabinet to make power connections easier to access and manage.
