Vertiv™ EnergyCore Lithium-Ion Battery Cabinets
The Vertiv™ EnergyCore Li5 and Li7 battery systems deliver high-density, lithium-ion energy storage designed for modern data centers. Purpose-built for critical backup and AI compute loads, they provide 10–15 years of reliable performance in a smaller footprint than VRLA batteries. With advanced BMS intelligence for precise State of Charge (SoC) and State of Health (SoH) tracking, these battery cabinets simplify installation, reduce maintenance, and optimize runtime. UL 9540A-tested safety, seamless UPS integration, and predictive health monitoring make Vertiv EnergyCore cabinets the smarter choice for organizations seeking efficient, space-saving, and future-ready energy storage.
Produit enregistré dans votre tableau de bord
Vous venez d’enregistrer ce produit dans votre tableau de bord afin de le consulter ultérieurement. Vous pourrez ensuite facilement le supprimer quand vous n’en aurez plus besoin.
Veuillez vous connecter ou créer un compte pour enregistrer ce contenu
- Datacenter / Colocation / Hébergement
- Administration
Vertiv™ EnergyCore Lithium-Ion Battery Cabinets
The Vertiv™ EnergyCore Li5 and Li7 battery systems deliver high-density, lithium-ion energy storage designed for modern data centers. Purpose-built for critical backup and AI compute loads, they provide 10–15 years of reliable performance in a smaller footprint than VRLA batteries. With advanced BMS intelligence for precise State of Charge (SoC) and State of Health (SoH) tracking, these battery cabinets simplify installation, reduce maintenance, and optimize runtime. UL 9540A-tested safety, seamless UPS integration, and predictive health monitoring make Vertiv EnergyCore cabinets the smarter choice for organizations seeking efficient, space-saving, and future-ready energy storage.
- Datacenter / Colocation / Hébergement
- Administration
Caractéristiques
The Vertiv™ EnergyCore Lithium-Ion Battery Cabinet provides high power density in a compact design. It can deliver up to 222.2 kWB (Li7) or 263 kWb (Li5) in 600 mm wide cabinet. It is designed to operate at higher temperatures of up to 30C and optimized for either 5- or 7-minute runtime. Built with lithium-ion batteries, it offers longer performance and more cycles than VRLA batteries. With a fully loaded cabinet shipped to your location and no onsite wiring needed, it saves on deployment time and cost.
|

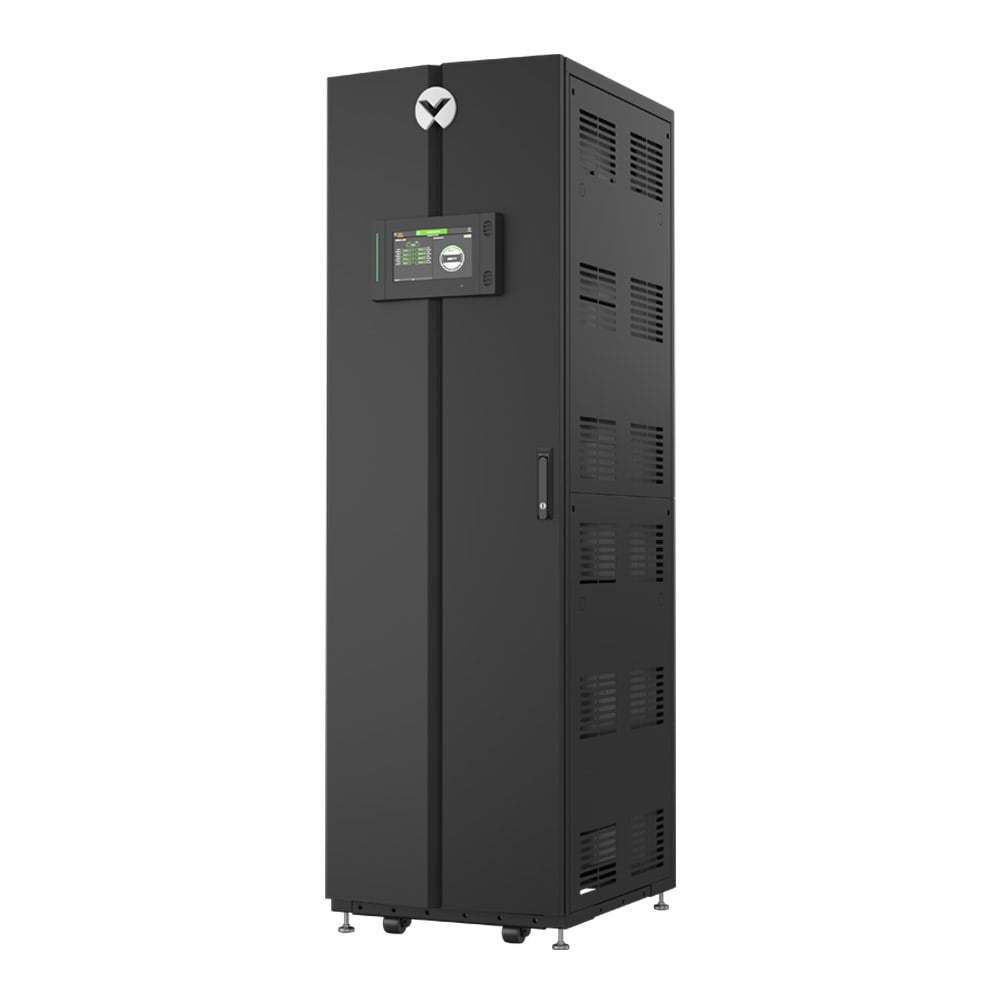

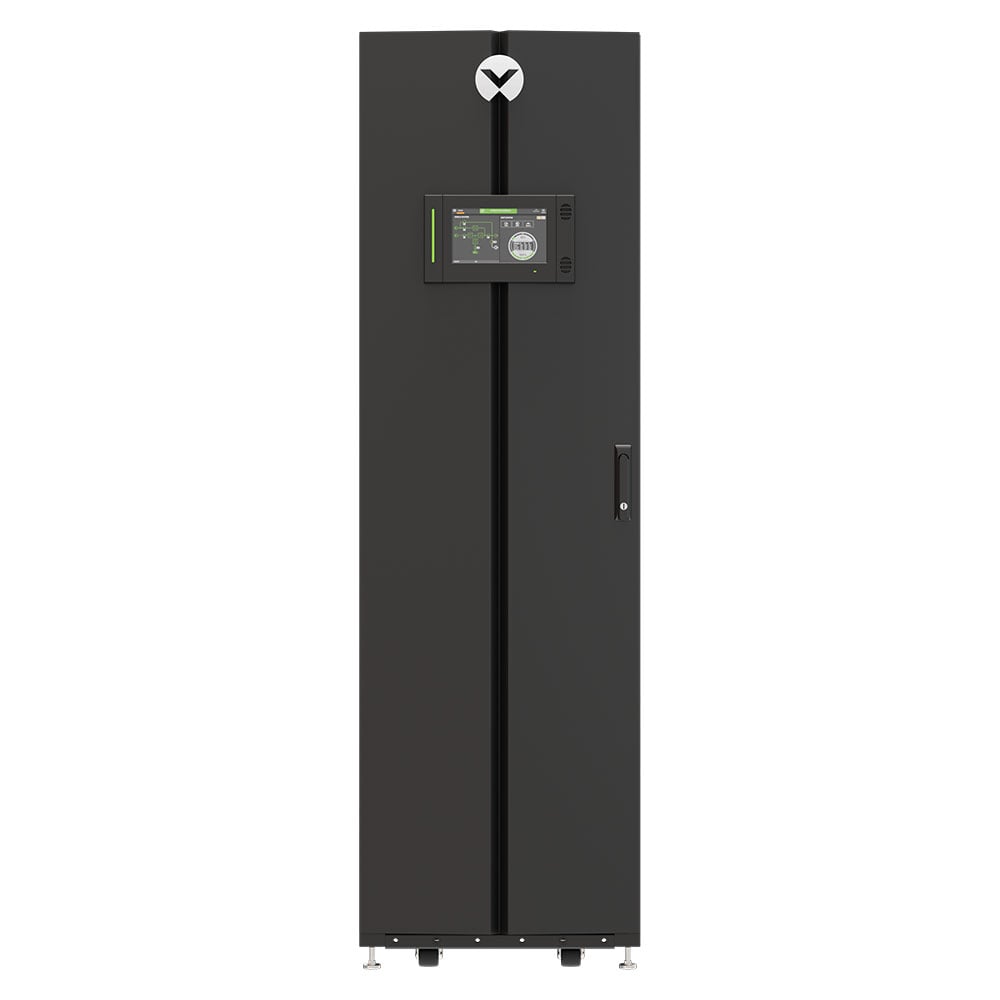

Vertiv™ EnergyCore Li7 Lithium-Ion Battery Cabinet
|
|||||
|---|---|---|---|---|---|
| 130,7 kW - 222,2 kW | 20,4 kWh - 34,6 kWh | 78.7 in | 23.6 in | 29.5 in | 977-1283 lbs |
| Voir plus d’informations produits | |||||
|

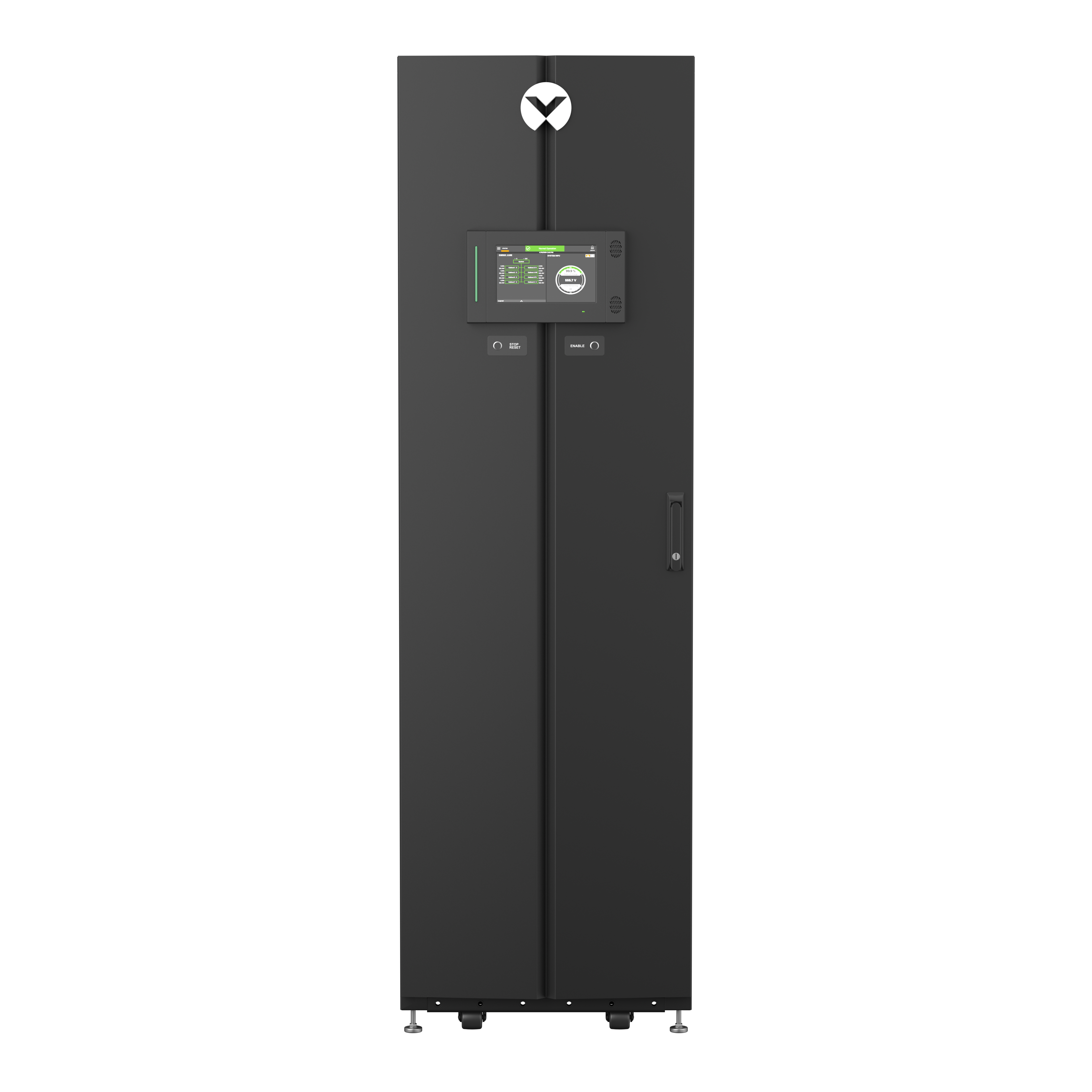

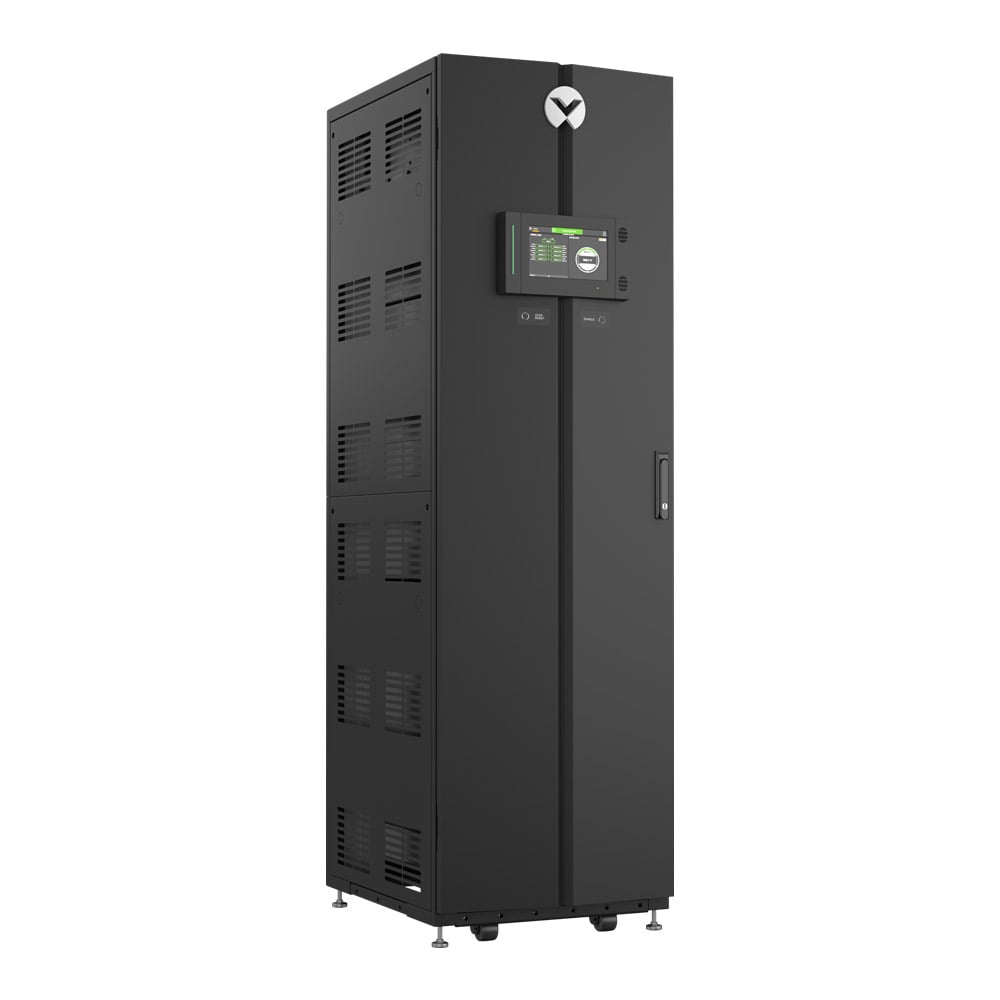

Vertiv™ EnergyCore Li5 Lithium-Ion Battery Cabinet
|
|||||
| 146 kWb-263 kWb | 17.3 kWh-31.1 kWh | 78.7 in | 23.6 in | 29.5 in | 882-1301 lbs |
| Voir plus d’informations produits |
Avantages
- OPTIMIZE RUNTIME: Choose high-density battery cabinet for 5-min and 7-min End of Life runtimes, making critical loads resilient and uninterrupted.
- HIGH PERFORMANCE BATTERIES: Utilize Lithium-Ion modules tested for demanding data center backup and AI compute workloads.

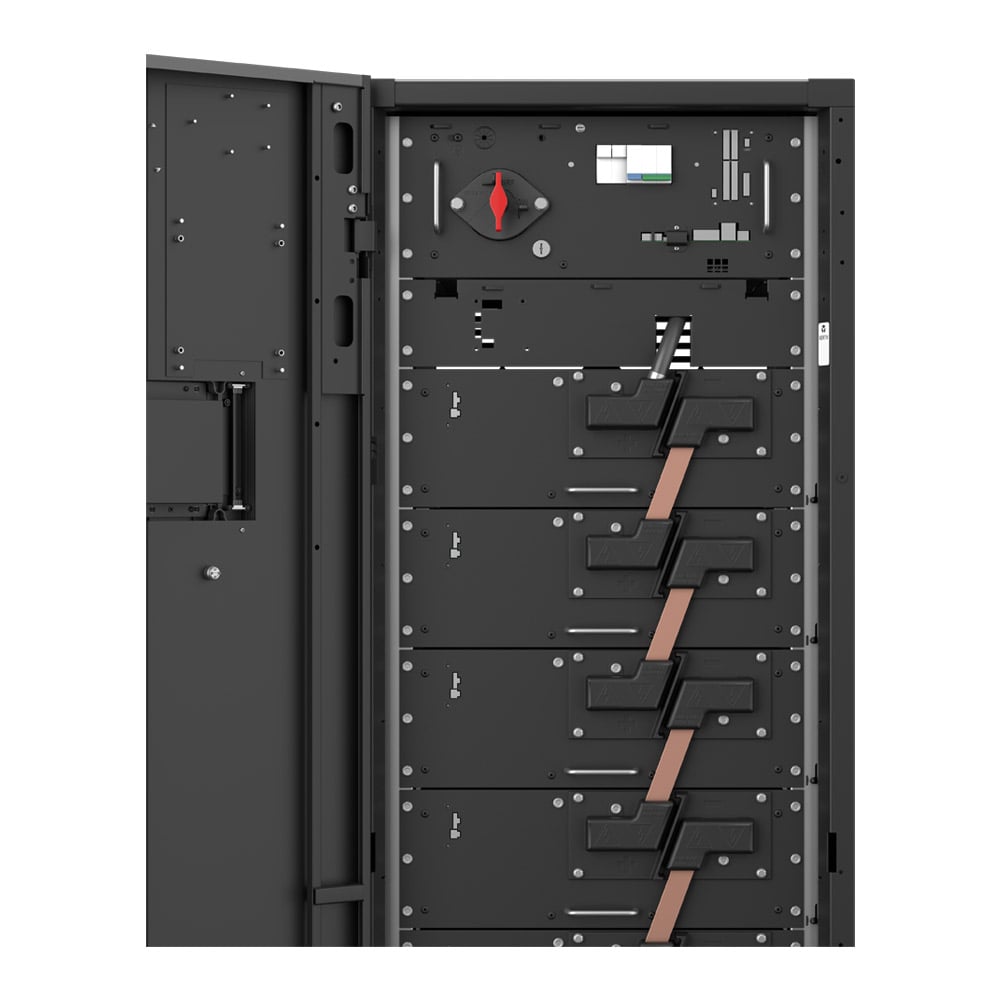

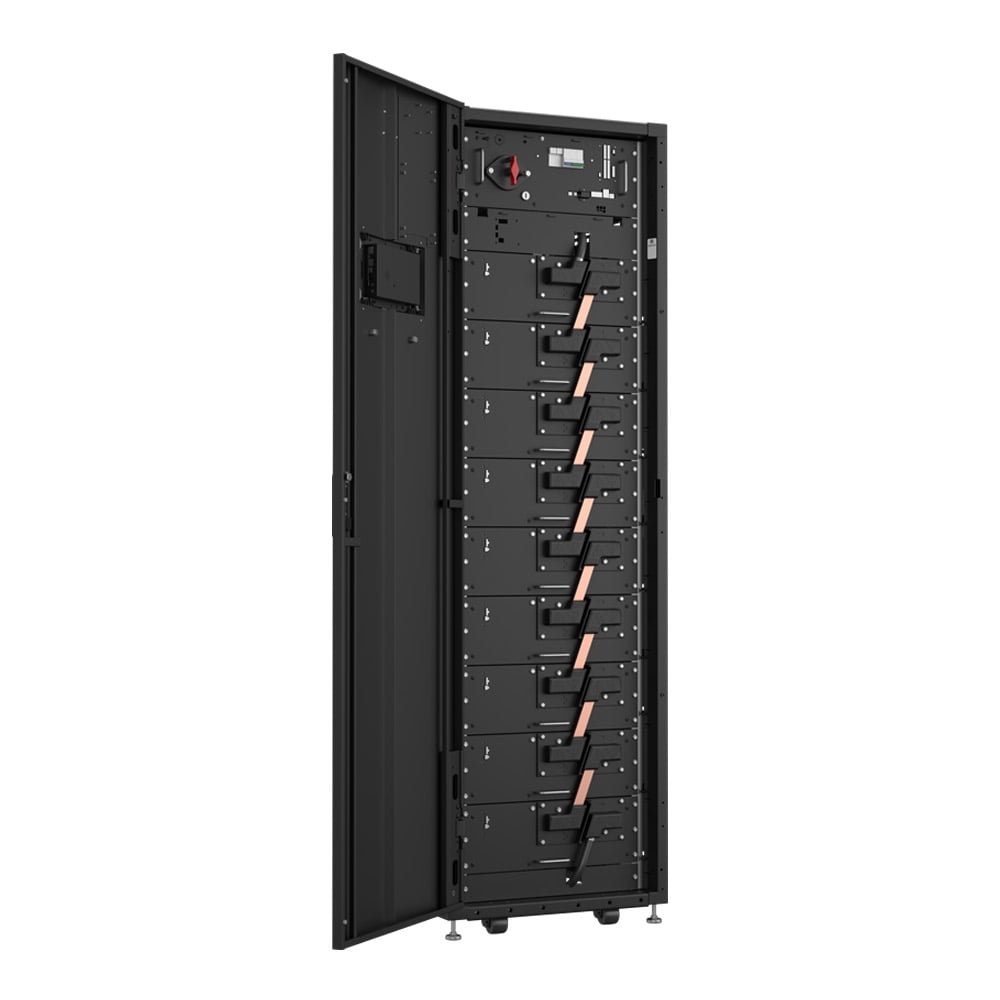

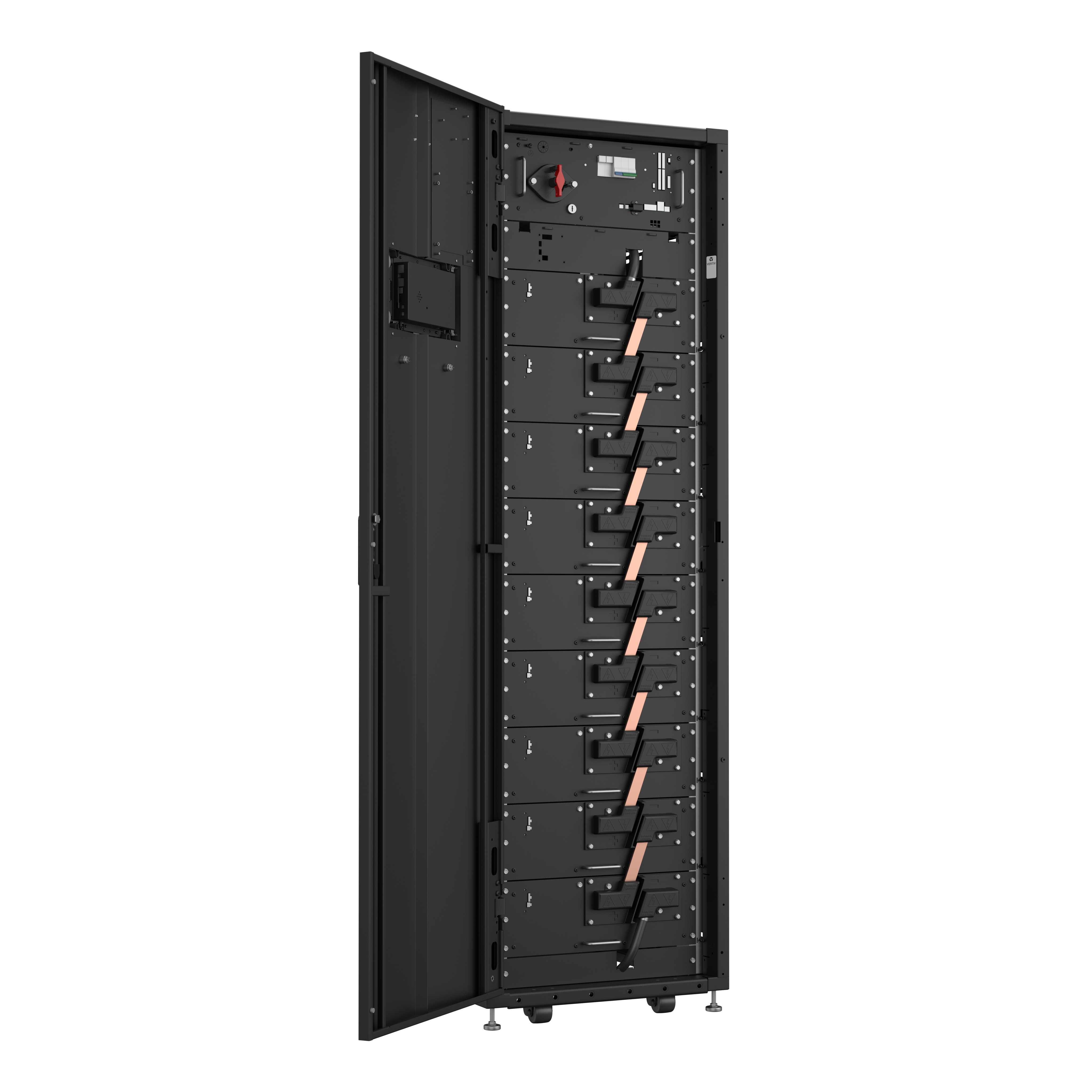

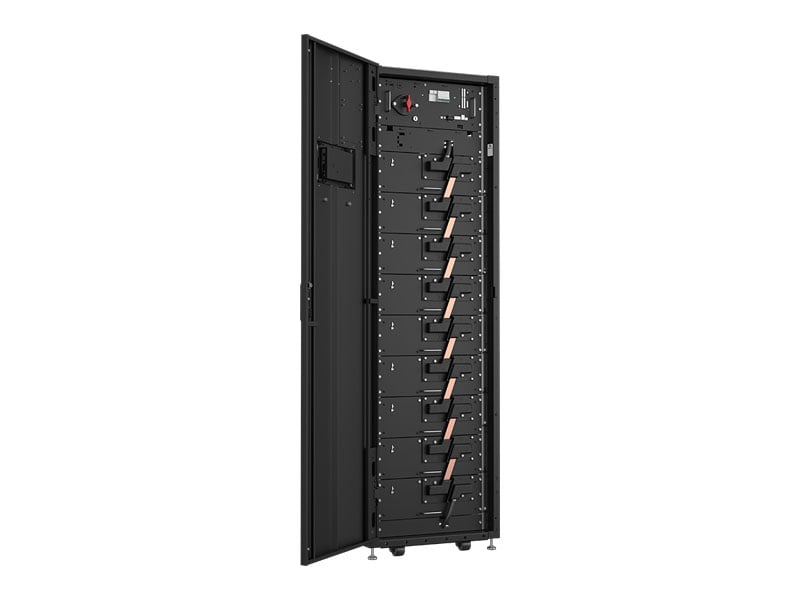

- EASY SETUP DESIGN: With front-facing, retractable shelf design, battery module replacement is fast and tool-free.
- INTERNAL POWER SUPPLY: It is powered internally from DC voltage, so no additional wiring is required, reducing install time and complexity.
- LONGER LIFE, GREATER RELIABILITY: Compared to VRLA batteries, Lithium-Ion batteries have 4x longer life and provide 500% more cycles.
Caractéristiques
- ADVANCED BMS: It delivers real-time SoC/SoH tracking with predictive insights.
- TOUCHSCREEN GHMI: It provides simple battery cabinet and system-level visibility.
- UPS INTEGRATION: Get seamless operation with Vertiv™ Liebert® UPS.
- SMART COMMUNICATIONS: Have MODBUS TCP/IP and SNMP support for remote monitoring.
- BUILT-IN REDUNDANCY: Reduce the risk by eliminating single points of failure.
- Vertiv™ EnergyCore Lithium Ion Battery Cabinet Installation and Operation Manual SL-71251
- Vertiv™ EnergyCore Lithium 7_IOM Installation and operation manual guide SL-71369
- Vertiv™ EnergyCore Lithium 7 Installation Manual EN SL-71369
- Special Seismic Certification - EnergyCore Lithium Ion Battery Cabinet
- Vertiv™ EnergyCore Lithium Battery Cabinet – Installation Manual (UPS Integrated Systems)
- Vertiv™ EnergyCore Lithium Battery Cabinet – Operation and Maintenance Manual (UPS Applications)
- Vertiv™ EnergyCore Lithium Battery Cabinet – Technical Specification (UPS Applications)
* Pour accéder aux téléchargements de modèles spécifiques, rendez-vous sur la page du produit en question en sélectionnant le nom de modèle dans le tableau de spécification plus haut.
Trouver votre Contact Région
Modifier
Produits et services liés
The Vertiv™ Liebert® EXL S1 UPS delivers secure power while providing premium load protection and maximum energy saving for large scale applications such as AI. Its Dynamic Grid Support feature can provide frequency regulation by controlling the input power to support services such as frequency regulation-up, regulation-down, or both via charging and discharging of the battery. At Dynamic Online mode, the UPS can have operating efficiency of up to 99% without sacrificing availability.

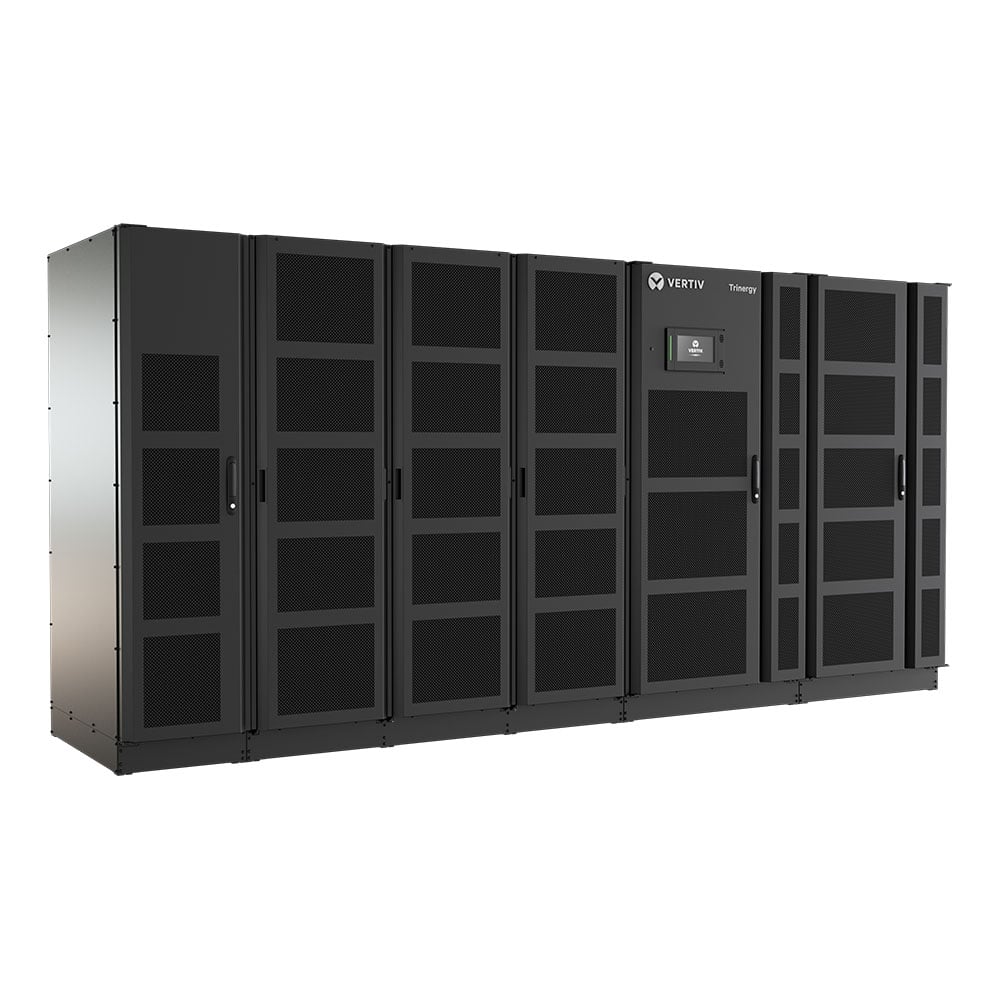

Vertiv™ Trinergy™ is Vertiv’s most reliable, resilient and efficient UPS in its product class, building on a legacy of exceeding Tier IV data center power chain availability. With over 40 years of technical innovation and globally proven experience, the Vertiv™ Trinergy™ UPS sets new standards in performance, modularity, resilience, reliability, and efficiency.
