Vertiv™ Liebert® STS2 - Static Transfer Switch
For maximum availability applications, Vertiv™ Liebert® STS2 static transfer switch provides an automatic, seamless transfer between your critical load and the outputs of two independent UPS systems in a dual-bus power configuration. If the primary UPS should fail, the switch will automatically transfer the loads to the alternate UPS.
- Centre de données/colocation/hébergement
- Banque, finances et assurances
- Administration publique
- Santé
- Commerce de détail et de gros
- Éducation
Spécifications
The Liebert® STS2 from Vertiv is making it easier to protect your critical equipment by giving your single cord loads the reliability of dual cord power or by providing added redundancy to your dual cord devices. With a single, space-saving unit, the Liebert STS2 static transfer switch provides automatic switching between two different AC power sources. The Liebert STS2 is available in 100A, 250A, 400A, 600A, 800A, 1000A, 1200A, 1250A, 1400A, 1600A, 1800A and 1850A systems, in both 60Hz and 50Hz. Multiple input voltages are available. Designed for use in dual-bus power applications, this solution combines fast switching between AC power sources, power isolation, monitoring and grounding into a single package.
|
Liebert® STS2 ST 100A
|
|||||
|---|---|---|---|---|---|
| 100 amps | 208, 220, 240, 280, 400, 415, 480, 575, 600 VAC | 77 in | 30 in | 32 in | 780 lbs |
| Afficher plus d'informations sur le produit | |||||
|
Liebert® STS2 ST 250A
|
|||||
| 250 amps | 208, 220, 240, 280, 400, 415, 480, 575, 600 VAC | 77 in | 30 in | 32 in | 780 lbs |
| Afficher plus d'informations sur le produit | |||||
|
Liebert® STS2 ST400A
|
|||||
| 400 amps | 208, 220, 240, 280, 400, 415, 480, 575, 600 VAC | 77 in | 38 in | 32 in | 1200 lbs |
| Afficher plus d'informations sur le produit | |||||
|
Liebert® STS2 ST 600A
|
|||||
| 600 amps | 208, 220, 240, 280, 400, 415, 480, 575, 600 VAC | 77 in | 38 in | 32 in | 1200 lbs |
| Afficher plus d'informations sur le produit | |||||
|
Liebert® STS2 ST 800A
|
|||||
| 800 amps | 208, 220, 240, 280, 400, 415, 480, 575, 600 VAC | 77 in | 84 in | 32 in | 2500 lbs |
| Afficher plus d'informations sur le produit | |||||
|
Liebert® STS2 ST 1000A
|
|||||
| 1000 amps | 208, 220, 240, 280, 400, 415, 480, 575, 600 VAC | 77 in | 84 in | 32 in | 2500 lbs |
| Afficher plus d'informations sur le produit | |||||
|
Liebert® STS2 SR 400A
|
|||||
| 400 Amps | 208, 480 VAC | 69.4 in | 31.7 in | 32 in | 1200 lb |
| Afficher plus d'informations sur le produit | |||||
|

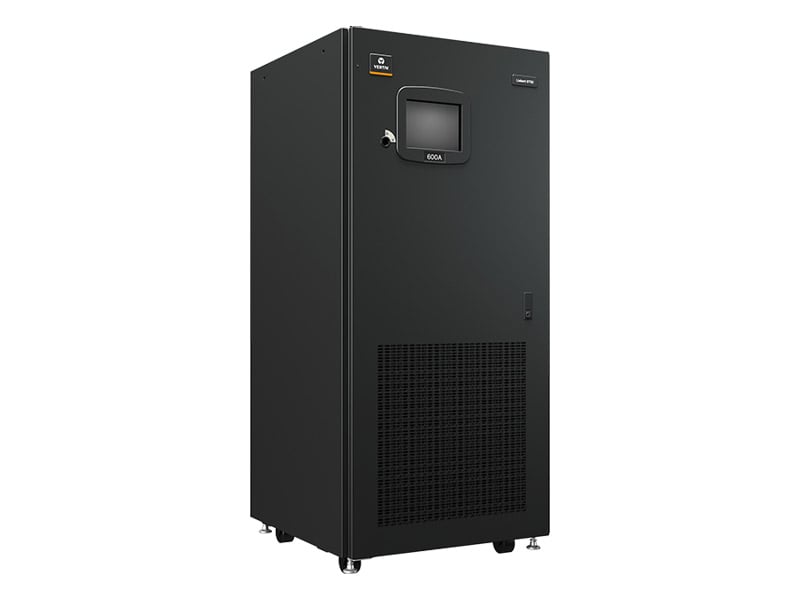

Liebert® STS2 SR 600A
|
|||||
| 600 Amps | 208, 480 VAC | 69.4 in | 31.7 in | 32 in | 1200 lb |
| Afficher plus d'informations sur le produit | |||||
|
Liebert® STS2 SX 1200-1850A
|
|||||
| 1200, 1250, 1400, 1600, 1800, 1850 amps | 380, 400, 415, 480, 575, 600 VAC | 88 in | 25.7 in | 35.6 in | 1430 lbs |
| Afficher plus d'informations sur le produit |
Avantages
- Operates efficiently.
- Front access to all components provides simplifies installation and maintenance, and reduces amount of floorspace required for access.
- Internal CANBUS protocol: high-bandwidth communication between system components via twisted-pair cables.
- Triple redundant logic with dual power feeds.

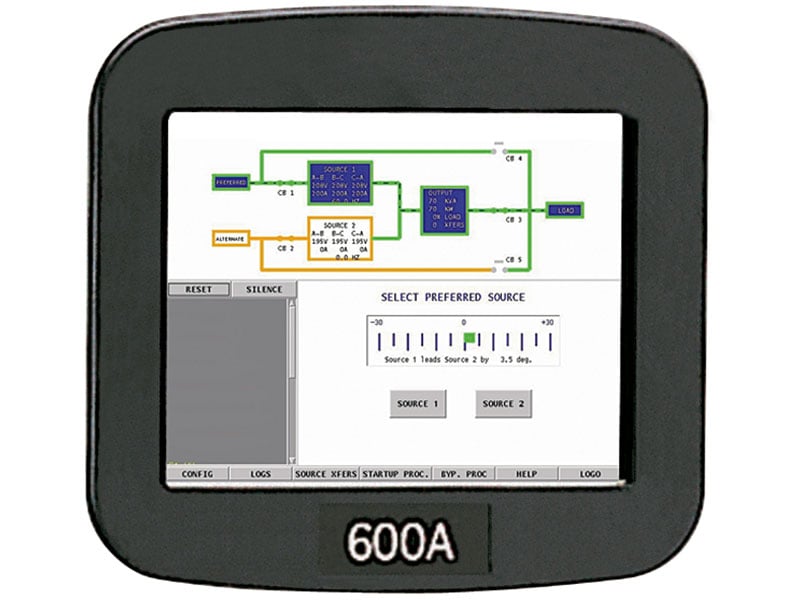

- Standard on-unit monitoring and optional centralized monitoring capability provide continuous system visibility.
- When applied as primary side switching, cost are lower due to requiring only one power distribution unit, a lower current due to 480V vs. 208V, and lower installation and wiring cost.
Caractéristiques
- Automatic switching for dual bus loads.
- Requires only front access for easy installation and maintenance.
- Offers primary or secondary side switching.
- 100% rated, fuse less design.
