NetSure 7000 Series DC Power System
Designed for medium sized central office telecom and data center applications, ideal for replacing less power efficient solutions at sites where optimal power expandability, efficiency, and system availability are key to success. Featuring Intelligent Load Management current measurement.
NetSure 7000 Series DC Power System
Designed for medium sized central office telecom and data center applications, ideal for replacing less power efficient solutions at sites where optimal power expandability, efficiency, and system availability are key to success. Featuring Intelligent Load Management current measurement.
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Government
- Military, Defense, Aerospace and Missile
- Telecom
Especificaciones
The NetSure™ 7000 Series is designed for central offices requiring power efficiency, reliability and system availability in a small footprint. With Intelligent Load Management, individual loads can be measured and monitored, enabling tuning of power & distribution based on actual load conditions. By providing early warnings before potential overload actions to avoid failures can be taken upfront.
|

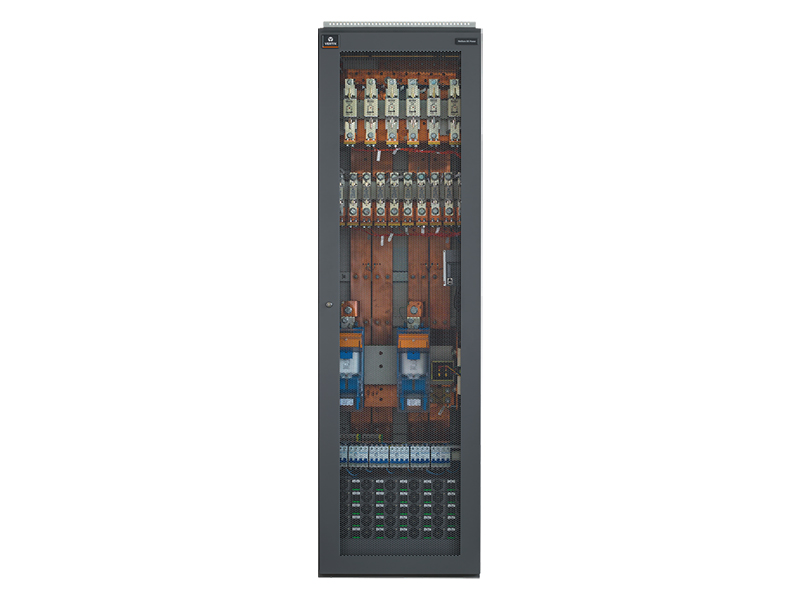

NetSure 7100 Semi-Bulk DC Power System
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 105 kW (cabinets can be expanded up to MW output) | 2500 A cabinet capacity | 48VDC | Single phase: 200 VAC to 240 VAC | Cabinet | 2020 | 600 | 600 | 250 |
| Ver más información del producto | ||||||||
|
NetSure 7100 Bulk
|
||||||||
| 210kW | 4000A | 48VDC | Single phase: 200 VAC to 240 VAC | Cabinets | 2020 mm | 600 mm | 600 mm | 455 kg per system |
| Ver más información del producto | ||||||||
|
NetSure 7100 Multi Cabinet DC Power System
|
||||||||
| 42 kW (total system power up to 2.8 MW) | 875 A per cabinet | 48 VDC | Single phase: 200 VAC to 240 VAC | Cabinet | 1800 or 2020 mm | 600 mm | 600 mm | 155 kg per cabinet |
| Ver más información del producto | ||||||||
|
NetSure 7100 Converged DC Power System
|
||||||||
| 63 kW | 1200 A per cabinet | 230 VAC / 48 VDC | Single phase: 200 VAC to 240 VAC | Cabinet | 2020 mm | 600 mm | 600 mm | 246 kg per cabinet |
| Ver más información del producto |
Beneficios
Características
- DC Power Solutions for Core Applications Brochure English
- NetSure Advanced Remote Distribution Cabinet Data Sheet English
- NetSure 7100 Stand Alone DC Power System Data Sheet English
- Netsure 7100 Converged AC & DC Power System Data Sheet English
- NetSure 7100 Multi Cabinet DC Power System Data Sheet English
- Intelligent Load Management Data Sheet
- NetSure Control Unit (NCU) Data Sheet

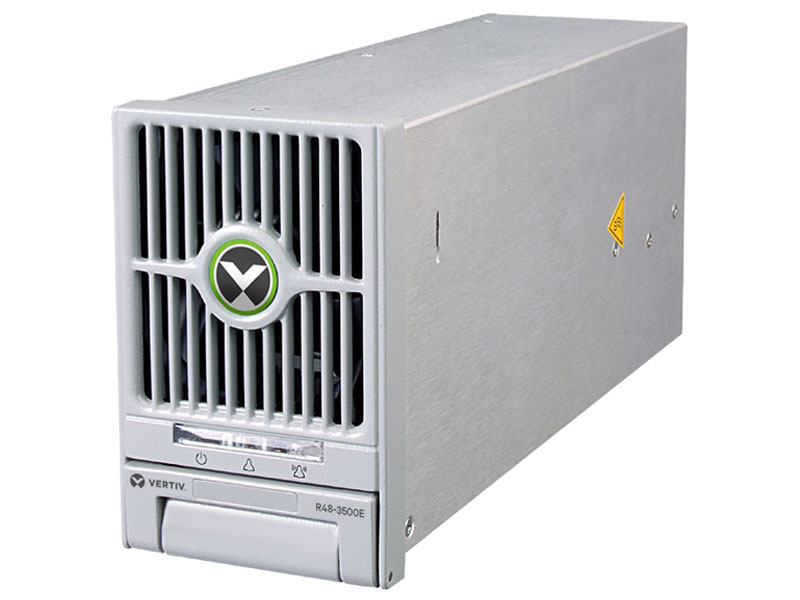

- R48-3500e3 Rectifier Data Sheet
- R48-3500E4 Rectifier Data Sheet
*Para ver las descargas específicas del modelo, necesita ir a la página de producto seleccionando el nombre del producto en el gráfico de especificaciones que aparece más arriba.
