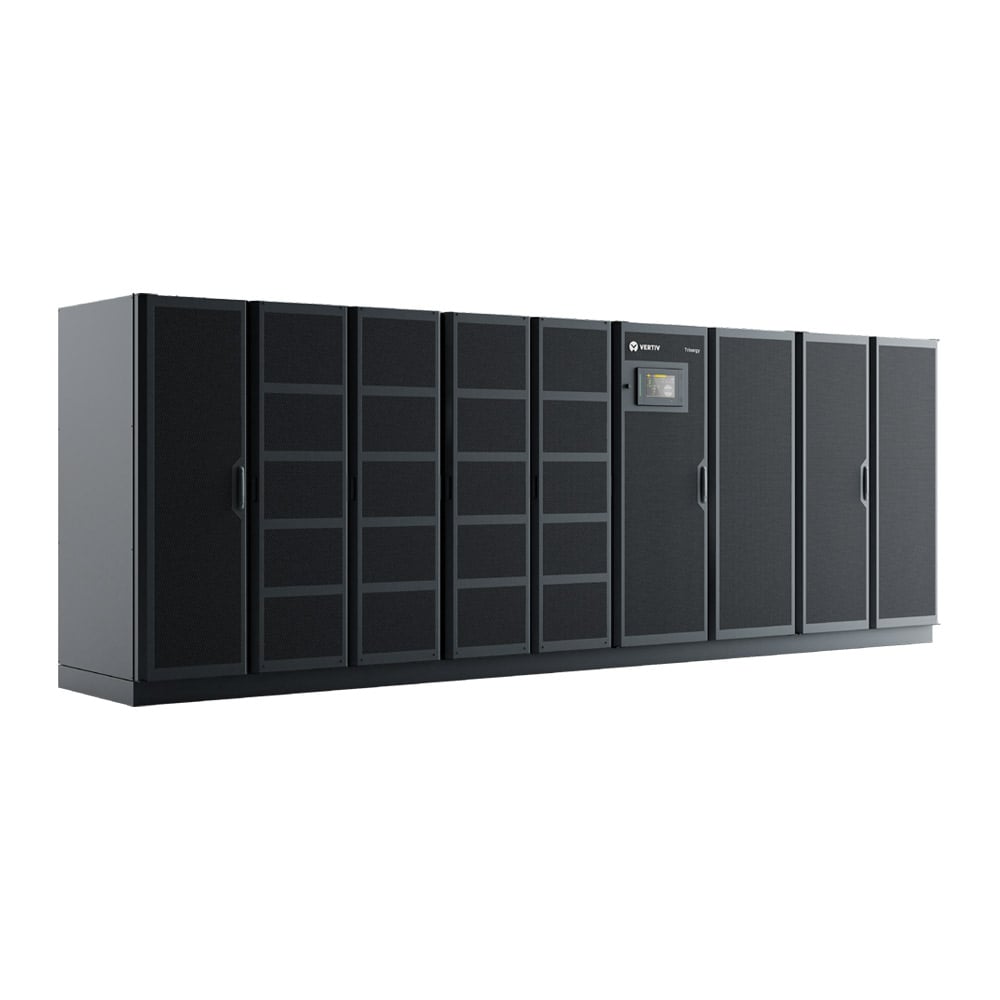

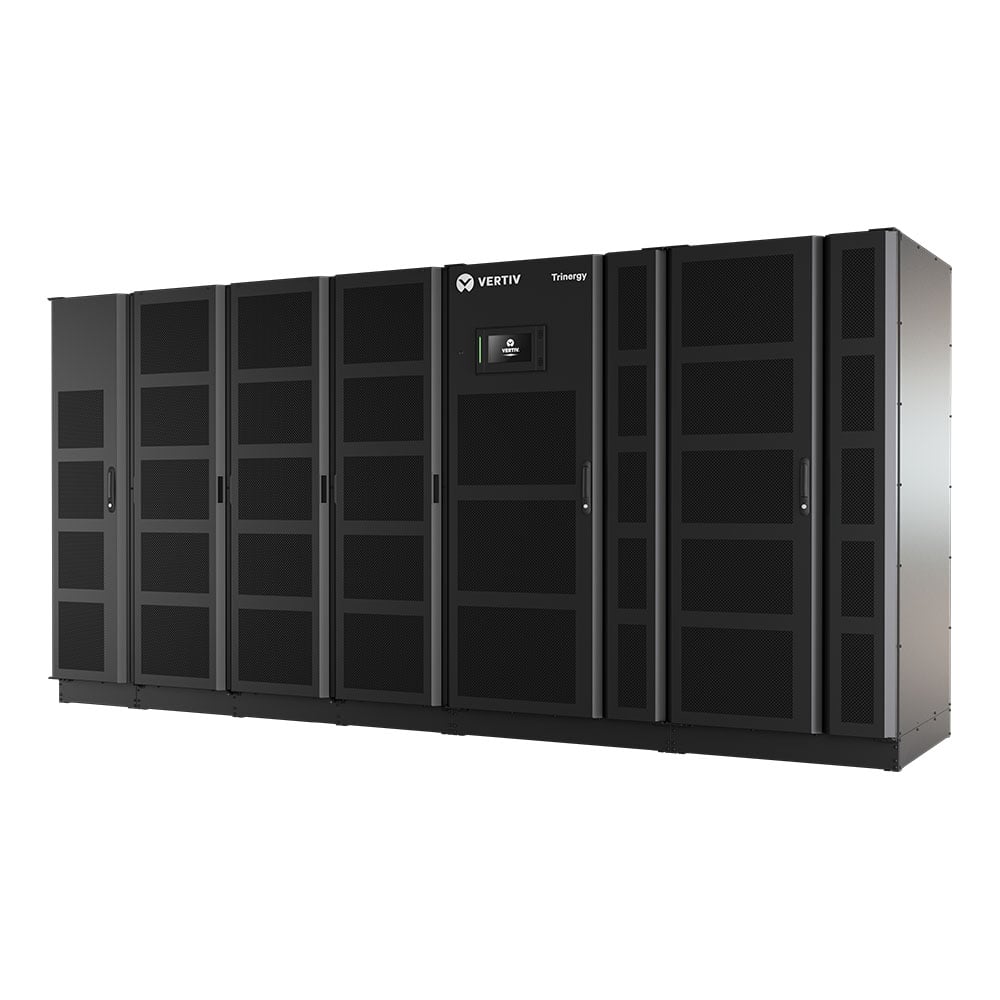

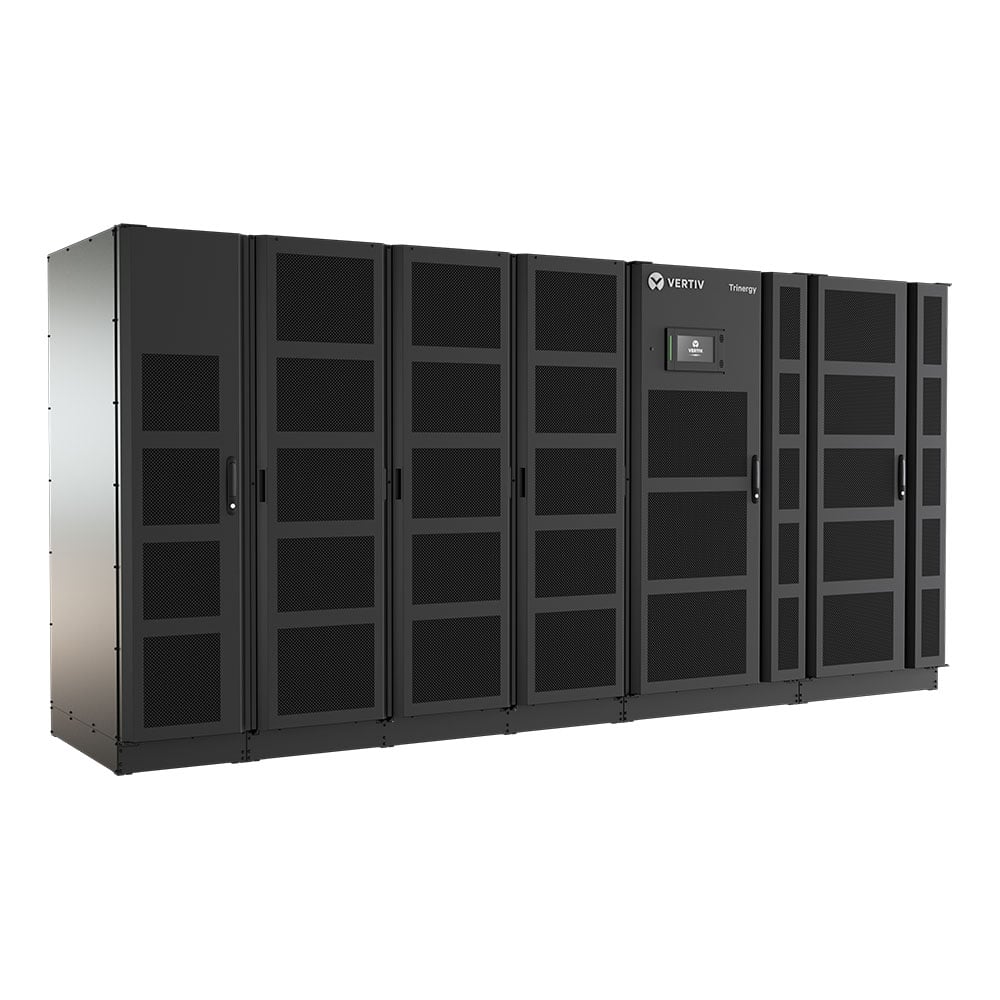

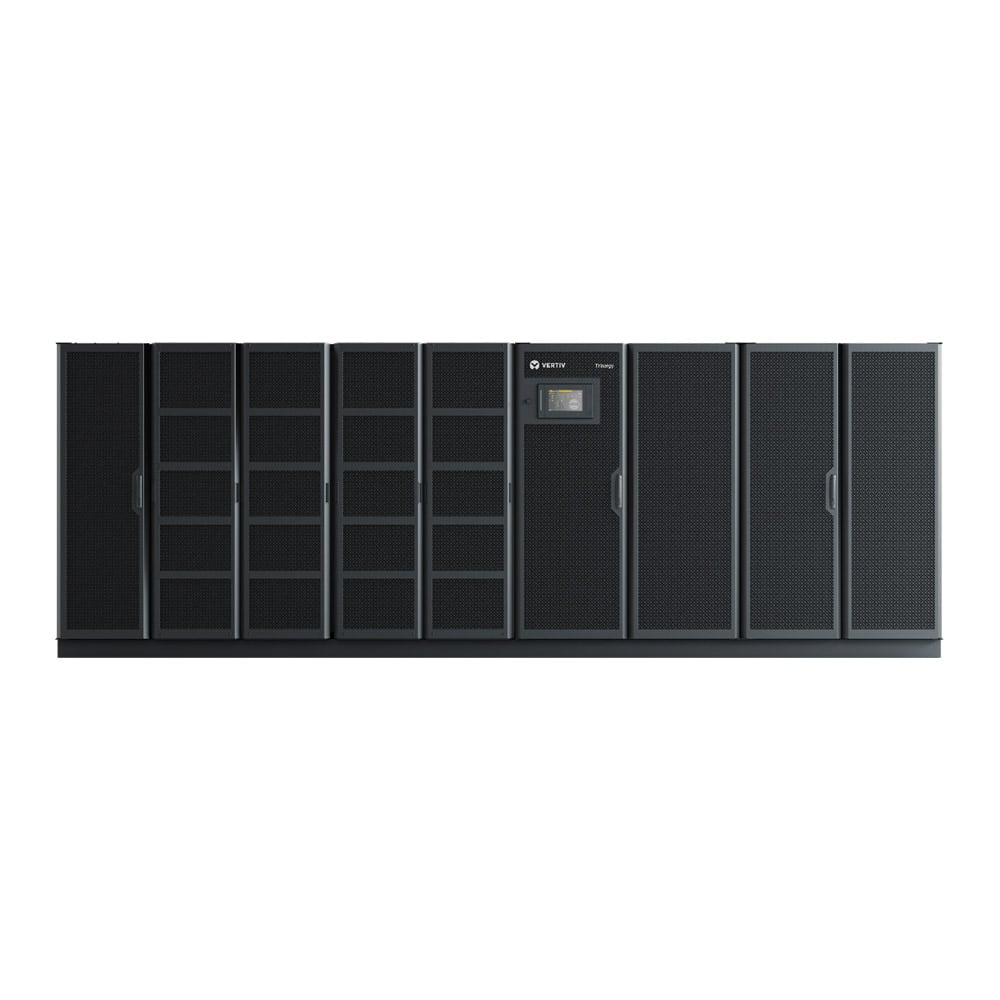

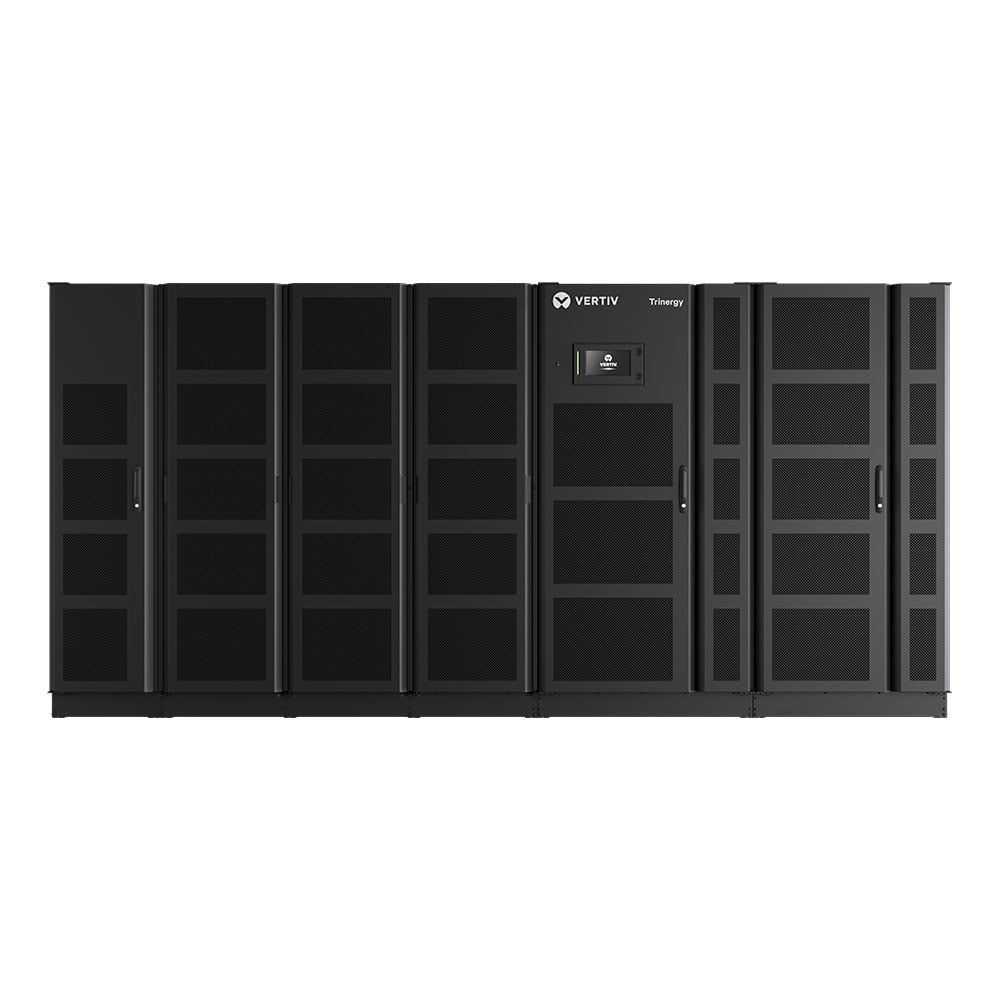

Vertiv™ Trinergy™ UPS, 1500-2500 kW 480V UL 3-Phase Modular Large UPS

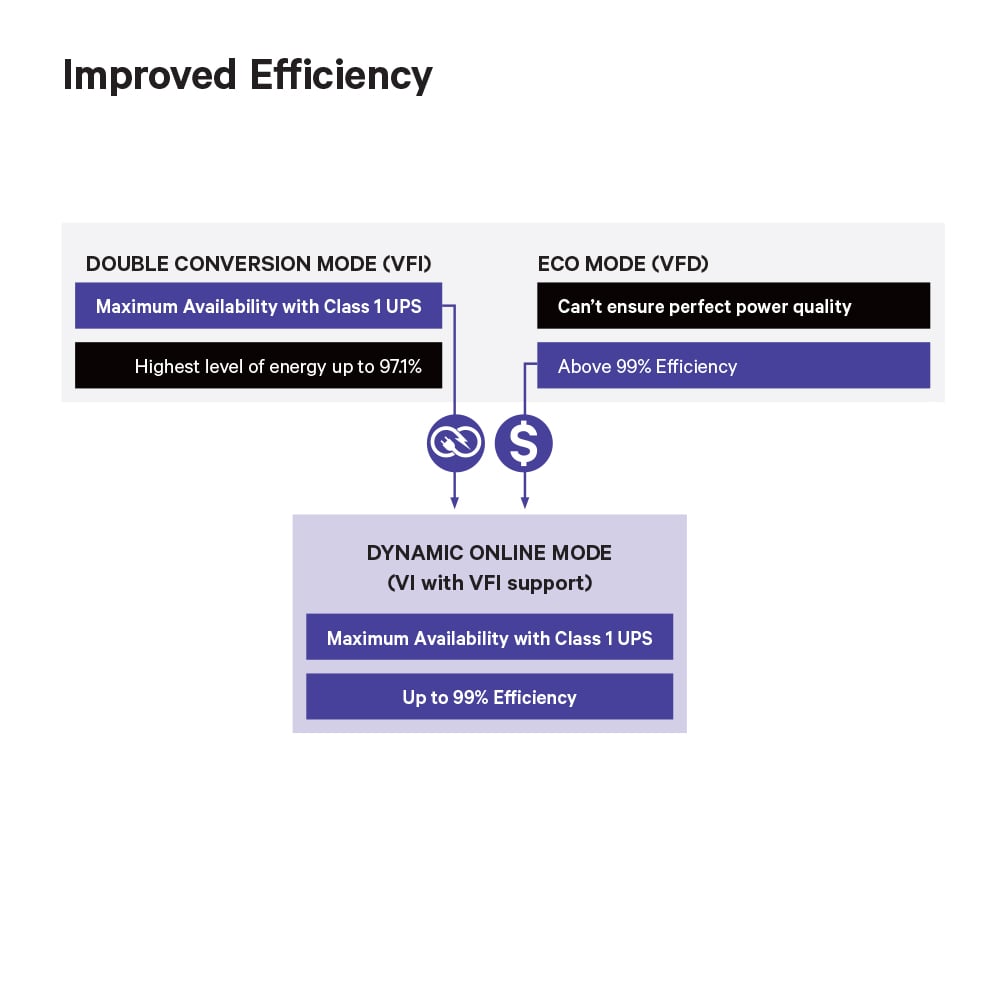

The Vertiv™ Trinergy™ UPS is a high-capacity UPS with maximized reliability and resilience, modular architecture, and high efficiency. It is ideal for the demanding requirements of large-scale applications such as AI. It can handle rapid load changes without performance degradation providing continuous operation. With 99% efficiency (Dynamic Online mode), it provides cost savings and reduced total cost of ownership. Available in standardized UL and CE configurations for global installations.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Data Center/Colocation/Hosting
- Manufacturing
- Telecom
Vertiv™ Trinergy™ UPS, 1500-2500 kW 480V UL 3-Phase Modular Large UPS
The Vertiv™ Trinergy™ UPS is a high-capacity UPS with maximized reliability and resilience, modular architecture, and high efficiency. It is ideal for the demanding requirements of large-scale applications such as AI. It can handle rapid load changes without performance degradation providing continuous operation. With 99% efficiency (Dynamic Online mode), it provides cost savings and reduced total cost of ownership. Available in standardized UL and CE configurations for global installations.
- Data Center/Colocation/Hosting
- Manufacturing
- Telecom
Specifications
The Vertiv Trinergy UPS delivers reliable power to maintain optimal performance of large-scale data centers such as AI systems. It is a modular, scalable, and sustainable solution available globally. By integrating advanced power management and supporting new energy sources, this UPS ensures data centers can handle dynamic and intensive workloads of the future.
|
Vertiv™ Trinergy™ UPS 1500kW 480V
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 1500kVA/1500kW | 480 (408 to 552), 3Ph+PE | 480 (408 to 552), 3Ph+PE | ≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode | Three wire electrical compatibility | 2010 mm | 201.22 in | 41.26 in | 10701 lbs |
| See more product information | ||||||||
|
Vertiv™ Trinergy™ UPS 1600 kW UL 480V 3W 3-Phase Modular Large UPS
|
||||||||
| 1600kVA/1600kW | 480 (432 to 552) 3Ph+PE | 480 (408 to 552) 3Ph+PE | ≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode | Three wire electrical compatibility | ||||
| See more product information | ||||||||
|
Vertiv™ Trinergy™ UPS 2000kW 480V
|
||||||||
| 2000kVA/2000kW | 480 (408 to 552) 3Ph+PE | 480 (408 to 552) 3Ph+PE | ≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode | Three wire electrical compatibility | 79.25 in | 224.84 in | 41.26 lbs | 12024 lbs |
| See more product information | ||||||||
|
Vertiv™ Trinergy™ UPS 2500kW 480V
|
||||||||
| 2500kVA/2500kW | 480 (408 to 552), 3Ph+PE | 480 (408 to 552), 3Ph+PE | ≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode | Three wire electrical compatibility | 79.25 in | 251.65 in | 41.26 in | 13206 lbs |
| See more product information | ||||||||
|
Vertiv™ Trinergy™ UPS 1500 kW UL 415V 4W 3-Phase Modular Large UPS
|
||||||||
| 1500kVA/1500kW | 415 (353 to 477), 3Ph+PE+N | 415 (353 to 477), 3Ph+PE+N | ≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode | Four wire electrical compatibility | ||||
| See more product information | ||||||||
|
Vertiv™ Trinergy™ UPS 1600 kW UL 415V 4W 3-Phase Modular Large UPS
|
||||||||
| 1600kVA/1600kW | 415 (374 to 477), 3Ph+PE+N | 415 (353 to 477), 3Ph+PE+N | ≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode | Four wire electrical compatibility | ||||
| See more product information | ||||||||
|
Vertiv™ Trinergy™ UPS 2000 kW UL 415V 4W 3-Phase Modular Large UPS
|
||||||||
| 2000kVA/2000kW | 415 (353 to 477), 3Ph+PE+N | 415 (353 to 477), 3Ph+PE+N | ≥ 97% Double Conversion VFI ≥ 99% Dynamic Online Mode | Four wire electrical compatibility | ||||
| See more product information |
Benefits
- NO SYSTEM DOWNTIME: It facilitates maintenance and power upgrades without interruption, leading to enhanced operational availability and preventing unplanned outages.
- DISTRIBUTED BATTERIES: This enhances fault tolerance and system availability by improving performance with various failure modes.
- CAPACITY & INSTALLATION FLEXIBILITY: From 1.5MW up to 20MW, this power solution can adapt to your system needs in power capacity, redundancy and design.
- ENERGY SAVINGS & MANAGEMENT: This compact, optimized power solution with simple interface offers maximum energy savings and rapid return on investment.
- RICH DIGITAL EXPERIENCE: Service empowered by data across entire life with cycle with optional Vertiv Life Advances Incident Management and Condition Based Maintenance.
- DISTRIBUTED BATTERIES: This enhances fault tolerance and system availability by improving performance with various failure modes.
Features
- TRANSFORMER-FREE DESIGN WITH FULL IGBT THREE-LEVEL DOUBLE CONVERSION TECHNOLOGY: Meet the volatile demands of next-generation AI systems.
- UNITY POWER FACTOR: Vertiv™ Trinergy UPS operates with output power factor up to 1.
- ADVANCED DIAGNOSTIC AND USER INTERFACE: Prevent issues with enhanced event analysis and colored multi-language touch screen display.
- EASY DEPLOYMENT: This skid-mount and containerized power solution allows quick setup.
- INNOVATIVE CONTINUOUS-DUTY BOOSTER CONVERTER: This offers uninterrupted power supply even at full load indefinitely.

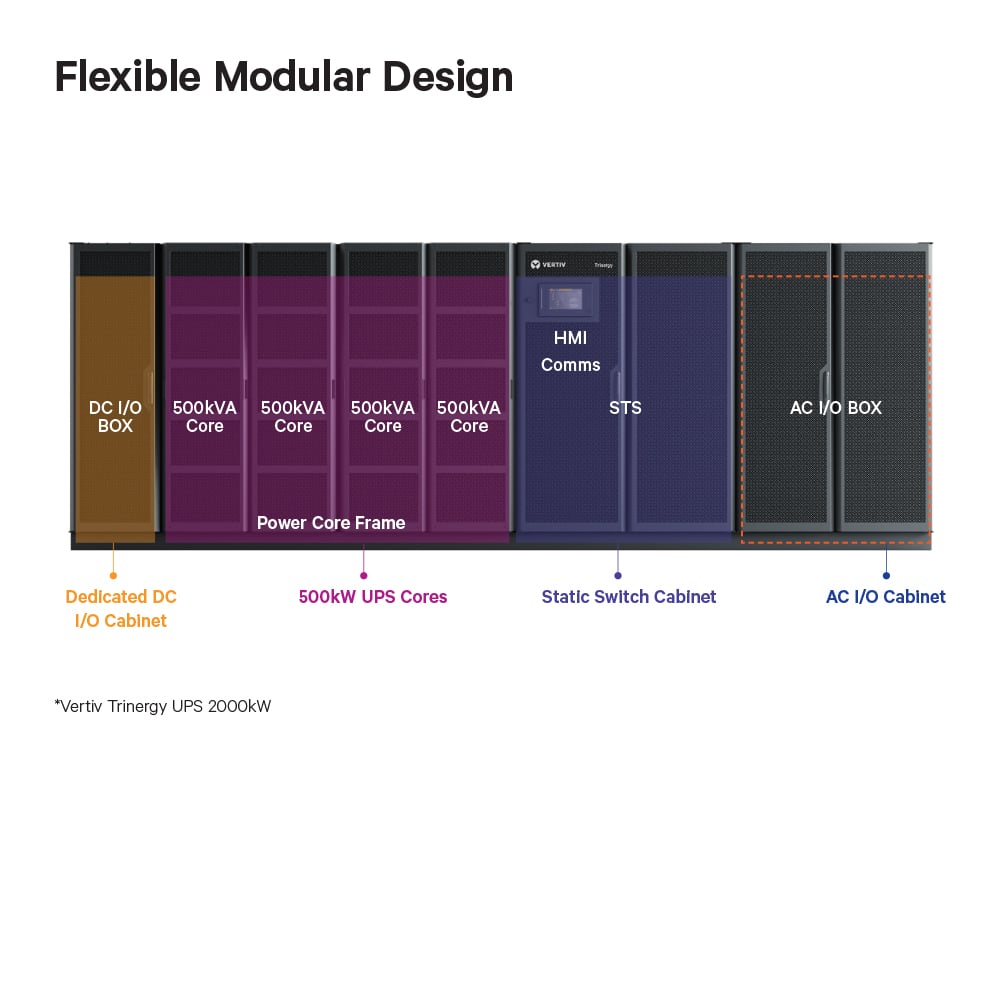

- MODULAR DESIGN TO FIT YOUR NEEDS: Get options for integrated Backfeed Protection Device and DC Ground Fault Detection.
- UNITY POWER FACTOR: Vertiv™ Trinergy UPS operates with output power factor up to 1.
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
